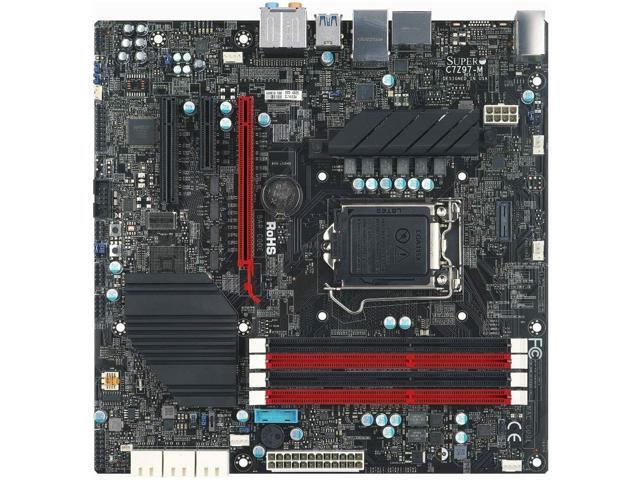

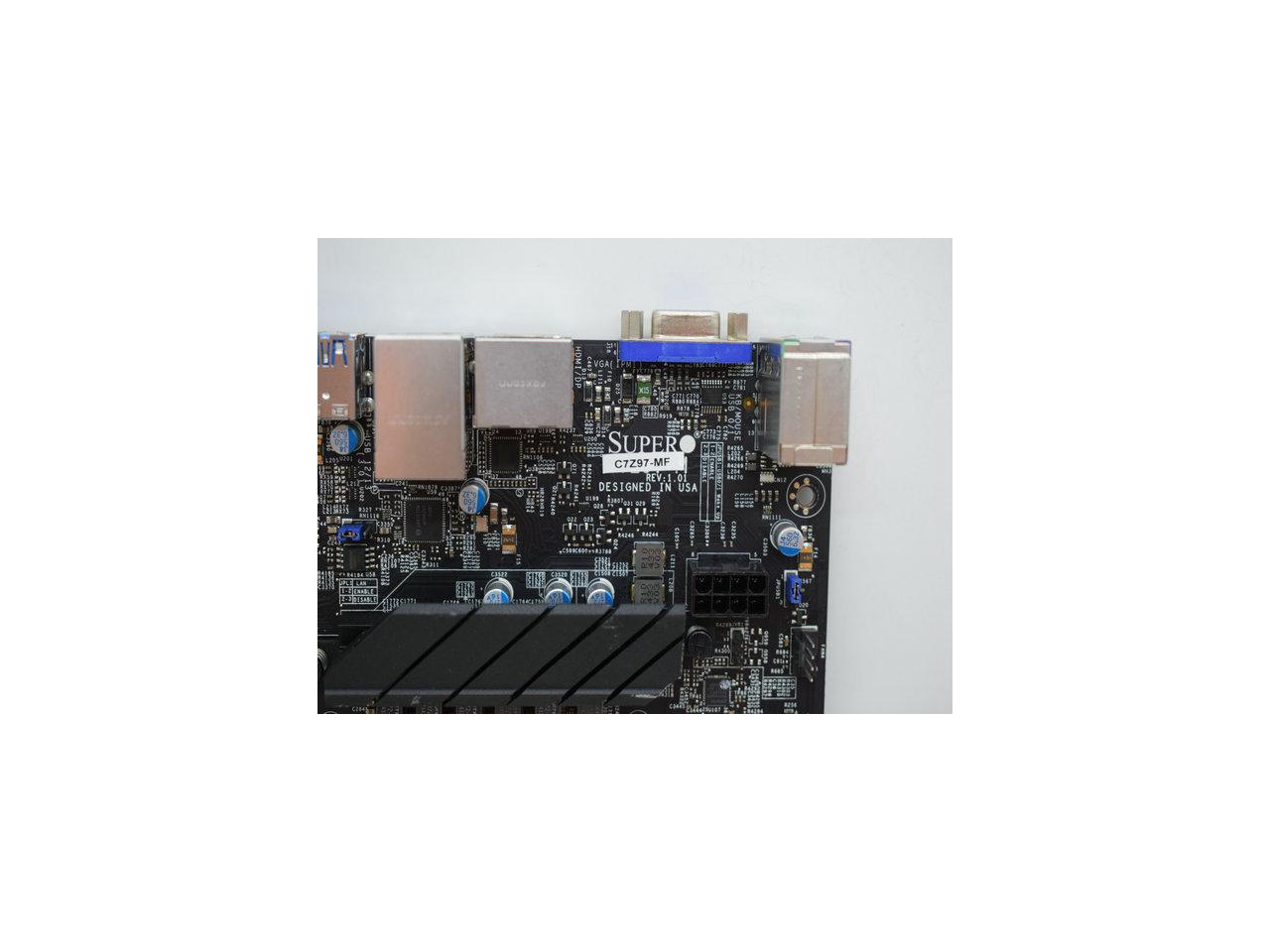

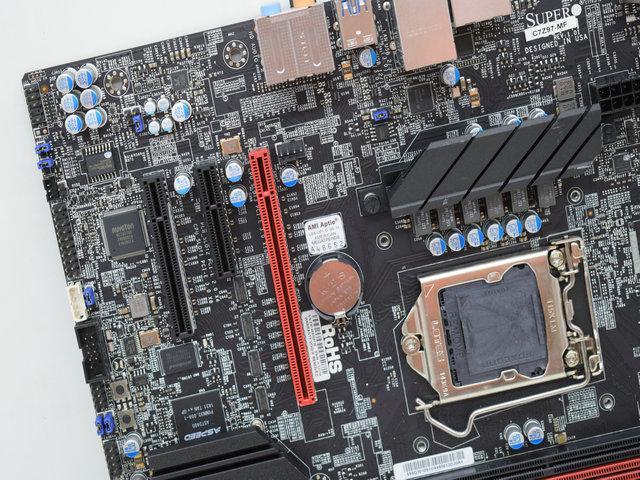

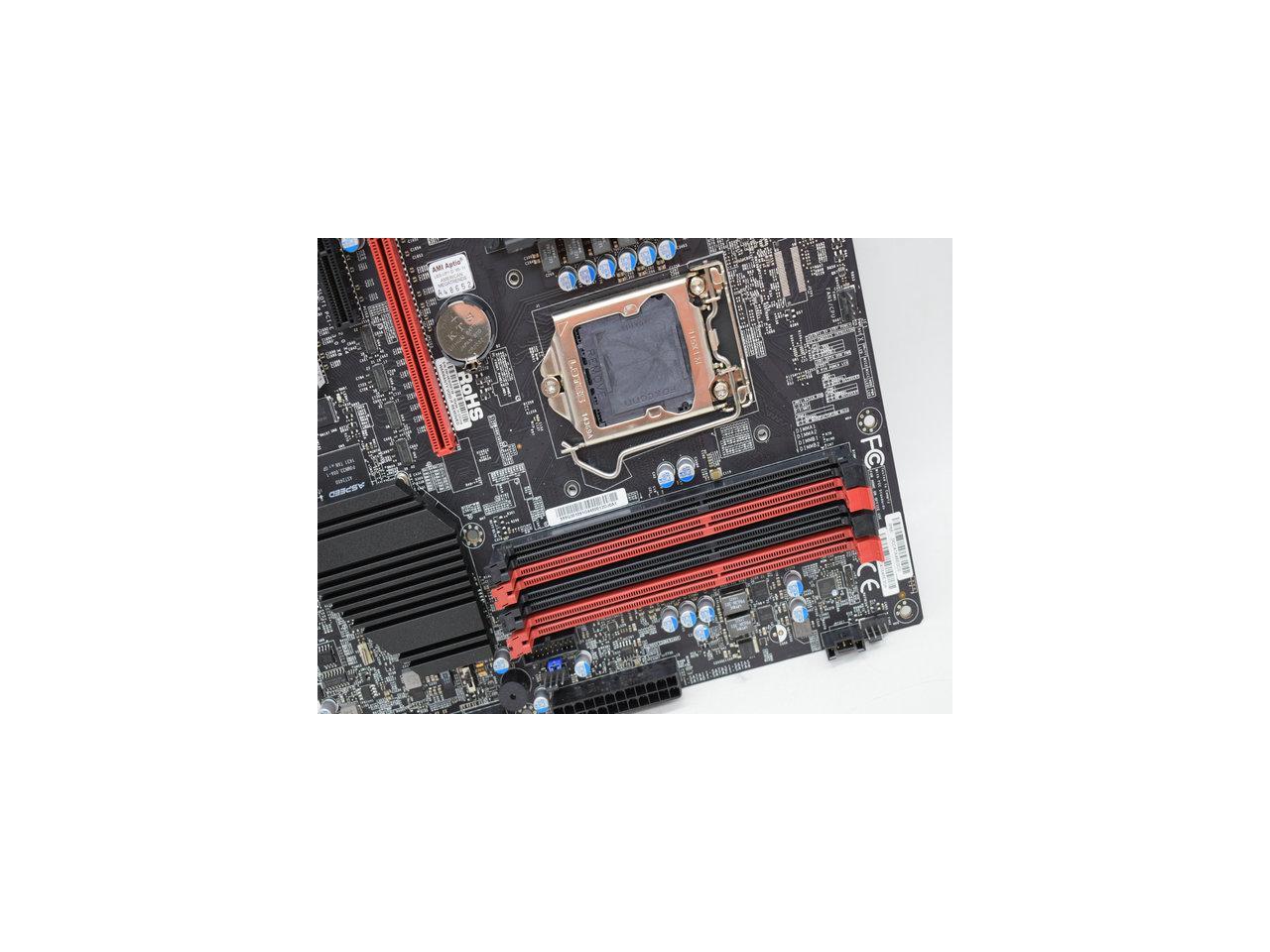

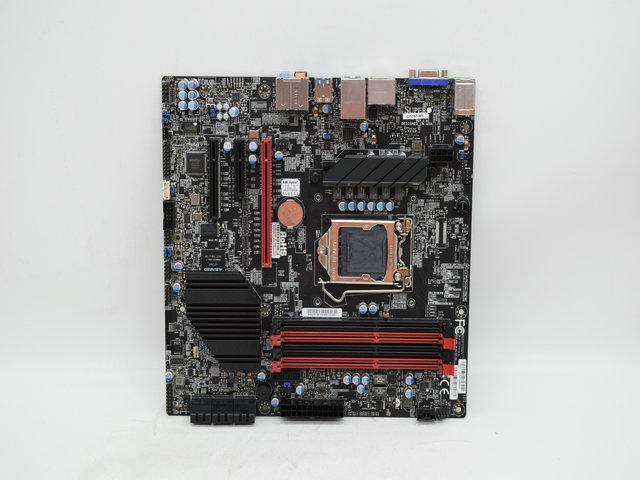

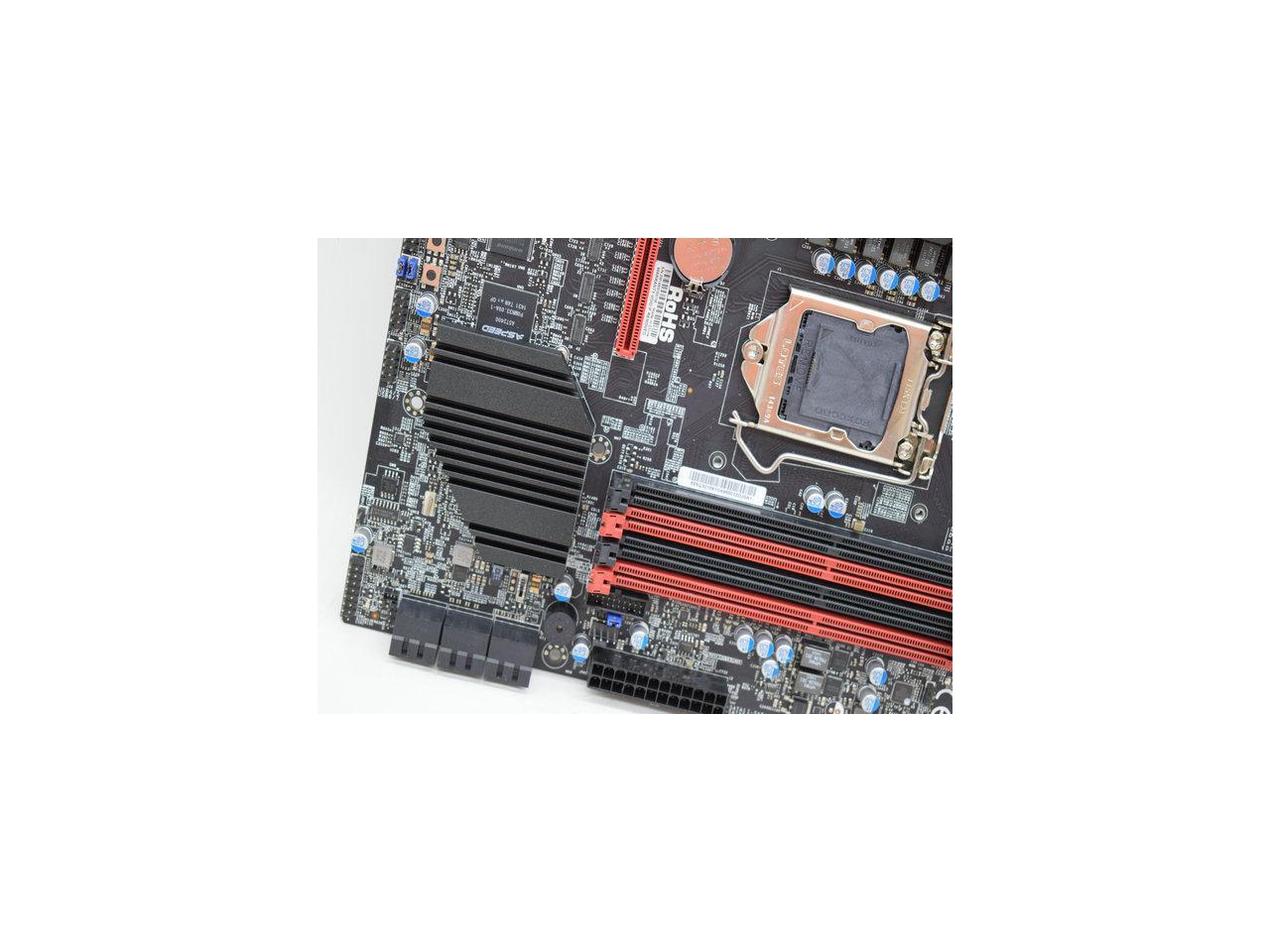

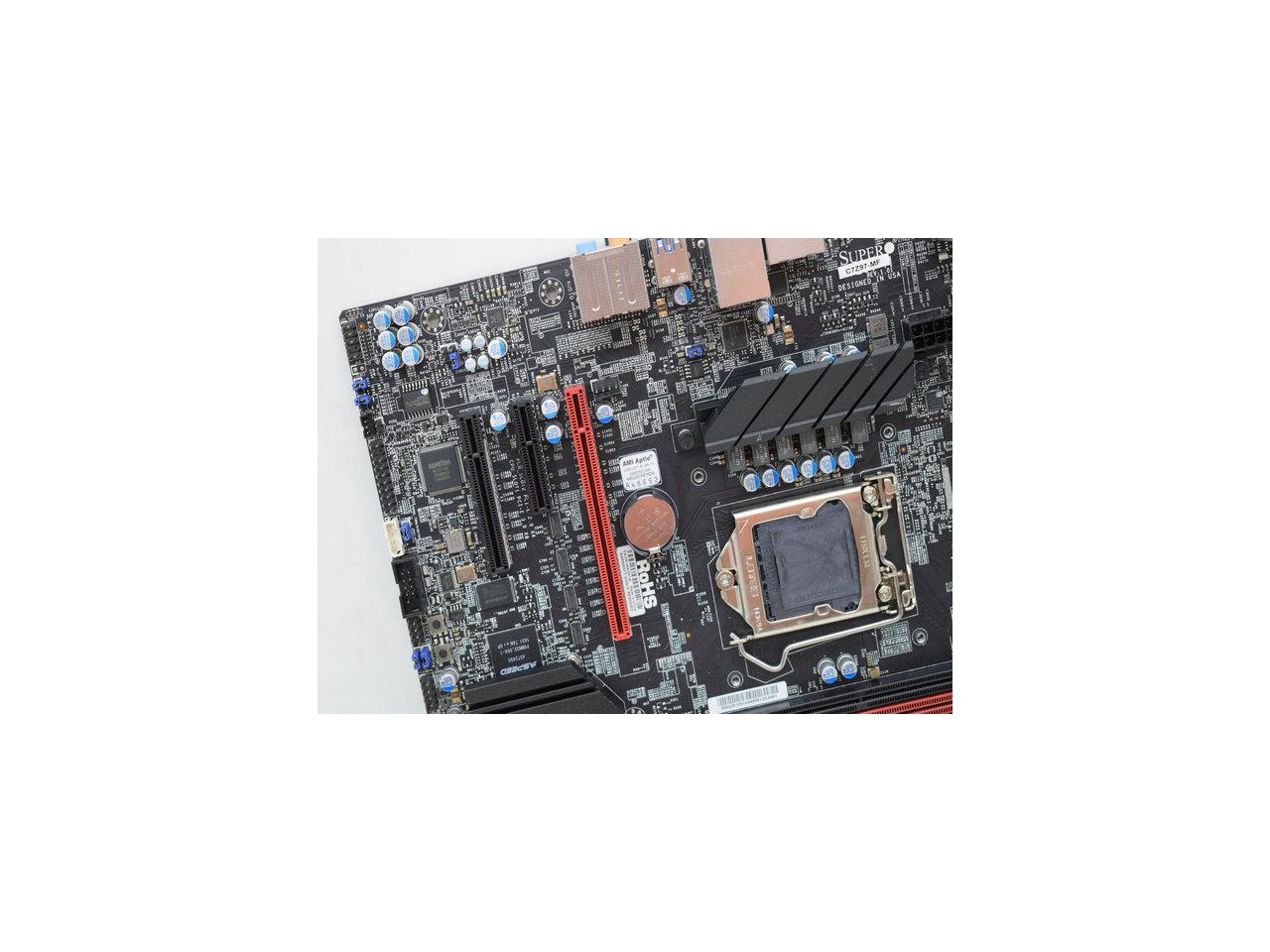

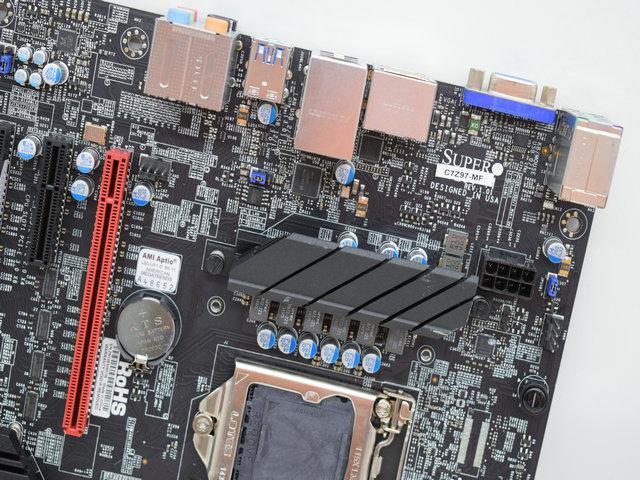

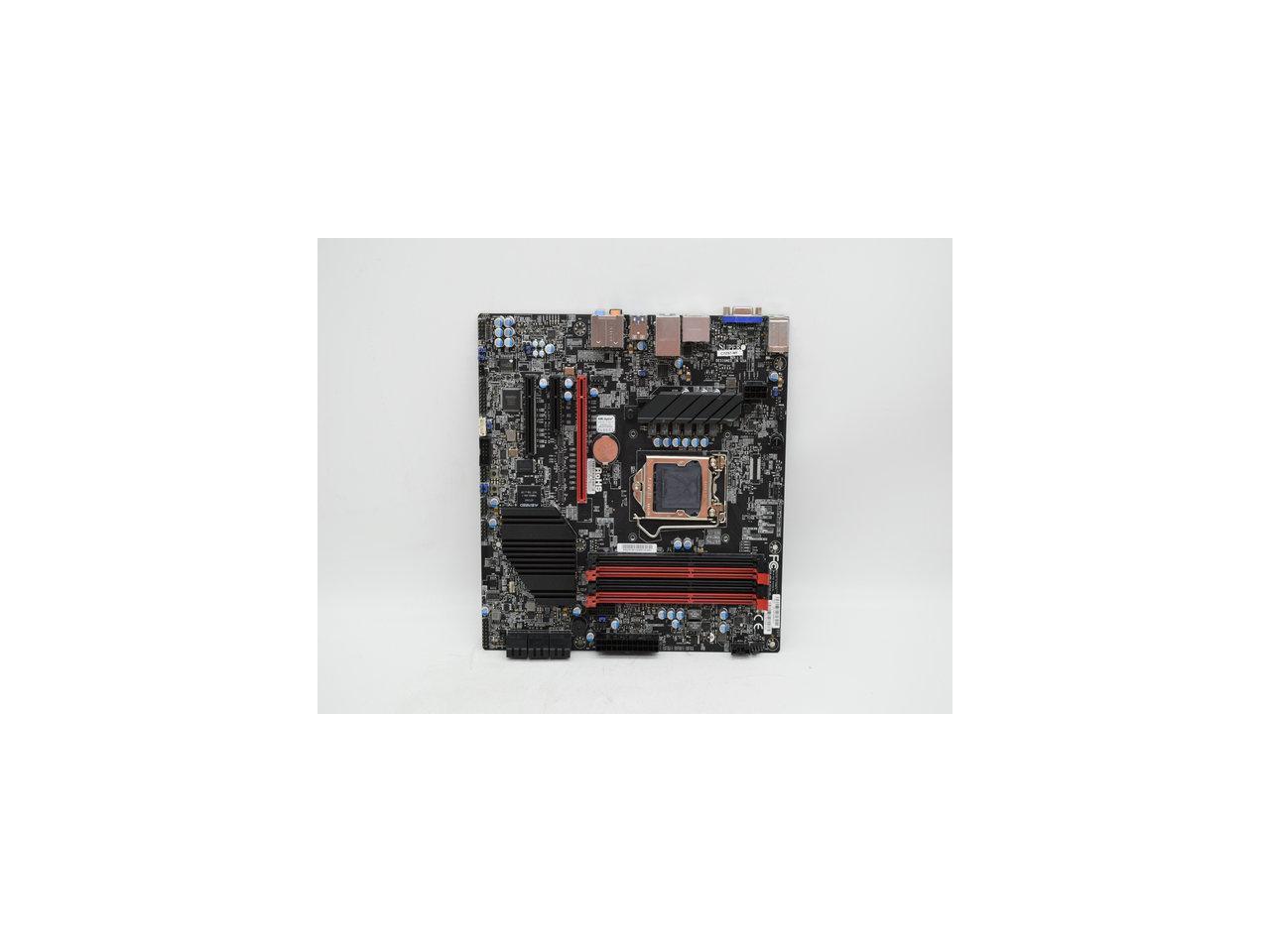

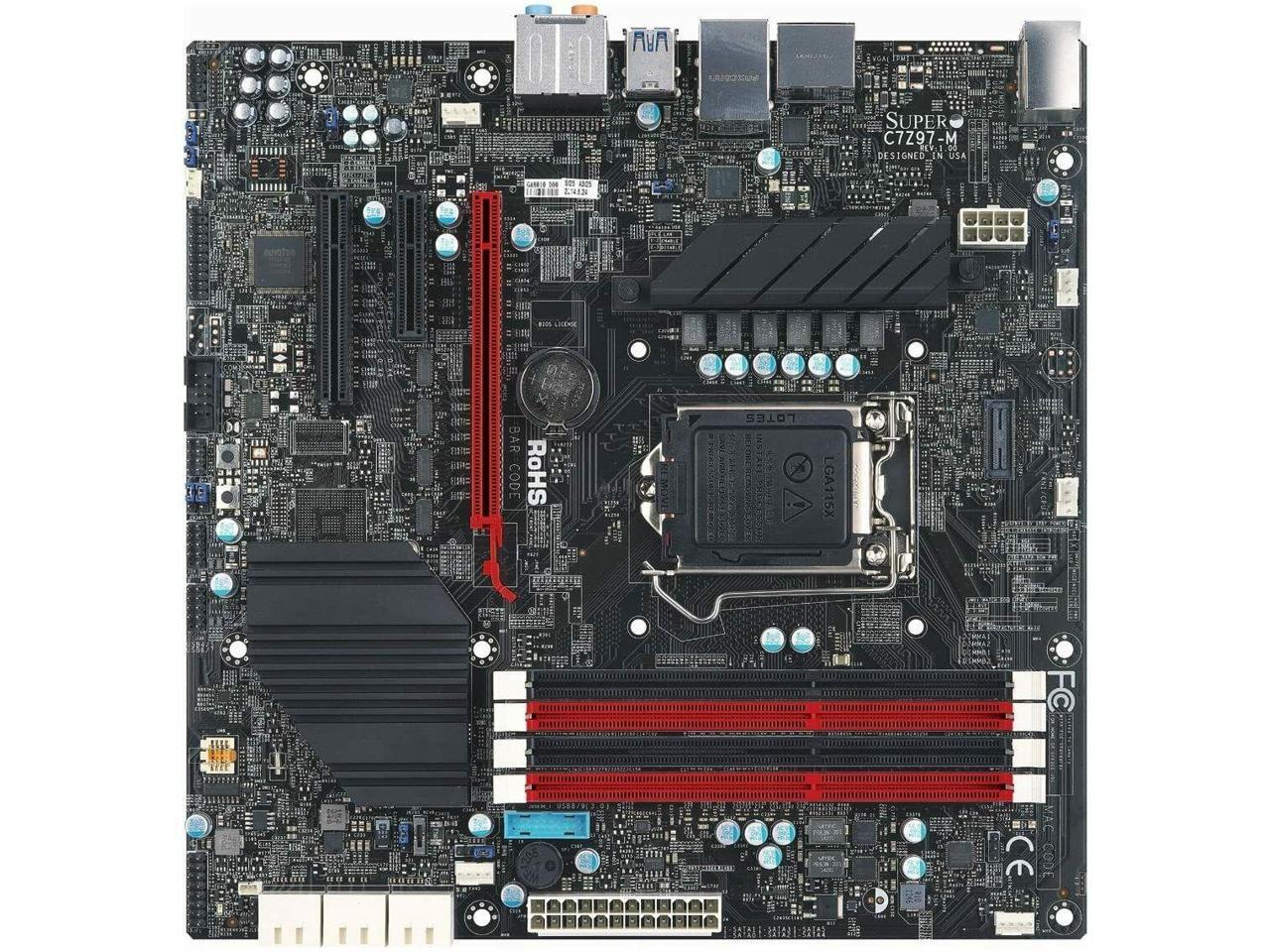

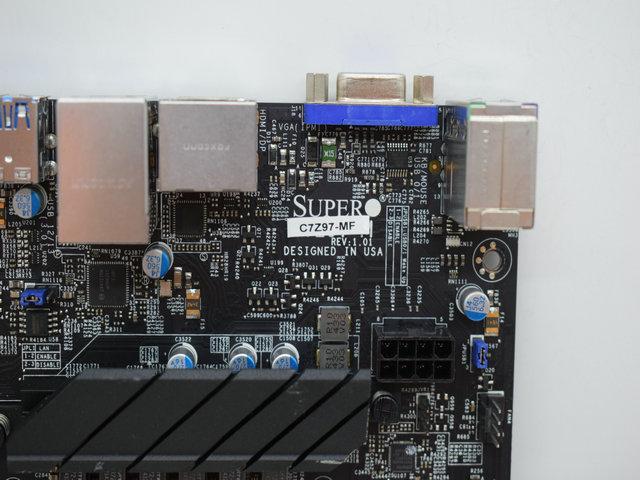

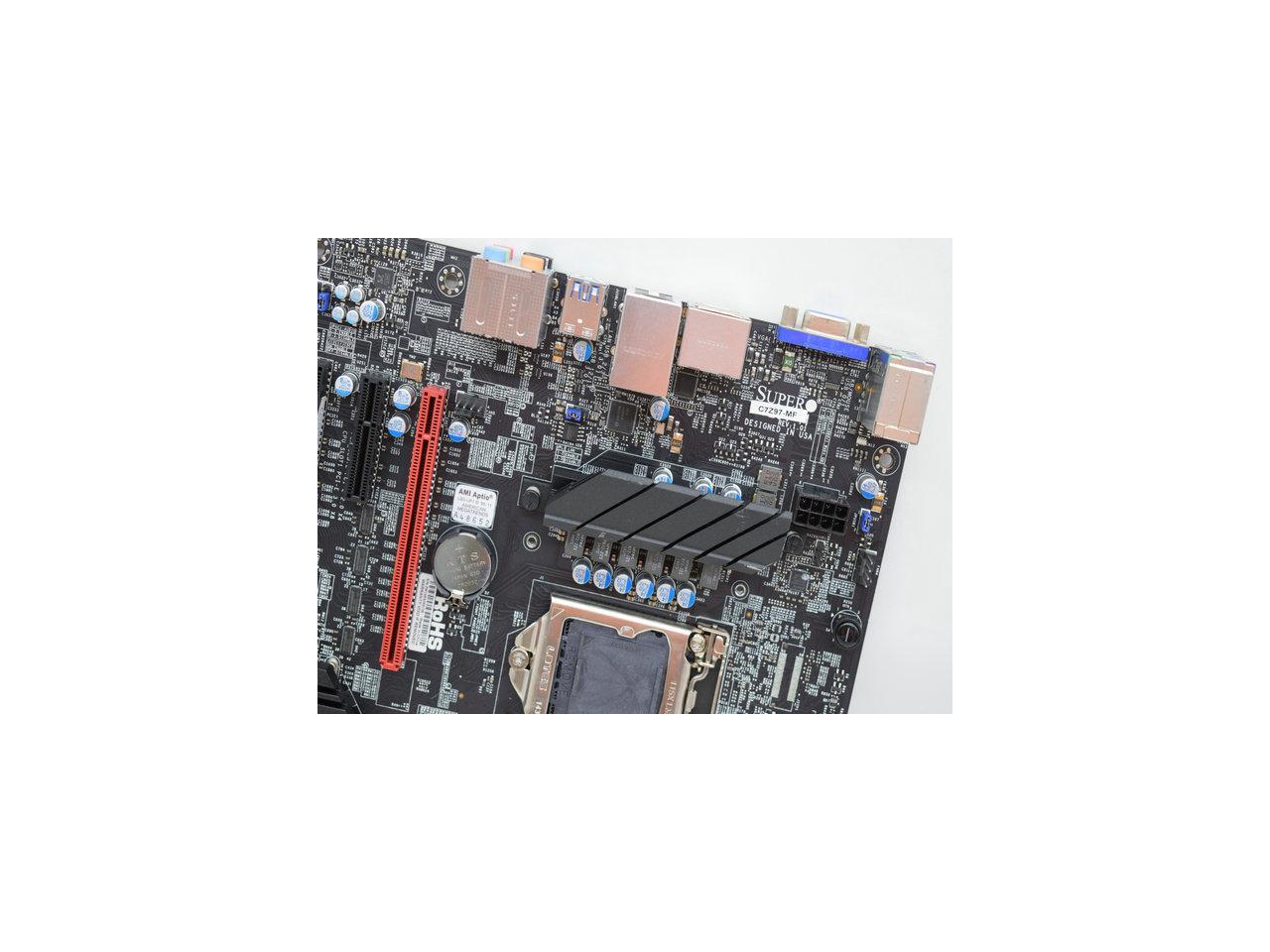

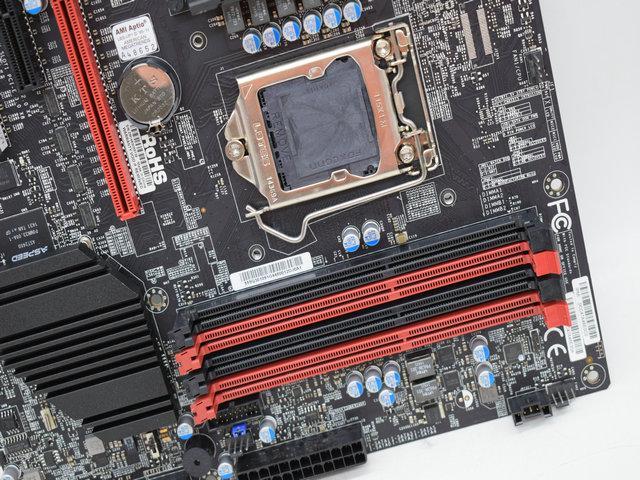

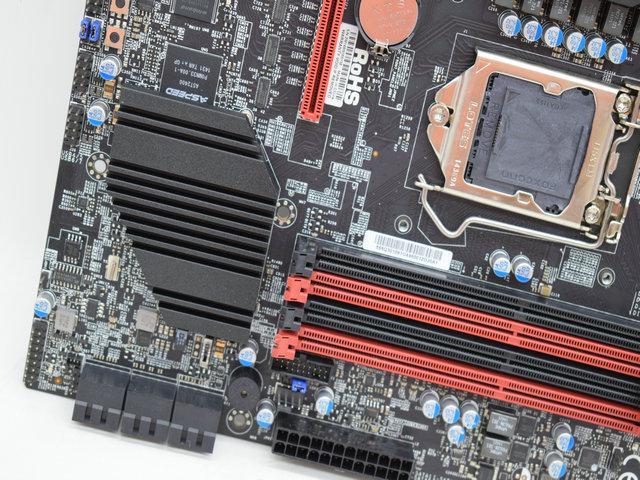

Supermicro C7Z97 MF Gaming Workstation Motherboard LGA1150 Micro-ATX DDR3

Be the first to review this product...
Check more best sellers of "AMD Motherboards"
Check more lowest price of "AMD Motherboards"
In stock.
Ships from China.
Fees for brokerage and duty included in price.
  • 1, The quality is original, 100% new, without original box.
  • 2, 100% tested working before shipping.
  • 3, Come with the I/O Shield except Dell/Lenovo/HP boards.
  • 4, Without CMOS battery for air transport.
  • 5, Please make sure you buy the right board to ensure 100% compatible with your other hardware, if you're not sure, pls contact us for help.
  • We provide a 3-month warranty, the buyer pays the postage of the returned package.
  • Motherboard has many parameters that cannot be entered
  • , so product attributes are for reference only, please check the official data of this model for real data.
  • We have more quantity in stock,  Welcome for wholesale order !
+
+
Overview
Specs
Reviews
Specifications Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs. MBD-C7Z97-MF C7Z97-MF Physical Stats Form Factor Micro-ATX Dimensions 9.6" x 9.6" ( 24.38 cm x 24.38 cm) Processor/Cache CPU Intel® 4th Generation Core? i3 series, Intel® 4th Generation Core? i5 series, Intel® 4th Generation Core? i7 series. Socket LGA 1150 supported, CPU TDP support Up to 150W TDP System Memory Memory Capacity Up to 32GB Unbuffered non-ECC UDIMM, DDR3-3300MHz (OC), in 4 DIMM slots Memory Type 1600MHz non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs DIMM Sizes 1GB, 2GB, 4GB, 8GB Memory Voltage 1.35V, 1.5V On-Board Devices Chipset Intel® Z97 SATA Intel® Z97 controller for 6 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10 Network Controllers Single LAN with Intel® Ethernet Controller I210-AT Share with IPMI Audio ALC 1150 HD Audio Graphics VGA display port is for IPMI only.

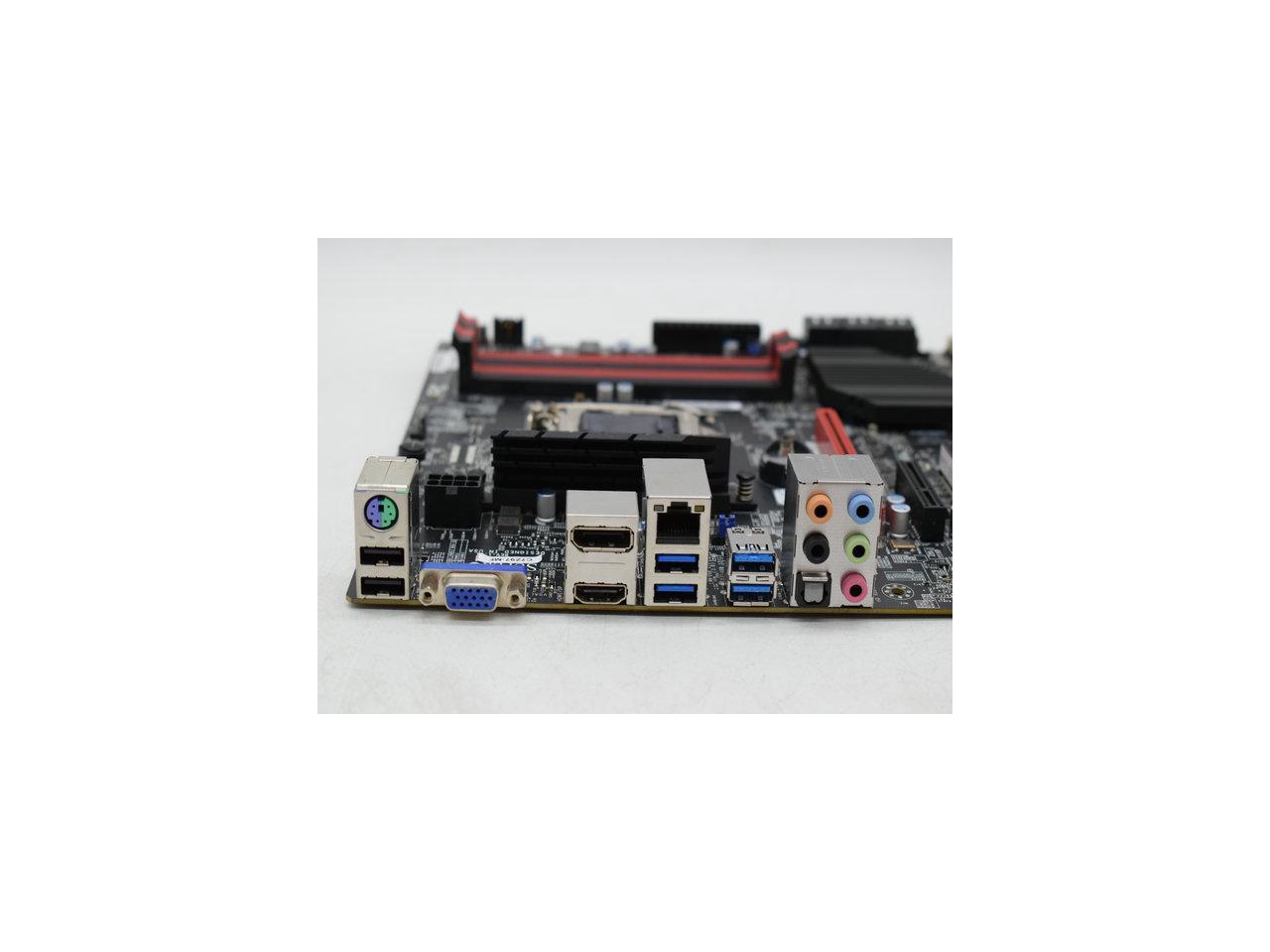

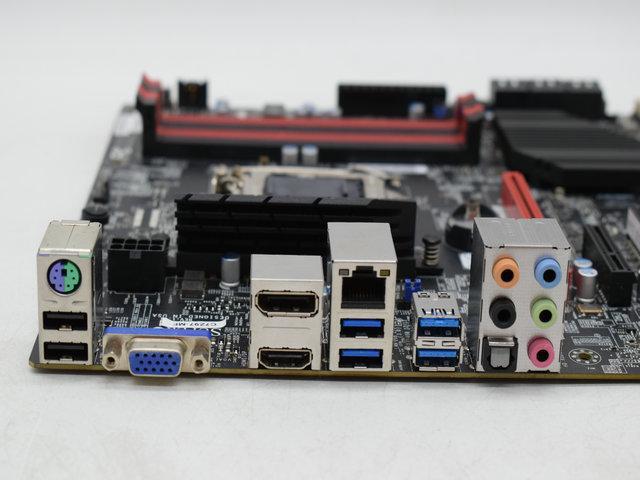

Input / Output LAN RJ45 Shared IPMI LAN port USB 6 USB 2.0 ports (2 rear + 4 headers), 6 USB 3.0 ports (4 rear + 2 headers) Video Output 1 HDMI port, 1 DP (DisplayPort) port, 1 VGA port Serial Port / Header 1 COM Port (1 header) TPM TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x81 PCI-E 2.0 x4, (PCI-Ex16 slot and PCI-Ex8 slot are running at 16/NA or 8/8) System BIOS BIOS Type UEFI 128Mb Management Software IPMI 2.0, SuperDoctor® III, Watchdog PC Health Monitoring Voltage + 1.8V, +12V, + 3.3V, +5V, +5V standby, 3.3V standby, Chassis intrusion header, Monitors CPU voltages FAN 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, PWM fan speed control Temperature N/A LED N/A Other Features ACPI power management, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, Voltage and Frequency Overclocking, WOL
