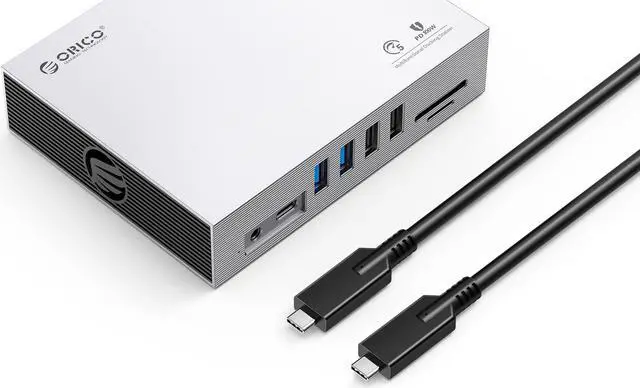

ORICO USB C Docking Station 15in1 Type C to Multi HDMI-Compatible-compatible 4K60Hz PD100W USB3.0 Docking Station for MacBook Pro RJ45 OTG SD Card Reader HUB Silver

The product is an Type-C 15-in-1 multifunction Docking Station, Through the Type-C interface extends USB-A 3.0X 2, USB-A 2.0X 4, Type-CX1, TFX1, SDX1, DPX1, HDMIX2, RJ45X1, AudioX1, PDX1, suitable for Type-C interface notebooks, desktops, etc. Meet the daily audio and video data transmission.


1. Aluminum alloy +ABS shell frame, novel design, simple and beautiful.
2. USB-A interface supports USB disk, Mobile hard disk, etC., USB-A 3.0 interface transmission rate of 5Gbps, USB-A 2.0 interface transmission rate of 480Mbps.

3. Type-C interface can be connected to Type-C interface U disk/mobile hard disk and etc, the transmission rate is 5Gbps.

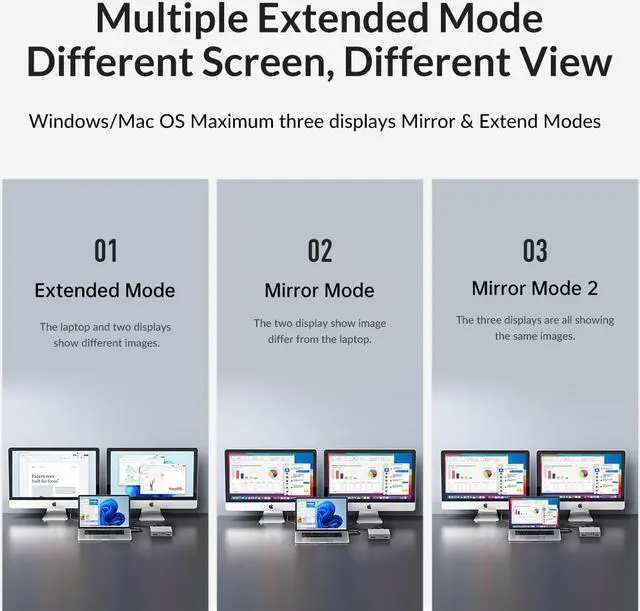

4. HDMI interface can mirror or extend the display to support 4K@60Hz HD resolution, dual video support 4K@60Hz resolution.
5. DP interface can mirror or extend the display to support 4K@60Hz HD resolution, dual video support 4K@60Hz resolution.
6. RJ45 LAN Port supports maximum 1000Mbps network.
7. TF/SD dual - read card, cannot be used at the same time, USB 2.0 transfer rate.
8.3. 5mm HD stereo headset interface.
9. PD 3.0 charging protocol is supported with the maximum of 100W.
10. support Apple Computer M1 multi-screen expansion.
11. support Windows 8/10, Mac OS system.

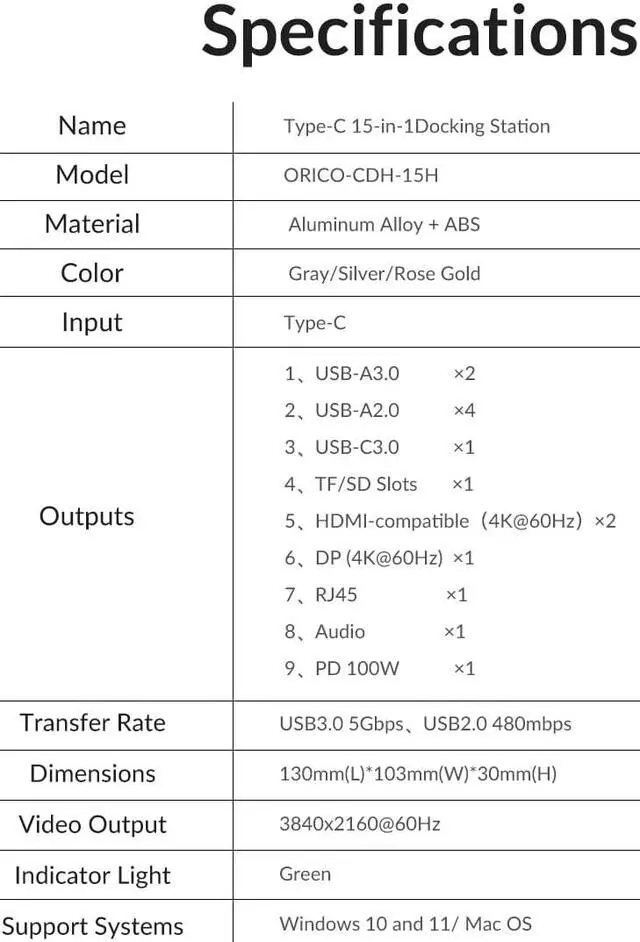

Name: Type-C 15 IN 1 Multifunctional Docking Station
Model: CDH-15H
Material: Aluminum alloy + ABS

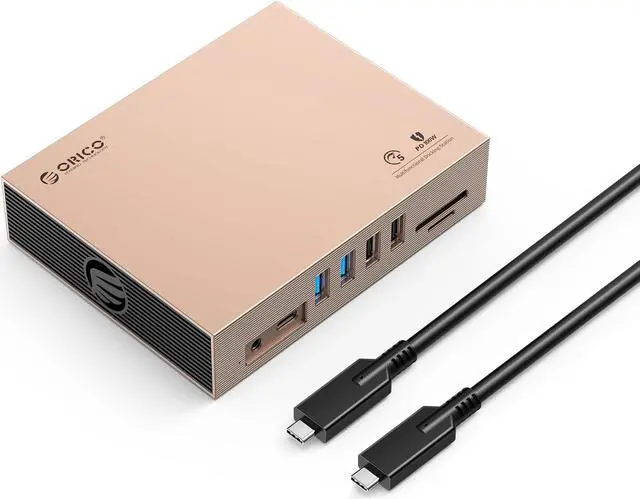

Color: Silver / grey / Rose gold
Dimensions: 130 (L) X 103 (W) X 30 (H) mm
Input Port: Type-C

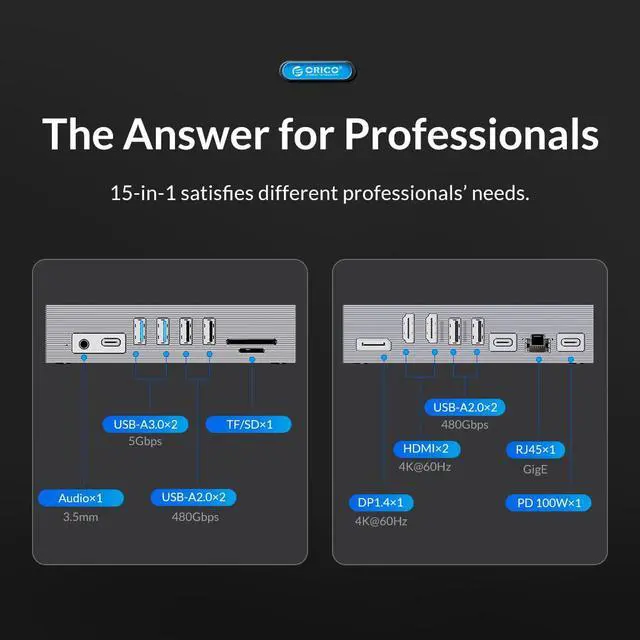

Output port: USB-A 3.0 (5Gbps) X2; USB-A 2.0 (480Mbps) X4; USB-C 3.0 (5Gbps) X1; TF/SDX 1; HDMI(4K@60Hz)X2; DP(4K@60Hz)X1; PD (100W) X1; LAN (1000M) X1; Audio/MicX1
PD Power: 20V -5A 100W Max
Supported System: Windows 8/10, Mac os

Attention

1. It needs to install Displaylink driver, Driverdownload
address:
https: //www. displaylink. com/downloads.
2. DP and HDMI 1 ports cannot be used at the same time.

3. Please manually eject the device before unplugging the device inserted in this product to avoid possible data corruption or loss.
