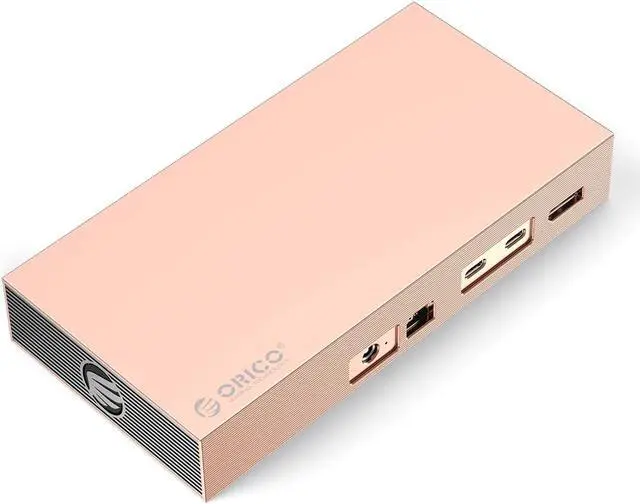

ORICO 8K Dual Thunderbolt 3 Dock 40Gbps with Dual Bay M.2 NVMe NGFF Enclosure USB C HUB with 60W Power Delivery, Display 8K@60Hz, Dual 4K, Gigabit Ethernet For Thunder Gold

Product features

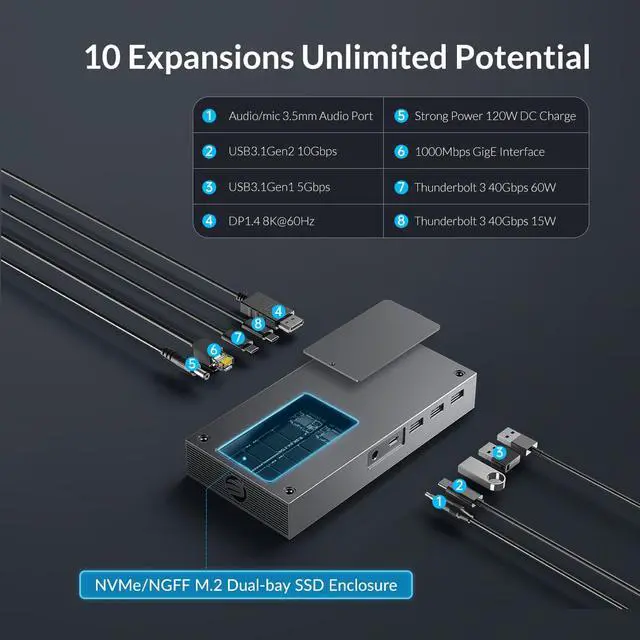

1. Defining high-performance expansion, RJ45 port, Thunderbolt 3 interface, USB 3.0 / 3.1 data interface, DP interface, data transmission, network access andcharging protocol are all high-performance standards.

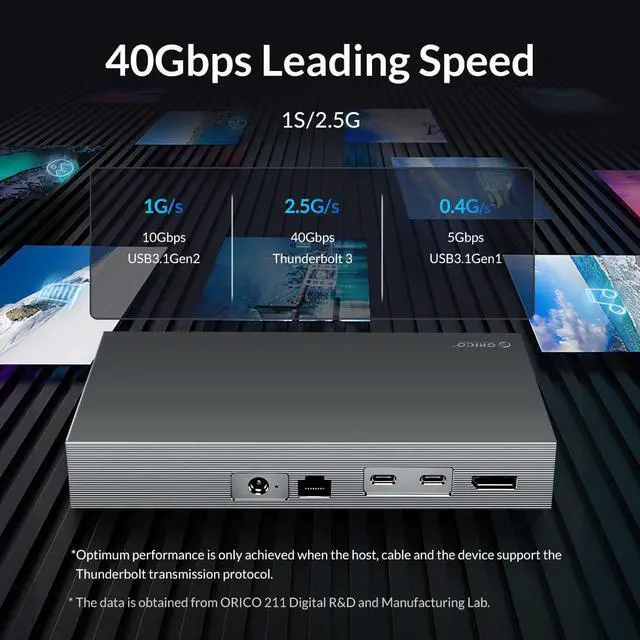

2. The Thunderbolt 3 interface has a theoretical rate of40 Gbps and can be cascaded downward to a 5-layer Thunderbolt 3 devices. Charge your laptop up to 60W. The Type-C interface supports a theoretical rate of 10 Gbps.
3. DP interface support to 8K@60Hz resolution.
4. USB 3.0 port support to 5Gbps transmission rate.
5. LAN port support to 10/100/1000Mbps adaptive network bandwidth.
6. Built-in 2 M. 2 SSD drive slots, supporting M. 2 SSD withNVMe and SATA protocol.
7. External DC power, 24V-=-5A (120W), which cansupport the maximum power charging of 60W for the notebook to ensure the operation of devices. 8. Support normal earphone, speaker, microphone. etc.
9. Product adopts anodized aluminum alloy.
10. Applicable to Thunderbolt 3 interface, compatible with operation systems of Windows 10 and above, Mac OS.


Installation Guide

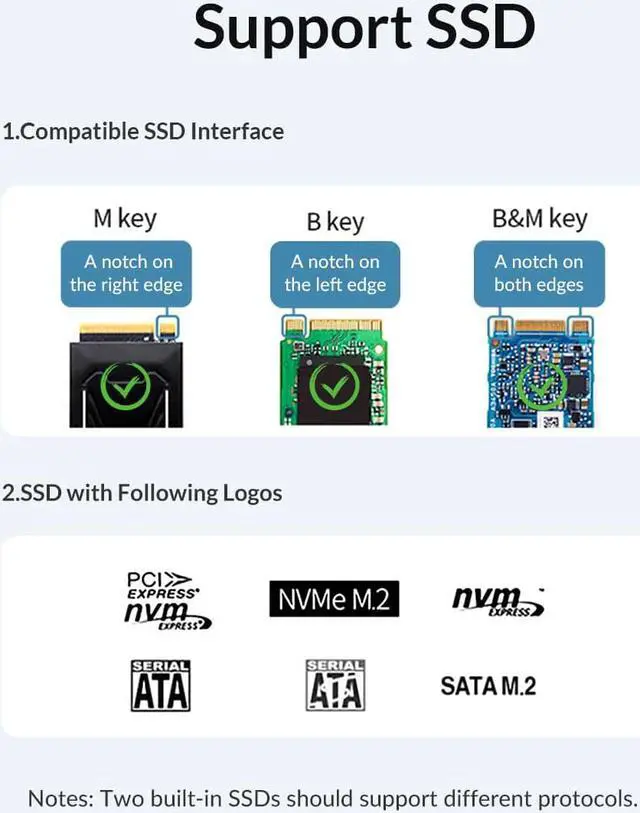

Supports NVMeSATA protocol M. 2 SSD, The installation diagram is as follows (SSD needs to be purchased separately)
Use a screwdriver to unscrew the back cover screw at the bottom of the product and open the back cover.
Insert the M. 2 SSD into the M. 2 interface (the drive slots on the left supports SATA protocol SSD, and the drive slots on the right supports NVMe protocol SSD ).
The lock screw holds the SSD.
Stick the siliconethermal pad on thetop of the SSD.

Put back the lid, Fix the screw, then theinstallation completed.
