4K HDMI True Matrix Switcher 4x2 2x4 2x2 Matrix HDMI Switch Splitter 2 In 4 Out with Optical & R/L Audio Extractor Dolby HDCP2.2

Described as: HDMI matrix 4x2

Features:

* Support 3D video format;

* Via HDMI out1, support 3.5 mm earphone jack and optical output at same time;

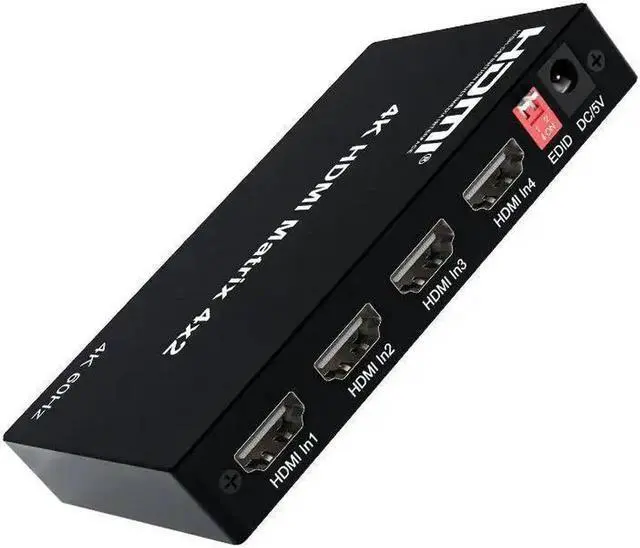

* 4 HDMI inputs switch and split to 2 HDMI displays;

* Support LPCM/Dolby/DTS 5.1 channel;

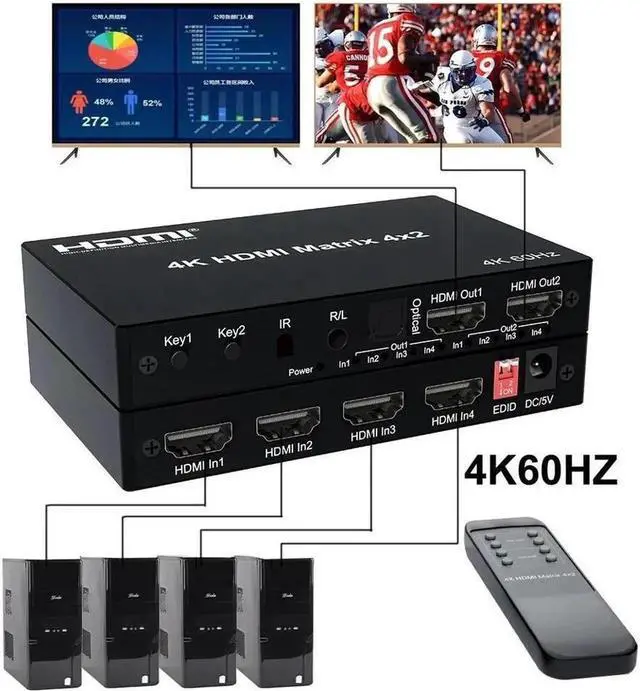

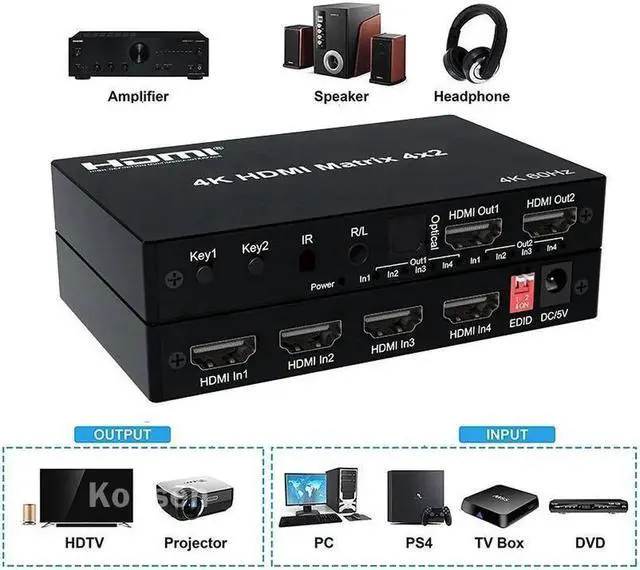

The HDMI matrix 4x2 can connect 4 HD signal sources to 2 HD display terminals with optical fiber and stereo headphone output at the same time via HDMI out 1 port.

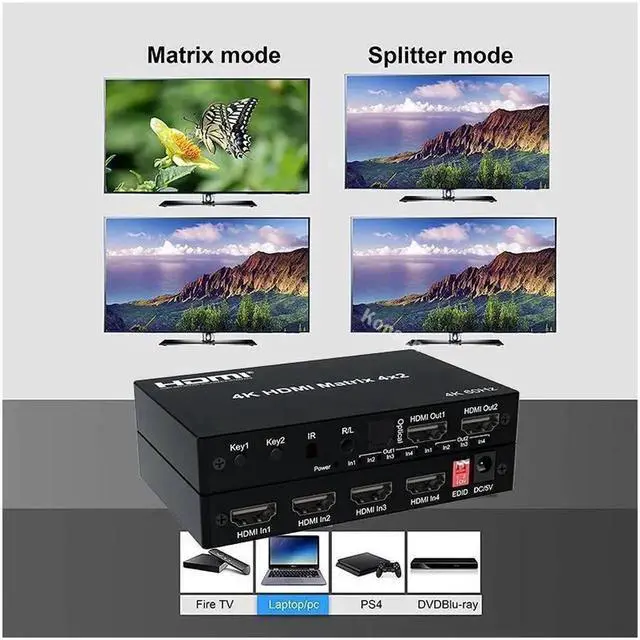

The matrix allows four HDMI devices to be switched or split easily to two HDMI-compatible monitors or projectors.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution,

conference room presentation, school and corporate training environments.

SPECIFICATIONS:

HDMI resolution........................................................................ up to 3840*2160/60Hz

Support video format...................................................................... 8/10/12 bit deep color

Support audio format.................................................................... LPCM/DTS/Dolby-AC3

Max bandwidth......................................................................................... 600MHz

Max baud rate......................................................................................... 3x6Gbps

Input cable distance................................... 4K/30Hz 15M AWG26 HDMI standard cable

4K/60Hz 5M HDMI 2.0 standard cable

Output cable distance................................. 4K/30Hz 15M AWG26 HDMI standard cable

4K/60Hz 5M HDMI 2.0 standard cable

Max working current................................................................................... 900mA

Power adapter format.................

Input: AC (50HZ, 60HZ) 100V-240V;

Output: DC5V/ 1.5A

Operating Temperature range............................................................... (-15 to +45)

Operating Humidity range............................................ 5 to 90%RH (No Condensation)

Dimension (L x W x H).................................................................... 122x80x19 (mm)

Weight........................................................................................................... 180g
