$83.50
Ships from China.
Meet Your Seller

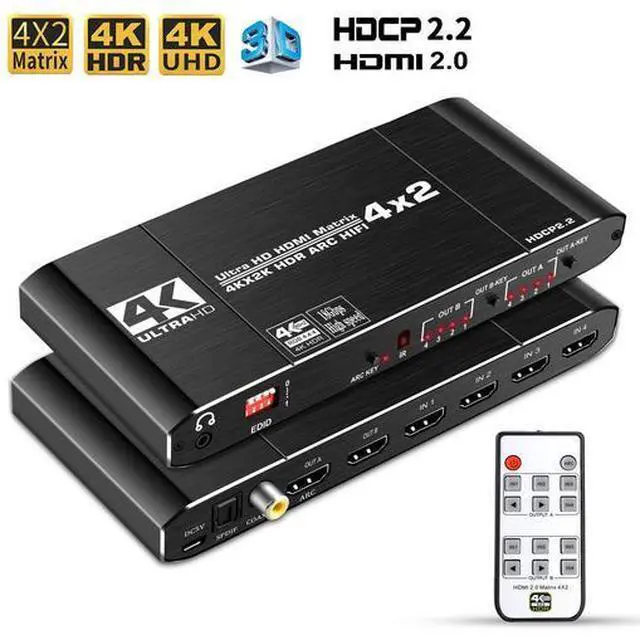

Torpedo Nova 4x2 HDMI Matrix Switch with Audio Extractor & ARC, 4K@60Hz 4:4:4, HDCP 2.2, HDR10+, Independent Zone Control for Advanced Home Theater
- Complete 4x2 Matrix Flexibility for Multi-Zone Control Independently route any of the 4 HDMI inputs to either or both of the 2 outputs. Display different content in two rooms simultaneously (e.g., gaming on Monitor A while watching a movie on Monitor B) or duplicate content as a powerful 1x2 splitter.
- True 4K@60Hz Fidelity with Dolby Vision & HDR10+ Experience the pinnacle of video quality with support for 4K at 60Hz, 4:4:4 chroma sampling, and advanced HDR formats including Dolby Vision and HDR10+. This ensures breathtaking color, contrast, and clarity from all your premium media sources.

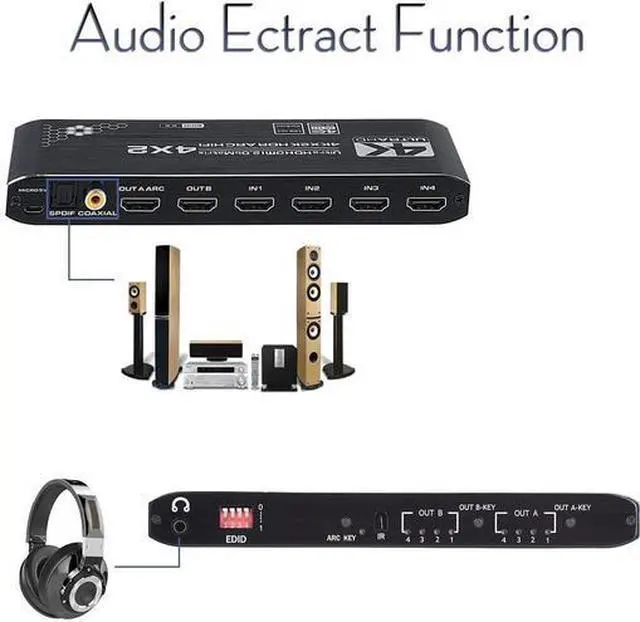

- Advanced Audio Extraction with HDMI ARC Support Functions as a high-fidelity audio processor. It extracts audio via Optical, Coaxial, and 3.5mm AUX outputs simultaneously. Crucially, its Output A features ARC (Audio Return Channel), pulling audio from your Smart TV back into the matrix for whole-home audio distribution.
- Lossless Audio Passthrough for Cinematic Sound Preserves and passes through the highest quality audio formats without compression, including Dolby Atmos (via HDMI) and DTS-HD Master Audio, delivering an immersive, object-based surround sound experience to your compatible AV receiver.
- Professional EDID Management & Dual Control Built-in EDID management and dip switches ensure perfect compatibility and handshake between all source and display devices. Control the entire system with ease using the included IR remote or the front-panel buttons f
+
+
Overview
Specs
Reviews
Feature:
* Supports four HDMI input switches or can be divided into two HDMI outputs
- Input ports: 4 × HDMI
- Output ports: 2 × HDMI + 1 * SPDIF + 1 * COAX + 1 * 3.5mm stereo audio
* Supports HDMI 2.0b, HDCP 2.2, ARC, HDR
* Supports 3D video format
* HDMI resolution: 4KX2K @ 60Hz / 3D / 1080P @ 60Hz / 1080i / 720p / 576p / 576i / 480p / 480i (the highest resolution can reach 4096*2160/60Hz);
* Supports 18G data rate and TORE clock, up to 320Mhz
* Supports video format: 8/10/12 bit color depth
* Supports audio format: DTS-HD / Dolby-true HD // DTS / Dolby-AC3 / DSD
* Supports 3.5mm stereo audio output and optical output
* Supports 5.1 audio channels
* Supports 5V-12V wide voltage input

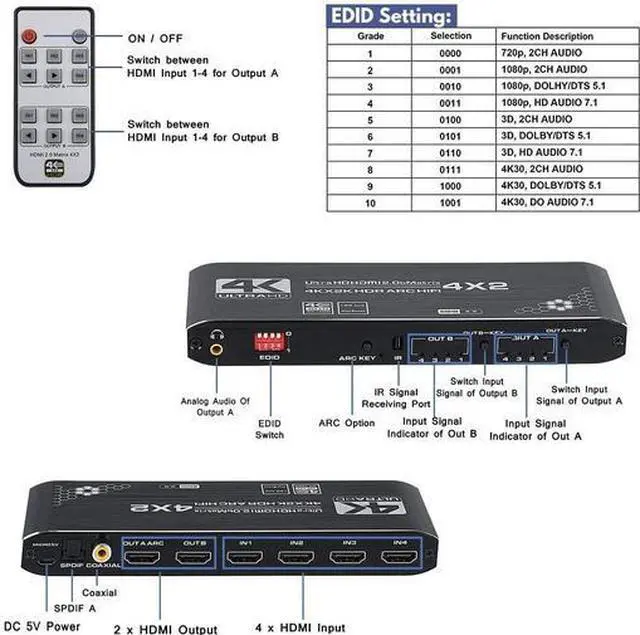

* EDID management enables compatibility with most display devices.

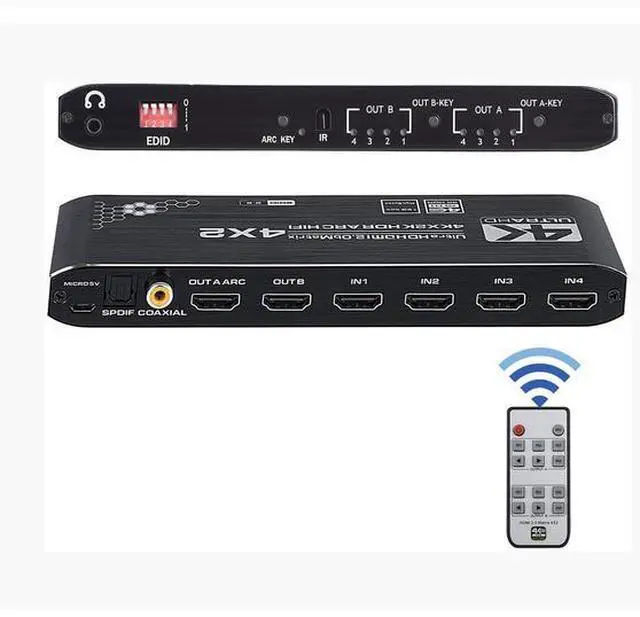

Button and LED Instructions:
*LED: The IN-4 LED indicator shows the corresponding input source for output 1 or output 2.
*Buttons: Keys 1 or 2 are used to switch the input source of OUT 1 or OUT 2.
*Note: Pressing Key 1 or Key 2 for about 5 seconds allows you to switch between audio channels between 5.1 and 2.1.
