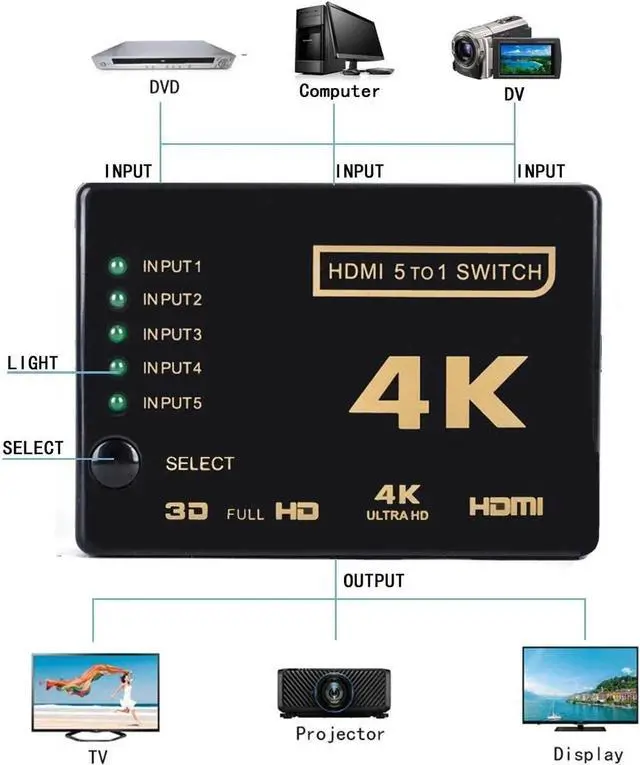

The HDMI Compatible 5 port switch is a product that can switch multiple HDMI signals to a high-definition display device such as HDTV with a manual button. Optimized home theater system by avoiding frequent unplugging of cable plugs and cables.
Features:
Support 4K * 2K, 2160P, 1080P
Multi-function switch: smart or mechanical
Support HDMI Compatible 1.4 b.
High performance up to 2.5G ps
Maintain high resolution, 4K * 2K 1080P
Function: Signal amplification, image transformation and image selection.
Interface 25 meters at both ends of the transmission distance.
Compatible with HDCP devices.
For digital HDTV, plasma display, LCD, set-top box, DVD player, Blu-ray player, digital camera, audio / video receiver, home video, video projector.
Specification:
Input video signal: 0.5 - 1.0 volts p-p
Input DDC signal: 5 volt p-p (TTL)
Video output signal: HDMI 1.4 b + HDCP 1.0 / 1.1
VGA: 640 480, 800 600, 1024 768, 1920 1200
DTV / HDTV: 480i / 576i / 480P / 576P / 720P / 1080i / 1080P
HDMI Compatible: HDMI Compatible 1.4
Frequency: up to 250MHz
Field frequency: 60Hz
Bandwidth: 2.5G pbs / 250MHz
HDTV: support
Interlaced (50 & 60Hz): 480i, 576i, 1080i
Progressive scan (50 & 60Hz): 480P, 576P, 720P, 1080P
Note: The IR remote is powered by a lithium battery (CR2025) but is not included.

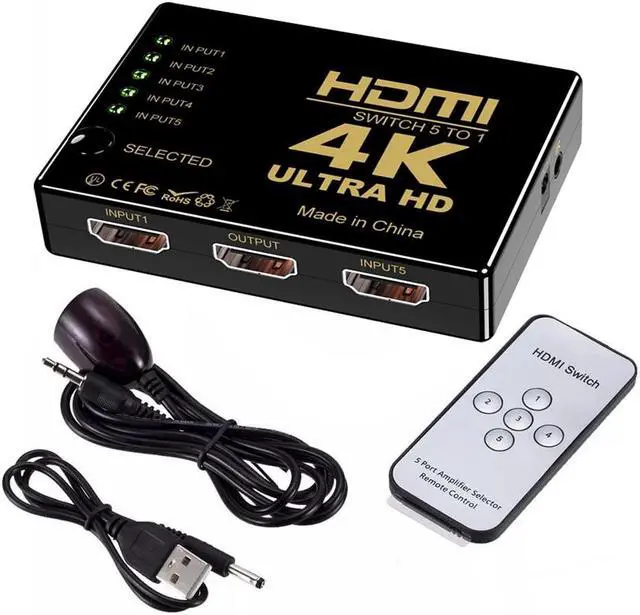

Package Included:
1X HDMI Compatible switch
1X remote control (Does not include battery)
1X infrared
1x power cord
