Mini PCI-E/M.2(A+E Key) to 4 SATA 3.0 Extension Card Adapter for Motherboard SATA Hard Drive Port Extension with 10cm Flat Cable

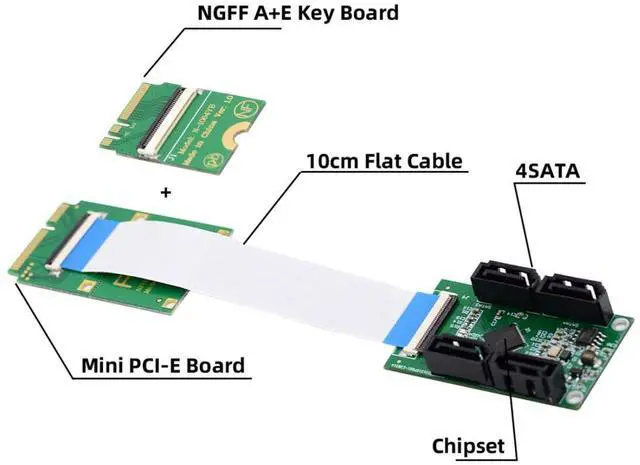

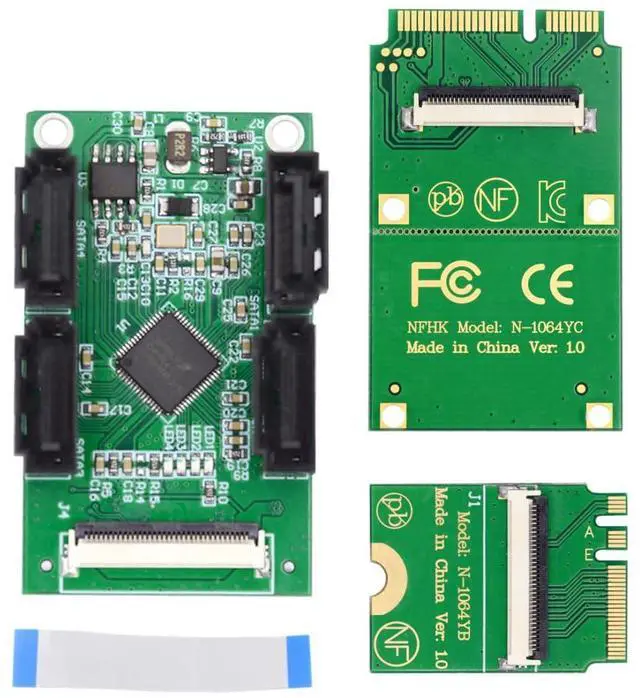

- Package included: Mini PCIe board*1, NGFF A+E board*1, Flat cable*1, Main SATA board*1.; It has four SATA3.0 interfaces, which can be connected to an SSD solid state hard disk as a system disk, and supports transmission rates of 6.0Gbps, 3.0Gbps, 1.5Gbps.; With hot swap and hot plug capabilities, and power management functions;; The adapter supports from Mini PCI-E PCI Express or NGFF A+E Key host to 4SATA target disk.; Applicable slot1: MINI PCI-E (mSATA is not supported) Applicable slot2: NGFF A+E key (B/M-Key is not supported) Main control chip: ASMedia ASM1064.
+
+
Overview
Specs
Reviews
Product description ChenYang Mini PCI-E/M. 2(A+E Key) to 4 SATA 3.0 Extension Card Adapter for Motherboard SATA Hard Drive Port Extension with 10cm Flat

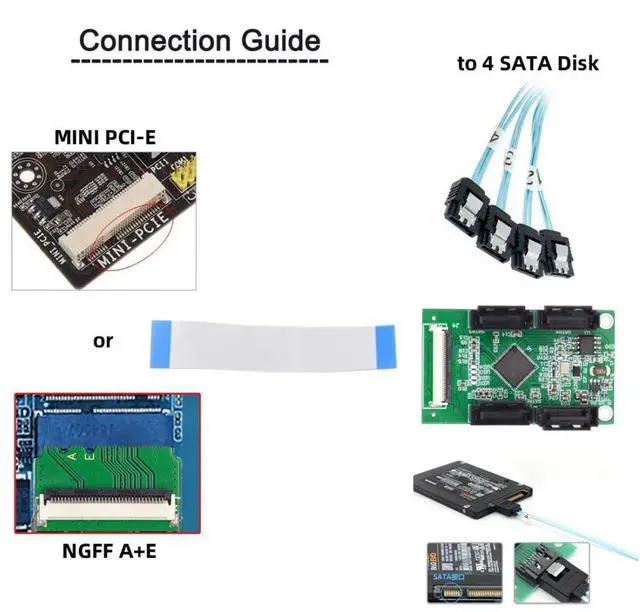

Cable Package included: Mini PCIe board*1, NGFF A+E board*1, Flat cable*1, Main SATA board*1. It has four SATA 3.0 interfaces, which can be connected to an SSD solid state hard disk as a system disk, and supports transmission rates of 6.0G bps, 3.0G bps, 1.5G bps. With hot swap and hot plug capabilities, and power management functions; The adapter supports from Mini PCI-E PCI Express or NGFF A+E Key host to 4SATA target disk.

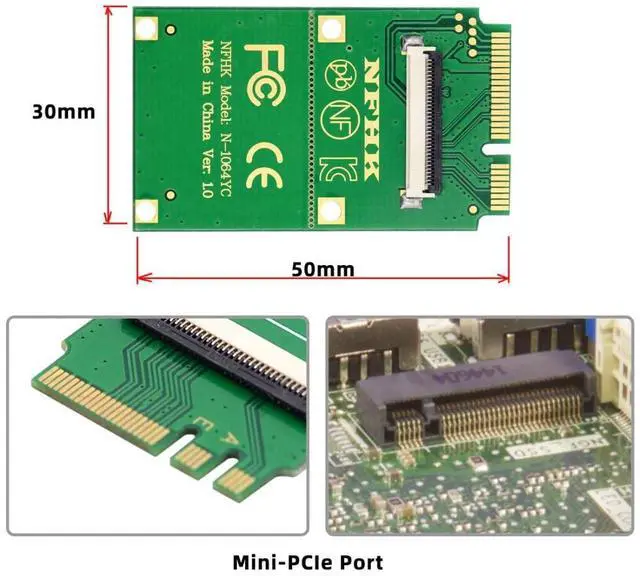

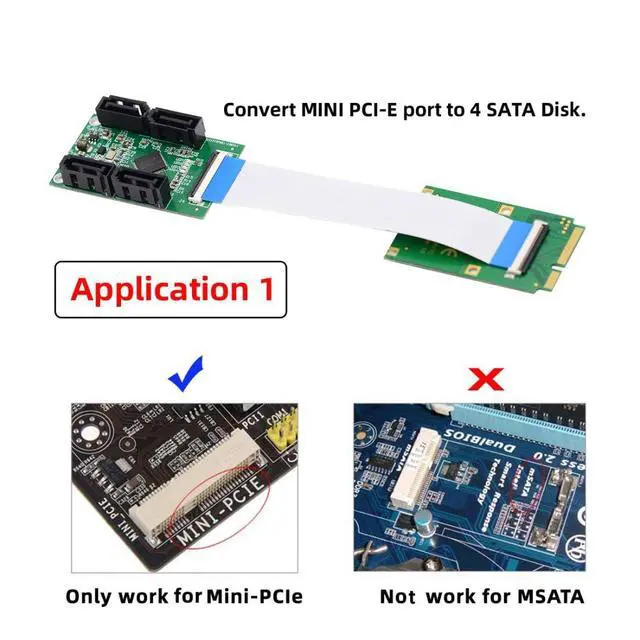

Applicable slot1: MINI PCI-E (mSATA is not supported)

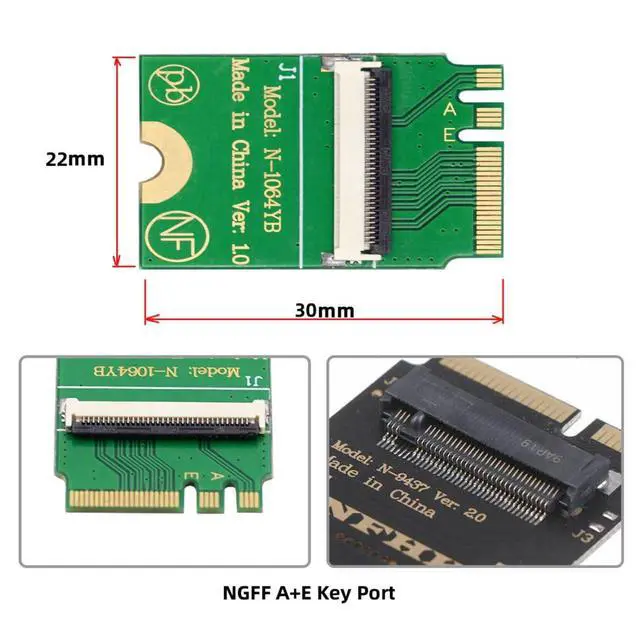

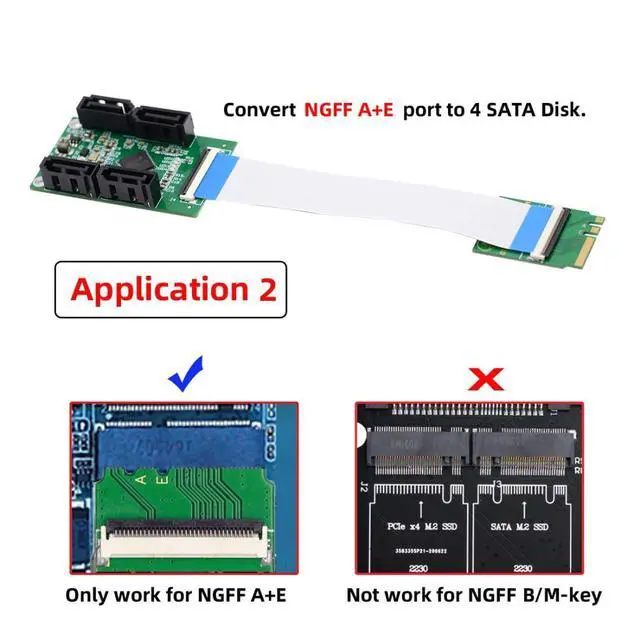

Applicable slot2: NGFF A+E key (B/M-Key is not supported)
Main control chip: ASMedia ASM1064.
Cable Package included: Mini PCIe board*1, NGFF A+E board*1, Flat cable*1, Main SATA board*1. It has four SATA 3.0 interfaces, which can be connected to an SSD solid state hard disk as a system disk, and supports transmission rates of 6.0G bps, 3.0G bps, 1.5G bps. With hot swap and hot plug capabilities, and power management functions; The adapter supports from Mini PCI-E PCI Express or NGFF A+E Key host to 4SATA target disk.
Applicable slot1: MINI PCI-E (mSATA is not supported)
Applicable slot2: NGFF A+E key (B/M-Key is not supported)
Main control chip: ASMedia ASM1064.
