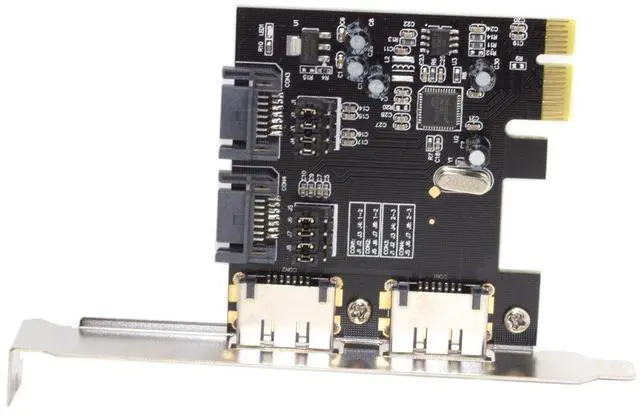

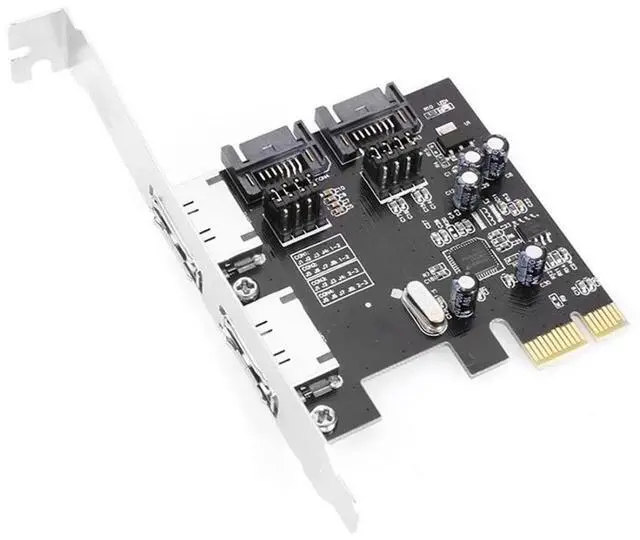

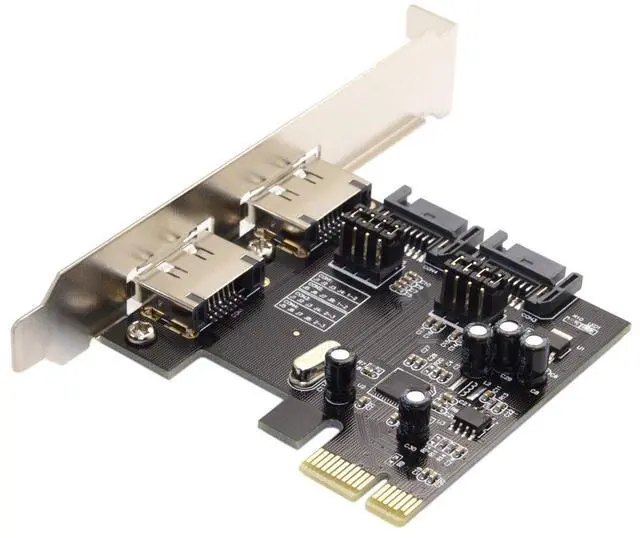

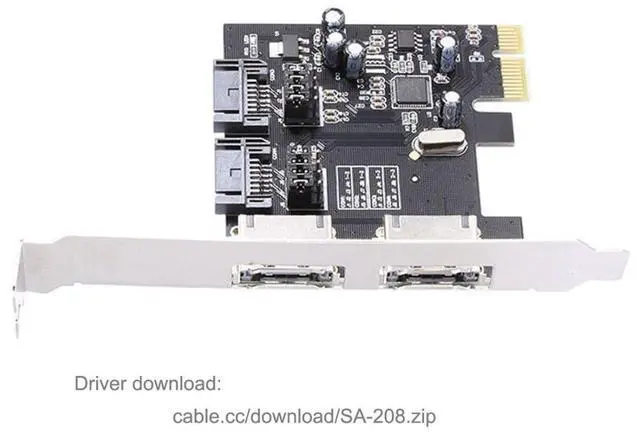

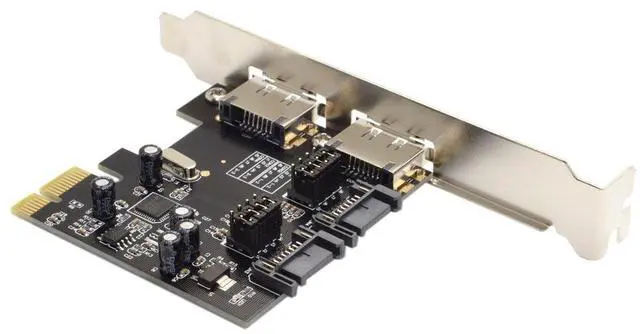

PCI-E X1 to 2 eSATA/2 SATA 3.0 Expansion Card with Jumper Switch eSATA/SATA Port(Only Two Ports can Work at a time)
- 1) Note: The eSATA and SATA 3.0 ports cannot be used simultaneously. You must switch between eSATA and SATA 3.0 ports using jumpers at a time. (Refer to the product details image for jumper settings.); 2) This card uses the SATA 3.0 function provided by the ASM1061 chip for SATA 3.0 interface expansion and cannot be used in a RAID array.; 3) Note: A PCI-E slot of V2.0 or higher is required. V1.0 will not exceed 250 Mbps. PCI-E, whether X1 or X16, only requires V2.0.; 4) Motherboard BIOS settings: SATA mode must be changed to AHCI. Some motherboards, even with PCIe version 2.0, do not have high-speed transfer mode (gen2 high speed mode) enabled by default in the BIOS; you need to manually enable it.; 5) Supported operating systems: Windows(R) XP/Server 2003/Vista/7/8 (32/64 bit)/MAC 10.8/10.9 (driver-free)
+
+
Overview
Specs
Reviews
1)

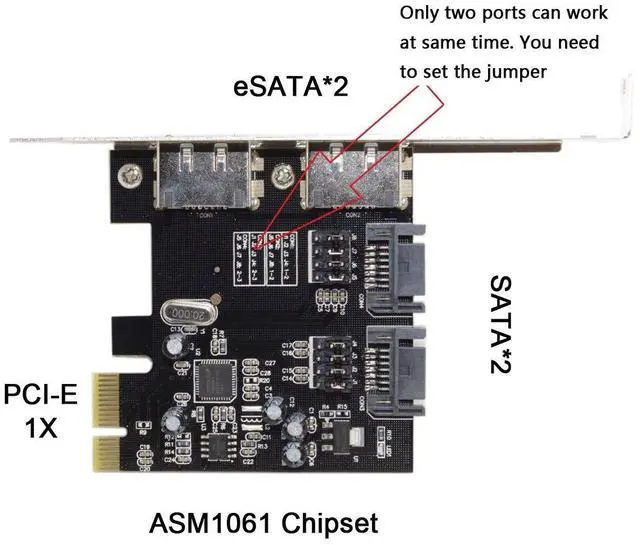

Note: The eSATA and SATA 3.0 ports cannot be used simultaneously. You must switch between eSATA and SATA 3.0 ports using jumpers at a time. (Refer to the product details image for jumper settings. ) 2) This card uses the SATA 3.0 function provided by the ASM1061 chip for SATA 3.0 interface expansion and cannot be used in a RAID array.
3) Note: A PCI-E slot of V 2.0 or higher is required. V 1.0 will not exceed 250 Mbps. PCI-E, whether X1 or X16, only requires V 2.0.
4) Motherboard BIOS settings: SATA mode must be changed to AHCI. Some motherboards, even with PCIe version 2.0, do not have high-speed transfer mode (gen2 high speed mode) enabled by default in the BIOS; you need to manually enable it.
5) Supported operating systems: Windows (R) XP/Server 2003/Vista/7/8 (32/64 bit)/MAC 10.8 / 10.9 (driver-free)
Note: The eSATA and SATA 3.0 ports cannot be used simultaneously. You must switch between eSATA and SATA 3.0 ports using jumpers at a time. (Refer to the product details image for jumper settings. ) 2) This card uses the SATA 3.0 function provided by the ASM1061 chip for SATA 3.0 interface expansion and cannot be used in a RAID array.
3) Note: A PCI-E slot of V 2.0 or higher is required. V 1.0 will not exceed 250 Mbps. PCI-E, whether X1 or X16, only requires V 2.0.
4) Motherboard BIOS settings: SATA mode must be changed to AHCI. Some motherboards, even with PCIe version 2.0, do not have high-speed transfer mode (gen2 high speed mode) enabled by default in the BIOS; you need to manually enable it.
5) Supported operating systems: Windows (R) XP/Server 2003/Vista/7/8 (32/64 bit)/MAC 10.8 / 10.9 (driver-free)
