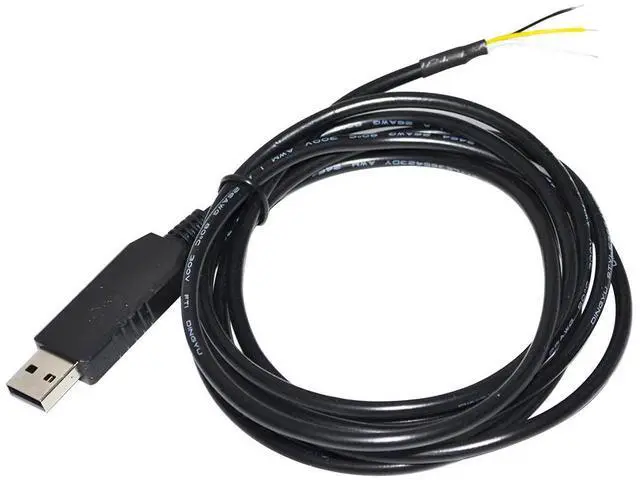

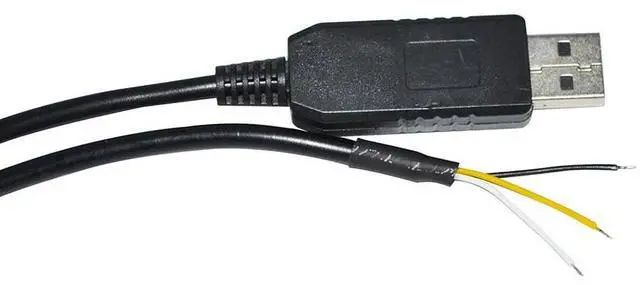

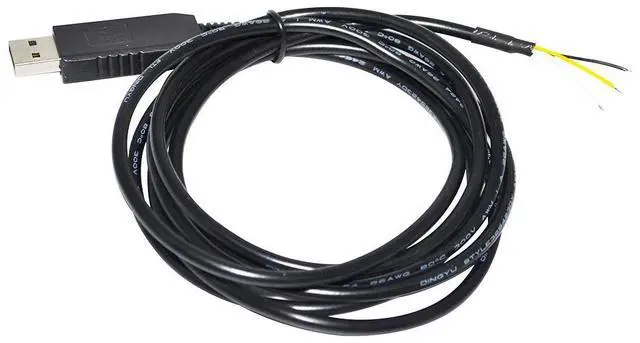

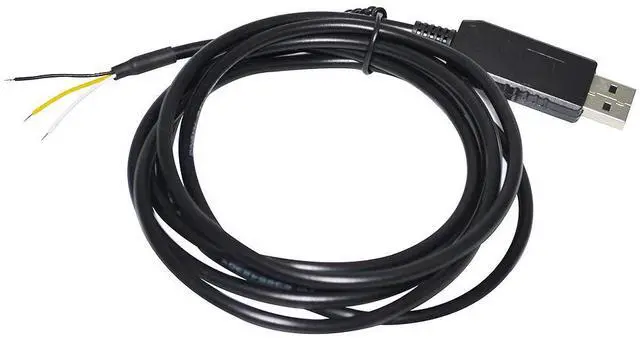

FTDI FT232RL USB TO UART TTL 3.3V 5V 3 CORE 3PIN WE WIRE END OPEN CABLE COMPATIBLE TTL-232R-3V3-WE TTL-232R-5V-WE GND TXD RXD (TTL 3.3V) 3M Length

INDUSTRIAL FTDI FT232RL CHIP USB TO UART TTL 3.3V / 5V 3 CORE 3PIN WIRE END OPEN CABLE COMPATIBLE WITH TTL-232R-3V3-WE / TTL-232R-5V-WE GND TXD RXD
The TTL-232R cables are a family of USB to TTL serial UART converter cables incorporating FTD
Is
FT232R USB to Serial UART interface IC device which handles all the USB signalling and protocols. The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB.
Each TTL-232R cable contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector end of the cable. The FT232R datasheet, DS_FT232R, is
available at http: //www. ftdichip. com. The other end of the cable comes with a selection of different connectors supporting various applications
Imported origin FTDI chips, the quality is absolutely guaranteed, 100% inspection before shippment.
Wire gauge: UL2464 AWG24*3C, UL certified wire, fire-resistant and flame-retardant, -25 ~ 80.
Outer diameter (OD): 4.5 mm
Jacket material: PVC
Wire material: tinned copper
Operating Systems:
Windows
10/8/ 8.1 /7/Windows Server 2008/2003/Vista/XP/98
Linux
Mac
OS X/9/8
Windows
CE. NET (Version 4.2 and greater)
Android
32 and 64 bit operating systems are both supported.
FTDI DRIVER DOWNLOADING:
https: //ftdichip. com/drivers/vcp-drivers/
INSTALLATION GUIDELINE:
https: //ftdichip. com/document/installation-guides/
Package Contents:
1 X FTDI USB to 3P WE Cable
Length: 1.8M /6FT, 3.0M /10FT, 3.6M /12FT, 5.0M / 16.5FT (Approx. )
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
If you have special requirements, such as cable length, wire gauges and pinouts, please consult to me online or leave me a message.
