Cable Matters Internal Mini SAS to SATA Reverse Breakout Cable (SFF-8087 to SATA) 1.6 Feet
- Internal 4x SATA to Mini SAS date cable connects a motherboard or RAID controller with 7 pin SATA ports to a SAS backplane or SAS expander with a Mini-SAS port; Reverse breakout cable provides reliable internal connectivity between a Mini-SAS drive cage and a SATA motherboard or RAID card

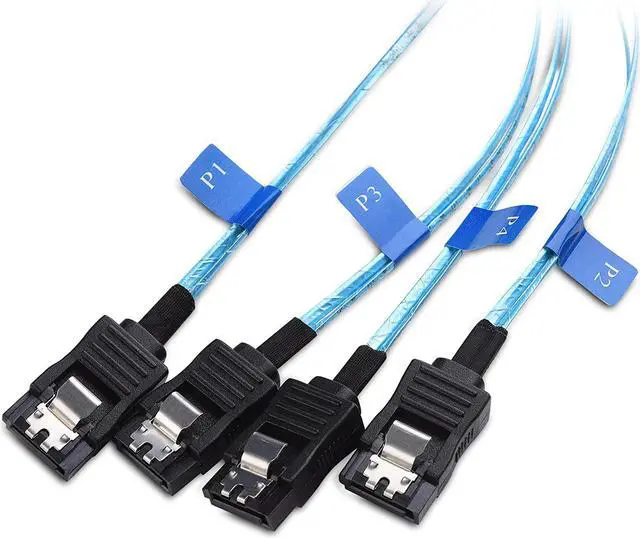

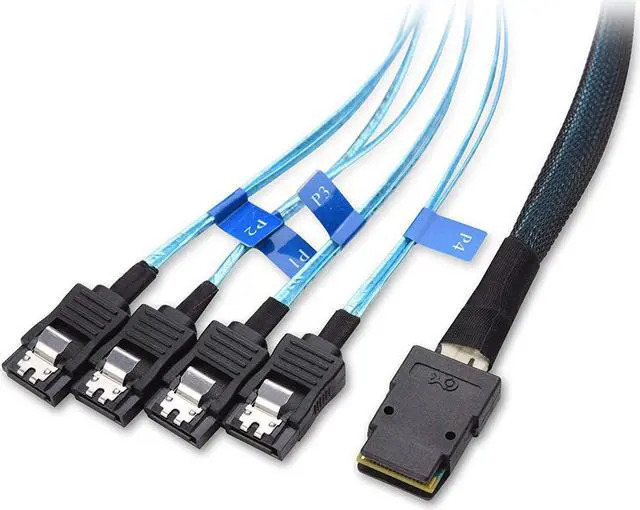

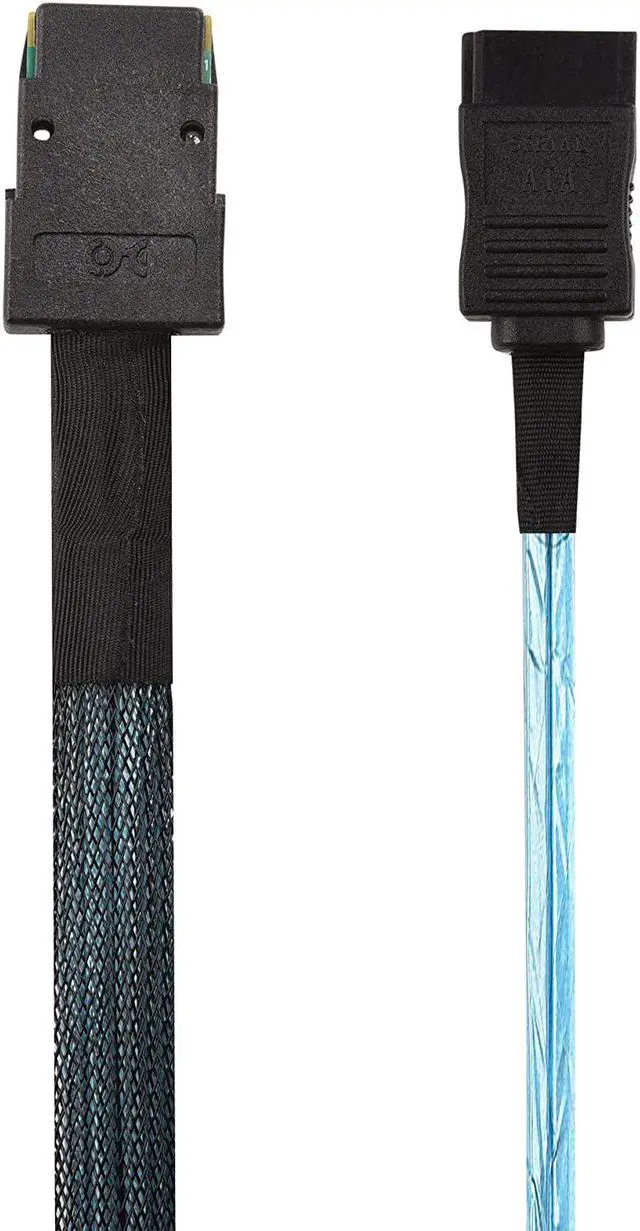

- Reverse fanout cable has an SFF-8087 (TARGET) Mini-SAS connector and 4 x SATA 7 pin (HOST) drive connectors; 4 x discrete SATA drive cables are of equal length with latches to provide a secure connection
- Leverage RAID controller performance with this multi-lane cable that connects unused RAID controller SATA ports to a single SFF 8087 Mini SAS backplane port; Supports up to 6 Gbps data transfer rate per drive

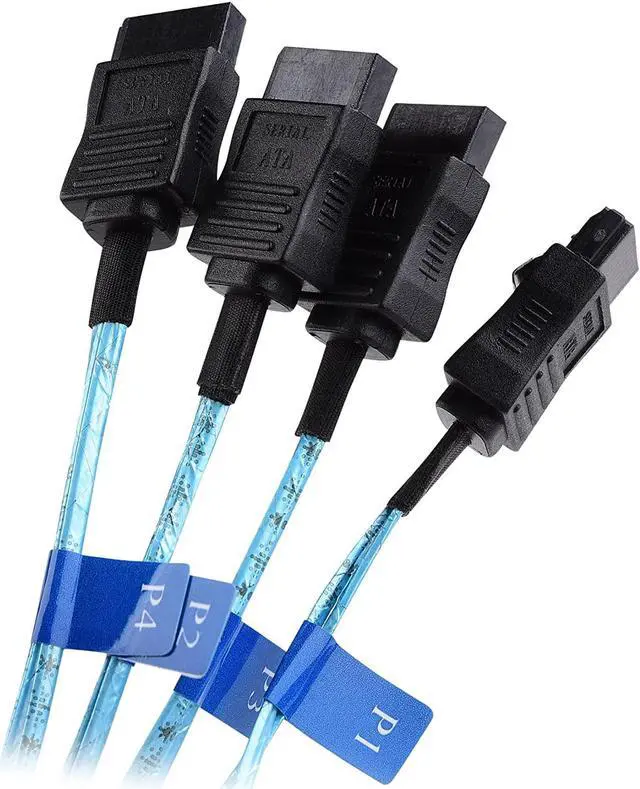

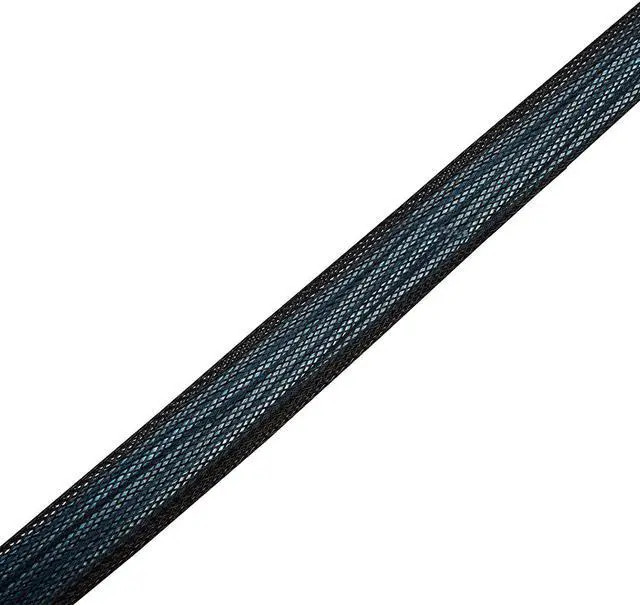

- Flexible design of SATA to SAS breakout cable includes acetate cloth tape over slim ribbon cables for strain relief to protect cables without rigidity; Woven mesh sheath covers half of the cable for easy routing; P1 to P4 markers provide easy ID after installation; Low profile SATA conn
Overview
Reviews

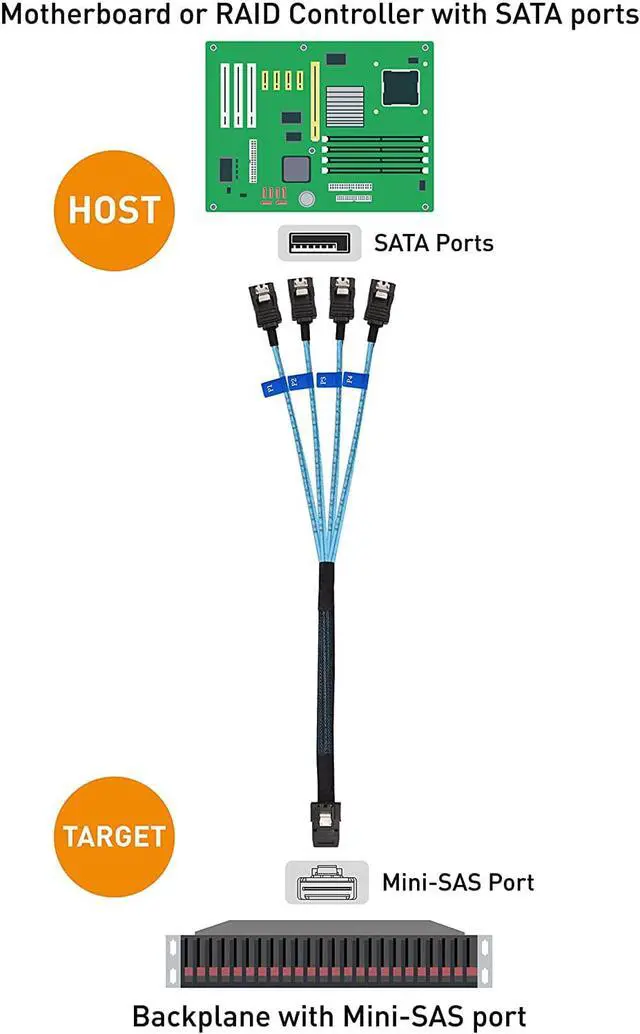

Product Description Reverse Not Forward The Cable Matters Mini-SAS to 4x SATA Reverse Breakout Cable connects 4 discrete SATA ports on a RAID controller host to a Mini-SAS SFF-8087 multi-lane port on a backplane
It should not to be confused with a forward cable that functions in the opposite direction.Multi-Lane PerformanceMaximize the capacity of your unused RAID controller SATA ports with this robust but flexible cable that is built to withstand 24/7 use
The combination of a slim ribbon cable design in a woven mesh sheath with locking connector latches provides a professional installation that minimizes the impact on the airflow in a computer case.Important NotesThis is NOT a FORWARD breakout cablePair with a 4 port SATA to Power Splitter Cable to provide power to the drivesData transfer speed is determined by the capabilities of your SAS controller and SATA drives 4 x 7 pin SATA receptacle female with latchmotherboard or RAID controller with 7 pin SATA ports 1 x 36 pin Mini-SAS SFF-8087 male with latch SAS backplane or SAS expander with a Mini-SAS port Built to run 24/7 Easy-grip treadsStainless steel latchesP1 to P4 markersBraided sleeve jacketRead moreMini SAS to SATA Reverse Breakout CableMini SAS to SATA Forward Breakout CableMini SAS HD to SATA Forward Breakout Cable15-Pin SATA to 4x SATA Power Splitter CableConnectorsMini SAS to SATAMini SAS to SATAMini SAS HD to SATA15-Pin SATA to 4x 15-Pin SATAAvailable Lengths1.6 Feet / 3.3 Feet1.6 Feet / 3.3 Feet3.3 Feet18 InchesMultipack Sizes1-Pack1-Pack1-Pack2-PackModel Numbers104027104016104031104015
It should not to be confused with a forward cable that functions in the opposite direction.Multi-Lane PerformanceMaximize the capacity of your unused RAID controller SATA ports with this robust but flexible cable that is built to withstand 24/7 use
The combination of a slim ribbon cable design in a woven mesh sheath with locking connector latches provides a professional installation that minimizes the impact on the airflow in a computer case.Important NotesThis is NOT a FORWARD breakout cablePair with a 4 port SATA to Power Splitter Cable to provide power to the drivesData transfer speed is determined by the capabilities of your SAS controller and SATA drives 4 x 7 pin SATA receptacle female with latchmotherboard or RAID controller with 7 pin SATA ports 1 x 36 pin Mini-SAS SFF-8087 male with latch SAS backplane or SAS expander with a Mini-SAS port Built to run 24/7 Easy-grip treadsStainless steel latchesP1 to P4 markersBraided sleeve jacketRead moreMini SAS to SATA Reverse Breakout CableMini SAS to SATA Forward Breakout CableMini SAS HD to SATA Forward Breakout Cable15-Pin SATA to 4x SATA Power Splitter CableConnectorsMini SAS to SATAMini SAS to SATAMini SAS HD to SATA15-Pin SATA to 4x 15-Pin SATAAvailable Lengths1.6 Feet / 3.3 Feet1.6 Feet / 3.3 Feet3.3 Feet18 InchesMultipack Sizes1-Pack1-Pack1-Pack2-PackModel Numbers104027104016104031104015
