Pcie To M.2 4g/5g And Usb 3.2 Hat+ For Raspberry Pi 5, Pcie To Usb3.2 Adapter Board Compatible With Pi5 And 4g/5g Modules With M.2 Key B Interface, With 3x Usb 3.2 Gen1 Ports, 5g-4in1-pcb Antenna

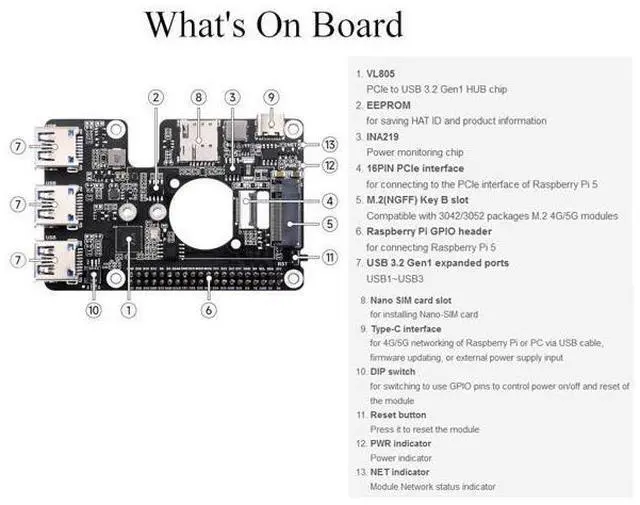

PCIe TO 4G/5G M. 2 and USB 3.2 HAT+ is a PCIe to USB 3.2 /M. 2 adapter board designed for Raspberry Pi 5, is compatible with 5G modules in 3042/3052 size, supports Gen2 mode and high-speed communication for
Raspberry Pi 5: HAT+ standard design with onboard I2C. Onboard PCIe interface for directly connecting to Raspberry Pi 5 via 16PIN cable More USB Capability For Raspberry Pi 5: Extends The PCIe Interface To 3x High Speed USB 3.2 Gen1 Ports For Connecting More Peripherals Compatible With Multiple 4G/5G modules with M.
2 Key B interface: Onboard M. 2 (NGFF) Key B slot, supports SIM7600XX-M. 2, SIM82XX and RM5XX series 4G/5G modules and is compatible with 3042/3052 packages Supports systems such as Raspberry Pi OS, Ubuntu, OpenWRT, etc Comes with 5G-4IN1-PCB
Antenna: Supports top and bottom mounting, easy to install, good communication effect. Reserved Airflow Vent For Cooling Fan: More Airflow for Pi5, Faster Cooling Effect, More Stable Operation Onboard power monitoring chip and
EEPROM: for real-time monitoring voltage, current and power of module Via I2C. Supports saving HAT+ ID and product information, compatible with HAT+ standard Provide Online Development Resources /User
Manual: bit. ly/4eBCXG6
