2 HDMI + 1 Displayport KVM Switch 3 Monitor 2 Computers, 4K@60Hz Triple Monitor KVM Switch with Audio and 3 USB 3.0 Ports, 2 Computers Share 3 Monitors Keyboard Mouse Switcher

USB 3.0 Triple Monitor 2 HDMI + DisplayPort KVM Switch for 2 Computers Sharing 3 Monitor and 3 USB 3.0 Ports, Audio & Microphone

Advantages:

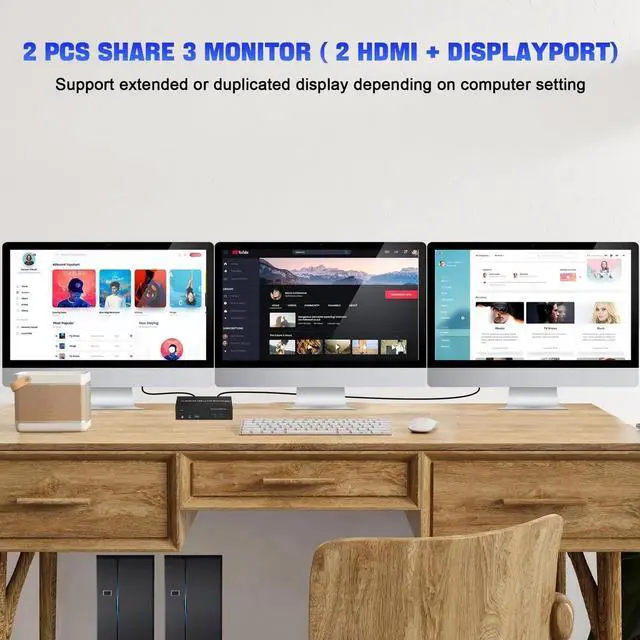

1. 2 computers / laptops share one set of keyboard, mouse and 3 monitors (2 HDMI + 1 DisplayPort)

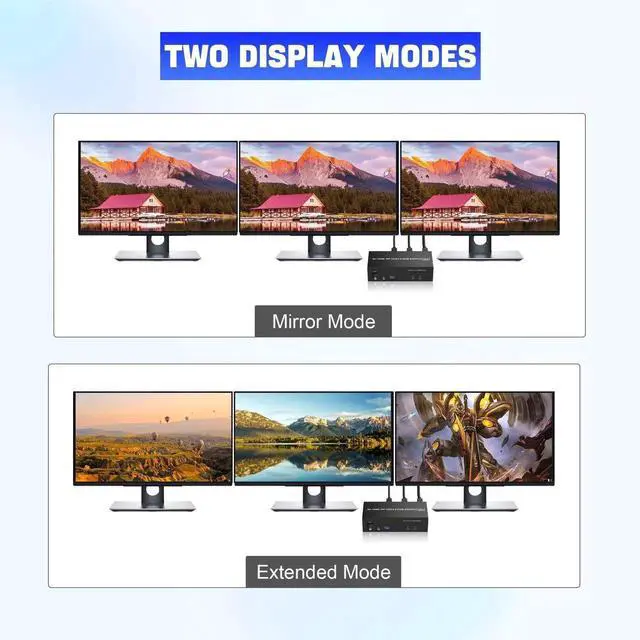

2. Triple monitors output support up to 4K@60Hz for extended and mirrored display

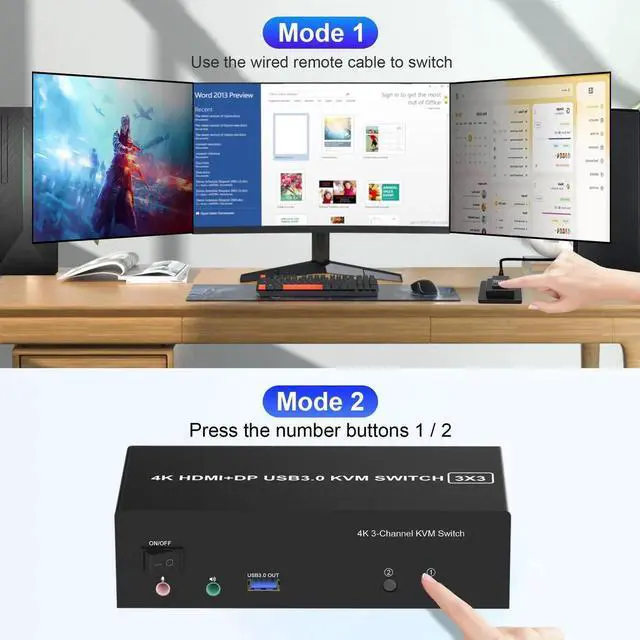

3. Two Switching modes: Button switch and wired remote.

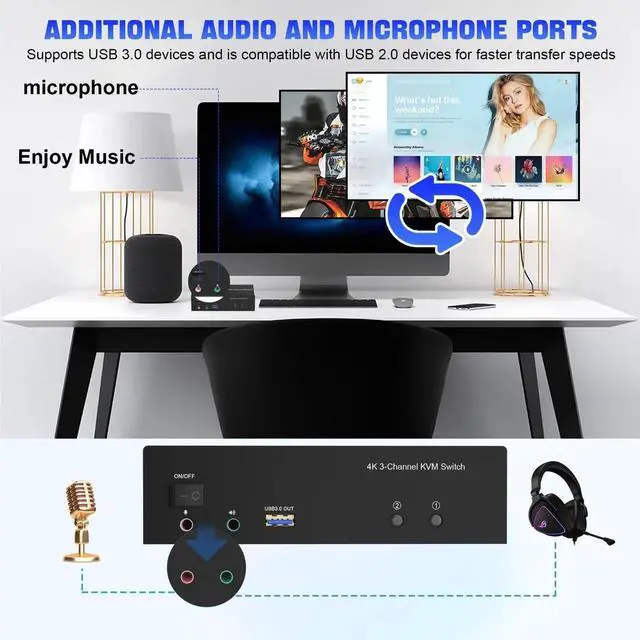

4. KVM switch with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output

5. Cross support major operation systems including Windows, Linux, Mac and more

6. The ports that need to plug in HDMI/DisplayPort/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered

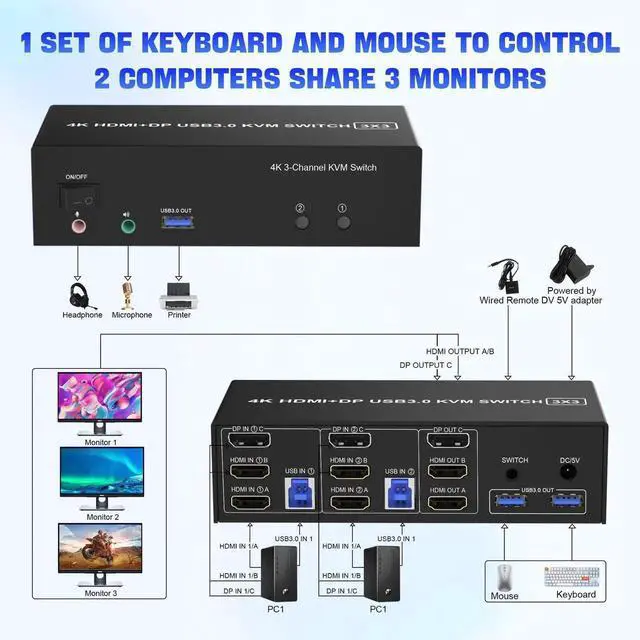

Installation steps:

1. Insert the adapter into the KVM ;

2. Plug the 2*HDMI cable and 1*Displayport cable into the KVM switch and monitor;(Output)

3. Plug the Displayport cable, HDMI cable, and USB cable into the KVM switch and your computer/laptop (HDMI and DP cables are not included)(Input)

Please check whether HDMI IN 1A, HDMI IN 1B, DP IN 1C, and USB IN 1 corresponding, and whether HDMI IN 2A, HDMI IN 2B, DP IN 2C and USB IN 2 are corresponding. Mixed insertion is not supported.

HDMI IN 1A + HDMI IN 1B + DP IN 1C + USB IN 1=PC1

HDMI IN 2A + HDMI IN 2B + DP IN 2C + USB IN 2=PC2

4. Insert the mouse and keyboard into the KVM switch

5. If needed, you can connect a microphone and audio port

Note

1. Most of the reasons why only one video output works is because of an incorrect connection. Please make sure each computer has 2 HDMI /1 DP cables connected to the KVM.

2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.
