110/220V to DC 12V 10A 120W Switch Power Supply Driver Power Transformer for CCTV Camera Security System LED Strip Light(12V 10A)

Descriptions:

Our Aiposen LED Switching Power Supply, a reliable switching power supply with high quality material, durable and safety in use.

A new style Switching Power Supply which can keep the voltage stability. Great switching power supply for home

appliances. Universal AC input/full range, cooling by automatic on/off cooling fan. Full load burn-in test.

Specifications:

Product Name: LED Switching Power Supply

Model: S-120-12

Safety Compliance: CCC/ FCC / CE

Input: AC110V/220V

Output: DC 12V 10A

Output Power: 120W

Frequency: 50/60Hz

Screw Terminal Number: 7

Fix Screw Hole Diameter: 2.5mm(0.1 inch)

Working temperature: -40~65 degreeCelsius

Storage Temperature: -20C~60C

Humidity: 20%~90%RH Non-Condensation

Start Rise Hold Time:200ms 100ms 30ms

Material: Metal, Electronic Parts

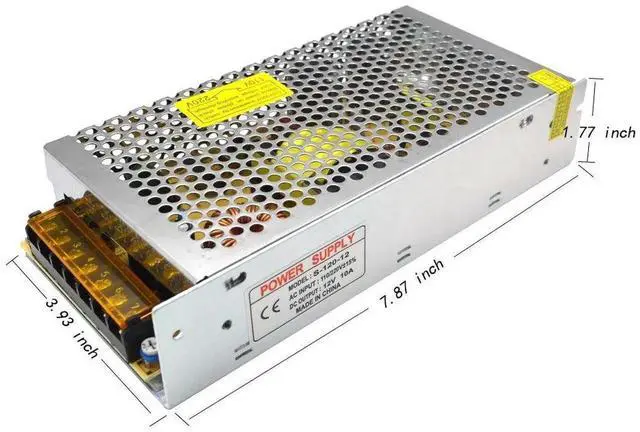

Size:7.87 inch x 3.93 inch x 1.77 inch(L*W*H)

Main Color: Silver Tone

Net Weight: 479g

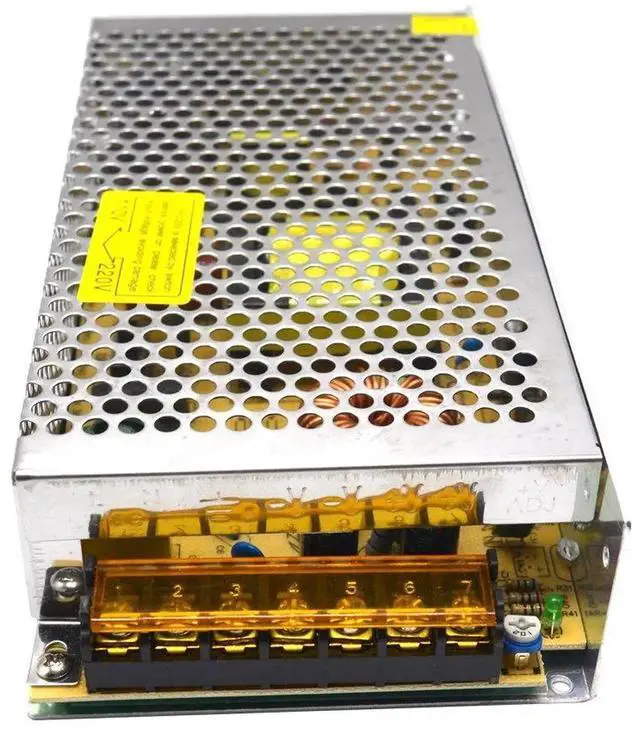

Connection:

L, N: AC power input

COM: DC power output -

V: DC power output + +V / ADJ: Adjust the output voltage (15%)

Package Contents:

1 x LED Switching Power Supply

Notes:

1. High Voltage inside ,do not remove the cover. Qualified service personnel only.

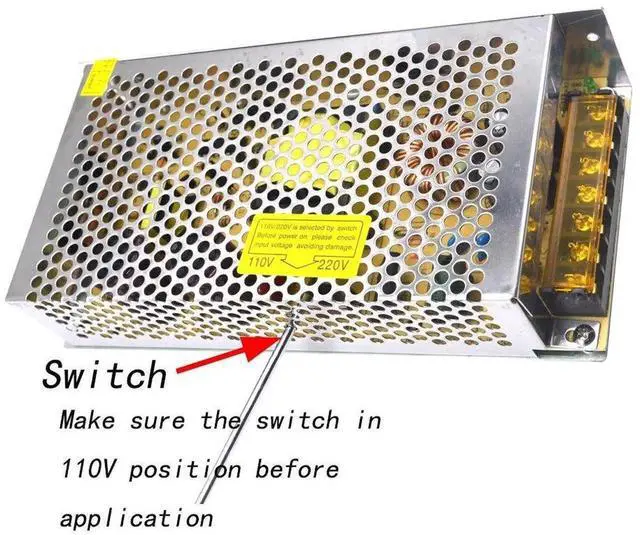

2. 110V/220V is selected by switch before power on, please check the input voltage avolding damage.
