HDMI + 2 Displayport USB 3.0 KVM Switch Triple Monitor for 2 Computers, 4K@60Hz KVM Switch 2 Computers 3 Monitors with Audio Microphone Output and 3 USB 3.0 Ports, Keyboard Mouse Switcher

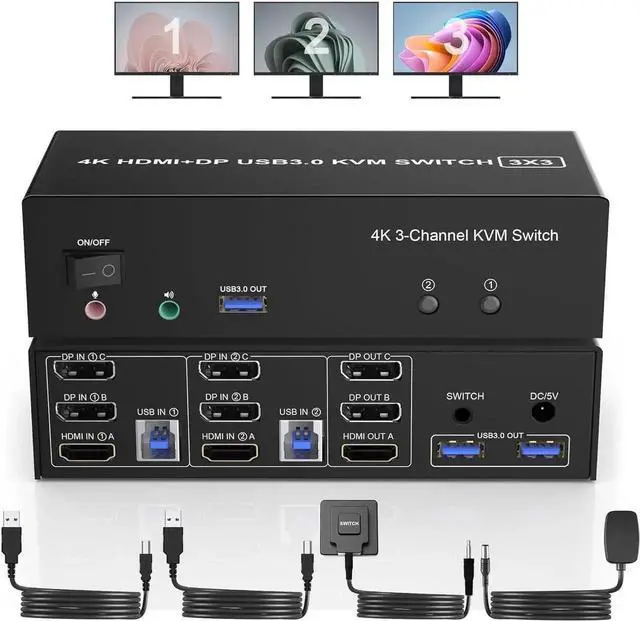

USB 3.0 Triple Monitor HDMI + 2 DisplayPort KVM Switch for 2 Computers

Features:

1. 2 computers / laptops share one set of keyboard, mouse and 3 monitors (HDMI+2 DisplayPort)

2. Triple monitors output support up to 4K@60Hz for extended and mirrored display

3. Two Switching modes: Button switch and wired remote.

4. With extra 3 USB 3.0 and Audio Microphone output

5. Cross support most major OS including Windows, Linux, Mac and more

6. The ports that need to plug in HDMI/DisplayPort/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered

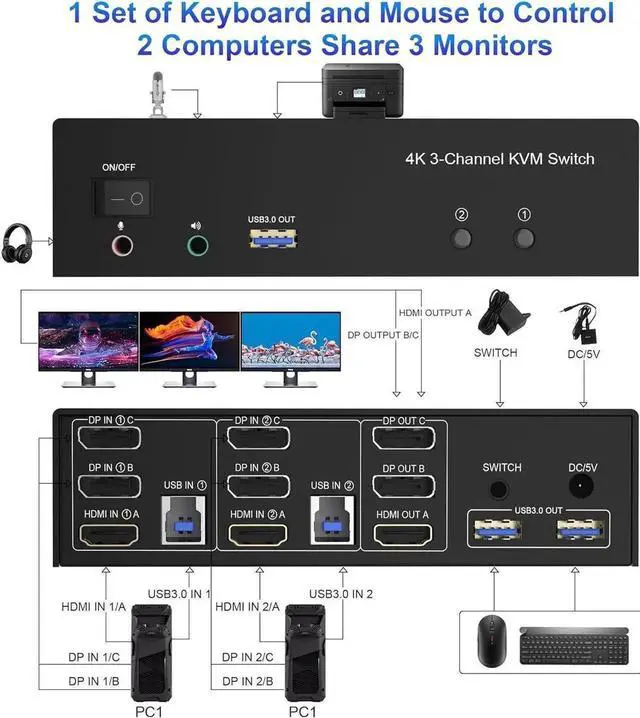

installation steps:

1. Insert the adapter into the KVM ;

2. Plug the 2*Displayport cable and HDMI cable into the KVM switch and monitor;(Output)

3. Plug the Displayport cable, HDMI cable and USB cable into the KVM switch and your computer/laptop (HDMI and DP cables are not included)(Input)

Please check whether HDMI IN1A, DP IN1B, DP IN1C and USB IN1 are corresponding, and whether HDMI IN2A, DP IN2B, DP IN2C and USB IN2 are corresponding. Mixed insertion is not supported.

HDMI IN1A + DP IN1B + DP IN1C + USB IN1=PC1

HDMI IN2A + DP IN2B + DP IN2C + USB IN2=PC2

4. Insert the mouse and keyboard into the KVM switch

5. If needed, you can connect a microphone and audio port

Note:

1. Most of the reasons why only onevideo output works is because of incorrect connection. Please make sure eachcomputer have 1 HDMI /2 DP cables connect to the KVM.

2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.

Triple Monitor KVM Support 2 Switching Modes

Quickly switch between the 2 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).

Please note: This kvm switch displayport does not sup2 PCs Share 3 USB 3.0 Devices

This kvm switch 3 monitors 2 computers with 3 USB 3.0 Ports for keyboard, mouse, printers, USB headsets or webcams.

Headphone Jack and Microphone Jack

This dual monitor HDMI KVM switch comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone.

port hotkey switching.

[HDMI+2 Displayport KVM SWITCH TRIPLE MONITOR] This kvm switch perfect for hooking up 2 desktops or laptops to share one set of keyboard, mouse and 3 monitors for extended, mirrored display; Perfect for computers with 2 DP and 1 HDMI monitor for the display outputs. It requires every Laptop/PC support 3 screen or above display functions and must support extended display.

[Ultra HD 4K@60Hz] Supports resolution up to 4K@60Hz and downwards. Pls be reminded it only when both your computer Graphics card and monitor support 4K@60Hz then you can get 4K@60Hz effect.

[2 Switching Mode] You can press the button on the panel or use the wired remote controller (included) to switch the computers. Pls use the 5V power adapter to power this KVM Switch.

[3 USB 3.0 & Audio & Microphone Output] with 3 integrated USB 3.0 ports which can recognize keyboard, mouse, printer and other USB devices. Supports ultra-fast USB 3.0 data transfer up to 5Gbps. Also supports separate audio and microphone output.
