QOTOM Q190P Industrial PC - J1900 Quad Core, 4 Serial Ports (RS232), 2 Gigabit Ethernet, 10Watts

Size :4GB RAM + 32GB SSD

Qotom Mini PC Q190P is perfect as an industrial PC. It comes with:

* Intel Celeron J1900 Quad-core CPU
* 4 serial ports (RS232)
* 2 Gigabit Ethernet NICs
* Low power consumption: 10W
* 4GB RAM and 32GB SSD included
* Fan-less design low energy cost low noise and low dust accumulation

Q190P runs 24/7 quietly with very low energy cost and minimum maintenance.

Specifications
CPU: Intel Celeron J1900 Quad-core (2M Cache up to 2.42 GHz)
LAN: 2 x Realtek RTL8111E 10/100/1000 Ethernet
Power Consumption: 10W
Memory: 1 DDR3L SODIMM slot with 4GB Memory pre-installed 1333/1600 MHz 1.35V Non-ECC 8GB Max
Hard Disk: 32GB SSD pre-installed; supports mSATA / 2.5" SATA
Cooling: Fanless passive
Integrated Graphics: Intel HD Graphics for Intel Atom Processor Z3700 Series
Audio: Realtek ALC662 Audio

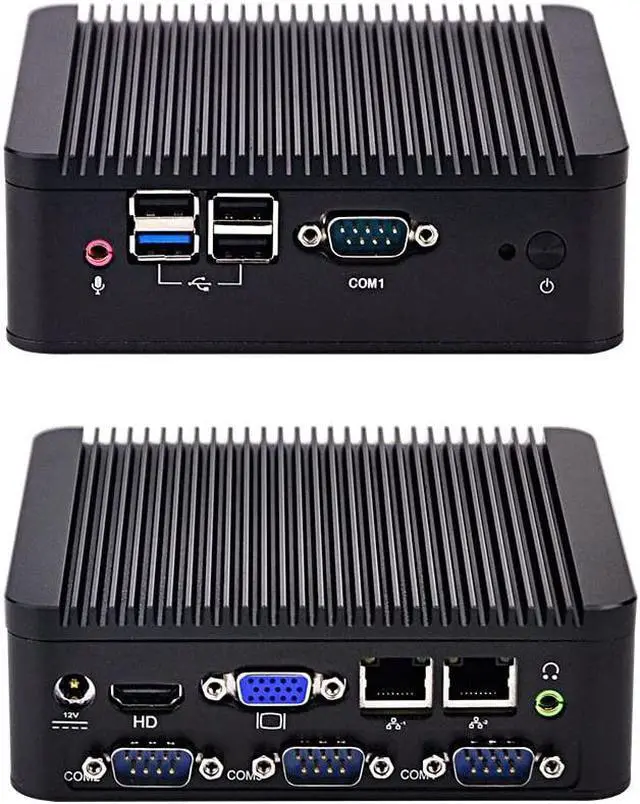

Front-Panel Connectors
1 x Power On/Off button and LED
1 x HDD LED
3 x USB 2.0 ports
1 x USB 3.0 ports
1 x Microphone port
1 x RS232 Serial Port

Back-Panel Connectors
1 x 12V DC input
1 x HD video port
1 x VGA port
2 x RJ-45 ports
1 x Speak port
3 x RS232 Serial Ports

Dimension
135 x 128 x 45 mm

Supported Operating System: Linux Windows 7/8/10

Package Contents
1 Qotom Fanless Mini PC (QOTOM-Q190P)
1 4GB RAM pre-installed
1 32GB SSD pre-installed
1 Power Adapter
1 VESA bracket/mount (7.5x7.5cm / 10x10cm) with various screws

• Intel Celeron J1900 Quad-core Processor (2M Cache up to 2.4 GHz); 4GB RAM 32GB SSD included
• 4 RS232 serial ports 2 Gigabit Ethernet NICs (RJ45)
• Supports OS: Linux Win 7/8/10 BSD/FreeBSD (None installed)
• Low energy consumption: 10 Watts (Max) for 24/7 usage
• I/O Ports: 4 RS232 serial ports 1 VGA 1 USB 3.0 3 USB 2.0 1 Mic 1 Speaker
