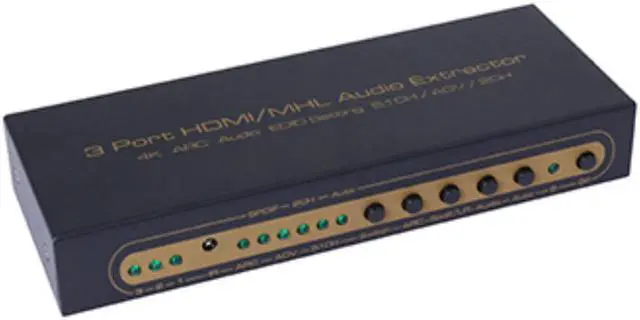

3 Port HDMI / MHL audio splitter 4K ARC Audio EDID setting 5.1CH/PASS/2CH MHL / HDMI dual mode works with Remote control(AIS HDSW0003M1)

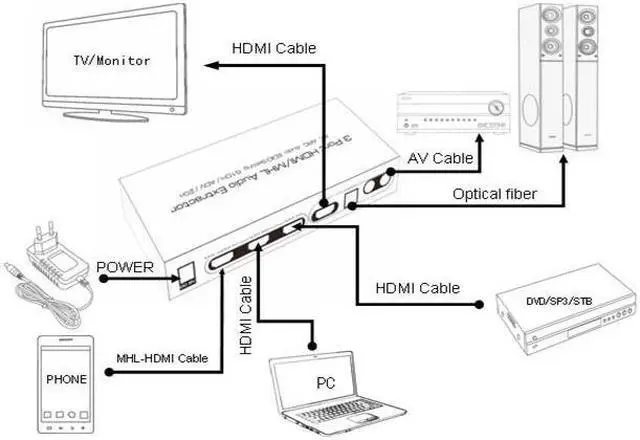

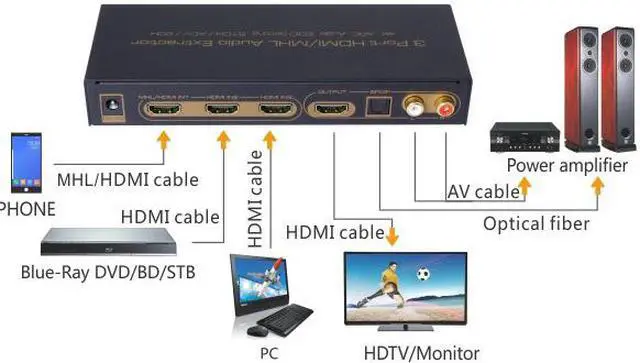

Product Description FEATURES One MHL/HDMI double input and two HDMI input switch freely to one HDMI output. Any input HD Source can do audio extract by the SPDIF ort LR audio output port. Support Full HD 1080P, Full 3D, 4K*2K
Support ARC Function: Without adding one extra HDMI Cable, it can reverse the audio to the AV Amplifier by HDMI Cable connection with HD TV while the HD TV receives the audio and video content. MHL / HDMI working in dual mode, can reduce the number of ports HDMI to achieve the synchronization of audio signal separation. There are PASS / 2.0CH / 5.1CH three kinds of audio mode options
LED indication: when source or sink is working, LED related will go bright. Support input up to 10metres using AWG26 HDMI standard cable length, output up to 15metres using AWG26 cable length IR Remote can do switch to the Input sources, and also you can press the switch button at device to do switch of the Input Sources. Led Status Light allows the user to know the working status easily. No loss of quality Installs in minutes Need DC5V/1A power supply SPECIFICATIONS
HDMI resolution: 4KX2K/1080p/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit, 36bit
Audio output: L/R+SPDIF
Max transmission bandwidth: 300MHz
Max baud rate: 90Gbps
Input/Output TMDS signal: 05-15Volts p-p
Input/Output DDC signal: 5Volts p-p (TTL)
Input cable distance: 10m AWG26 HDMI standard cable
Output cable distance: 15 AWG26 HDMI standard cable
Max working current: 500mA
Power adapter formatInput: AC (50HZ 60HZ) 100V-240V Output DC5V/1A
Operating Temperature range: (-10 to +55)
Storage Temperature range: -20 to +60
Operating Humidity range: 10 to 90RH
Storage Humidity range: 5 to 95RH

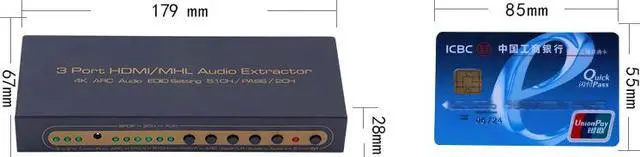

Dimension (L x W x H): 179X67X28 (mm)
Weight: 365g
Packaging incluede: 5V power adapter 1pcs User manual 1pcs Remote 1pcs
