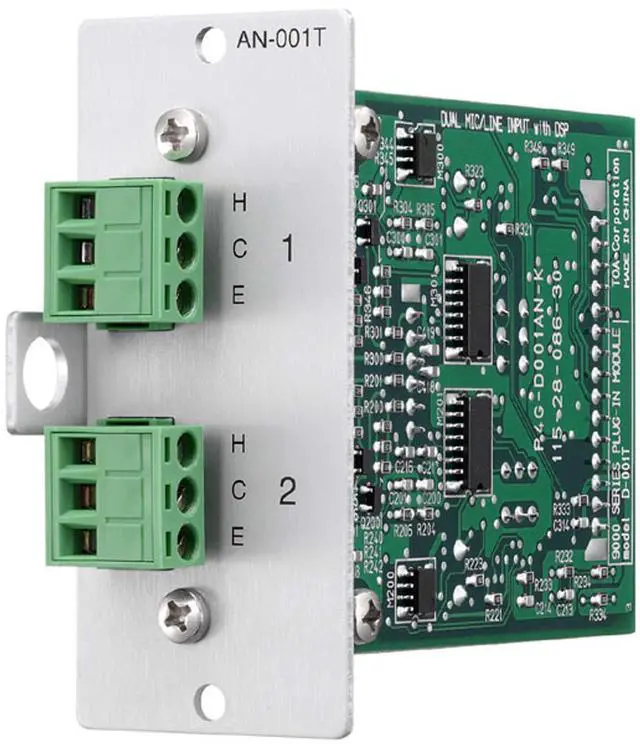

TOA Corporation AN-001T Plug-In Module for 9000 Series mixer/amplifiers with 2-Channel Ambient Noise Detection and Automatic Output Gain Adjustment
- Advanced Noise Detection: The AN-001T uses a 2-channel noise detector to adjust volume automatically, ensuring sound quality despite environmental changes. Ideal for dynamic audio settings.
- Versatile Input Compatibility: The AN-001T handles signals from microphone to line level with 9-step gain control, suitable for various audio uses and precise sound management.
- Enhanced Microphone Support: Featuring two inputs with 24 V phantom power, the AN-001T supports condenser mics, boosting audio performance for professional setups.
- Customizable Output: Each AN-001T input can control a specific output, allowing tailored configurations and seamless integration with the 9000 series for personalized audio.
- Robust Build: Made with durable aluminum and removable plugs, the AN-001T is built to last. It includes accessories for easy installation and works with the AN-9001 sensor mic.
+
+
Overview
Specs
Reviews
Product Description
The TOA Corporation AN-001T 9000 Series Plug-In Module is an advanced audio component designed for seamless integration with the 9000 series mixer/amplifiers. This module is engineered to automatically adjust output volume in response to ambient noise level changes, ensuring optimal sound quality in varying environments. With its ability to handle input signals ranging from microphone level (-60 dB) to line level (-10 dB), the AN-001T offers versatile audio management through its 9-step gain control.
Features
- Automatic output gain adjustment for ambient noise compensation
- Two microphone inputs with +24 V phantom power for condenser microphones
- 14 preset gain ratios for precise audio control
- Assignable inputs for specific output control
- Compatible exclusively with the AN-9001 sensor microphone
- Support for a maximum of two modules per chassis
Specifications
- Power Supply: +24 V DC, -24 V DC, +6 V DC
- Current Consumption: 20 mA (at +24 V DC), 20 mA (at -24 V DC), 60 mA (at +6 V DC)
- Input: 2 channels, 3 k (phantom power ON)/10 k (phantom power OFF), electronically-balanced, removable terminal block (3 pins)
- Input Sensitivity: -60 to -10 dB (selectable)
- A/D Converter: 24-bit ADC with a 48 kHz sampling frequency
- Ambient Noise Control: Adjustable sensor input reference level, maximum output signal level (-15 to 0 dB), minimum output signal level (-18 to -3 dB), and sample time settings ranging from 10 seconds to 5 minutes
- Operating Temperature: -10°C to +40°C
- Finish: Aluminum, hair-line
- Dimensions: 35 (W) x 78 (H) x 91.5 (D) mm
- Weight: 82 g
- Included Accessories: Two removable terminal plugs (3 pins) and two module mounting screws
The AN-001T is an essential component for audio professionals seeking precise ambient noise control in their sound systems. Its advanced features and compatibility with the AN-9001 sensor microphone make it a versatile choice for a wide range of consumer electronics applications.
