ACC-EXTENDER-VGA-CAT5E/6-300M - VGA CAT5/5E/6 EXTENDER 300M POWERED TRANSMITTER RECEIVER SET

300 Meter VGA Extender with Audio Extender Function via single CAT5/CAT5e/CAT6 Cabling.
Support Max up to 1920x1200 resolution (Transmitter & Receiver set)

Features

Input connector: VGA (female 15pin) stereo audio

Output connector: (VGA (female 15pin) stereo audio 1xRJ45

Vertical Frequency range: 60/75/85Hz

Resolution (PC):640x480 800x600 1024x768 1280x720 1280x768 1280x960 1280x1024 1600x900 1600x1200 1920x1080 1920x1200

Bandwidth: Max. 600Mhz@3dB

Support Resolution: VGA SVGA XGA SXGA WXGA UXGA

VGA output signal: 0 0.7Vpp(75Ohm load)

VGA input signal: 0 0.7Vpp(75Ohm load)

VGA output impedance: 75 Ohm

VGA input impedance: 75 Ohm

Audio input interface: 3.5mm stereo audio jack

Audio output interface: 3.5mm stereo audio jack

network input interface: RJ45

network output interface: RJ45

Power: +9V/+12V DC/600mA

Installation dimension: 106x76x28.5mm

Warranty: 180 days

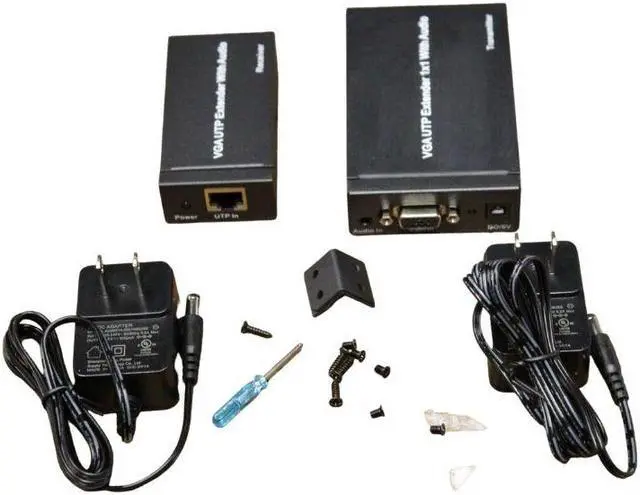

package including: 1x receiver 1x Transmitter 2x power adapter 1x user manual
