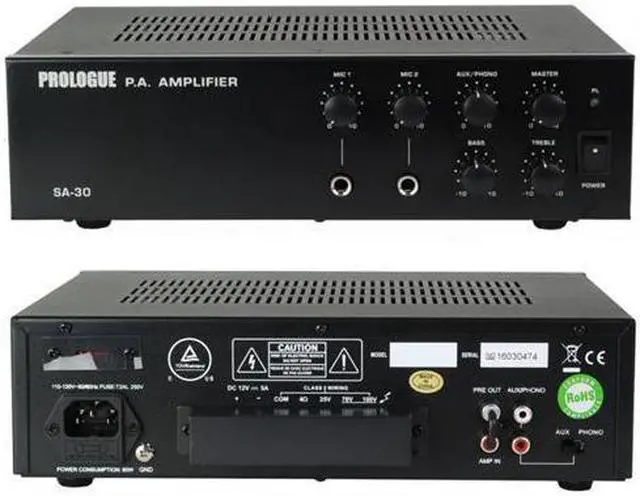

Prologue SA-30 Desktop Mixer Power Amplifier 30W With 70V And 4/8 Ohms Outputs

Desktop Mixer Power Amplifier 30W. The SA-30 Mixer Power Amplifiers is a built-in mixer for commercial applications. Two microphone inputs, one AUX or Phone input. MIC input 1 has the Priority function. Two band equaliser. Preamplifier can be separated from the amplification section allowing the use of an external mixer. 4 - 8 ohms and 70v outputs. Output power 30 watts rms. Three prong power cord, 117v. AC or 12v. DC for mobile applications. Heavy duty construction. This low-cost unit provides all necessary features in a simple building-block format.

It is designed for PA system applications such as small offices and retail spaces.
Specifications: Microphone
Sensitivity: -55dB ± 2dB Aux.
CD Sensitivity: -20dB ± 2dB
OUTPUT POWER: 30W at 4ohms load
FREQUENCY RESPONSES: 1 OOHz-18KHz ±3dB
DISTORTION: less than 1°/o (at 1 KHz 1 watts output)
Signal/Noise Ratio: More than-55dB Hum or
Noise level: 50mV
Tone Contrai Response: 1 SOHZ ±1 OdB; 1 K ±1 OdB; 6K ±1 OdB Puncture Voltage at 5mA, 5Sec: 3750V
Speaker outputs: 4, 8, 16ohms 100V
Dimensions: 320 (W) * 190 (D) * 80 (H) mm
Weight: 5Kgs
