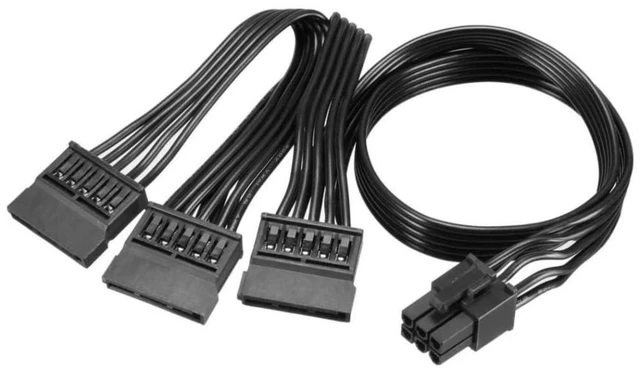

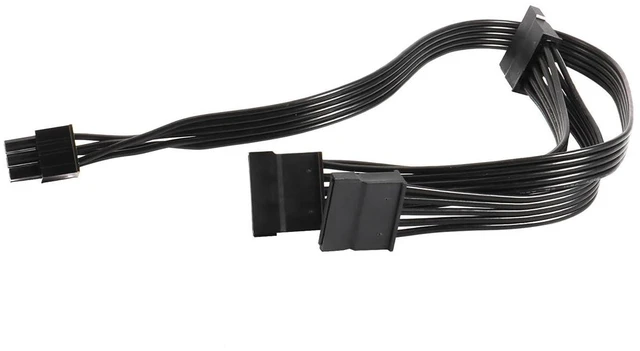

6 Pin Male to 3X 15 Pin SATA Female Hard Drive Power Adapter Cable for Seasonic Antec Modular Power Supply 20-in
- Compatibility: Compatible with old types of Antec PSUs(only the old types with one red port) such as Neo ECO 520 & 620, TPQ-850 & 1000 & 1200, Signature series SG-650 & 850, Ture Power series TP-550 & 650 & 750, CP-850 & 1000, VP650PM, HCP-1200(old type semi-modular);( NOTE: It does not work with new types of Antec PSUs having two red ports.)
- Compatibility: Compatible with Seasonic PSUs such as 1050XM2-1250XM2, M12II-850 750 620 520 EVO, Platinum 400 460 520 Fanless, Platinum XP2 660-760-860-1050-1200XP3, Snow Silent 1050W 750W, X650, X750, X760, X850, X1250-X1050, KMX series, SSR-450RM(G-450),550RM(G-550),650RM(G-650), SSR-1000PD/SSR-1200PD, SGX-500;
- 6P - 15P SATA: 6-pin port to plug into Seasonic/Antec PSU, 15 Pin SATA port to plug into the hard drive, riser card, or other devices with SATA port;
- Parameter: Gauge: 1007-18AWG(standard tin-coating copper wire), Length(including connectors): main 20inches(50cm)+secondary 6inches(15cm)+thridary 6inches(15cm) ,Between 2 SATA: 6 inches
+
+
Overview
Specs
Reviews
Need to add more hard drives, SSDs, or mining risers to your system, but your power supply has run out of SATA power connectors? This 6 Pin Male to 3X 15 Pin SATA Female Power Adapter Cable is the solution.
Designed specifically for select Seasonic and Antec modular power supplies, this cable converts a single 6-pin PCIe output into three standard SATA power connectors-. Whether youre building a storage server, upgrading your gaming PC with additional SSDs, or setting up a BTC mining rig, this cable provides the extra power connections you need-1.
This cable is NOT universal. It is specifically designed for Seasonic and select Antec modular PSUs. Please verify your power supply model before ordering.
XM2 Series 1050XM2, 1250XM2 M12II EVO 850W, 750W, 620W, 520W Platinum Series 400W, 460W, 520W Fanless; XP2 660/760/860; XP3 1050/1200 Snow Silent 1050W, 750W X-Series X650, X750, X850, X1250, X1050, KMX series G-Series (Semi-modular) SSR-450RM, SSR-550RM, SSR-650RM SSR Series SSR-1000PD, SSR-1200PD SGX Series SGX-500 Neo ECO 520W, 620W TPQ Series TPQ-850, TPQ-1000, TPQ-1200 Signature Series SG-650, SG-850 TruePower Series TP-550, TP-650, TP-750 CP Series CP-850, CP-1000 VP Series VP650PM HCP Series HCP-1200 (old semi-modular type) NOT Compatible With:
New Antec PSUs with TWO red ports-1
Corsair, EVGA, or other brands (check compatibility list)
Non-modular power supplies
Standard 6-pin PCIe ports on motherboards
Step 1: Verify Compatibility Check your PSU model against the compatibility list above. Antec users must confirm their PSU has ONE red port (not two)-1.
Step 2: Connect to PSU Plug the 6-pin male connector into the corresponding 6-pin PCIe port on your Seasonic or Antec modular PSU-1.
Step 3: Connect Your Devices Plug the SATA 15-pin female connectors into your hard drives, SSDs, optical drives, or mining risers-1.
Important Notes:
Maximum load: This cable supports up to 2 riser cards at most do not exceed this limit-1
Do not use this cable to power GPUs or other high-draw PCIe devices
Ensure all connections are firmly seated to avoid power loss
Connector A (Input) 1x 6-Pin Male (PCIe, for Seasonic/Antec PSU) Connector B (Output) 3x 15-Pin SATA Female Cable Length Main: 20 inches (50cm); Secondary: 6 inches (15cm); Tertiary: 6 inches (15cm) Wire Gauge 1007-18AWG Tin-Coated Copper Max Riser Cards 2 riser cards maximum Compatible PSUs Seasonic (see list), Antec (OLD TYPE with ONE red port) Applications For HDD, SSD, Optical Drives, BTC Mining Risers Compatible Seasonic PSUs: Compatible Antec PSUs (OLD TYPE with ONE red port ONLY): Technical Specifications
Designed specifically for select Seasonic and Antec modular power supplies, this cable converts a single 6-pin PCIe output into three standard SATA power connectors-. Whether youre building a storage server, upgrading your gaming PC with additional SSDs, or setting up a BTC mining rig, this cable provides the extra power connections you need-1.
This cable is NOT universal. It is specifically designed for Seasonic and select Antec modular PSUs. Please verify your power supply model before ordering.
XM2 Series 1050XM2, 1250XM2 M12II EVO 850W, 750W, 620W, 520W Platinum Series 400W, 460W, 520W Fanless; XP2 660/760/860; XP3 1050/1200 Snow Silent 1050W, 750W X-Series X650, X750, X850, X1250, X1050, KMX series G-Series (Semi-modular) SSR-450RM, SSR-550RM, SSR-650RM SSR Series SSR-1000PD, SSR-1200PD SGX Series SGX-500 Neo ECO 520W, 620W TPQ Series TPQ-850, TPQ-1000, TPQ-1200 Signature Series SG-650, SG-850 TruePower Series TP-550, TP-650, TP-750 CP Series CP-850, CP-1000 VP Series VP650PM HCP Series HCP-1200 (old semi-modular type) NOT Compatible With:
New Antec PSUs with TWO red ports-1
Corsair, EVGA, or other brands (check compatibility list)
Non-modular power supplies
Standard 6-pin PCIe ports on motherboards
Step 1: Verify Compatibility Check your PSU model against the compatibility list above. Antec users must confirm their PSU has ONE red port (not two)-1.
Step 2: Connect to PSU Plug the 6-pin male connector into the corresponding 6-pin PCIe port on your Seasonic or Antec modular PSU-1.
Step 3: Connect Your Devices Plug the SATA 15-pin female connectors into your hard drives, SSDs, optical drives, or mining risers-1.
Important Notes:
Maximum load: This cable supports up to 2 riser cards at most do not exceed this limit-1
Do not use this cable to power GPUs or other high-draw PCIe devices
Ensure all connections are firmly seated to avoid power loss
Connector A (Input) 1x 6-Pin Male (PCIe, for Seasonic/Antec PSU) Connector B (Output) 3x 15-Pin SATA Female Cable Length Main: 20 inches (50cm); Secondary: 6 inches (15cm); Tertiary: 6 inches (15cm) Wire Gauge 1007-18AWG Tin-Coated Copper Max Riser Cards 2 riser cards maximum Compatible PSUs Seasonic (see list), Antec (OLD TYPE with ONE red port) Applications For HDD, SSD, Optical Drives, BTC Mining Risers Compatible Seasonic PSUs: Compatible Antec PSUs (OLD TYPE with ONE red port ONLY): Technical Specifications
