Dual M.2 to PCIe Adapter, M.2 NVMe SSD to PCIe Adapter & NGFF (B+M Key) SSD to SATA Controller Expansion Card for 1x NVMe SSD and 1x NGFF (SATA Based) SSD

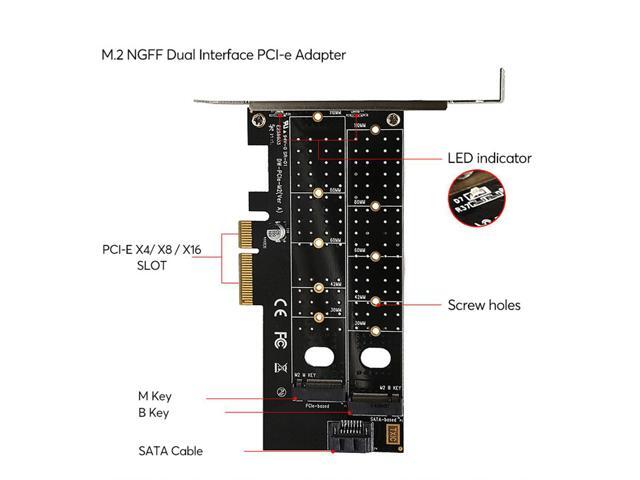

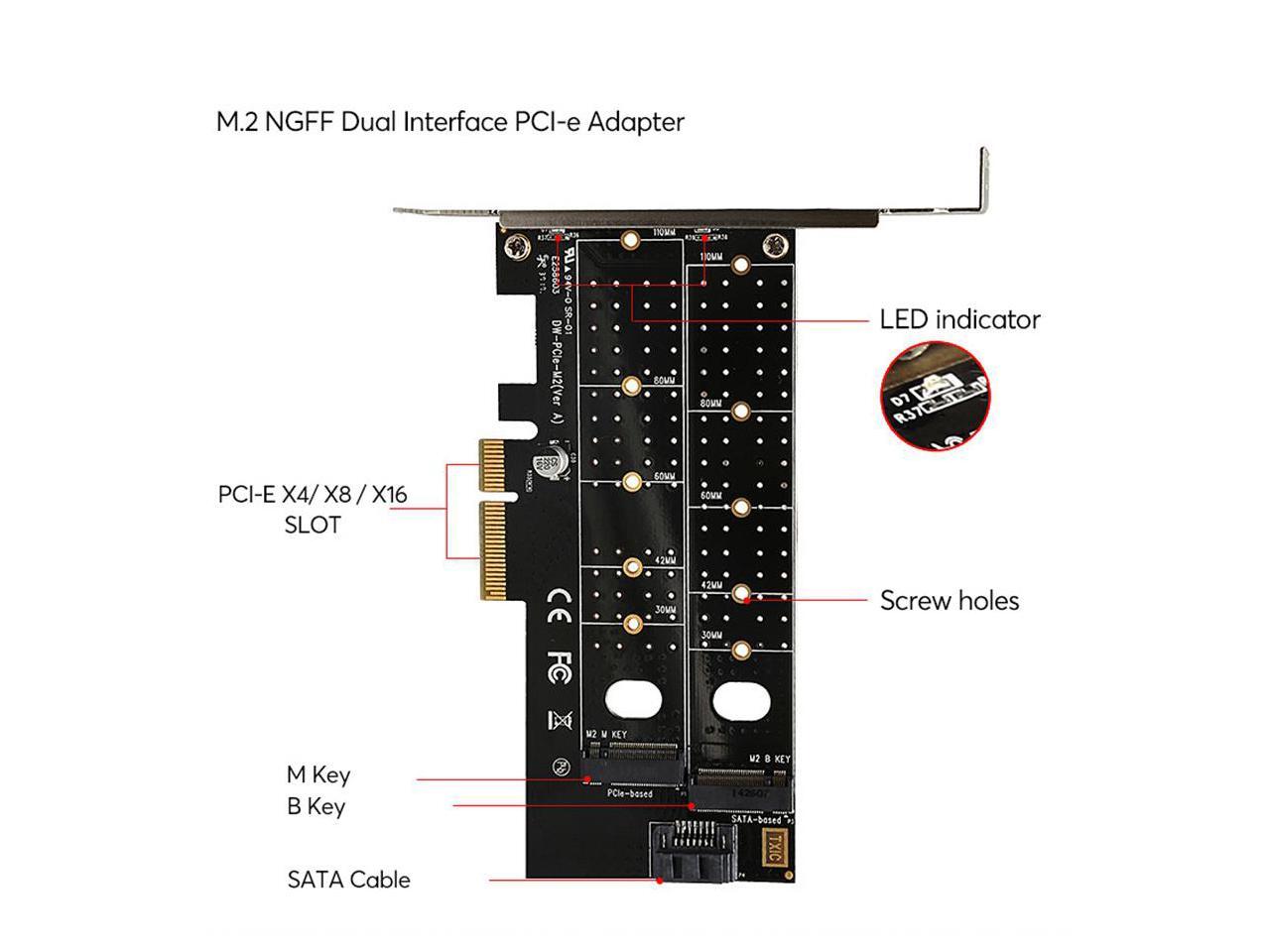

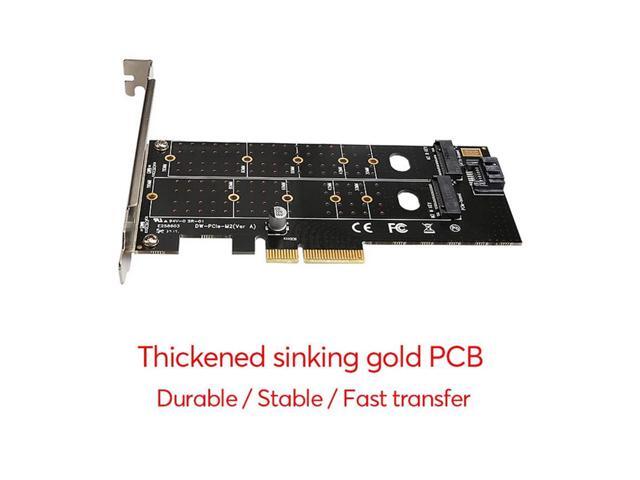

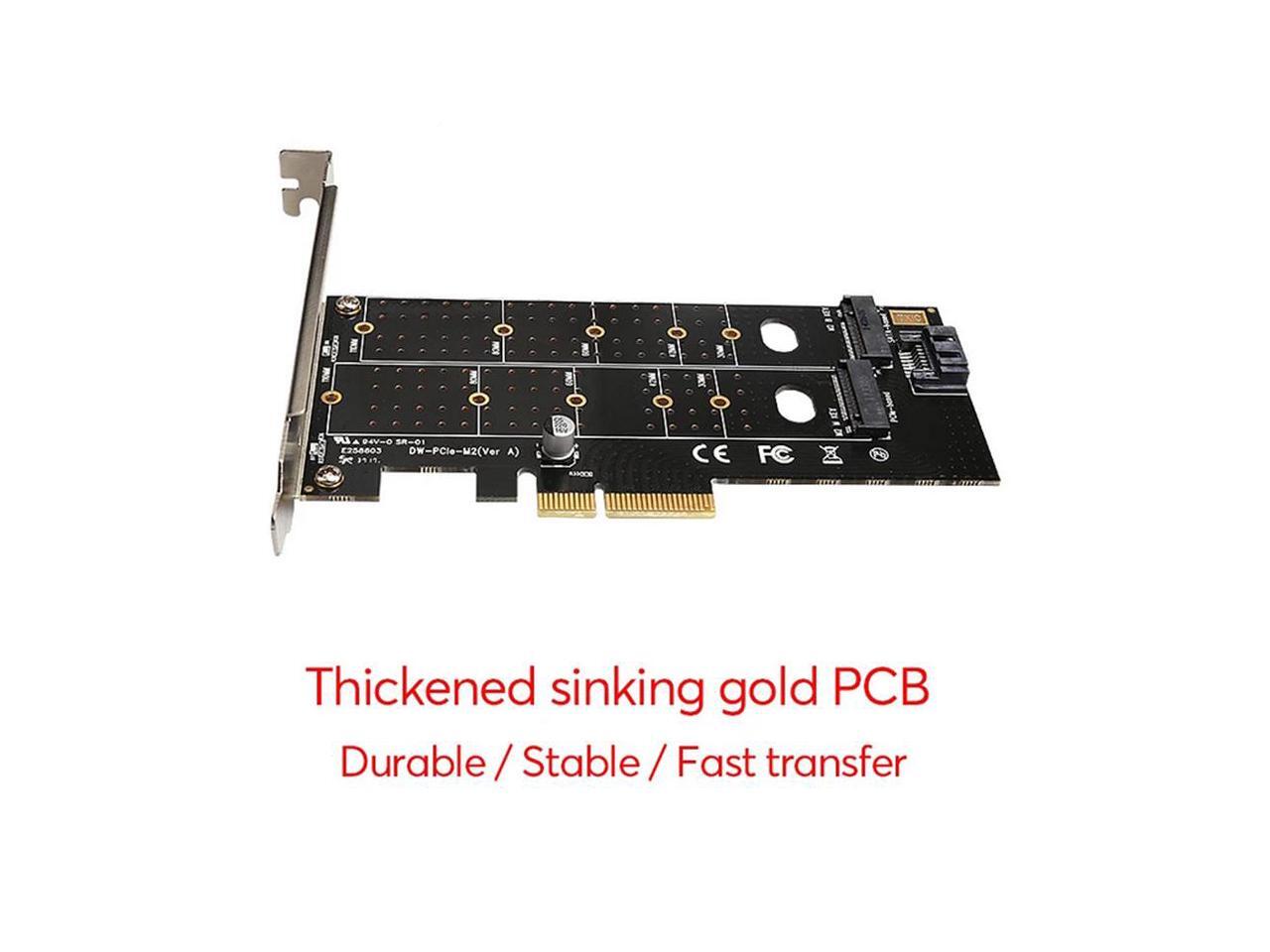

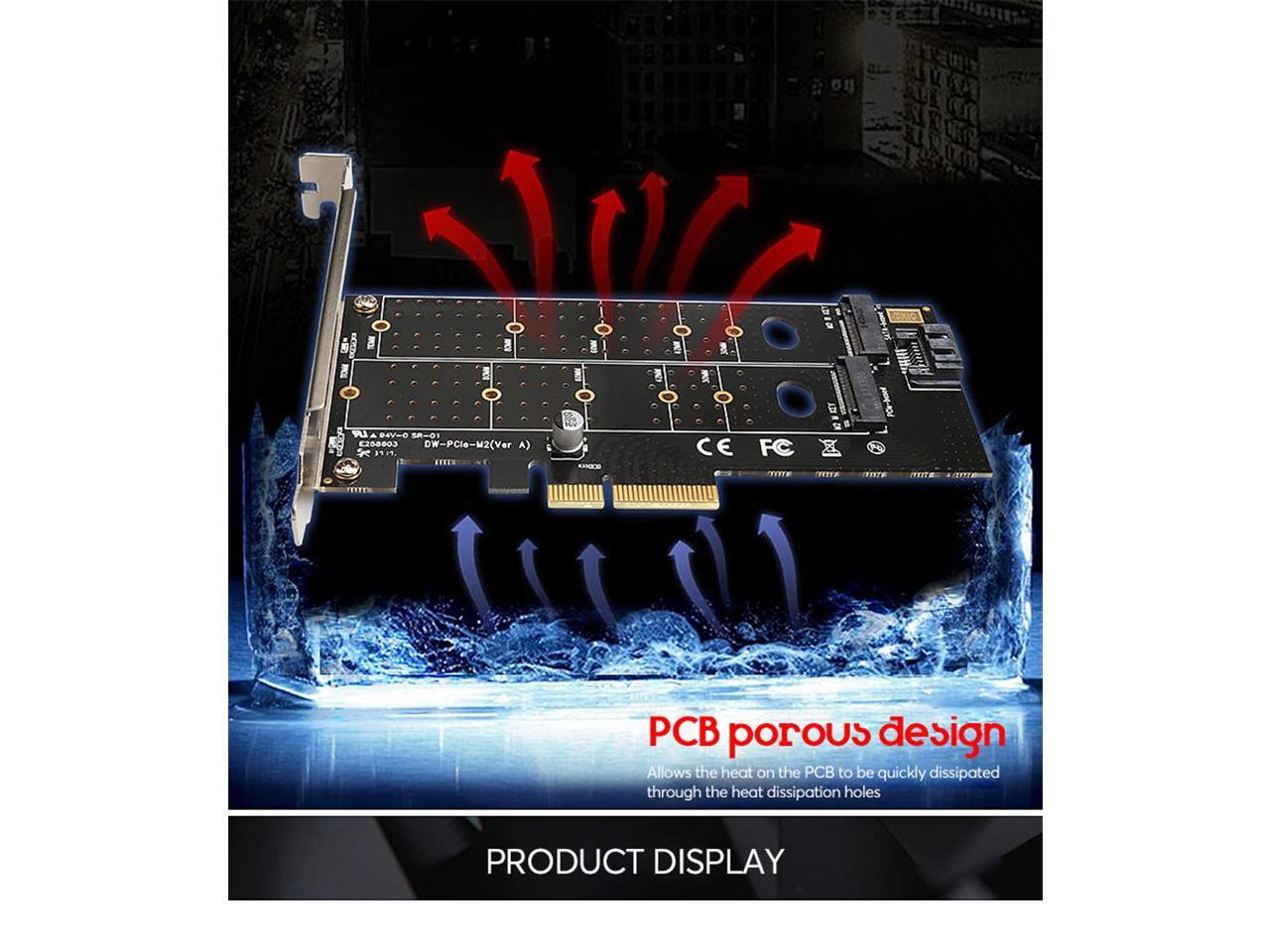

PCI-e 3.0 4x to NVMe M Key & SATA to NGFF (B Key) SATA-Based SSD Dual Port M2 expansion Card allows you add M. 2 NVMe SSD & M. 2 SATA SSD to motherboard without M. 2 slot at the same time This Dual M. 2 Adapter Converts a M. 2 (B key) SATA Based SSD into SATA interface, and M. 2 NVMe SSD (M Key) to PCI-e 4x This NVMe PCIe Adapter Designed with LED Indicator, Easy to Know Power and Data Transfer Status. The vented design on immersion gold PCB enhance heat dissipation of SSD.

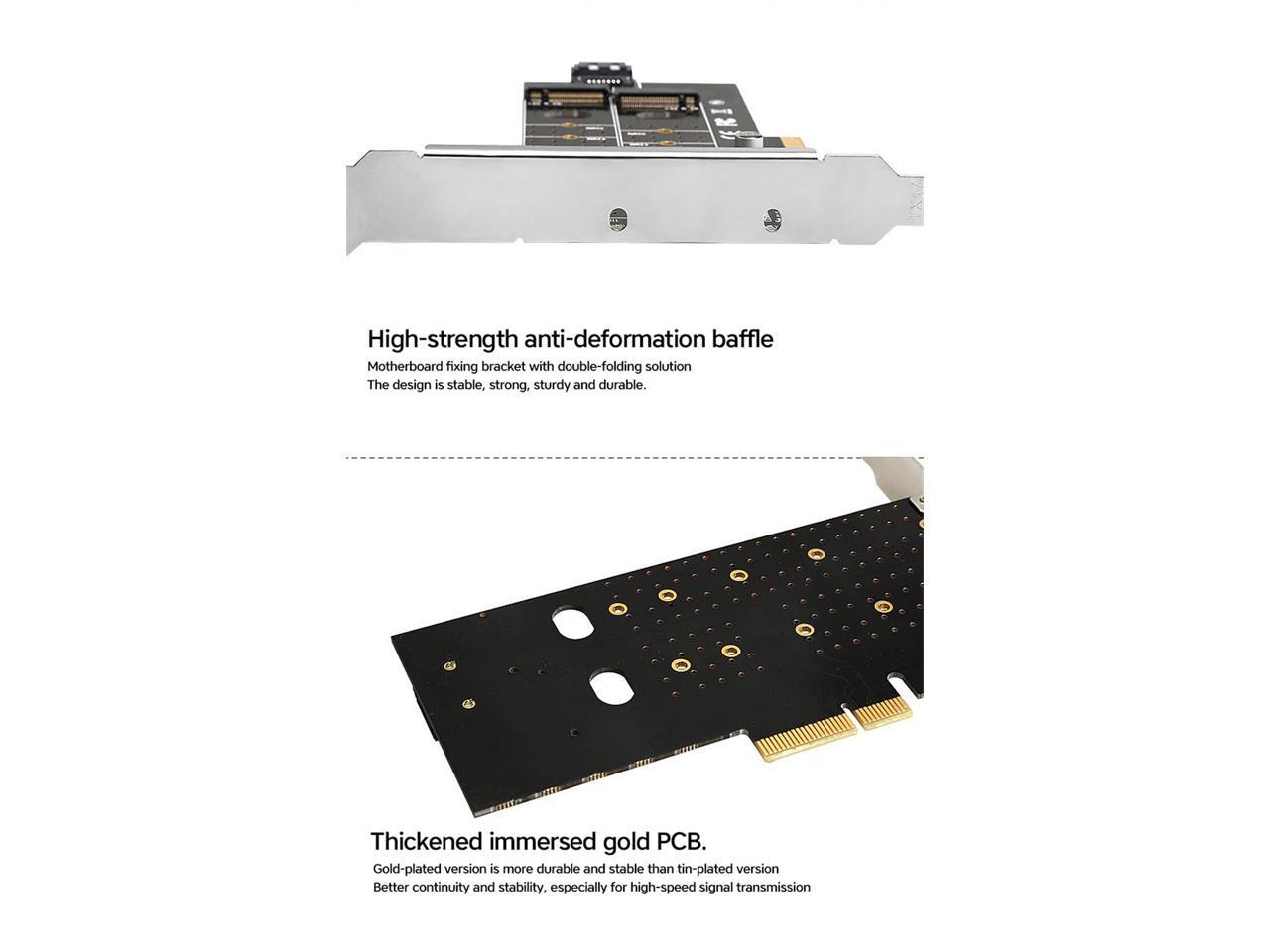

low-profile and full-profile slot brackets included. Support Windows XP/7/8/10 /Linux, NO driver required. Please install SSD's driver if no disk showing in Disk Manage.
Note: It need connect SATA Cable to Mainboard if installing SATA based B+M key or B Key SSD. When installing M. 2 PCI-e NVMe SSD, it does not need.
NOTE:
1. You are kindly reminded that this adapter ONLY support M. 2 SSD. DO NOT support SATA3 SSD or any SATA devices! 2. 7-pin SATA cable must be connected to motherboard if you want to read the M. 2 SATA SSD (Key B).
3. This adapter compatible for PCIe x4 x8 x16 slot. DO NOT support PCIe X1 slot.
4. If there is a exclamation mark after install the adapter, please ask for SSD supplier to supply the NVME driver for SSD. Dual M. 2 PCIe Adapter, M. 2 NVME SSD (M Key) or M. 2 SATA SSD (B Key) 22110 2280 2260 2242 2230 to PCI-e 3.0 x4 & SATA Host Controller Expansion Card with Low Profile Bracket for
PC Desktop Specifications:
1. Connects one B key & one M key NGFF SSD at the same time to PCI-E 4X motherboard.
2. Compliant with PCI Express M. 2 specification 1.0.
3. Compliant with SATA 3.0 specification for B key.
4. Compliant with PCI-E 4X 3.0 specification for M key.
Supports:
1. Supports data transfer up to 6.0G b/s.
2. Supports SATA-based B key and PCI-E 4X-based M key NGFF SSD.
3. Supports 2230, 2242, 2260, 2280 & 22110 mm size NGFF SSD.
Features:

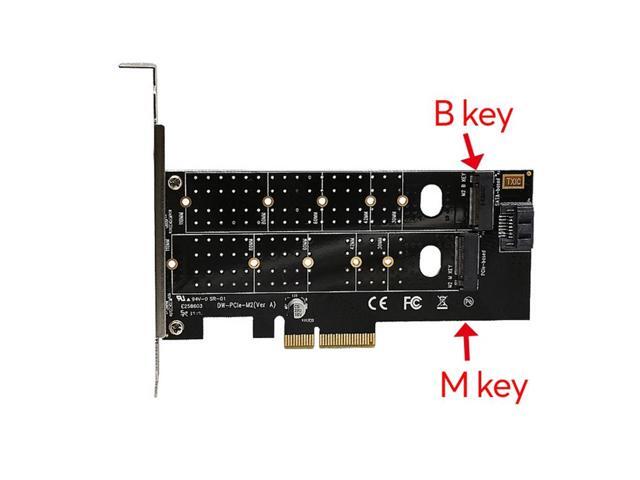

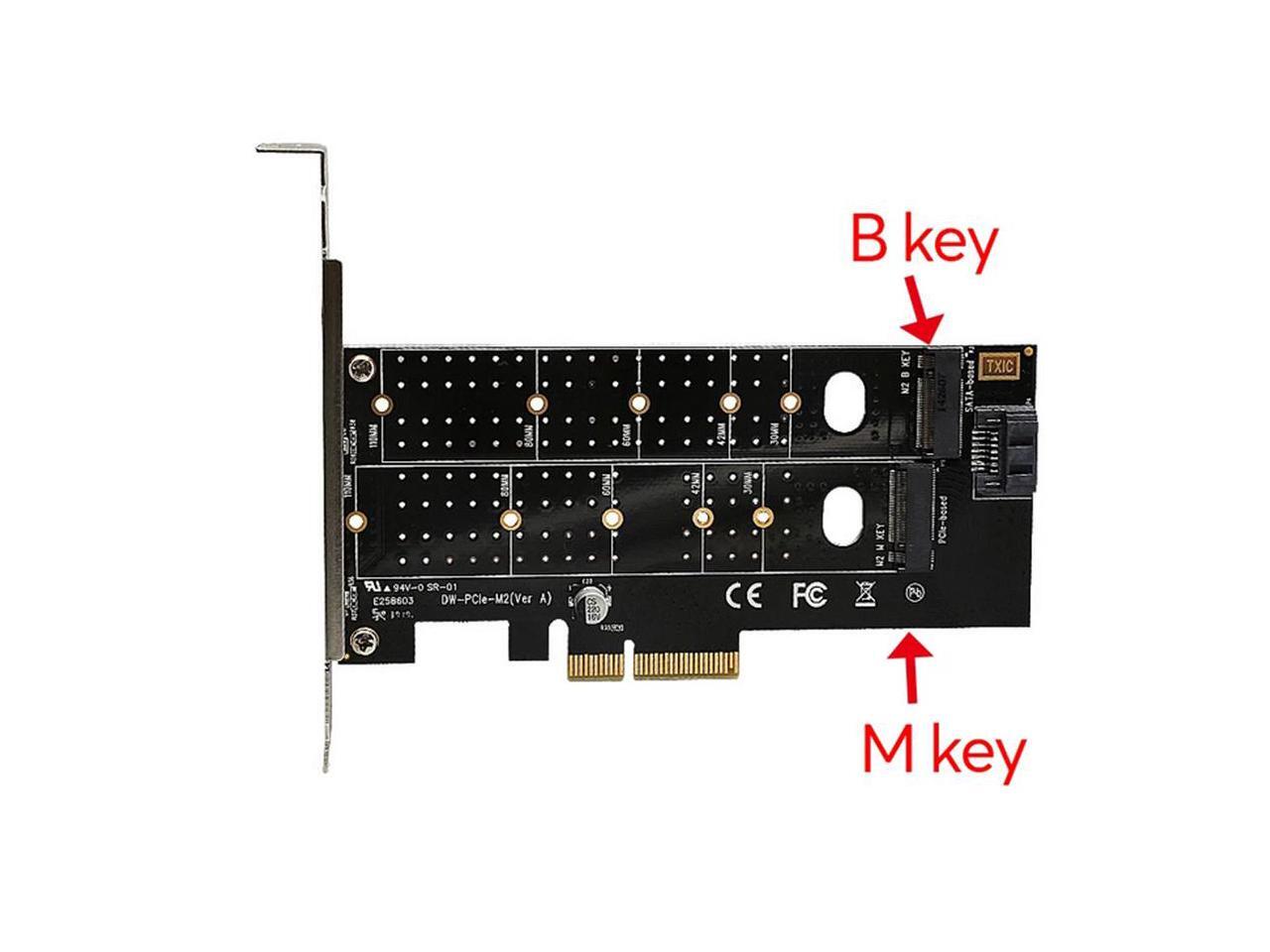

1. One NGFF B Key and one NGFF M key sockets available. 2. 8 screw holes 2230/2242/2260/2280/22110 available to fix NGFF SSD cards.

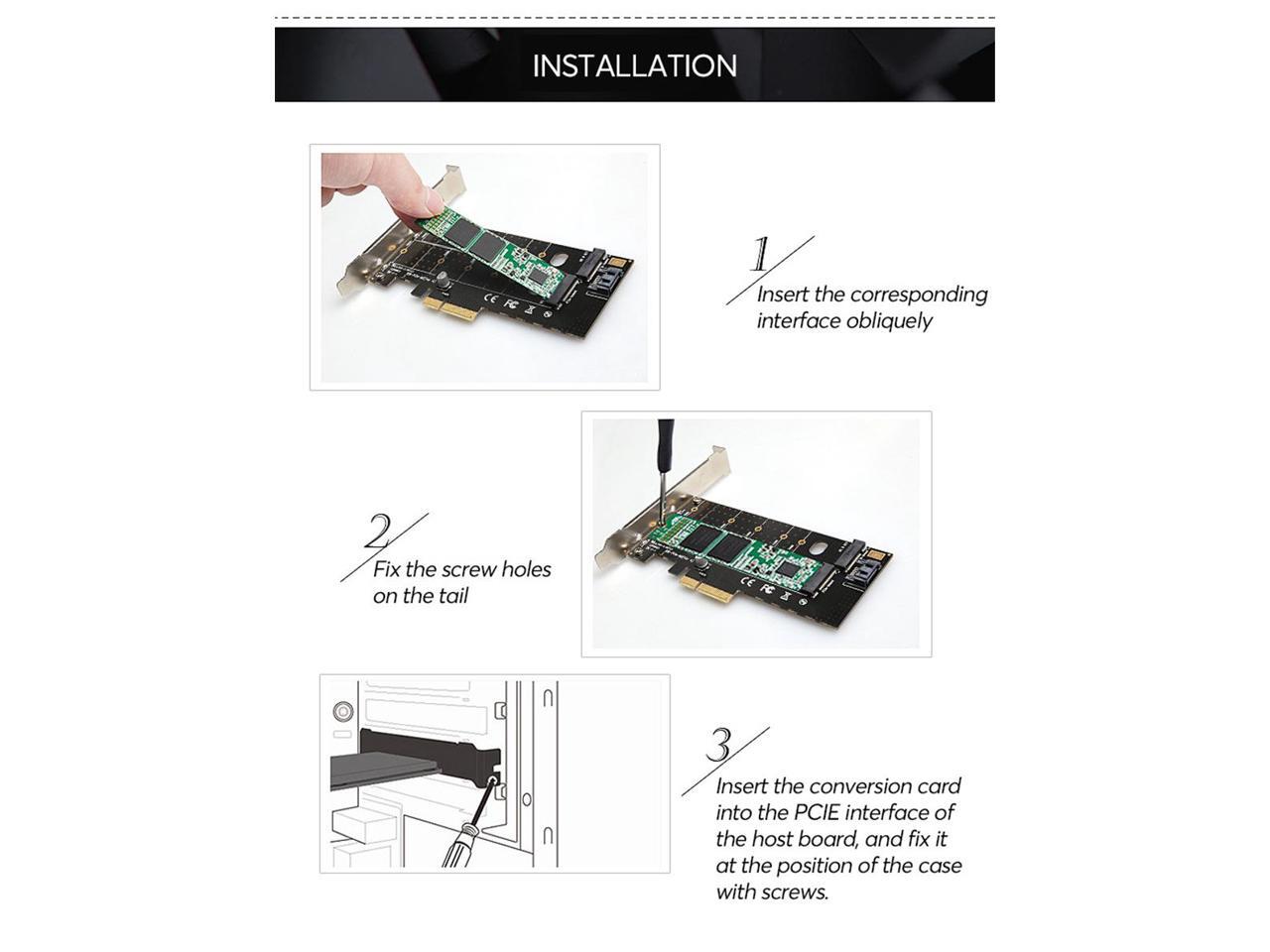

3. Easy installation & no driver required.
4. No additional power required.

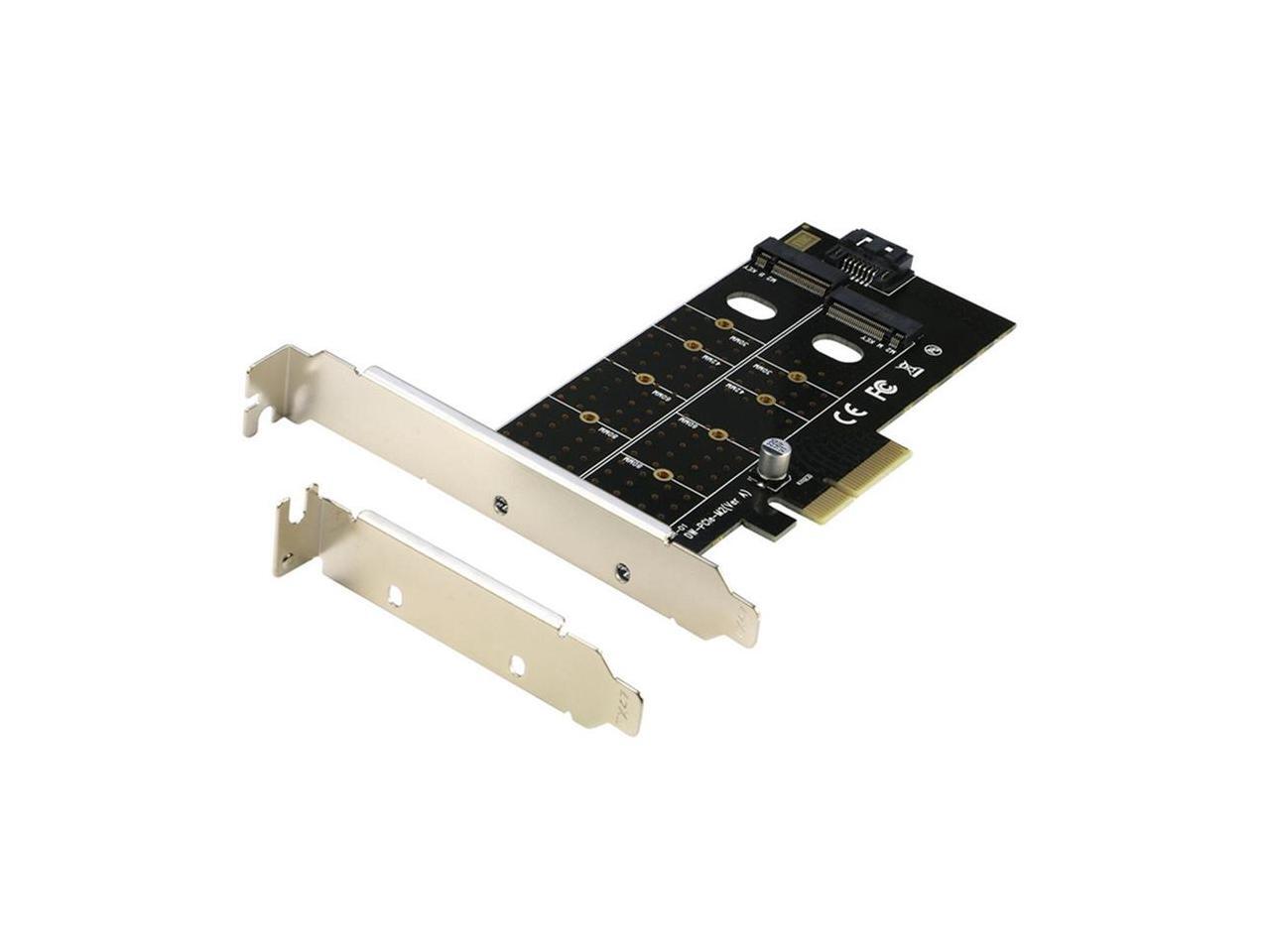

Package Contents: 1x Dual M. 2 PCIe & SATA Adapter Card (SSD in Pictures NOT Including). 1x Low Profile Bracket.
