New BIG-Size 24V to 12V 40A Step-down Power DC-DC Converter Regulator Wateproof
- Efficiency 97% (half load) ; 95% (full load)
- Large Size: 100*80*39mm for High Power Use; Good heat dissipation
+
+
Overview
Specs
Reviews
Product Name: 24V to 12V 40A Step-down DC-DC Converter Regulator
Features:
1. 100% full power and stable current output
2. 100% Imported components
3. Wide input voltage from 19-35Vdc
4. 100% waterproof and anti-shock protection, Ultra compact size, light weight
5. Industry grade DC 24V to DC 12V step-down converter, efficiency up to 95%
6.
Certificates: CE/RoHS
7.
Waterproof level: IP68
8. Die-cast aluminum shell, epoxy potting, Cooling by free air convection,
9.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and
Short-circuit, Auto-recovery when device is back to normal operating
10. Non-Isolated Module
11. lifetime up to 100, 000 hours.
Input Rated Voltage: 24V DC
Input Voltage Range: 19-35V DC
Efficiency: 97% (half load); 95% (full load)
Output Voltage: 12V DC
Output Current: 40 Amps
Output Rated Power: 480 Watts
Output Peak Power: 125%
Voltage Regulation: < 1%
Load Regulation: < 2%
Ripple (full load test): < 120mV
No-load Current: < 50mA
Working Temperature: -40°c ~ +80°c
Waterproof Rating: IP68
Protections: Over-load, Over-current, Over-temperature, Over-voltage, Short-circuit

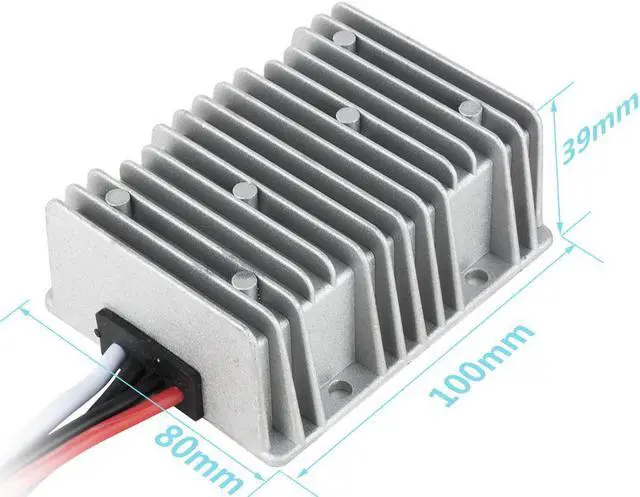

Machine Size: 100*80*39mm
N.
Weight: 539g
Cooling Way: Free air convection
Certifications: CE, RoHS
Contains: 1 x DC-DC Converter Regulator

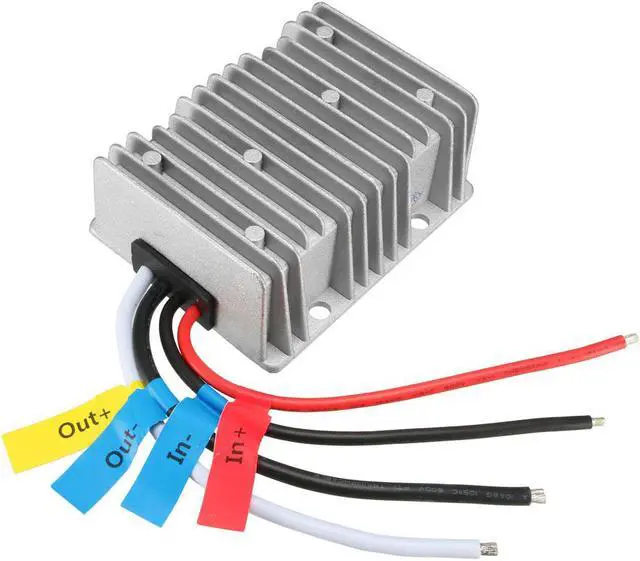

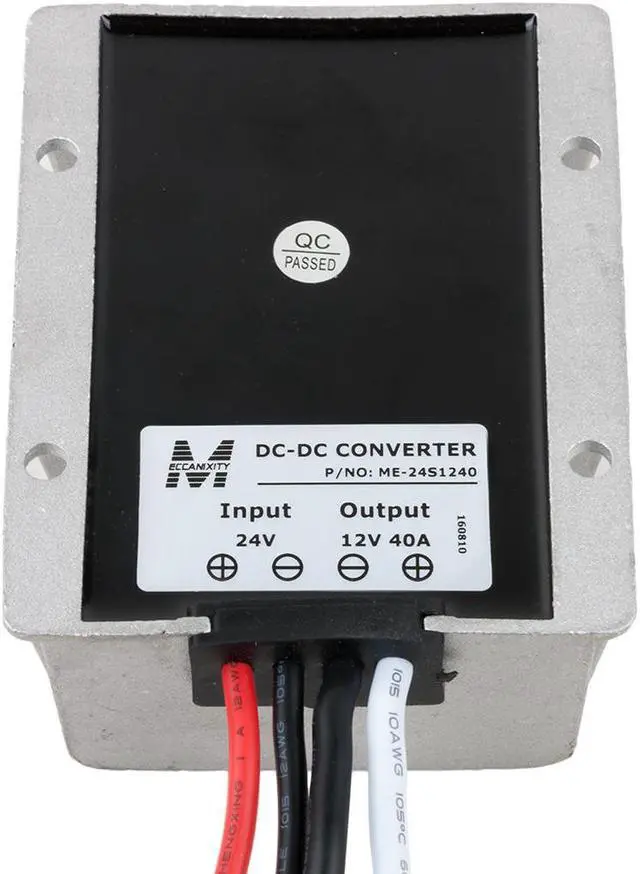

Note: The positive and negative pole, input and output connection are marked on the back of the product, be sure not to connect incorrectly
Features:
1. 100% full power and stable current output
2. 100% Imported components
3. Wide input voltage from 19-35Vdc
4. 100% waterproof and anti-shock protection, Ultra compact size, light weight
5. Industry grade DC 24V to DC 12V step-down converter, efficiency up to 95%
6.
Certificates: CE/RoHS
7.
Waterproof level: IP68
8. Die-cast aluminum shell, epoxy potting, Cooling by free air convection,
9.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and
Short-circuit, Auto-recovery when device is back to normal operating
10. Non-Isolated Module
11. lifetime up to 100, 000 hours.
Specifications
:Input Rated Voltage: 24V DC
Input Voltage Range: 19-35V DC
Efficiency: 97% (half load); 95% (full load)
Output Voltage: 12V DC
Output Current: 40 Amps
Output Rated Power: 480 Watts
Output Peak Power: 125%
Voltage Regulation: < 1%
Load Regulation: < 2%
Ripple (full load test): < 120mV
No-load Current: < 50mA
Working Temperature: -40°c ~ +80°c
Waterproof Rating: IP68
Protections: Over-load, Over-current, Over-temperature, Over-voltage, Short-circuit
Machine Size: 100*80*39mm
N.
Weight: 539g
Cooling Way: Free air convection
Certifications: CE, RoHS
Contains: 1 x DC-DC Converter Regulator
Note: The positive and negative pole, input and output connection are marked on the back of the product, be sure not to connect incorrectly
