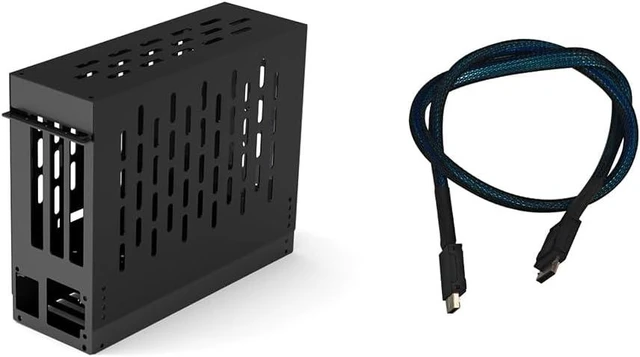

JMT PCIe 4.0 X16 to Oculink SFF-8612 eGPU Graphics Card Docking Station 64GB/s External GPU Enclosure Support Small 1U / Flex Power Supply (Black,AC6 29 * 25 * 14cm)
- Graphics Card Slots: AC6: Three slots thickness limit 60 mm, length limit 248 mm, no height limit; AC7: Three slots thickness limit 60 mm, length limit 336 mm, no height limit.
- Graphics Card Dock Dimensions: AC6: 251mm (L)×86mm (W) × 203mm (H) = 4.3L (4.3 cubic decimeters); AC7: 340mm (L)×86mm (W) × 203mm (H) = 5.9L (5.9 cubic decimeters).
- Power Supply Mount: Requires a separate FLEX (small 1U) power supply(not included), 150mm x 81.5mm x 40mm.
- 64Gbps Ultra-Fast Oculink Transfer: Built-in F2D1 Oculink motherboard with a 50cm Oculink data cable included. Supports synchronous start/stop with your device for seamless use, Not compatible with Hot Swap.
- 4-Speed Adjustable Height: 4 Gears of shell height adjustment to fit GPUs of different heights, flexible and user-friendly for various graphics card models.
- Premium Material & Exquisite Craft: 1mm/1.5mm thick SGCC galvanized steel sheet (Black/White versions) for sturdiness and drop resistance; 3mm thick acrylic (Acrylic Y version) for
+
+
Overview
Specs
Reviews
JMT PCIe 4.0 X16 to Oculink SFF-8612 eGPU Graphics Card Docking Station 64GB/s External GPU Enclosure Support Small 1U / FLEX Power Supply
Product Specifications
Graphics Card Dock Dimensions:
AC6: 251mm (L)×86mm (W) × 203mm (H) = 4.3L (4.3 cubic decimeters)
AC7: 340mm (L)×86mm (W) × 203mm (H) = 5.9L (5.9 cubic decimeters)
Net Weight and Gross Weight:
AC6: Net weight 1550g, Gross weight 1850g
AC7: Net weight 1950g, Gross weight 2300g
Packaging Dimensions:
AC6: Length 29 cm, Width 25 cm, Height 14 cm
AC7: Length 38 cm, Width 35 cm, Height 14 cm
Graphics Card Slots:
AC6: Three slots thickness limit 60 mm, length limit 248 mm, no height limit
AC7: Three slots thickness limit 60 mm, length limit 336 mm, no height limit
Materials: 1mm and 1.5mm thick galvanized steel (SGCC), 3mm thick acrylic (AC7Y).
Manufacturing Process: Sheet metal bending, spray painting and baking, acrylic thermoforming.
Backplate: Built-in OCULINK backplate, includes a 50cm OCULINK cable.
Fan Mounts: None.
Power Supply Mount: Requires a separate FLEX (small 1U) power supply, 150mm x 81.5mm x 40mm.
Graphics Card Bay Features:
Compact design with FLEX power supply mounted at the bottom; supports graphics cards or other PCIe cards up to 248mm/336mm in length; 4-step adjustable housing height to accommodate graphics cards of varying heights; large, all-around ventilation openings; supports simultaneous start/stop. Oculink 64G high-speed data transfer; does not support hot-swapping.
Product Specifications
Graphics Card Dock Dimensions:
AC6: 251mm (L)×86mm (W) × 203mm (H) = 4.3L (4.3 cubic decimeters)
AC7: 340mm (L)×86mm (W) × 203mm (H) = 5.9L (5.9 cubic decimeters)
Net Weight and Gross Weight:
AC6: Net weight 1550g, Gross weight 1850g
AC7: Net weight 1950g, Gross weight 2300g
Packaging Dimensions:
AC6: Length 29 cm, Width 25 cm, Height 14 cm
AC7: Length 38 cm, Width 35 cm, Height 14 cm
Graphics Card Slots:
AC6: Three slots thickness limit 60 mm, length limit 248 mm, no height limit
AC7: Three slots thickness limit 60 mm, length limit 336 mm, no height limit
Materials: 1mm and 1.5mm thick galvanized steel (SGCC), 3mm thick acrylic (AC7Y).
Manufacturing Process: Sheet metal bending, spray painting and baking, acrylic thermoforming.
Backplate: Built-in OCULINK backplate, includes a 50cm OCULINK cable.
Fan Mounts: None.
Power Supply Mount: Requires a separate FLEX (small 1U) power supply, 150mm x 81.5mm x 40mm.
Graphics Card Bay Features:
Compact design with FLEX power supply mounted at the bottom; supports graphics cards or other PCIe cards up to 248mm/336mm in length; 4-step adjustable housing height to accommodate graphics cards of varying heights; large, all-around ventilation openings; supports simultaneous start/stop. Oculink 64G high-speed data transfer; does not support hot-swapping.
