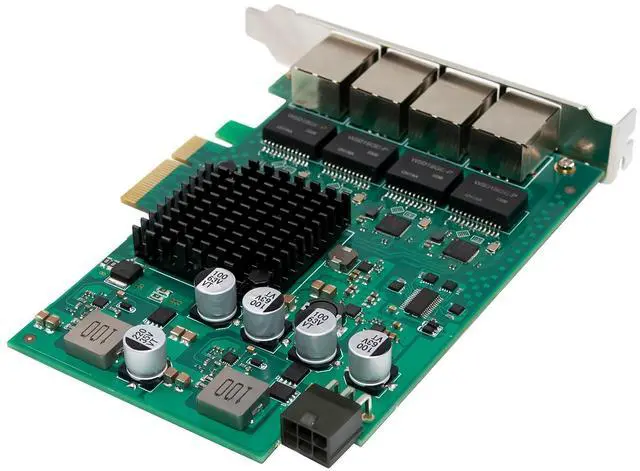

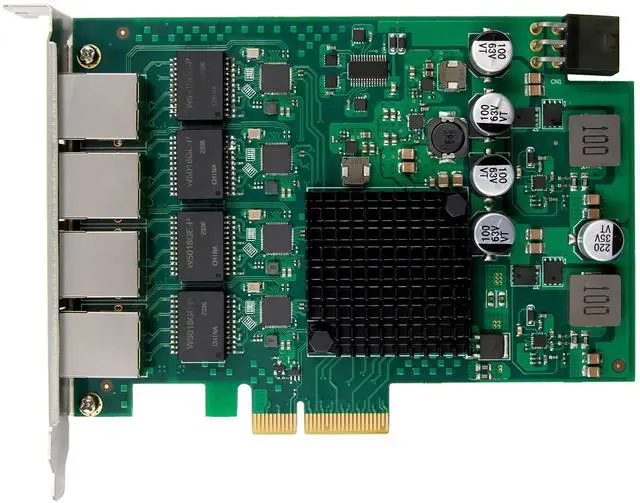

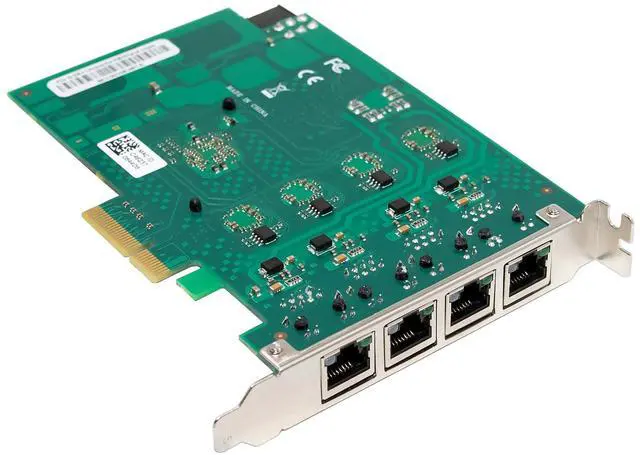

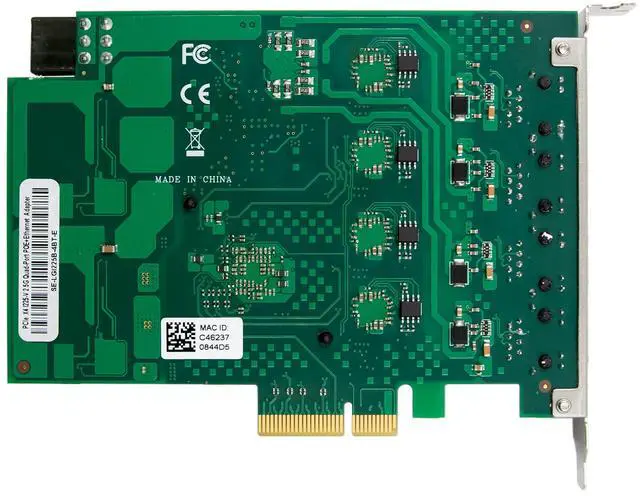

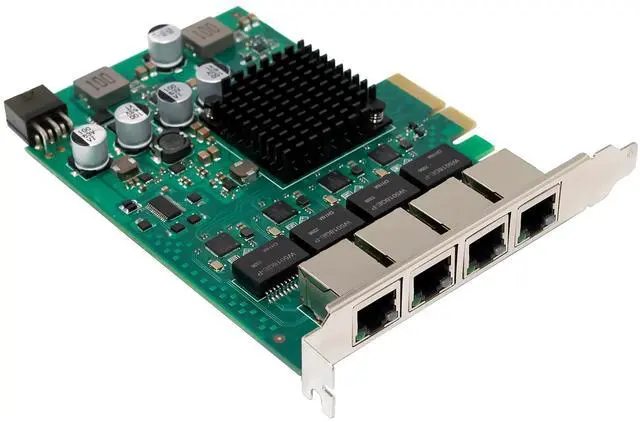

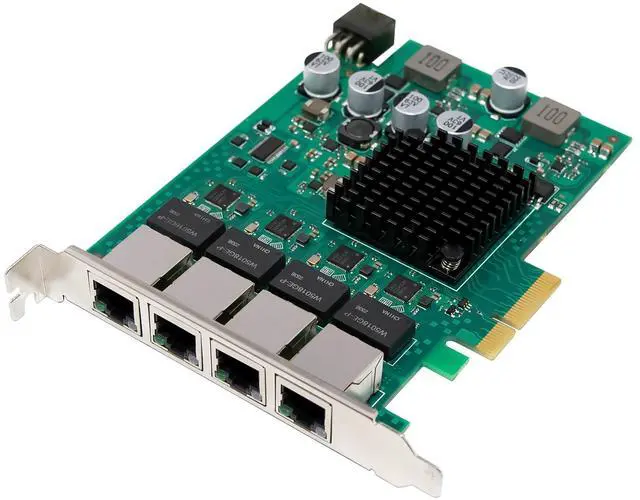

JVFYI PCIe x4 I226 Quad- PoE Visual Frame Grabber NIC

Compliant with PCI Express specification Revision 3.1(5GT/s)

MDI(Copper) standard IEEE802.3 Ethernet interface up to 2.5Gb/s

Complies with single port 1GbE PoE port (Copper)

PCI-Express lanes: x4

Complies with the MDI standard IEEE802.3 Ethernet interface for 2500BASE-T,1000BASE-T,100BASE-TX,10BASE-TE application( IEEE802.3bz, IEEE802.3ab ,IEEE802.3u and IEEE802.3 )

Each port supports maximum power supply of 30W

Each port support power voltage: 44-57VDC

Support Isolation Protection: ESD 8KV, Contact Discharge 4KV, Surge Protection 1KV

Half duplex at 10/100Mbp operation and full duplex operation at all supported speeds

IEEE802.3 Auto-negotiator

IEEE802.3x and IEEE802.3z compliant flow control support with software-controllable RX thresholds and TX pause frames

Automatic cross-over detection function(MDI/MDI-X)

IEEE 1588 Protocol and 802.1AS implementation

Supporting Time Sensitive Networking(TSN) Capabilities

Support IEEE802.3az-Energy Efficient Ethernet(EEE)

Full Wake-On-Lan support

TCP/UDP, IPv4 checksum offloads(Rx/Tx)

Transmit Segmentation offloading (TSO) (IPv4,IPv6)

Support for packets up to 9.5KB Jumbo Frames

Chipset: intel I226-V +

Drivers support for Win 10/Win 11/Server 2019/ Server 2022/Server 2025

Future table

Product Name PCI Express X4 Intel I226 Quad- PoE Visual Frame Grabber NIC

Media Type Copper

PCIe Bus width PCIe 3.1 X4(compatible x8, x16 slot)

Output Connector 4 x PoE(Copper)

PoE+ output Voltage 44 - 57VDC

PoE+ output power 30W/port

Transmission speeds 2.5G/1G/100/10Mbps

Power Supply PCIe & ATX 6Pin

Network protocol IEEE802.3at-2009 PoE standard, IEEE802.3af-2003 Poe standard, IEEE802.3ab 1000BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3az, IEEE802.3z, IEEE802.3Q VLANs, IEEE802.3x, IEEE1588

Isolation Protection ESD 8KV, Contact Discharge 4KV, Surge Protection 1KV

Overload Current Protection Present

Jumbo frames 9.5Kbytes

DPDK support Yes

PXE support No

Output Total power PCIe supply max 60W

ATX 6pin supply max 120W

Power Consumption 5W

PoE Power LED support

PoE function switch Support (each port support power switch)

Operation Temperature 0~55(32~131)

Storge Temperature -40~70(-104~158)

System Requirements Win 10/Win 11/Server 2019/ Server 2022/Server 2025

Package content

1 x PCI Express X4 Intel I226 Quad- PoE Visual Frame Grabber NIC

1 x Users Manual

1 x CD Driver

System Requirements

Drivers support for Win 10/Win 11/Server 2019/ Server 2022/Server 2025

Available PCI Express x4/x8/x16 slot

Hardware installation

1.Turn off the computer and unplug the power cord

2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis

4.Replace the computer cover, then plug in the power cord

5.Power on the computer

Install Drivers and software

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

1.insert the CD driver bound with Intel network driver into your CD-ROM drive (also you can download the latest drivers from support website):

2.if the Found New Hardware Wizard screen is displayed, click Cancel

3.start the autorun located in the software package, the autorun may automatically start after you have extracted files.

4.Click install Drivers and Software

5.Follow the instructions in the install wizard to finish it

Installing Linux Drivers from Source Code

1.Download and expand the base driver tar file.

2.Compile the driver module

3.Install the module using the modprobe command

4.Assign an IP address using the ifconfig command

Support

More information and settings, please refer to the Intel Adapter User Guides or you can contact us.
