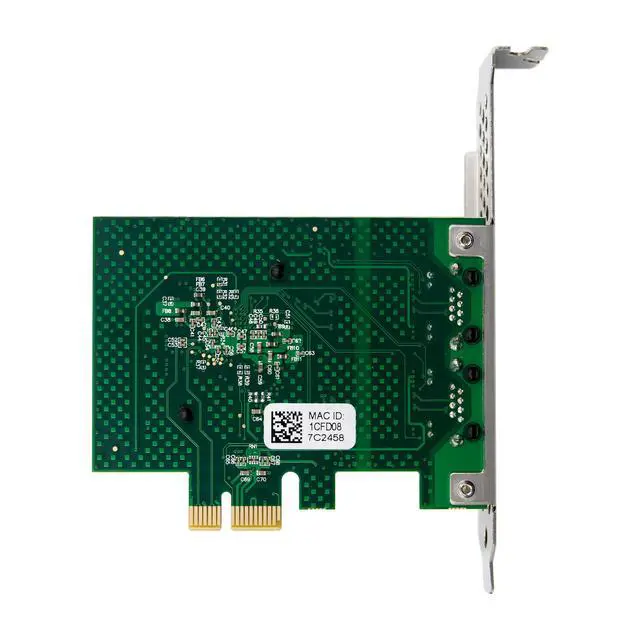

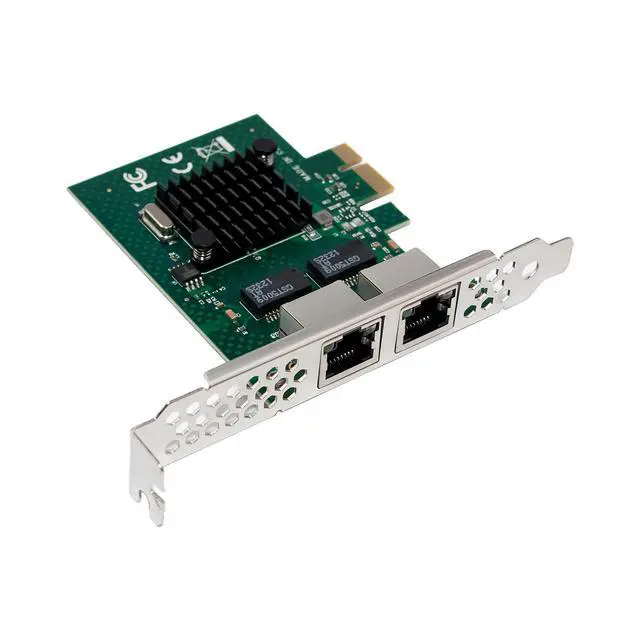

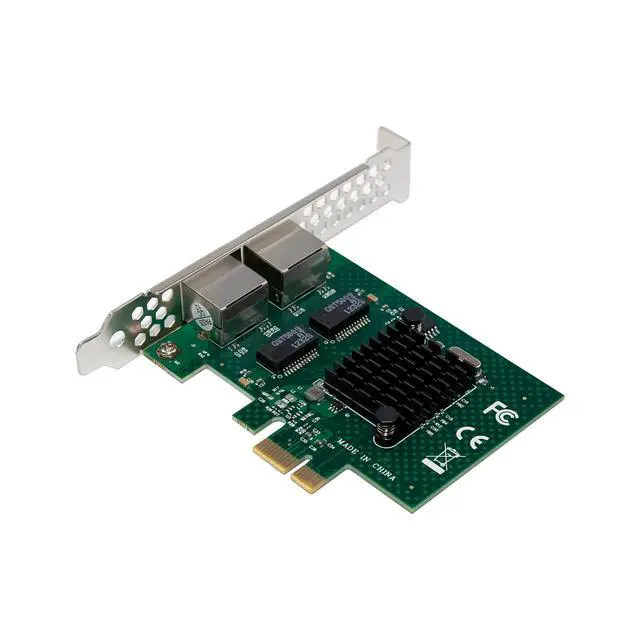

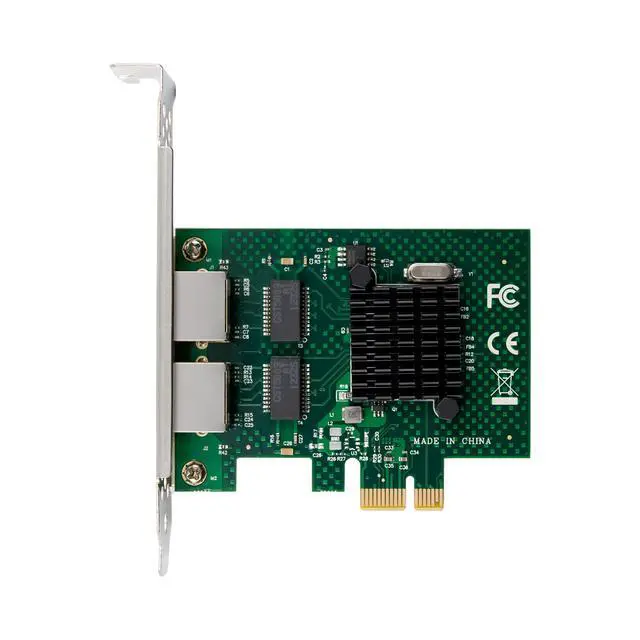

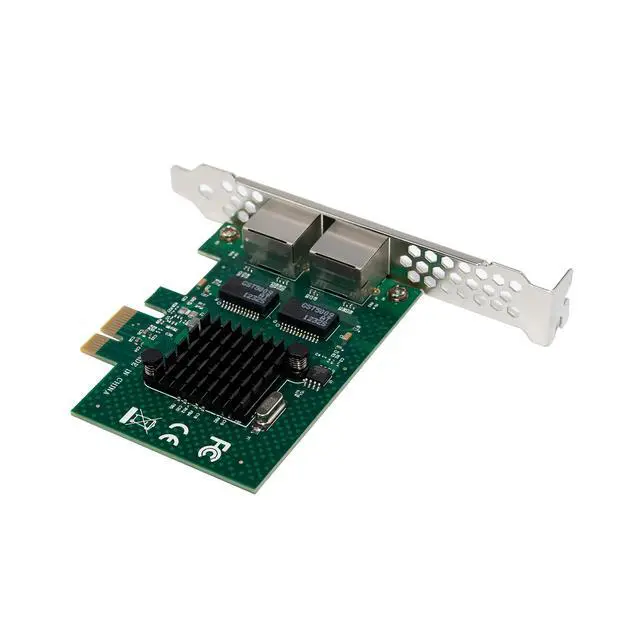

JVFYI PCIe NetXtreme Dual-Port Gigabit Network card

Dual-port Gigabit Ethernet adapter

IEEE802.3ab 10/100/1000Mb/s Gigabit Ethernet compliant

Virtual LANs(VLANs):IEEE802.1q VLAN tagging

X1 PCI Express v1.x and v2.x

Energy Efficient Ethernet-compliant with IEEE Standard 802.3az-2010

MSI-MSI-X capabilities-up to 17 MSI-X vectors

I/O virtualization support for VMWare, NetQueue, and Microsoft VMQ

-17 receive queues and 16 transmit queues per port

-17 MSI-X vectors supporting per queue interrupt to host

Function Level reset

ECC error detection and correction on internal SRAM

TCP,IP, and UDP checksum offload

Large Send offload, TCP segmentation offload

Receive-side scaling

Jumbo frames 9KB

IEEE802.3x flow control

Statistics for SNMP MIB II and Ethernet -like MIB

Comprehensive diagnostic and configuration software suite

ACPI 1.1a-compliant multiple power modes

Wake-on-LAN support

Dual RJ45 with integrated link and activity LEDs

Drivers for Vista/Win7 / Win8 / Win10 / Vista / Sever2008 / Sever 2012 / Linux2.2 and above

Package content

1 x PCIe NetXtreme Dual-port Gigabit Network card

1 x Users Manual

1 x CD

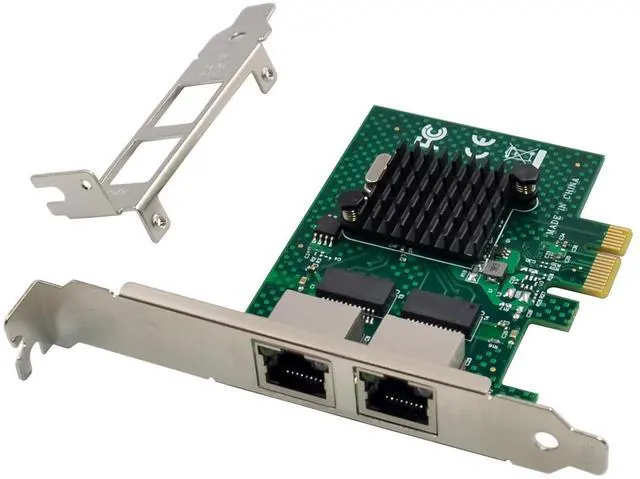

1 x Low profile bracket

Accessories

System Requirements

Linux, Vista/Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10

One available PCI Express x1/x4/x8/x16 slot

Hardware installation

1.Turn off the computer and unplug the power cord

2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter

3.Insert the adapter edge connector into the slot and secure the bracket to the chassis

4.Replace the computer cover, then plug in the power cord

5.Power on the computer

Install Drivers and software

Windows Operating Systems

Please select an installation file based on the product model and system type. You must have administrative rights to the operating system to install the drivers.

To install the adapter software for Win7, do the following steps:

1.insert the CD driver bound with Intel network driver into your CD-ROM drive:

2.if the Found New Hardware Wizard screen is displayed, click Next

3.select search for a suitable driver for my device(recommended)then click Next.

4.In the locate driver files window, click search for the best driver in these locations option and click browse to find the installation files, Press Next to continue to setup.

For Windows 7 32bit

TypeD:\ Broadcom\Broadcom NetXtremeI 1G\BCM5719_20\windows\broadcom_netlink_netxtreme_17_2_0_2_32bit

For Windows 7 64bit

TypeD:\ Broadcom\Broadcom NetXtremeI 1G\BCM5719_20\windows\broadcom_netlink_netxtreme_17_2_0_2_64bit

5.Follow the instructions in the install wizard to finish it

Installing Linux Drivers from Source Code

1.Install the source RPM Package.

2.Change the directory to the RPM path and build the binary drivers for your kernel

3.Install the newly built package (driver and man page)

4.Load the driver.

5.To configure the network protocol and address, refer to Linux-specific documentation

Support

More information and settings, please refer to the Adapter User Guides or you can contact us.
