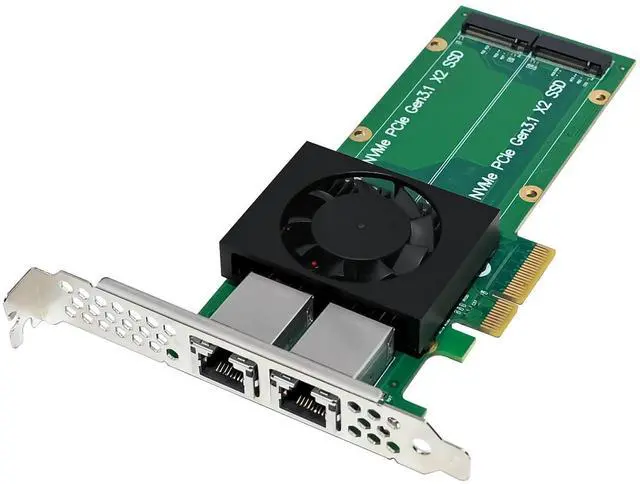

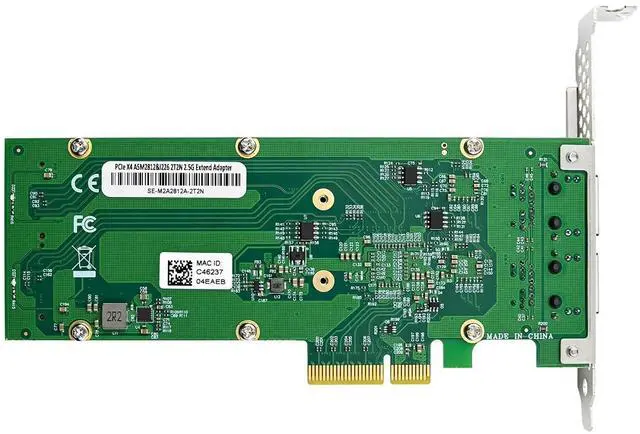

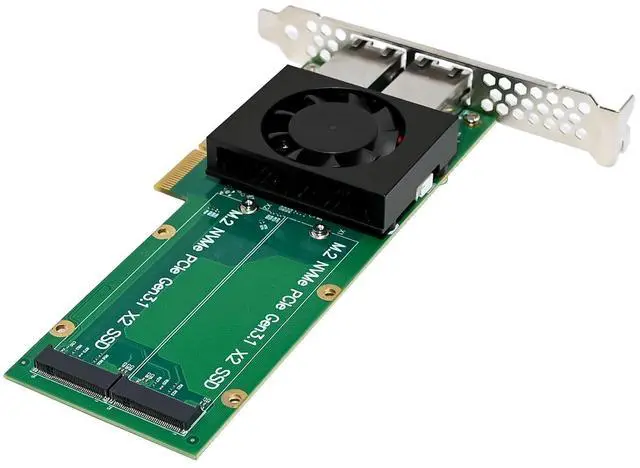

C&N PCIe 3.1 X4 to Dual 2.5G Network Card+Dual M.2 NVMe PCIe Adapter with Low Profile Bracket Support M.2 (M Key) NVMe SSD 22110/2280 /2260/2242 /2230

PCIe 3.1 2N2T expansion cards allow data center and cloud providers to build flexible, scalable rack infrastructures with other benefits such as.

- Creating cost-effective, high-availability hyperscale systems by using PCIe to communicate between hosts and endpoints in the rack

- Simplifying connectivity while delivering maximum PCIe switching performance for data center servers, storage and networking

- Reduces latency, system complexity and power consumption in data-intensive environments

- Supports the most demanding hyper-converged, AI, machine learning, NVMe JBOF, and rackmount systems with highly efficient features.

PCIe 3.1 2N2T Expansion Card Allows NAS devices configured with PCle expansion slots to be further enhanced:

- M.2 SSD configurations that do not take up much space on the machine's hard drive make it easy for you to enjoy the benefits of increased storage space and optimized performance.

- Flexibly install M.2 SSDs, configure caching pools or automatically tier storage disk zones.

- Enable SSD caching to improve performance and optimize storage space with Qtier technology.

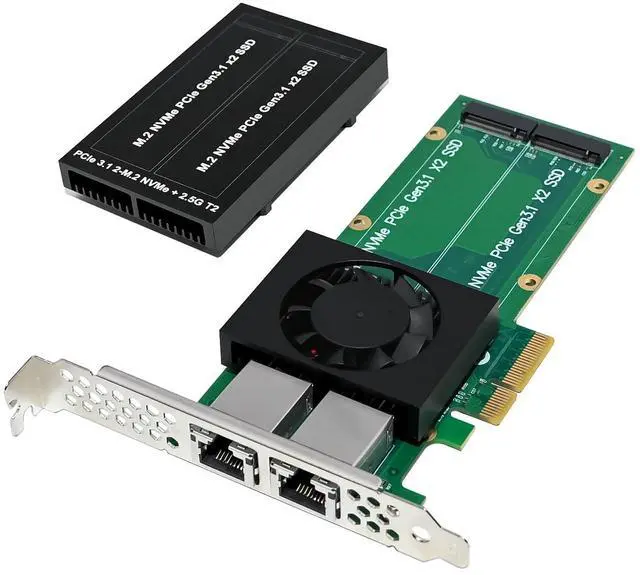

- Temperature sensing component monitors M.2 SSD temperature LED indicator shows M.2 SSD status Silent cooling module with heat sink and smart fan for fast and efficient cooling.

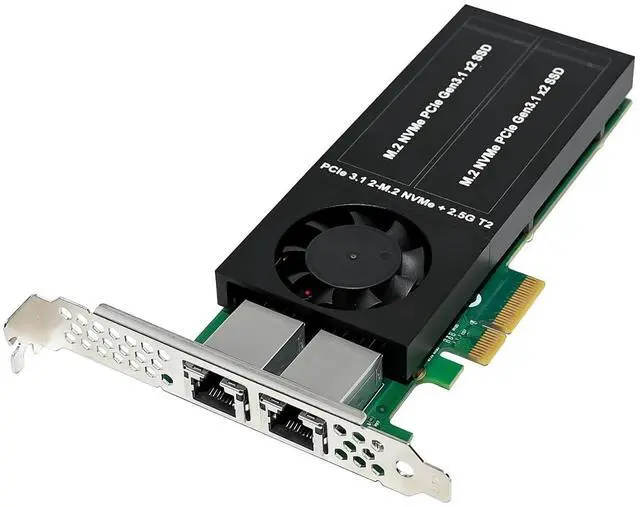

M.2 SSD cooling module with heat sink and intelligent fan quickly cools down the M.2 SSD to maintain high performance and stability of file transfers.

- Extend two 2.5G Ethernet ports for faster transfer speeds!

2.5GbE network interface

- PCI Express Specification Revision 3.1 compliant (5.0GT/s)

- MDI (Copper) Standard IEEE802.3 Ethernet Interface, 2.5Gb/s

- Compliant Dual-Port 2.5GbE RJ45 Port (Copper)

- Conforms to MDI standard IEEE802.3 for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE applications Ethernet interfaces (IEEE802.3bz, IEEE802.3ab, IEEE802.3u and IEEE802.3)

- IEEE802.3 auto-negotiator

- IEEE802.3x and IEEE802.3z compliant flow control support with software controllable RX thresholds and TX pause frames

- Automatic cross-detection function (MDI / MDI-X)

- IEEE 1588 protocol and 802.1AS implementation

- Supports Time Sensitive Networking (TSN) functionality

- Supports IEEE802.3az Wake-on-LAN for Energy Efficient Ethernet (EEE)

- Supports TCP/UDP, IPv4 checksum offload (Rx/Tx) Transmission Segment Offload (TSO) (IPv4, IPv6)

- Supports packets up to 9.5KB jumbo frames

M.2 NVME Key Features

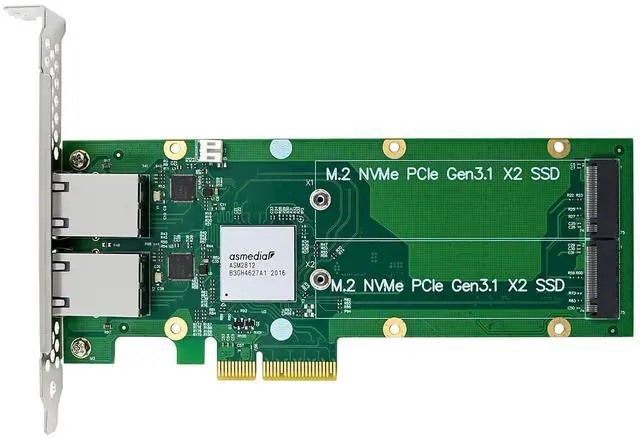

Chip Set: ASMedia ASM2812

Bus Type: PCIe 3.0 X8 X16

Media Interface: 2 x M.2 M Key NVMe SSDs

Module Size: M.2 Key M NVMe SSD devices supporting 2230, 2242, 2260, 2280

Compliant with PCI Express Specification Revision v3.0

Backward compatible with PCIe 2.0 and PCIe 1.0

Supports NVM Express (NVMe), M.2 Specification Revision 0.9

Supports dual-port x4-channel M.2 Key M NVMe SSD devices

Supports M.2 SSD module sizes: 2230, 2242, 2260, 2280

Supports M.2 M Key and B+M Key via PCIe protocols

Auto-detect channel configuration at boot

Supports L1 sub-state deep power saving mode

Supports wake-up function in S3/S4

Application Areas

Any mobile device with tight space constraints, desktops, workstations, value servers or industrially designed network equipment
