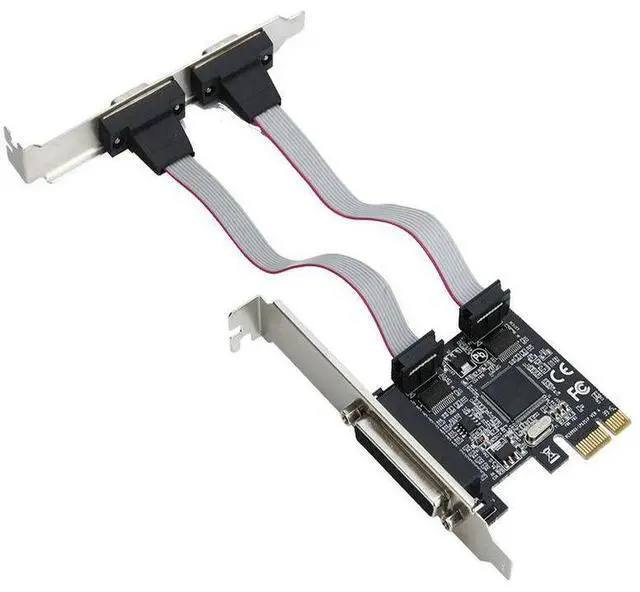

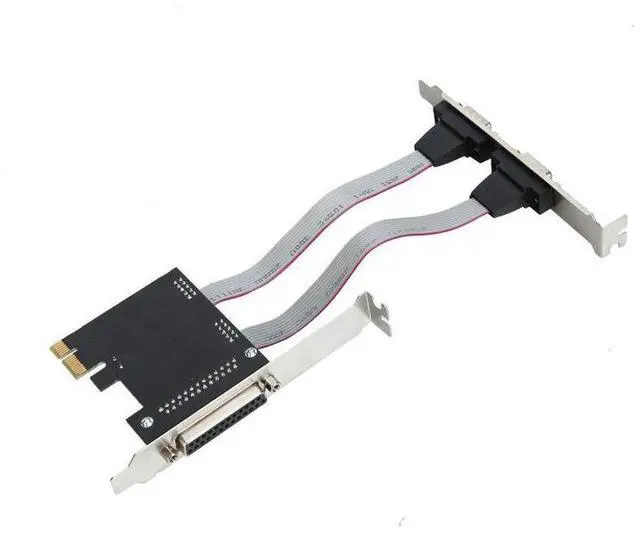

PCIe to 2-Port RS232 Serial + 1-Port DB25 Parallel Card AX99100 Controller, Supports 5V/12V Power on Pin 9, IEEE1284 Parallel, Wide Temperature Range (-40°C to 80°C)
Limited time offer, ends 04/19 By Torpedo Nova
- Dual Serial + Parallel Combo Card: Adds two standard DB9 RS232 serial ports and one DB25 parallel port via a single PCIe slot, ideal for industrial control, legacy device connectivity, and point-of-sale systems.
- AX99100 PCIe 2.0 Controller: Powered by the advanced AX99100 chipset, delivering reliable performance with support for high-speed serial data rates up to 25Mbps and IEEE1284 parallel compatibility.
- Pin 9 Power Output: Serial ports support selectable 5V or 12V power output on pin 9, enabling direct powering of connected serial devices without external power adaptersideal for POS terminals and industrial scanners.
- Wide Operating Temperature Range: Designed for demanding environments with an operating temperature range of -40°C to 80°C, ensuring reliable performance in industrial, outdoor, and embedded applications.
- Independent Power Supply: Built-in independent power regulation delivers 5V/12V power to serial ports without requiring external power connections, simplifying installation and reducing cable clutter.
+
+
Overview
Specs
Reviews

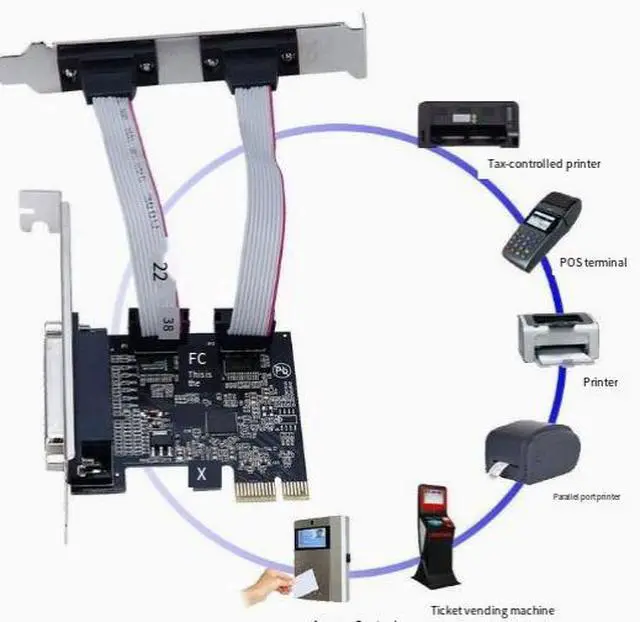

Expand the connectivity of your desktop or industrial system with this PCIe to 2-Port RS232 Serial + 1-Port DB25 Parallel Card. Powered by the AX99100 PCIe 2.0 Gen 1 controller, this combo expansion card adds legacy communication ports to modern systems equipped with PCI Express slots, making it ideal for industrial automation, point-of-sale systems, legacy printer connections, and embedded applications.
Comprehensive Legacy Port Expansion
This card provides:
- 2 x DB9 RS232 Serial Ports Compatible with a wide range of serial devices including modems, scanners, industrial controllers, and GPS receivers
- 1 x DB25 Parallel Port Supports IEEE1284 parallel standards for legacy printers, plotters, and specialized industrial equipment
Serial Port Features
The serial ports offer advanced capabilities for industrial applications:
- Pin 9 Power Output: Selectable 5V or 12V power on pin 9 for powering connected devices directly
- High-Speed Data Rates: Supports bidirectional speeds up to 25Mbps for high-throughput serial communication
- Special Baud Rate Support: Configurable for non-standard baud rates to accommodate specialized equipment
Parallel Port Compatibility
The DB25 parallel port supports IEEE1284 parallel standards, including:
- SPP (Standard Parallel Port) Basic compatibility for legacy printers
- Byte Mode Faster bidirectional data transfer
- ECP (Enhanced Capabilities Port) High-performance mode with DMA support for printers and scanners
