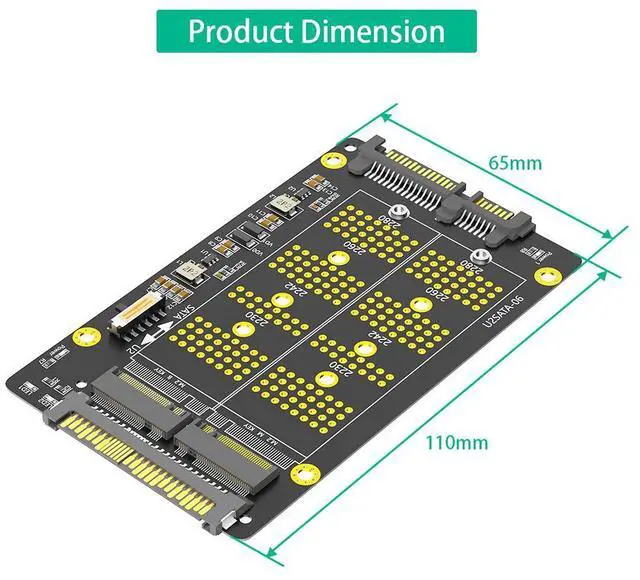

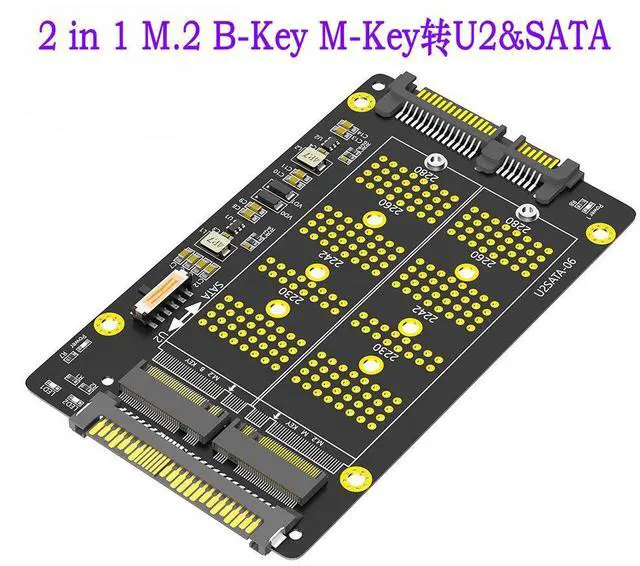

2-in-1 M.2 to U.2 SFF-8639 Adapter Supports M.2 NVMe (Key M) and M.2 SATA (Key B) SSDs, Dual Mode Operation, Compatible with 2280/2260/2242/2230 Form Factors

Maximize your storage flexibility with this 2-in-1 M.2 to U.2 SFF-8639 Adapter, designed to bridge the gap between M.2 and U.2 storage interfaces. Whether you're working with M.2 NVMe (PCIe) drives or M.2 SATA drives, this versatile adapter provides a unified solution for integrating M.2 SSDs into systems equipped with U.2 (SFF-8639) connectorscommonly found in enterprise servers, high-performance workstations, and data center storage arrays.

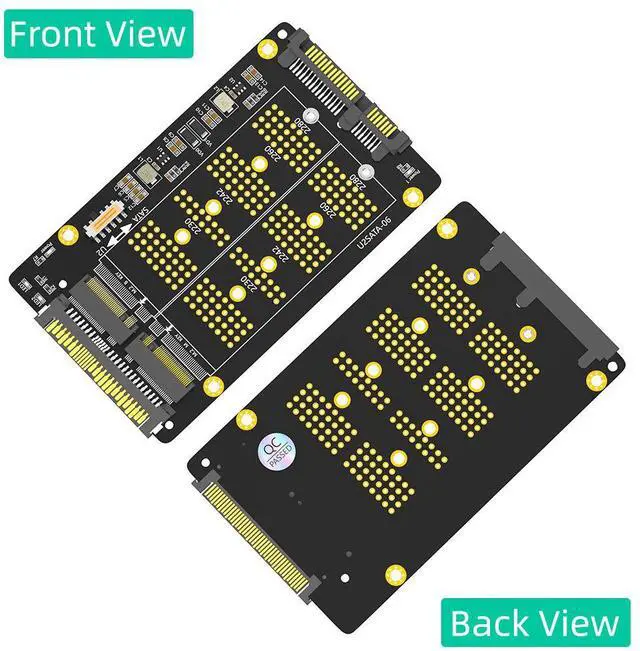

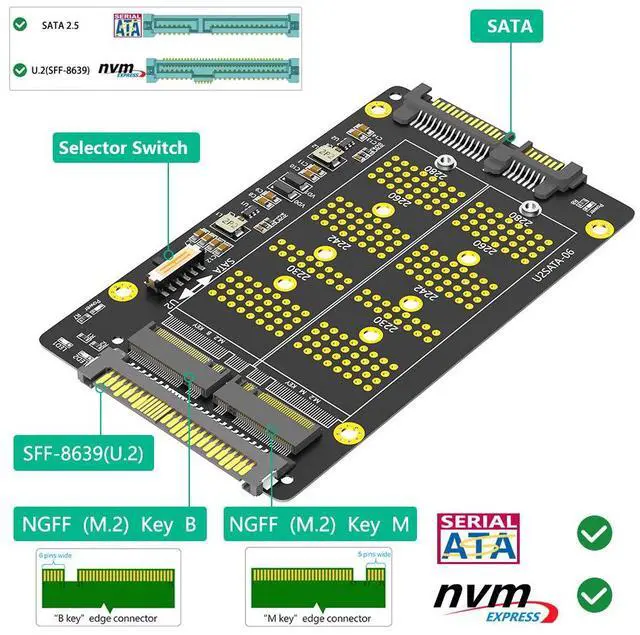

The adapter features two independent M.2 slots:

1. Key M slot: Supports M.2 NVMe (PCIe) SSDs
2. Key B slot: Supports M.2 SATA SSDs

Both slots can operate simultaneously, allowing you to install two M.2 drivesone NVMe and one SATAand connect them through a single U.2 interface. This dual-mode capability provides exceptional flexibility for storage configurations, enabling mixed drive types without requiring multiple adapters or consuming additional system interfaces.

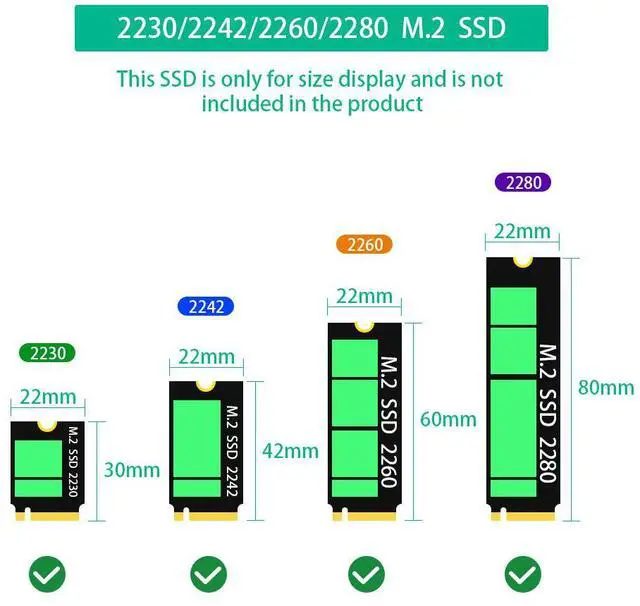

The adapter supports M.2 SSDs in 2280 (80mm), 2260 (60mm), 2242 (42mm), and 2230 (30mm) lengths, ensuring compatibility with a wide range of drives from various manufacturers. Adjustable standoffs allow for secure mounting regardless of drive size.

This solution is ideal for:

1. Enterprise servers requiring high-density storage with mixed drive types
2. Workstations utilizing U.2 backplanes for flexible storage expansion
3. Data center deployments where M.2 drives need to be integrated into U.2-based storage infrastructure
4. System integrators looking to leverage existing U.2 cabling and backplane infrastructure for M.2 drives
