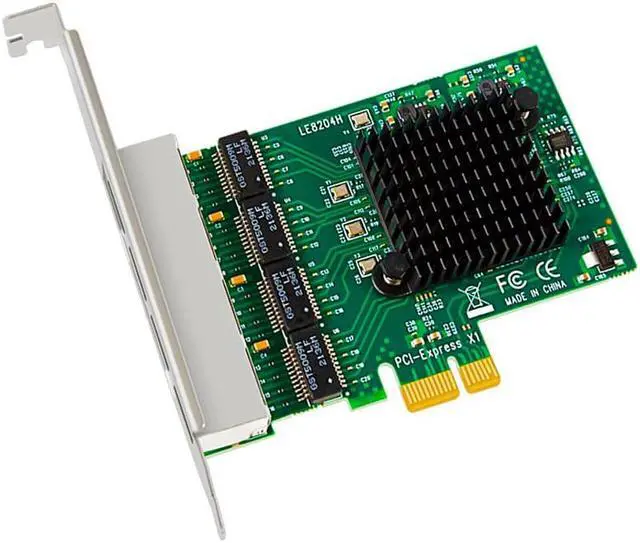

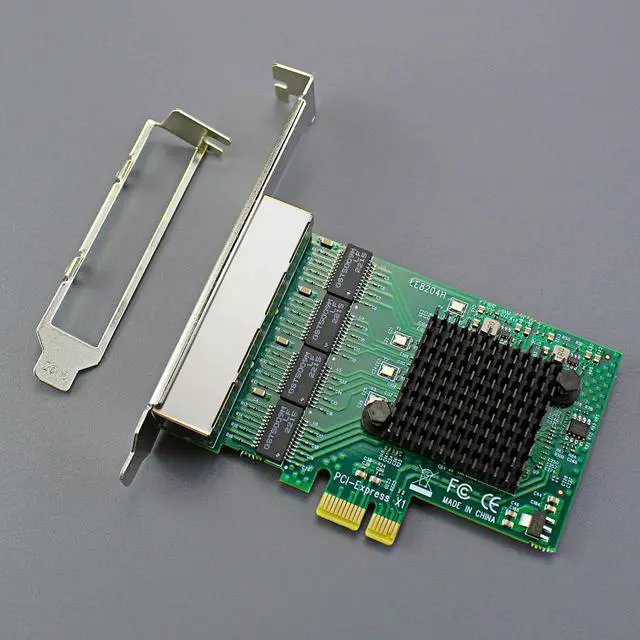

GLOTRENDS LE8204 4-Port Gigabit PCIe Ethernet Network Card, 4 x RTL8111H Chip, 4 x RJ45 LAN Port, PCIe X1 Installation

(1) Write a Review
  • 4-port Gigabit Network Card: Wide Range of Applications, such as Servers, Network Attached Storage (NAS), Soft Router and Firewall, etc.
  • Full Speed Operation: Based on RTL8111H Chip, the upstream bandwidth is PCIe 2.0 X1=5Gbps, so four ports can operate simultaneously at 1000Mbps full speed. (Note: Only one PCIE X1 slot is required for installation, no wasted PCIE X16 slot)
  • Plug & Play in Windows: If your PC does not recognize the network card or the speed can not reach 1000Mbps level, please reinstall the driver. https://drive.google.com/drive/folders/15UkeFpoDpkyQyv3zD8Z3MxaYZ_Es2Jxj?usp=sharing
  • Other OS Compatibility: MAC OS/Linux/Centos/RHEL/Ubuntu/Debian/DSM/OpenWrt/PFSense/OPNSerse/IKUAI, etc. (Note: You may need to install the driver if your OS can not find the network card)
  • Virtual Machine Software: VMWare ESXi 5. x and 6.x/Proxmox/unRaid. (Note: you need to install the driver for VMware ESXi 7.0 or above)
  • LED Indicators: Yellow for 100Mbps signal, Green for 1000Mbps
+
+
Overview
Specs
Reviews (1)

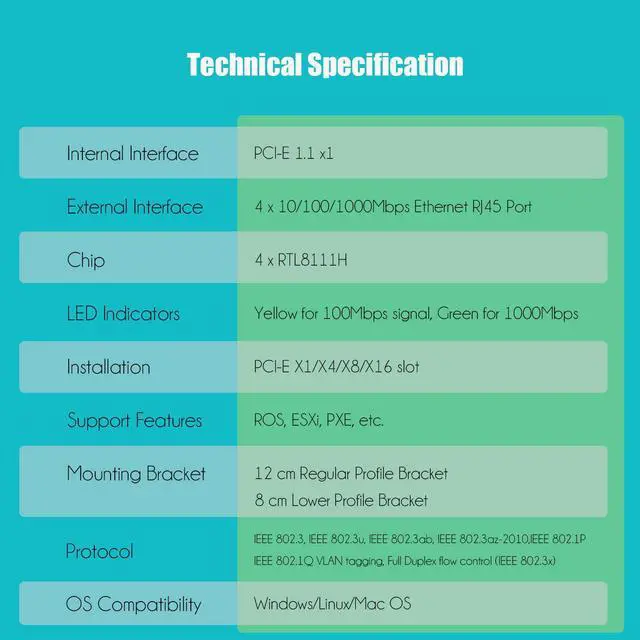

Model: LE8204H
Internal Interface PCI-Express 2.0 X1

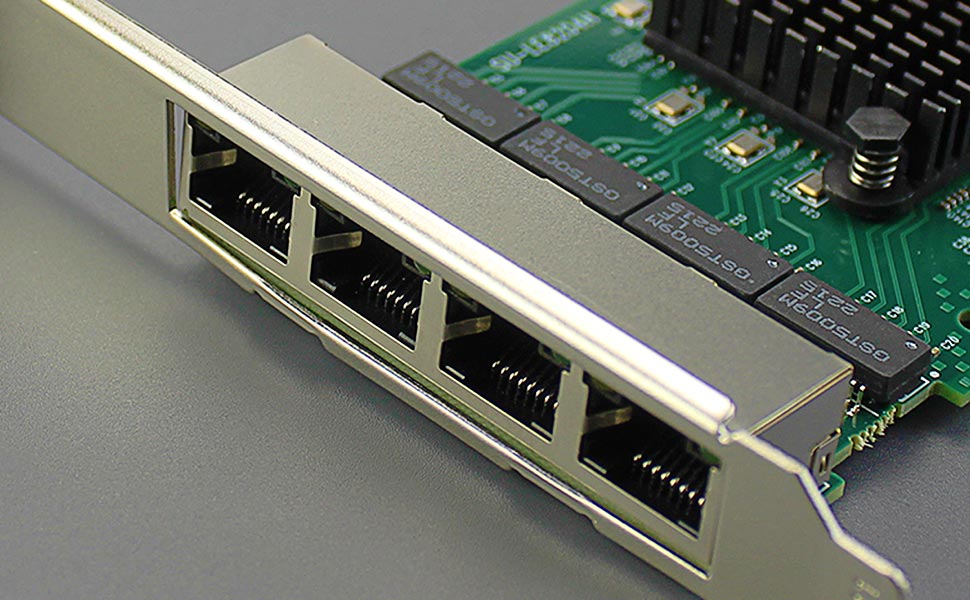

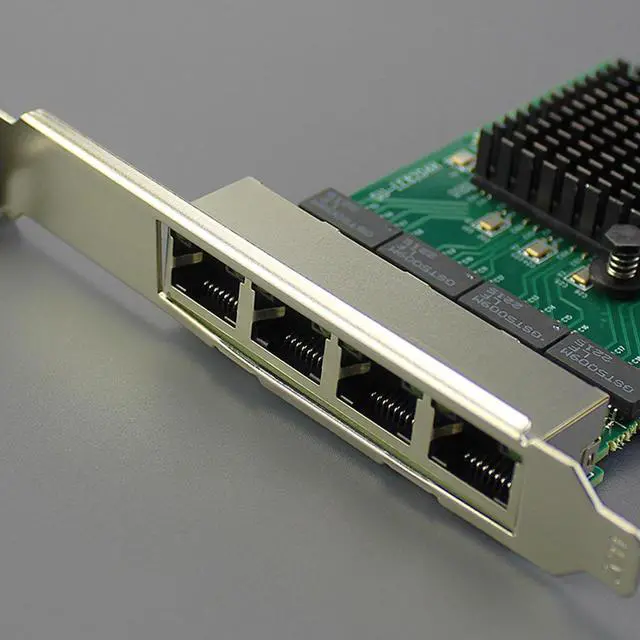

External Interface 4 x 10/100/1000Mbps Ethernet Interface
Chip 4 x RTL8111H
LED Indicator Yellow for 100Mbps signal, Green for 1000Mbps
OS Compatibility Windows/Linux/MAC OS/DOS; Centos/RHEL/Ubuntu/Debian/DSM/OpenWrt/PFSense/OPNSerse/IKUAI; VMWare ESXi
Driver Installation No driver required in Windows; and you may need to download RTL8111H driver from Realtek website if
ethernet network card
Quad Ports PCI Express 10/100/1000M Ethernet on Motherboard, Notebook, or Embedded systems
  • Auto-Negotiation with Next Page capability
  • Supports pair swap/polarity/skew correction
  • Crossover Detection & Auto-Correction
  • Transmit/Receive on-chip buffer support
  • Supports power down/link down power saving/PHY disable mode
  • XTAL-Less Wake-On-LAN
  • LAN disable with GPIO pin
  • Supports LTR (Latency Tolerance Reporting)
  • Wake-On-LAN and RealWoW! Technology (remote wake-up) support
  • Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support
  • Supports jumbo frame to 9K bytes
  • Supports quad core Receive-Side Scaling (RSS)
  • Supports Protocol Offload (ARP & NS)
ethernet network card

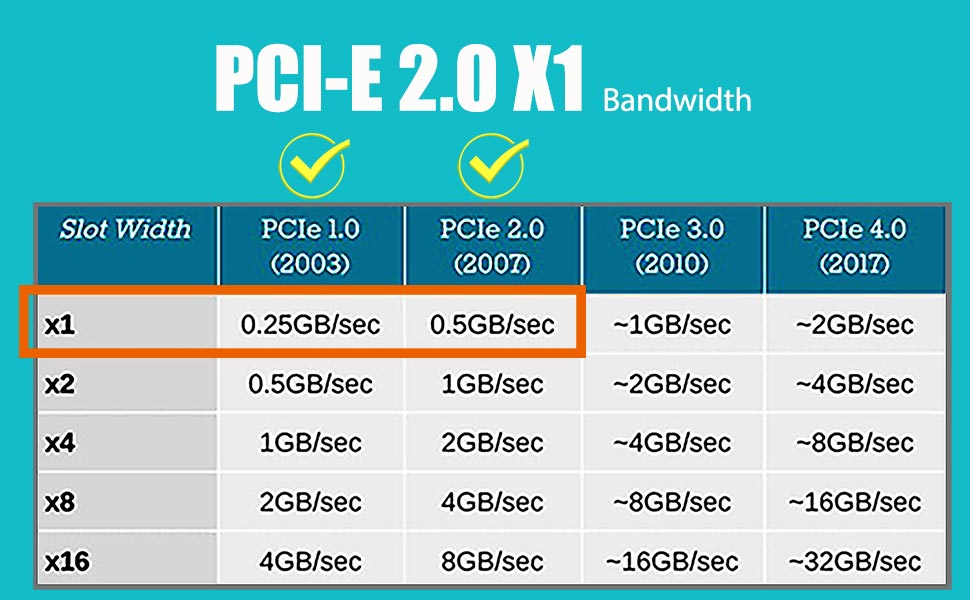

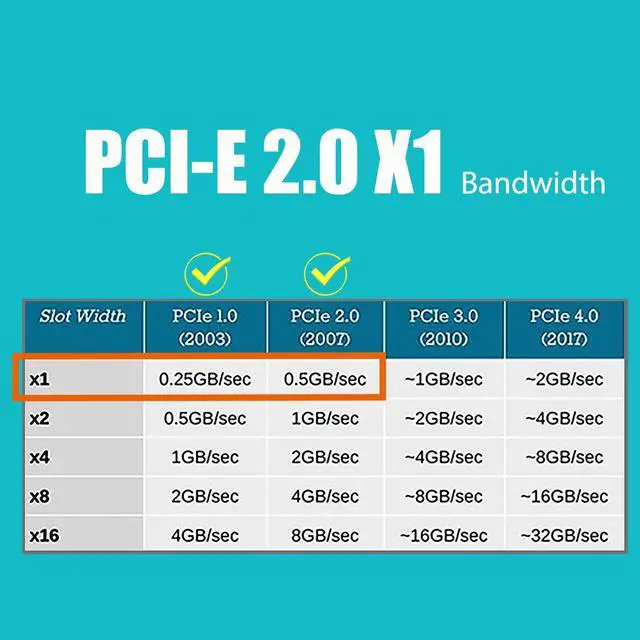

PCI-Express 2.0 X1 Speed
  • PCI-Express 2.0 X1 bus bandwidth offer 4Gbps speed at max
  • 4 port can reach full speed (10/100/1000Mbps) at the same time
ethernet network card

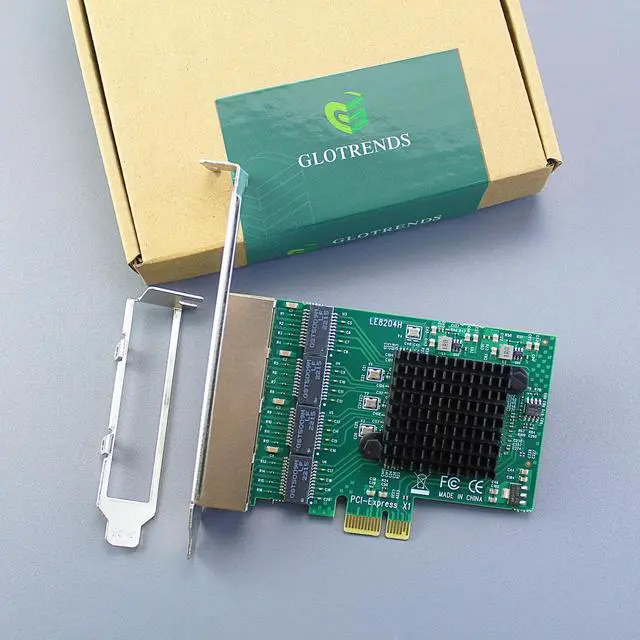

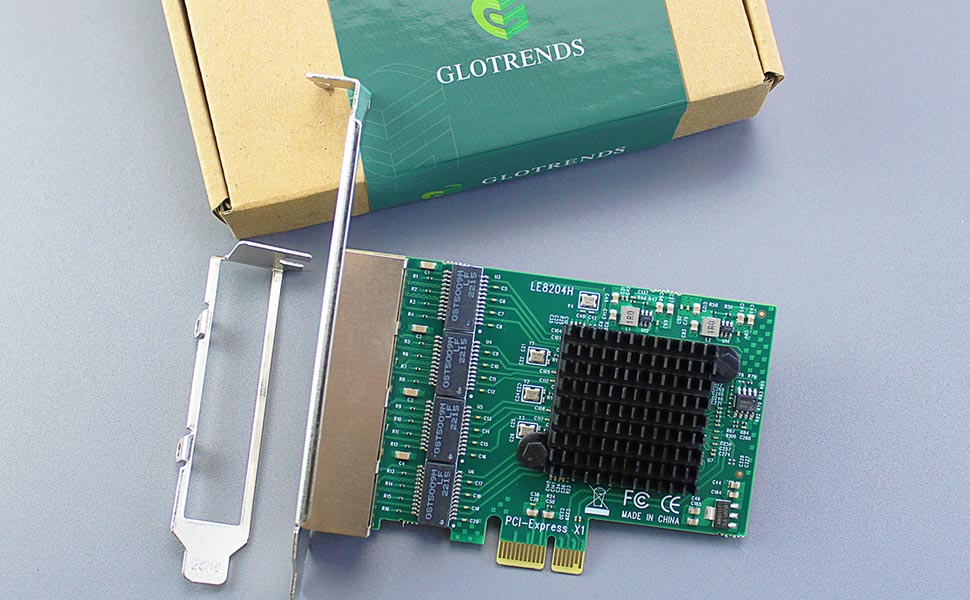

Package Including
  1. Quad-port 10/100/1000Mbps PCI-E NIC Network Card
  2. 12cm Regular-profile bracket and 8cm Low-profile bracket
Products
ethernet network card LE8111H
ethernet network card LE8202
ethernet network card LE8204H
ethernet network card LE8105
ethernet network card LE8245F
Internal Interface PCI-Express 1.0 X1 PCI-Express 1.0 X1 PCI-Express 2.0 X1 PCI-Express 2.0 X1 PCI-Express 2.0 X2
External Interface 100/1000Mbps Ethernet 2 x 100/1000Mbps Ethernet 4 x 100/1000Mbps Ethernet 2.5Gbps 2 x 100/1000Mbps + 2 x 2.5Gbps
Quad Port Gigabit Ethernet Network Card: 10/100/1000Mbps Ethernet RJ45 port to any PC/Server PCI-Express X1/X4/X8/X16 slot
OS Compatibility: Plug and play, no driver required. Windows ME/98SE/2000/XP/Vista, Win7/8/10/11/, Sever 2003/2008/2012/2016, Linux/DOS/MAC OS
4 x RTL8111H Chip: Compliant with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 ab, IEEE 802.3 az-2010, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.1Q VLAN tagging, Full Duplex flow control (IEEE 802.3 x)
LED Indicators: Yellow for 100Mbps signal, Green for 1000Mbps

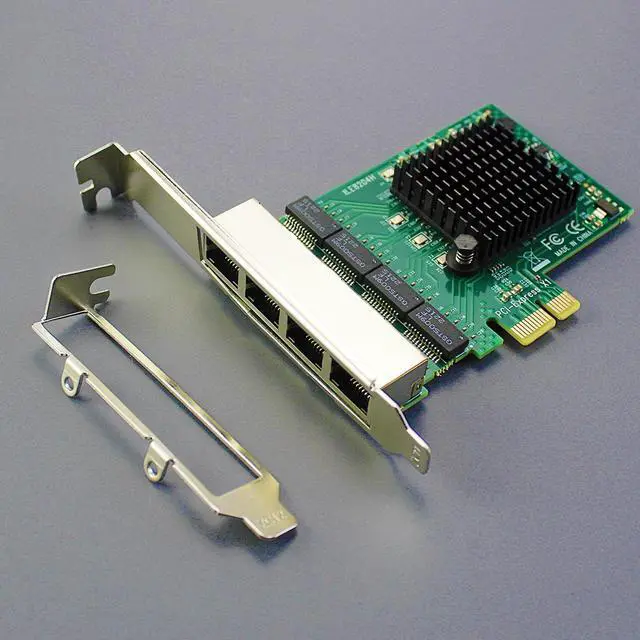

8cm Low-Profile Bracket for 2U case, and 12cm Full-Height Bracket for 4U case
Heatsink for heat dissipation: Reduce the temperature quickly and maintain the stability of network transmission.
Wake-On-LAN and RealWow Technology (remote wake-up): remotely power on/off your computer with WOL, good for centralized management
Support Features: ROS, ESXi, PXE, etc.
