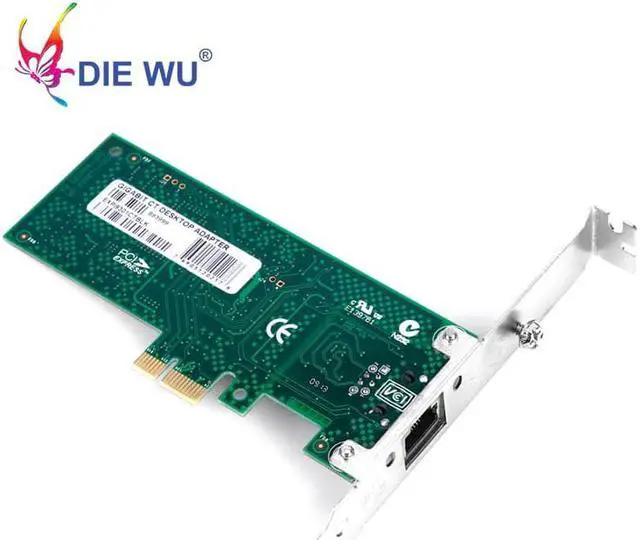

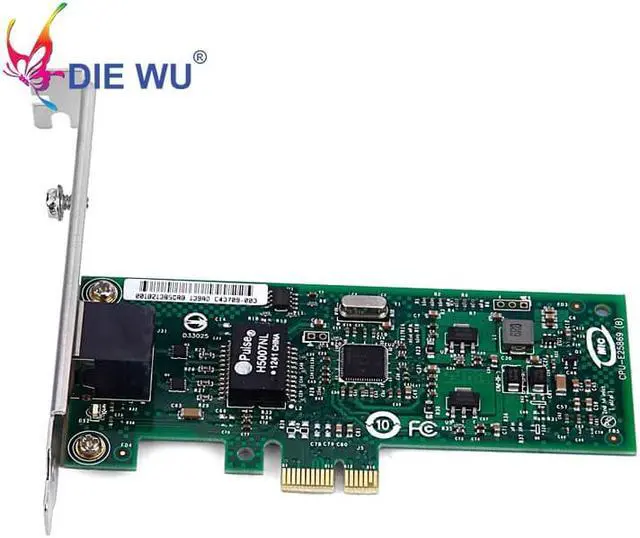

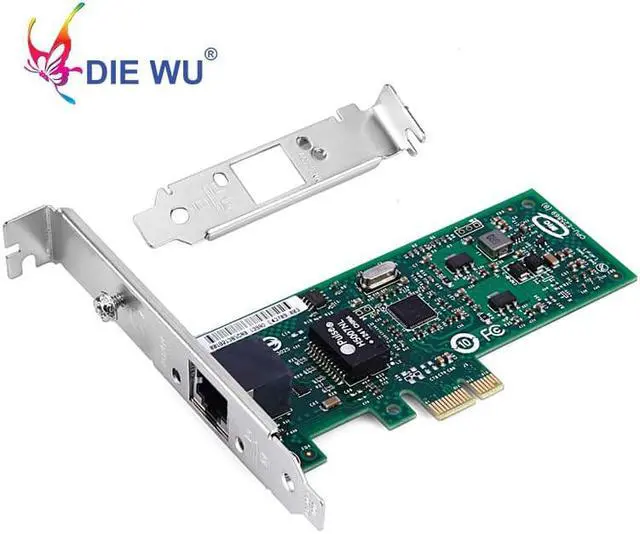

PCIe x1 Single RJ45 Port 10/100/1000Mbps 1 Gigabit Controller Adapter Chipset Intel 82574 NIC Interface Card with Short Bracket

PCIe x1 Single RJ45 Port 10/100/1000Mbps Gigabit Controller Adapter Chipset Intel 82574 NIC Interface Card with Short Bracket



Model number: TXA014

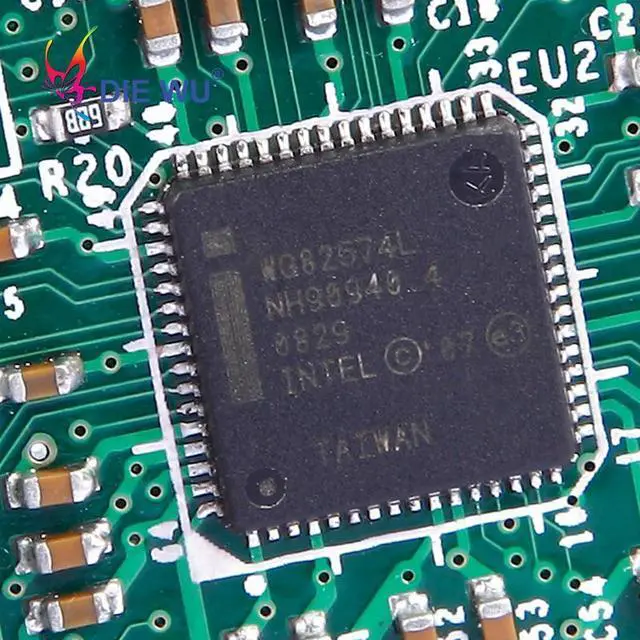

Chipset: Intel ®82574 Gigabit Controller


Port number: 1* RJ45


Standard: IEEE 802.3, IEEE802. u, IEEE 802.3 ab, IEEE 802.3 q, IEEE 802.3 x


Data rate: 10/100/1000Mbps


Interface: PCI-Express 1x slot


LED Indicator: 10/100/1000Mbps(Link/Act)


Dimension: 119.4 * 55.5 * 16.3 mm


Support OS: Linux 2.2. 5 or later, Windows 7/ 8, DOS,


Environment: Operating Temperature: 0 -70


Relative Humidity: 10%-90%(non-condensing)


Storage Temperature: -0-80


Relative Humidity: 5%-90%(non-condensing)
