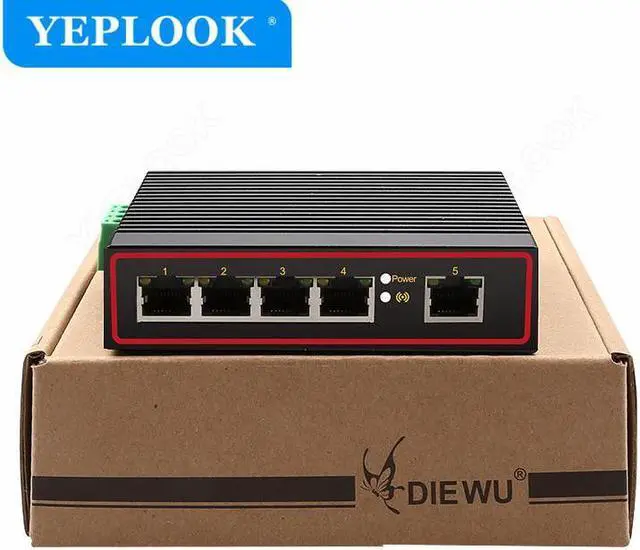

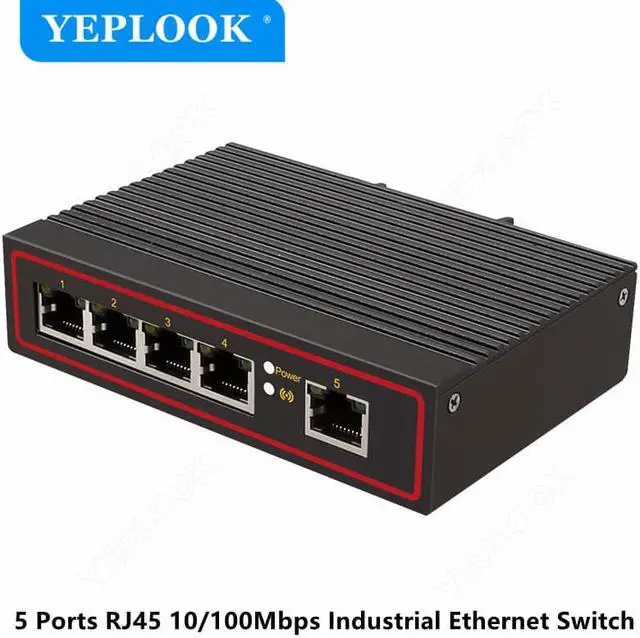

5 Ports RJ45 10/100Mbps Industrial Ethernet Switch Network Switch Signal Strengthen DIN Rail Type Support DC 5V-58V
- 5 Ports RJ45 10/100Mbps Industrial Ethernet Switch Network Switch Signal Strengthen DIN Rail Type Support DC 5V-58V
+
+
Overview
Specs
Reviews
5 Ports RJ45 10/100Mbps Industrial Ethernet Switch Network Switch Signal Strengthen DIN Rail Type Support DC 5V-58V Input, Plug and Play, Lightning Protection
Description:
Chipset: IP175GHI
Supported standards and protocols: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 az
Interface: 5x RJ45 ports 10/100Mbps adaptive (Auto MDI/MDIX)
Network media: 10Base-T: Class 3 or above UTP;
100Base TX: Class 5 UTP and above
Forwarding rate: 10 Mbps / 14, 880 pps, 100 Mbps / 148, 800 pps

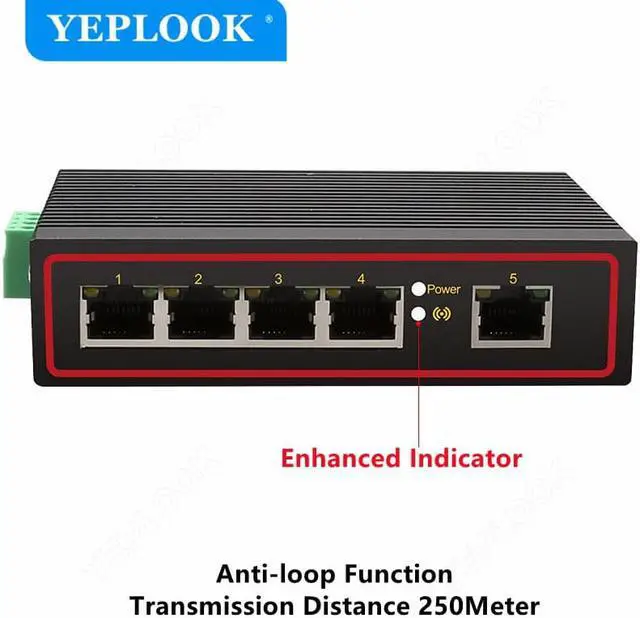

LED Indicator: 10/100Mbps(Link/Act, speed), Power, enhance Indicator

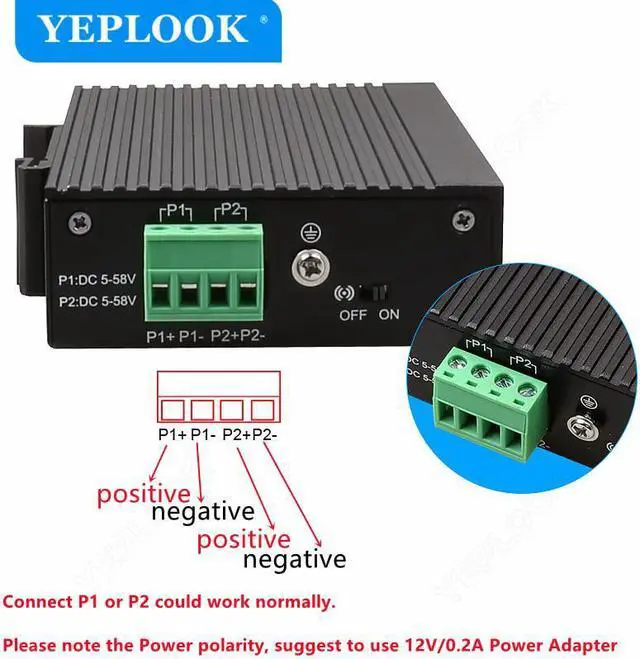

Power supply: DC: 5-58V
Power consumption: maximum: 1.5W
Boundary dimension (LxWxH): 118*80*30m
Other function: Industrial-grade, Build in signal Enhance & VLAN switch.
Operating environment:
Operating temperature: - 40 ~75
Storage temperature: - 40 ~75
Operating humidity: 10%~90% RH non condensing
Storage humidity: 5%~90% RH, non condensing
Description:
Chipset: IP175GHI
Supported standards and protocols: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 az
Interface: 5x RJ45 ports 10/100Mbps adaptive (Auto MDI/MDIX)
Network media: 10Base-T: Class 3 or above UTP;
100Base TX: Class 5 UTP and above
Forwarding rate: 10 Mbps / 14, 880 pps, 100 Mbps / 148, 800 pps
LED Indicator: 10/100Mbps(Link/Act, speed), Power, enhance Indicator
Power supply: DC: 5-58V
Power consumption: maximum: 1.5W
Boundary dimension (LxWxH): 118*80*30m
Other function: Industrial-grade, Build in signal Enhance & VLAN switch.
Operating environment:
Operating temperature: - 40 ~75
Storage temperature: - 40 ~75
Operating humidity: 10%~90% RH non condensing
Storage humidity: 5%~90% RH, non condensing
