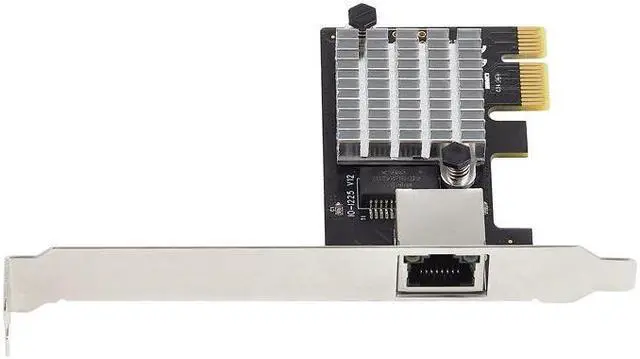

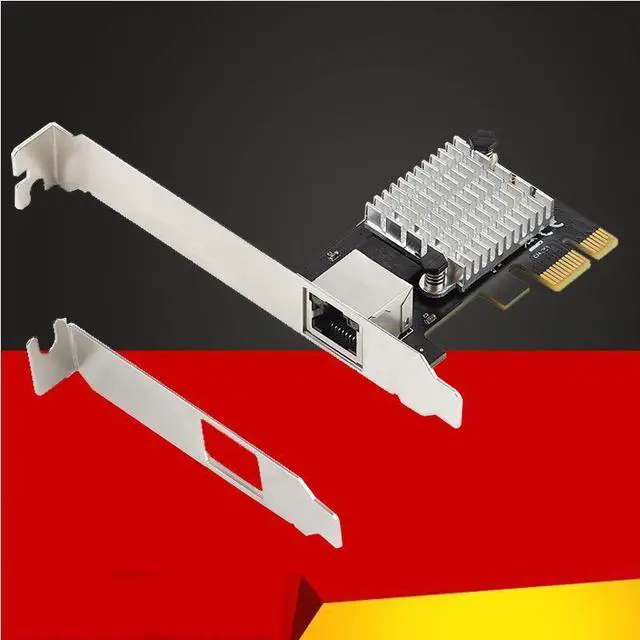

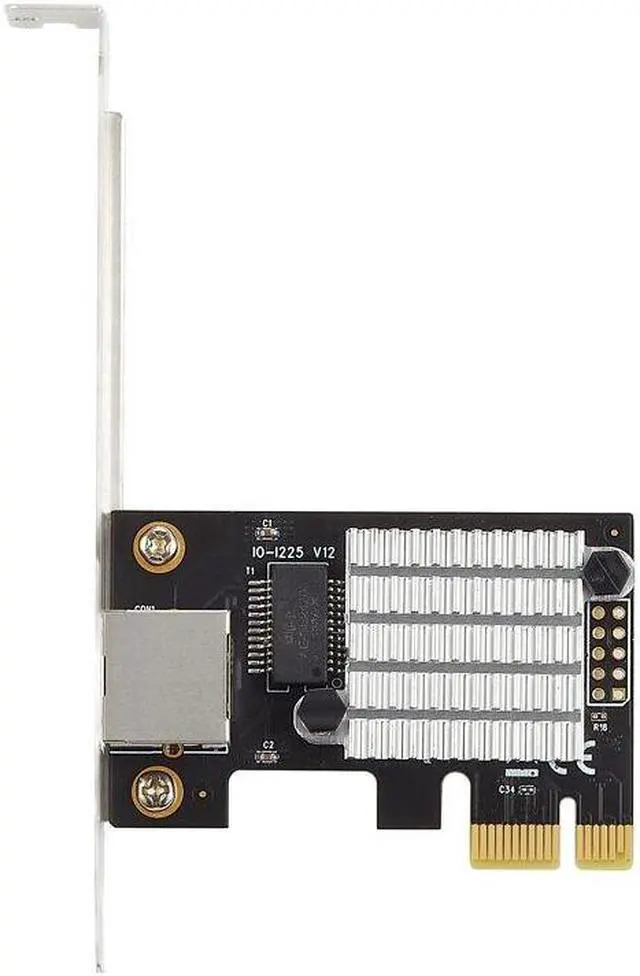

Weastlinks PCI Express 2.5Gb Network Card 100/1000M/2500M RJ45 Network Adapter PCIe 2.5G Gigabit Etherent Network Card for I225 Chips

Feature:

Supports PCI Express x1, x4, x8 or x16 socket.
Integrated MAC/PHY supporting 10BASE-Te, 100BASE-TX, 1000BASE-T and 2500BASE-T 802.3 specifications.
RJ45 connection: Compatibility with cable lengths up to 100 meters using CAT5e, CAT6, or CAT6A.
PCI Express 3.1: 5GT/s support for x1 width (Lane).
IEEE 802.3 autonegotiation
IEEE 802.3 x and IEEE 802.3 z compliant flow control support with software-controllable Rx thresholds and Tx pause frames.
Multiple Queues: 4 Tx and Rx queues per device.
Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4 IPv6) capabilities
Active State Power Management (ASPM)
Full wake up support
ACPI register set and power down functionality supporting D0 and D3 states
MAC Power Management controls
Power Management Protocol Offload (Proxying)
Preboot Execution Environment (PXE) Support
TCP/UDP, IPv4 checksum offloads (Rx/Tx)
Transmit Segmentation Offloading (TSO) (IPv4, IPv6)
Low-Latency Interrupts
Receive Side Scaling (RSS) for Windows: Up to four queues per port.
Support for packets up to 9.5KB (Jumbo Frames): Enables faster and more accurate throughput of data.

System Requirements

· Windows 10
· Windows 11

Packing List:
1 x PCI-Express to 10/100/1000M/ 2.5G Ethernet Card
1 x User Manual

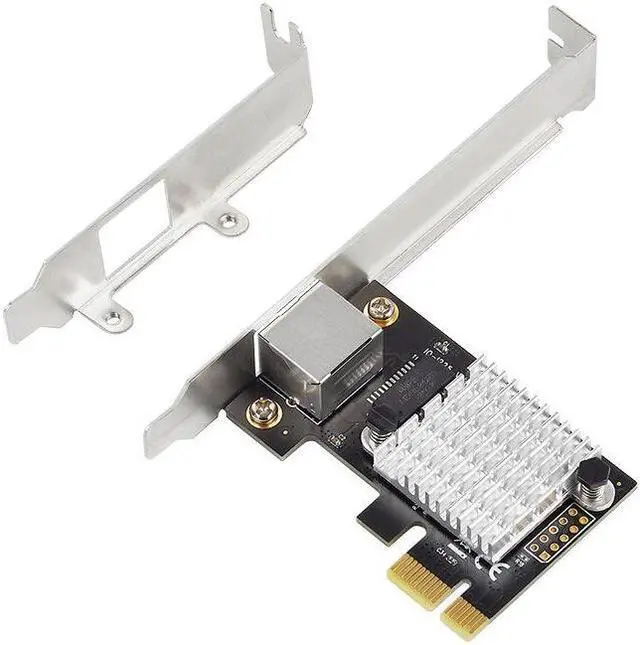

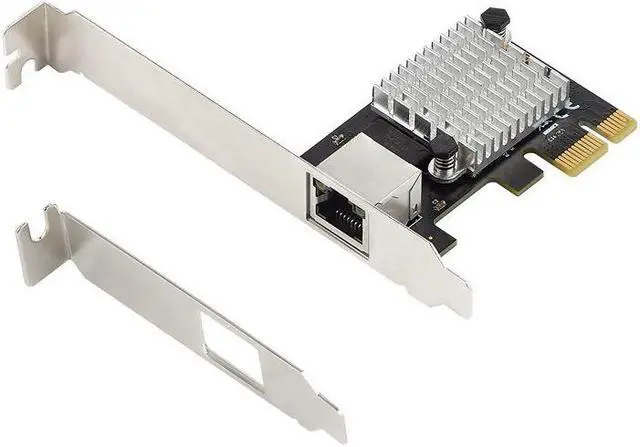

1 x Low Profile Bracket
