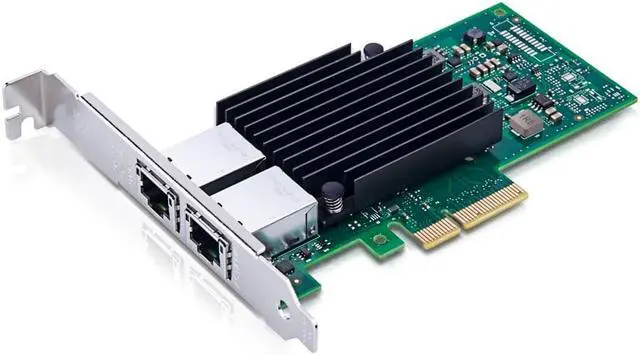

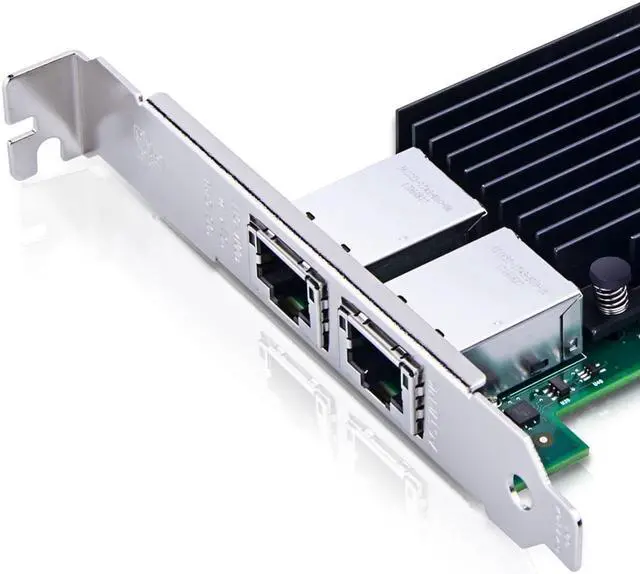

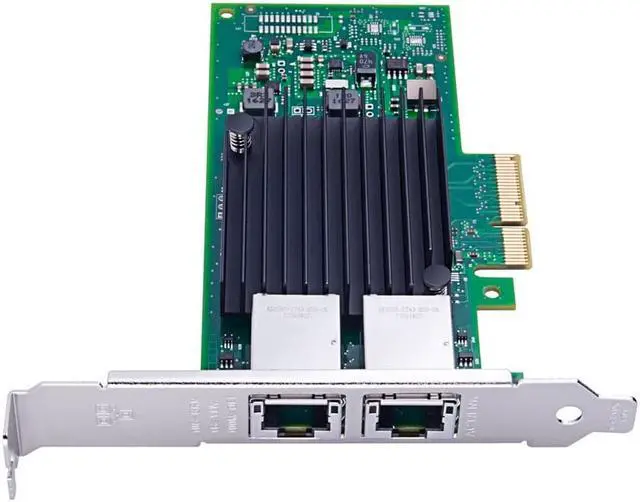

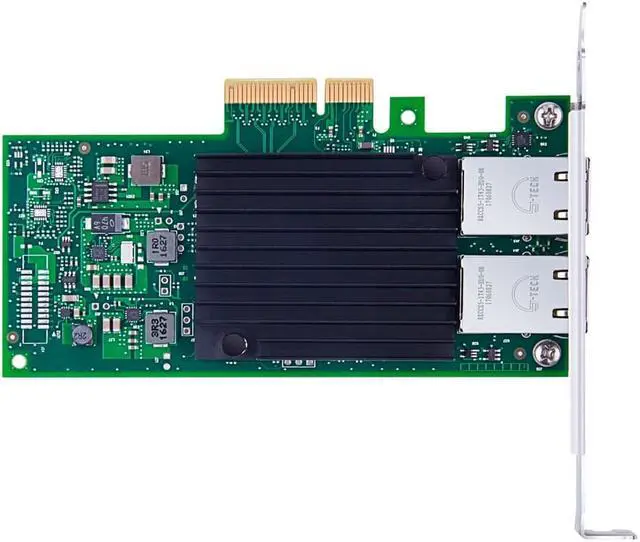

For Intel X550-T2, 10GbE Converged Network Adapter(NIC), X550 Chipset, PCI-E X4, Dual RJ45 Copper Port CNA
- Ethernet Controller: Intel X550AT2.
- System Interface Type: PCIe v3.0 (8.0GT/s), x 4 Lane.
- Cabling Type: RJ-45 Category-6 up to 55m; Category-6A up to 100m.
- Bracket Height: Low Profile and Full Height
+
+
Overview
Specs
Reviews
For Intel X550-T2, 10GbE Converged Network Adapter (NIC), X550 Chipset, PCI-E X4, Dual RJ45 Copper Port CNA, ipolex
Features:
•IEEE 802.1Q * VLA
Ns
•IEEE 802.3 2005* flow control support
•IEEE 10 GbE 802.3 ap
•IEEE 1000BASE-BX
•Support for jumbo frames of up to 15.5 KB
•Storage over Ethernet: iSCSI, FCoE, NFS
•Support SNMP RMON
•Suppor MSI-X
•Support Tx TCP segmentation offload (IPv4, IPv6), Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities
•Support Virtual Machine Device queues2 (VMDq)
•Network Operating Systems (NOS) Software Support: Windows Server* 2012 R2; Windows Server 2012 R2 Core; Windows Server 2012; Windows Server 2012 Core; Windows Server 2008 R2; Windows Server 2008 R2 Core; Linux* Stable Kernel version 2.6. 32/3x; Linux* RHEL 6.5 and RHEL 7.0; Linux* SLES 11 SP3 and SLES 12; Free
BSD* 9 and Free
BSD* 10; UEFI* 2.1; UEFI* 2.3; VMware ESXi 5.1 (Limited Functionality); VMware ESXi 5.5.
Specifications:
Interface: Dual RJ45 Ports r(1 GbE/10 GbE/100MbE)
Controller: INTEL ELX550AT2
PCI: PCI Express v 3.0 ( 8.0GT /s) (Compatible with 1.1 / 2.0 ), X4/X8/X16 Lane
Thermal Design Power: Typical
power: 11.2 w; Maximum power: 13W
Operating Temperature: 0 ° ~ 55 ° C (32 °F to 131 °F)
Storage Temperature: -40 ° ~ 70 ° C (-40 °F to 158 °F)
Operating Humidity: 90%, non-condensing
Dimension: 130*68* 1.6 mm
Features:
•IEEE 802.1Q * VLA
Ns
•IEEE 802.3 2005* flow control support
•IEEE 10 GbE 802.3 ap
•IEEE 1000BASE-BX
•Support for jumbo frames of up to 15.5 KB
•Storage over Ethernet: iSCSI, FCoE, NFS
•Support SNMP RMON
•Suppor MSI-X
•Support Tx TCP segmentation offload (IPv4, IPv6), Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities
•Support Virtual Machine Device queues2 (VMDq)
•Network Operating Systems (NOS) Software Support: Windows Server* 2012 R2; Windows Server 2012 R2 Core; Windows Server 2012; Windows Server 2012 Core; Windows Server 2008 R2; Windows Server 2008 R2 Core; Linux* Stable Kernel version 2.6. 32/3x; Linux* RHEL 6.5 and RHEL 7.0; Linux* SLES 11 SP3 and SLES 12; Free
BSD* 9 and Free
BSD* 10; UEFI* 2.1; UEFI* 2.3; VMware ESXi 5.1 (Limited Functionality); VMware ESXi 5.5.
Specifications:
Interface: Dual RJ45 Ports r(1 GbE/10 GbE/100MbE)
Controller: INTEL ELX550AT2
PCI: PCI Express v 3.0 ( 8.0GT /s) (Compatible with 1.1 / 2.0 ), X4/X8/X16 Lane
Thermal Design Power: Typical
power: 11.2 w; Maximum power: 13W
Operating Temperature: 0 ° ~ 55 ° C (32 °F to 131 °F)
Storage Temperature: -40 ° ~ 70 ° C (-40 °F to 158 °F)
Operating Humidity: 90%, non-condensing
Dimension: 130*68* 1.6 mm
