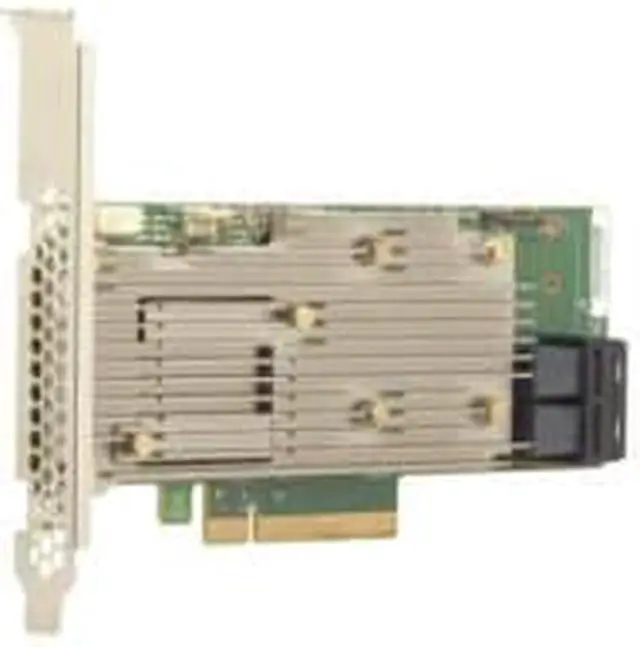

Broadcom LSI MegaRAID 9460-8I 8-port 12Gb/s SAS/SATA/NVMe Tri-Mode PCI-Express 3.1 RAID Controller, Single

Specifications

• Mfr Part Number: 05-50011-02/ 9460-8I SGL
• Features:
  • Connect up to 255 SAS/SATA devices or 24 NVMe devices per controller
  • Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors

  • Support critical, high-bandwidth applications with PCIe 3.1 connectivity
  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
  • Add more protection and peace of mind with CacheVault flash cache protection
• Ports: 8 internal
• Connectors: Two (x4) SFF-8643
• Storage Interface Support: SAS, SATA, PCIe (NVMe)
• Max PCIe (NVMe) Direct Attach Devices: Two x4, Four x2

• Max Devices Per Controller: SAS/SATA - 255, NVMe - 4 x4, up to 24 x2 or x4
• Cache Memory: 2 GB 2133MHz DDR4 SDRAM
• I/O Processor / SAS Controller: SAS3508
• Host Bus Type: PCI-Express 3.1 x8

• Cache Protection: CacheVault CVPM05
• Key RAID Data Protection Features:
  • RAID levels 0, 1, 5, and 6
  • RAID spans 10, 50, and 60
  • SDS Personality with EPD and JBOD
  • Online Capacity Expansion (OCE)
  • Online RAID Level Migration (RLM)
  • Auto resume after loss of system power during array rebuild or reconstruction (RLM)
  • Single controller Multipathing

  • Load Balancing
  • Configurable stripe size up to 1MB
  • Fast initialization for quick array setup
  • Check Consistency for background data integrity
  • SSD Support with SSD Guard technology
  • Patrol read for media scanning and repairing
  • 64 virtual drive support (32 for 9440)
  • DDF compliant Configuration on Disk (COD)
  • S.M.A.R.T support

  • Global and dedicated Hot Spare with Revertible Hot Spare support
    • Automatic rebuild
    • Enclosure affinity
    • Emergency SATA hot spare for SAS arrays
  • Enclosure management
    • SES (inband)
    • SGPIO (sideband)
  • DataBolt bandwidth optimizer technology support for compatible expander-based enclosures
  • Shield state drive diagnostic technology
• Typical Power: 14.16W
• Airflow: 250LFM @ 55°C
• MTBF (Calculated): >3,000,000 hours at 40°C

• Operating Voltage: +12V +/-8%; 3.3V +/-9%

• MegaRAID Management Suite: LSI Storage Authority (LSA) StorCLI (command-line interface), HII (UEFI Human Interface Infrastructure)
• Regulatory Certifications: USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22); Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/IEC/ UL 60950; RoHS; WEEE
• OS Support: Microsoft Windows. Contact Oracle support for Oracle Solaris driver or software support
• Dimensions: 6.127 x 2.712 inch / 155.65 x 68.90 mm

• Package Contents: MegaRAID 9460-8i, QIG, LP bracket
