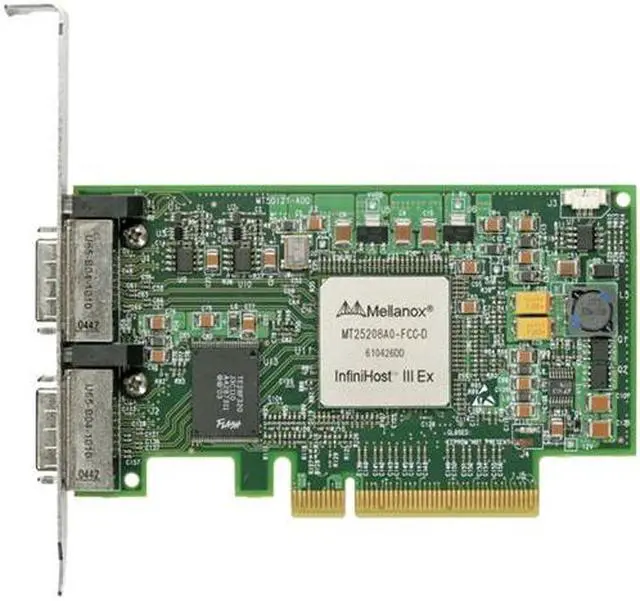

Mellanox InfiniHost III Ex MHEA28-XTC Infiniband Host Bus Adapter

InfiniHost III Ex dual-port 4X InfiniBand Host Channel Adapter (HCA) cards connect to the host system through a PCI Express x8 interface. Single data rate (SDR) InfiniHost III Ex cards support dual 10Gb/s InfiniBand connections while double data rate (DDR) versions support dual 20Gb/s InfiniBand connections. InfiniHost III Ex HCA cards deliver the most cost effective 10 or 20Gb/s solution available and feature remote direct memory access (RDMA), hardware transport, and advanced per queue pair (QP) QoS services. All InfiniHost III Ex cards can be directly inserted into PCI Express x8 or wider slots of standard servers, blade servers, storage and communications platforms to enable InfiniBand fabrics. All adapter cards utilize 4X MicroGigaCN InfiniBand compliant connectors for copper cables. This copper connector provides the lowest cost 10 or 20Gb/s connection available. In addition, a pluggable media adapter module can be used for fiber connections up tp 300m.

Features

* Product Type: Infiniband Host Bus Adapter
* Total Number of Infiniband Ports: 2
* Brand Name: Mellanox
* Data Transfer Rate: 10 Gbit/s
* Host Interface: PCI Express 1.0a
* Product Type: Infiniband Host Bus Adapter
* Green Compliant: Yes
* Green Compliance Certificate/Authority: RoHS
* Card Height: Low-profile
* Total Number of Infiniband Ports: 2
* Brand Name: Mellanox
* Form Factor: Plug-in Card
* Product Model: MHEA28-XTC
* Product Name: InfiniHost III Ex MHEA28-XTC Infiniband Host Bus Adapter
* Data Transfer Rate: 10 Gbit/s
* Product Line: InfiniHost III Ex
* Host Interface: PCI Express 1.0a
