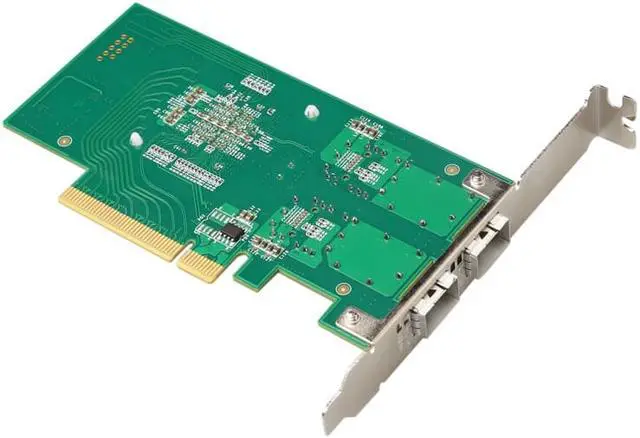

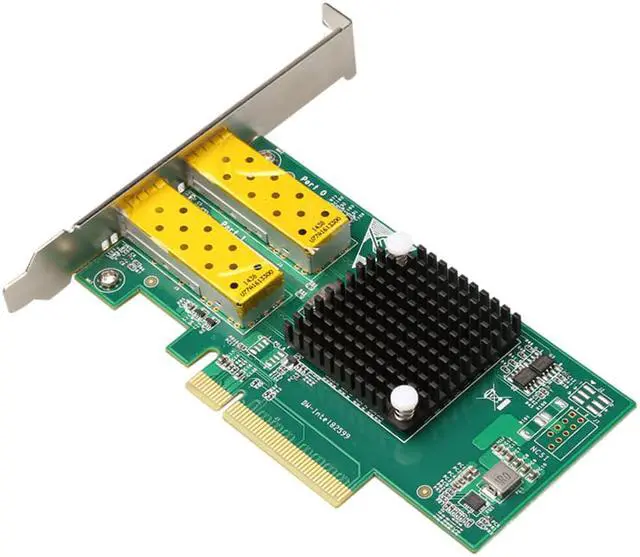

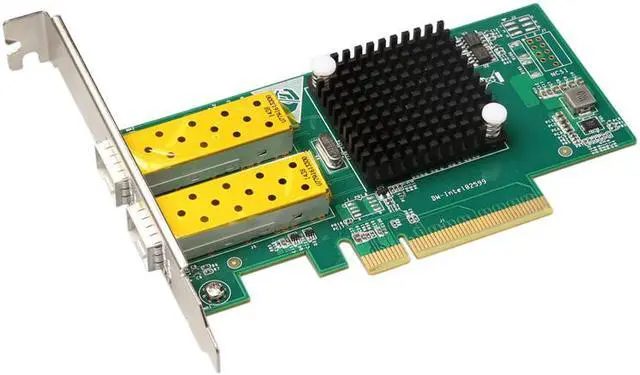

Dual Ports PCI Express PCI-E X8 10G lan card for Intel 82599 10/100/1000/10000Mbps 10G Gigabit Ethernet Card Adapter Converter LC fiber optic for servers and workstations

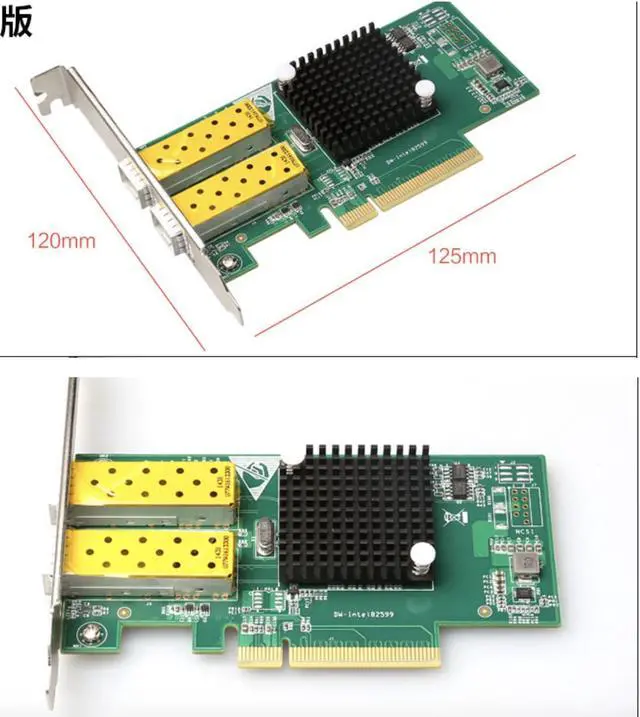

Model number TXA037 Chipset Intel 82599 Ethernet Controller Port number SFP+ Slots *2 Standard IEEE 802.3 (1000BASE-SX, 10O0BASE-LX, 10O0BASE-ZX), LC Data rate 10/100/1000/10G/Mbps Interface PCI express 8x 2 (1/port, ) Link (solid) and Activity (blinking) LED Indicator Link Speed (green = 10G I yellow= 1G) Dimension 128.3 * 68.9 * 15.9 mm Support OS Windows* Vista* SP1 Windows Server* 2003 SP2 Windows* Unified Storage Solution 2003 Windows Server* 2008 Linux* Stable Kernel version 2.6 Linux* RHEL 4, Linux* RHEL 5 Linux* SLES 9, Linux* SLES
10. Free
BSD* 7.0, UEFI* 1.1 VMware ESX* 3. x.
Environment Operating Temperature: O®C-55 ®C
Relative Humidity: 10% 90%(non-condensing)
Storage Temperature: -0*C-80®C
Relative Humidity: 5%-90%(non-condensing) Other features.
Speed/port: 10Gbps (fiber for servers and workstations),
Ethernet controller: Intel 82599ES ·
Connector and cable medium: LC fiber optic.
Cabling type: MMF 62.5 /50um, up to 300m Maximum bus speed and slot width: PCI Express 2.0 / 5.0GT /s X 8 lane

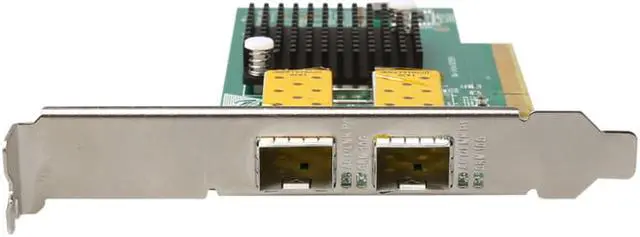

Ports: two SFP+ slots for SFP+ SR, SFP+ LR modules and direct attach SFP+ cables, Bus
type: PCI express 2.0 (5 GT/s) ·
Bus width: PCI-Ex 8/x 16.
Data rate supported per port:
optical: 1GbE/10GbE
direct attach: 10GbE.
Network standards: IEEE 802.3.
Interrupt levels: INTA, MSI, MSI-X.
Supported slot height (s): low profile and full height.
Intel VT for connectivity1: virtual machine device queues (VMDq), virtual machine direct connect (VMDc).
Security features: IPSEC/Link
Sec.
IWARP/RDMA: NA.
Typical power consumption: maximum power 10.7W, typical
power: 10.0W.
LED indicators: LINK (solid) and ACTIVITY (blinking), LINK SPEED (green = 10G/yellow = 1G) Note the main product (without affecting the normal use, the configuration has increased or decreased) Compare the detail sizes with yours, please allow 1-3cm error, due to manual measurement. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
