80mm Thermal Printer EP-380C with Auto Cutter RS232 TTL USB Compatible Kiosk Embedded Panel Printer for POS Systems(RU Key White)
- Compact and efficient the CASHINO EP-380C features an 80mm printing width ideal for -volume receipt and ticket printing
- Designed for integration this thermal printer supports both RS232 and TTL interfaces for versatile connectivity
- Equipped with a auto cutter the EP-380C ensures smooth and precise cutting for improved workflow efficiency
- With USB compatibility the printer offers plug-and-play convenience for quick setup and hassle-free
- Engineered for reliability the thermal printing mechanism delivers , smudge-free prints without the need for ink or ribbons
- Suitable for various commercial applications this printer excels in retail, hospitality, and ticketing environments due to its construction
+
+
Overview
Specs
Reviews

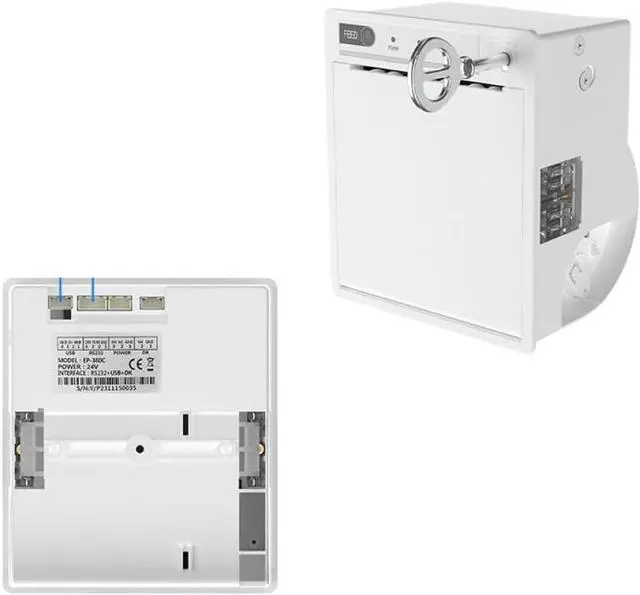

Thermal Receipt Printer Module
Model: EP-380C/CK
Printing Method: Thermal line printing
Printing Speed: 150mm/s
Resolution: 203dpi (8dots/mm)
Effective Printing Width: 72mm
Character Set: ASCII, GB2312-80
Fonts: ANK: 9x17, 12x24; GBK: 24x24
Flash Memory: 48KB
RAM: Flash: 128KB, SPAM: 20KB
Paper Specifications:
Paper Type: Thermal paper
Paper Width: 58mm/80mm
Paper Thickness: 55-90m
Paper Diameter: 80mm (Max)
Reliability:
TPH: 100km
Cutter: 1,000,000 cuts or more
Text and Graphic Support: Figure, sample, graph, curve icon, multi-languages
Barcode Support:
1D: UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93
2D: QR code, PDF417
Command Compatibility: ESC/POS command set
Drivers/SDK: Windows Driver, Linux Driver, OPOS Driver
Detectors: Paper end, paper near end, paper out, paper taken out, cover open
Cutting Method: Full/Partial cut
Interface: Serial (RS232/TTL) + USB, Cash Drawer port (optional)
Power: DC24V±10%, 2A
Environment:
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C
Operating Humidity: 10%RH to 80%RH
Storage Humidity: 10% to 90%RH
Dimensions:
Outline Dimension (WxLxH): 118.
7x136.
1x87.
5mm
Installation Port Size: 130.
7x113.
3mm
Insert Depth: 85mm
Color: Black/White
Applications:
Medical printing
Measuring
On-board printing
Fuel dispenser
Analytical instruments and meters
Compatibility Disclaimer: This is an aftermarket replacement part. Any brand names or model designations mentioned are used solely for the purpose of demonstrating compatibility.
Model: EP-380C/CK
Printing Method: Thermal line printing
Printing Speed: 150mm/s
Resolution: 203dpi (8dots/mm)
Effective Printing Width: 72mm
Character Set: ASCII, GB2312-80
Fonts: ANK: 9x17, 12x24; GBK: 24x24
Flash Memory: 48KB
RAM: Flash: 128KB, SPAM: 20KB
Paper Specifications:
Paper Type: Thermal paper
Paper Width: 58mm/80mm
Paper Thickness: 55-90m
Paper Diameter: 80mm (Max)
Reliability:
TPH: 100km
Cutter: 1,000,000 cuts or more
Text and Graphic Support: Figure, sample, graph, curve icon, multi-languages
Barcode Support:
1D: UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93
2D: QR code, PDF417
Command Compatibility: ESC/POS command set
Drivers/SDK: Windows Driver, Linux Driver, OPOS Driver
Detectors: Paper end, paper near end, paper out, paper taken out, cover open
Cutting Method: Full/Partial cut
Interface: Serial (RS232/TTL) + USB, Cash Drawer port (optional)
Power: DC24V±10%, 2A
Environment:
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C
Operating Humidity: 10%RH to 80%RH
Storage Humidity: 10% to 90%RH
Dimensions:
Outline Dimension (WxLxH): 118.
7x136.
1x87.
5mm
Installation Port Size: 130.
7x113.
3mm
Insert Depth: 85mm
Color: Black/White
Applications:
Medical printing
Measuring
On-board printing
Fuel dispenser
Analytical instruments and meters
Compatibility Disclaimer: This is an aftermarket replacement part. Any brand names or model designations mentioned are used solely for the purpose of demonstrating compatibility.
