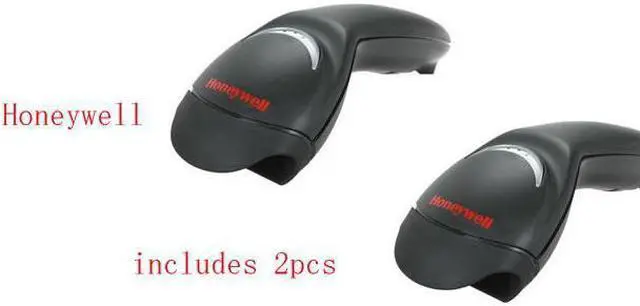

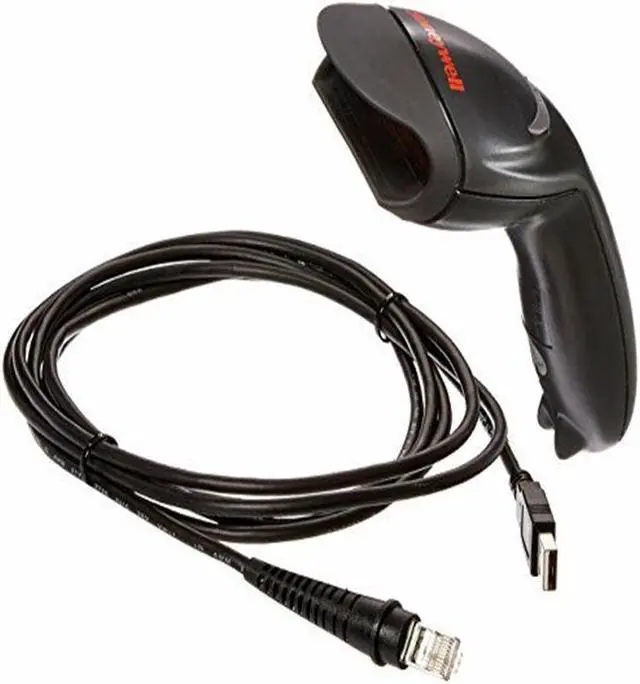

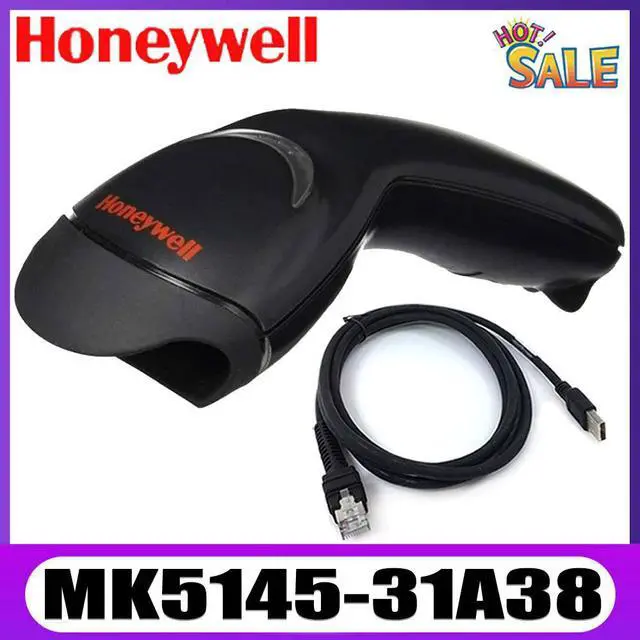

includes 2pcs for Honeywell / Metrologic MK5145-31A38 Eclipse 5145 Barcode Scanner with USB Cable (Grey)

Honeywells EclipseTM 5145 is a low cost laser-based alternative to CCD scanners. Its compact form factor and high end feature set simplify its use in a variety of applications at the press of a button.

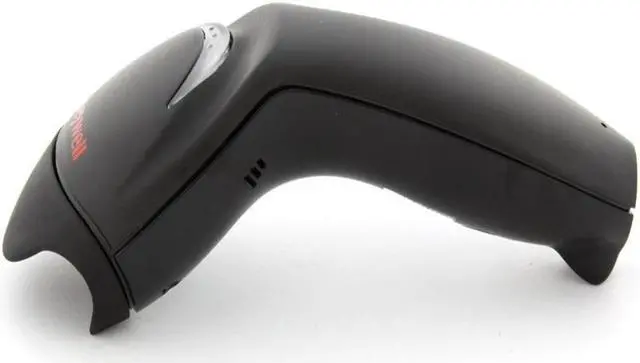

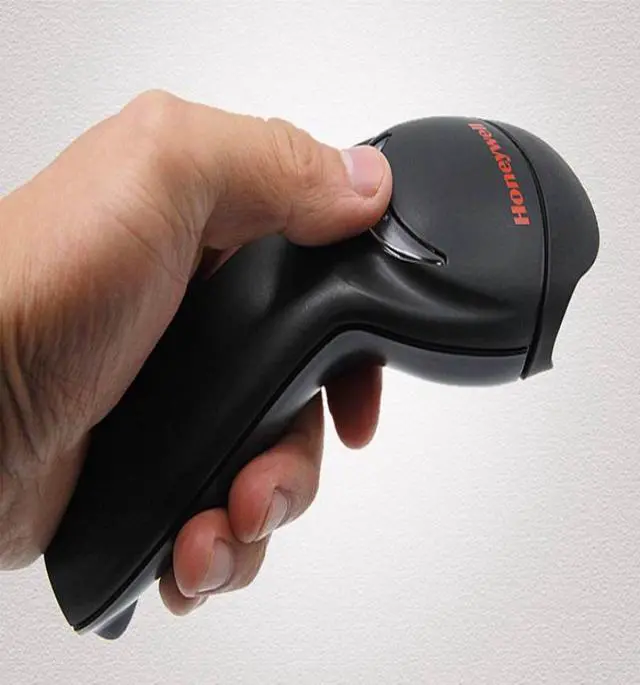

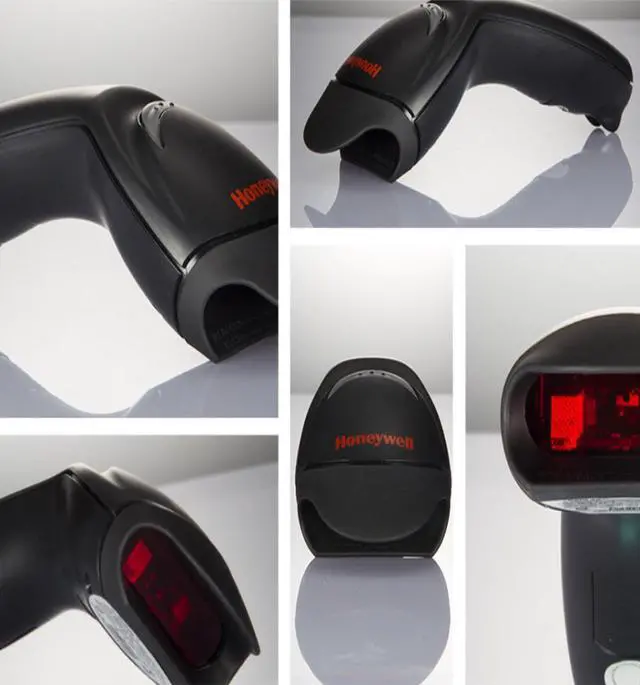

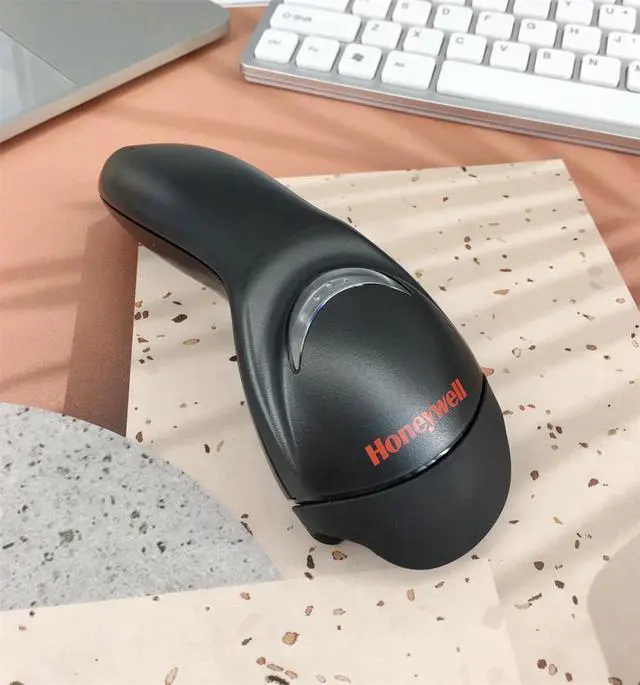

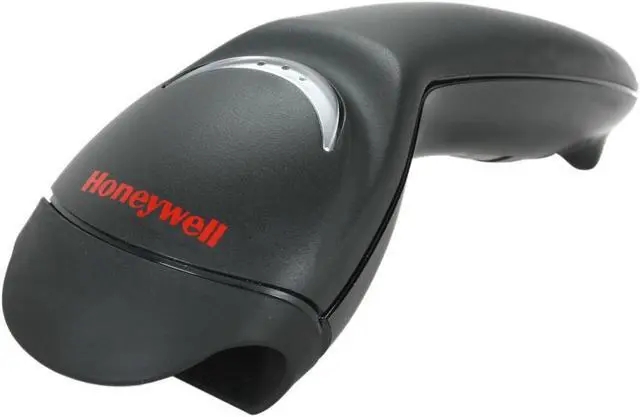

Eclipse is a single-line, hand-held laser scanner. Equipped with Honeywells patented CodeGate® technology, Eclipse can be used in a wide variety of applications. CodeGate® technology allows the user to easily target the desired bar code and complete data transmission with the press of a single button. This makes Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control.

With Honeywells state-of-the-art scanning technology, the Eclipse 5145 has a longer working range and a wider scan field than a typical CCD. The width of the scan line grows as the scanner moves further away from bar codes.

CodeSense® is a unique feature employed by Eclipse in the absence of infrared object detection. It provides the user with a pulsing laser line for bar code detection. When a bar code is detected, the laser line switches to a constant state to allow for scanning via CodeGate®.

Features
CodeGate:
Zero in on desired code and complete data transmission with the push of a single button - ideal for menu scanning applications
CodeSense:
Automatically wakes scanner from sleep mode when a bar code is detected
Powerlink Cables:
Uses the same user-replaceable cables and power supplies as Voyager® and Orbit®
Flash ROM:
Protects POS investment with free firmware updates via MetroSet2 software and standard PC
OPOS and JPOS System Compatible:
Easily adaptable to any end-user system environment

Technical

Specifications

Mechanical
Dimensions (L x W x H) 6.7 x 2.5 2.0" (169 x 63 x 51mm)
Weight 3.5 oz (100g)
Electrical
Input Voltage 5VDC ± 0.25V
Operating Power 675mW (125mA @ 5V)
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 468xx (RS485)
Environmental
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -40 to 140°F (-40 to 60°C)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand 5' ( 1.5 m) drops
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 4842 Lux
Scan Performance
Scan Pattern Single scan line
Scan Speed 72 scan lines per second
Scan Angle Horizontal: 50°
Print Contrast 35% minimum reflectance difference
Pitch, Skew 68 degrees, 52 degrees
Decode Capability Reads standard 1D and GS1 DataBar symbologies
Warranty Three-year factory warranty
