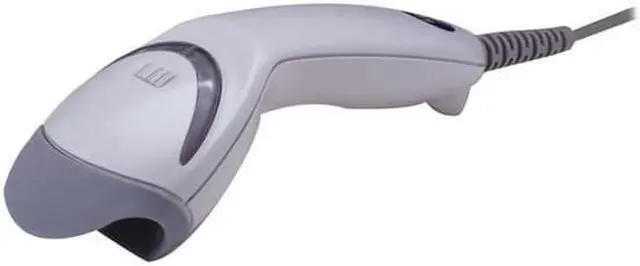

Honeywell MK5145-71A38 Eclipse 5145 Single-Line Laser Scanner
- Reads 1D and GS1 DataBar symbologies
- 72 scan lines per second
- USB Kit
- Corded, Handheld
- Includes USB cable
- Color: Gray
+
+
Overview
Specs
Reviews
Technical Specifications
Mechanical
Dimensions (L x W x H) 6.7 x 2.5 2.0" (169 x 63 x 51mm)
Weight 3.5oz (100g)
Electrical
Input Voltage 5VDC ± 0.25V
Operating Power 675mW (125mA @ 5V)
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 468xx (RS485)
Environmental
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -40 to 140°F (-40 to 60°C)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand 5' (1.5m) drops
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 4842 Lux
Scan Performance
Scan Pattern Single scan line
Scan Speed 72 scan lines per second
Scan Angle Horizontal: 50°
Print Contrast 35% minimum reflectance difference
Pitch, Skew 68 degrees, 52 degrees
Decode Capability Reads standard 1D and GS1 DataBar symbologies
Warranty Three-year factory warranty
Mechanical
Dimensions (L x W x H) 6.7 x 2.5 2.0" (169 x 63 x 51mm)
Weight 3.5oz (100g)
Electrical
Input Voltage 5VDC ± 0.25V
Operating Power 675mW (125mA @ 5V)
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 468xx (RS485)
Environmental
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -40 to 140°F (-40 to 60°C)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand 5' (1.5m) drops
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 4842 Lux
Scan Performance
Scan Pattern Single scan line
Scan Speed 72 scan lines per second
Scan Angle Horizontal: 50°
Print Contrast 35% minimum reflectance difference
Pitch, Skew 68 degrees, 52 degrees
Decode Capability Reads standard 1D and GS1 DataBar symbologies
Warranty Three-year factory warranty
