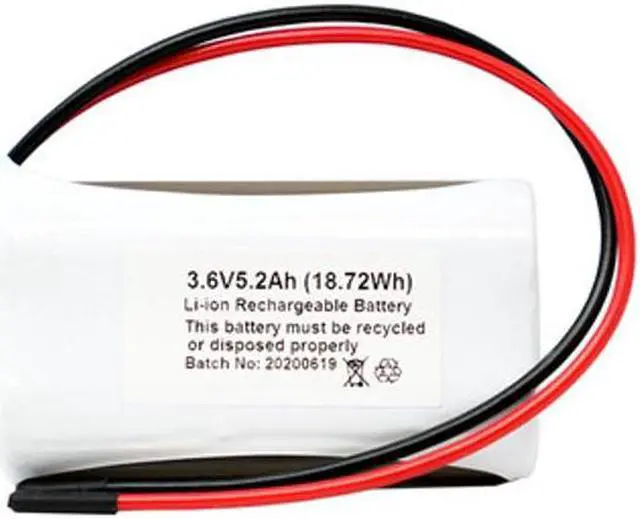

3.7 Volt Lithium Ion Battery Pack (5200 mAh) with Protection IC
- 3.7 Volt Lithium Ion Battery Pack (5200 mAh) with Protection IC
+
+
Overview
Specs
Reviews
Li-Ion Size: 2 x 18650 cells (cylindrical)
Capacity: 5200 mAh
Chemistry: Lithium Ion
Cell Type: 2600mAh (ICR18650 B4)
Working Voltage: 3.7V
Cut Off Voltage: 4.2V
Discharge Cut Off: 2.75V
Protection: PCB - 8 Amp (Protects from Overcharge, Overdischarge, Over Drain and Short Circuits)
Protection: Polyswitch - 4.2 amp (Limits Max Discharge and Protect wrong Polarity)
Max Charging Current: 5 Amp
Max Discharging Current: 7 Amp (Limited by Polyswitch)
Length: 65 mm ( 2.6" )
Width: 37 mm ( 1.46" )
Thickness: 18 mm ( 0.71" )
Weight: 6 oz
No memory effect
Longer storage life then NiMH Batteries
Light weight and higher energy density than any rechargeable battery
Installed PCB (8 Amp) will prevent the battery pack from over charge (> 4.2V ), over discharge( < 2.5 V), Overdrain (> 8.0A mp) and Short Circuits. It helps protect battery chemistry integrity and prolongs battery life.
7Amp polyswitch installed to limit max. discharging current at 7 A and to protect wrong polarity.
The battery module is wrap by PVC shrink and with 18 G wire leads
UN 38.3 Passed for safe transport
Capacity: 5200 mAh
Chemistry: Lithium Ion
Cell Type: 2600mAh (ICR18650 B4)
Working Voltage: 3.7V
Cut Off Voltage: 4.2V
Discharge Cut Off: 2.75V
Protection: PCB - 8 Amp (Protects from Overcharge, Overdischarge, Over Drain and Short Circuits)
Protection: Polyswitch - 4.2 amp (Limits Max Discharge and Protect wrong Polarity)
Max Charging Current: 5 Amp
Max Discharging Current: 7 Amp (Limited by Polyswitch)
Length: 65 mm ( 2.6" )
Width: 37 mm ( 1.46" )
Thickness: 18 mm ( 0.71" )
Weight: 6 oz
No memory effect
Longer storage life then NiMH Batteries
Light weight and higher energy density than any rechargeable battery
Installed PCB (8 Amp) will prevent the battery pack from over charge (> 4.2V ), over discharge( < 2.5 V), Overdrain (> 8.0A mp) and Short Circuits. It helps protect battery chemistry integrity and prolongs battery life.
7Amp polyswitch installed to limit max. discharging current at 7 A and to protect wrong polarity.
The battery module is wrap by PVC shrink and with 18 G wire leads
UN 38.3 Passed for safe transport
