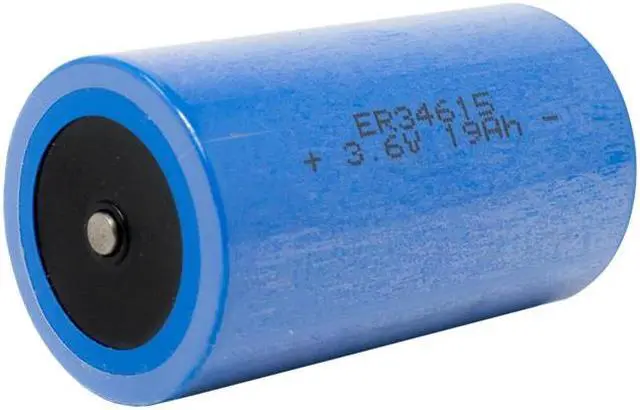

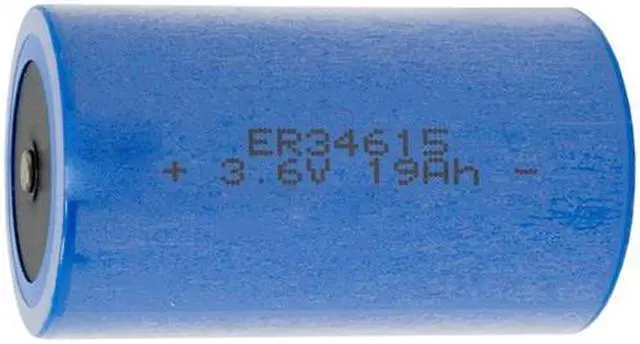

3.6 Volt D 19000 mAh (ER34615) Primary Lithium Battery (Small button)

Chemistry: Lithium Thionyl Chloride
Brand: Power Portable
Nominal Capacity: 19 Ah ( 19000 mAh)
Open Circuit Voltage: (at +20C +68F) 3.66 Volt
Nominal Voltage: (at 1mA +20C +68F) 3.6 Volt
Max.
Continuous Current: 200mA Max
Pulse Current: Up to 400mA
Storage (recommended): +30C +86 F max
Operating Temperature Range: -55C / +85C
Diameter (max): 34.2 mm( 1.4" )
Height (max): 61.5 mm( 2.46" )
Typical Weight: 110g ( 3.6 oz)
Terminal: Small Button
UL Approved --- BBCV2. MH30127
Lithium Thionyl Chloride has the highest energy density of any practical Lithium battery chemistry, three times greater than Alkaline (Zinc Manganese Dioxide) batteries
Widest operating temperature range of -76F to + 185 F
Self discharge is low at less than 1% per annum at +68F, giving an effective shelf life of 10 years
Non-flammable electrolyte

Equivalent Batteries
ER34615H
ER34615C
ER34615M
LSH20
LS33600

This is a non-rechargeable Lithium battery
This is not a high drain battery, please don't use it for the applications with discharging current > 200 mA
The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
Do not use if the battery casing is damaged
Please discharge the battery few minutes with 100mA, if the battery voltage is lower than your need
Don't use different models of battery in series
Soldering the tab should be finished in a few seconds.
