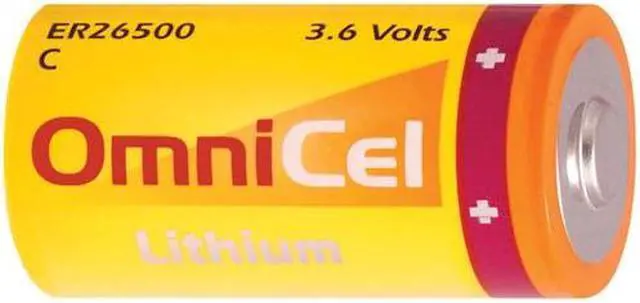

Omnicel 3.6 Volt C 8500 mAh (LS26500 and ER26500) Primary Lithium Battery

Size: C
Capacity: 8500 mAh
Chemistry: Lithium Thionyl Chloride (Li-SOCI2)
Voltage: 3.6 Volt
Brand: Omnicel
Hermetic glass-to-metal sealing
Non-flammable electrolyte
UL Approved --- BBCV2. MH30127

Nominal Capacity: 9Ah (9000 mAh)
Open Circuit Voltage: (at +20C +68F) 3.66V
Nominal Voltage: (at 1mA +20C +68F) 3.6V
Pulse Capability: Typically up to 400 mA
Max.
Continuous Current: 200mA Max
Pulse Current: 300mA
Storage (recommended): +30C +86 F max
Operating Temperature Range: -55C / +85C
Self discharge is low at less than 1% per annum at +68F, giving an effective shelf life of 10 years.
Diameter (max): 26.2 mm ( 1.02 in)
Height (max): 50.5 mm ( 1.98 in)
Typical Weight: 52 g ( 1.8 oz)

Equivalent Batteries
LS26500, LS26500C, TL-4920, TL-5920, TL-2200,
SB-C01, SB-C02, SL-770, XL-140F, XL-145F, PT-2200

This is not rechargeable battery. Do not try to recharge it
The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
Do not use if the battery casing was mangled.
Please discharge the battery few minutes with 100mA, if the battery voltage is lower than your need or consult ABLE.
Don't use different models of battery in series.
Soldering the tag should be finished in few seconds.
This is not high drain battery, please don't use it for application with discrging current > 200mA
