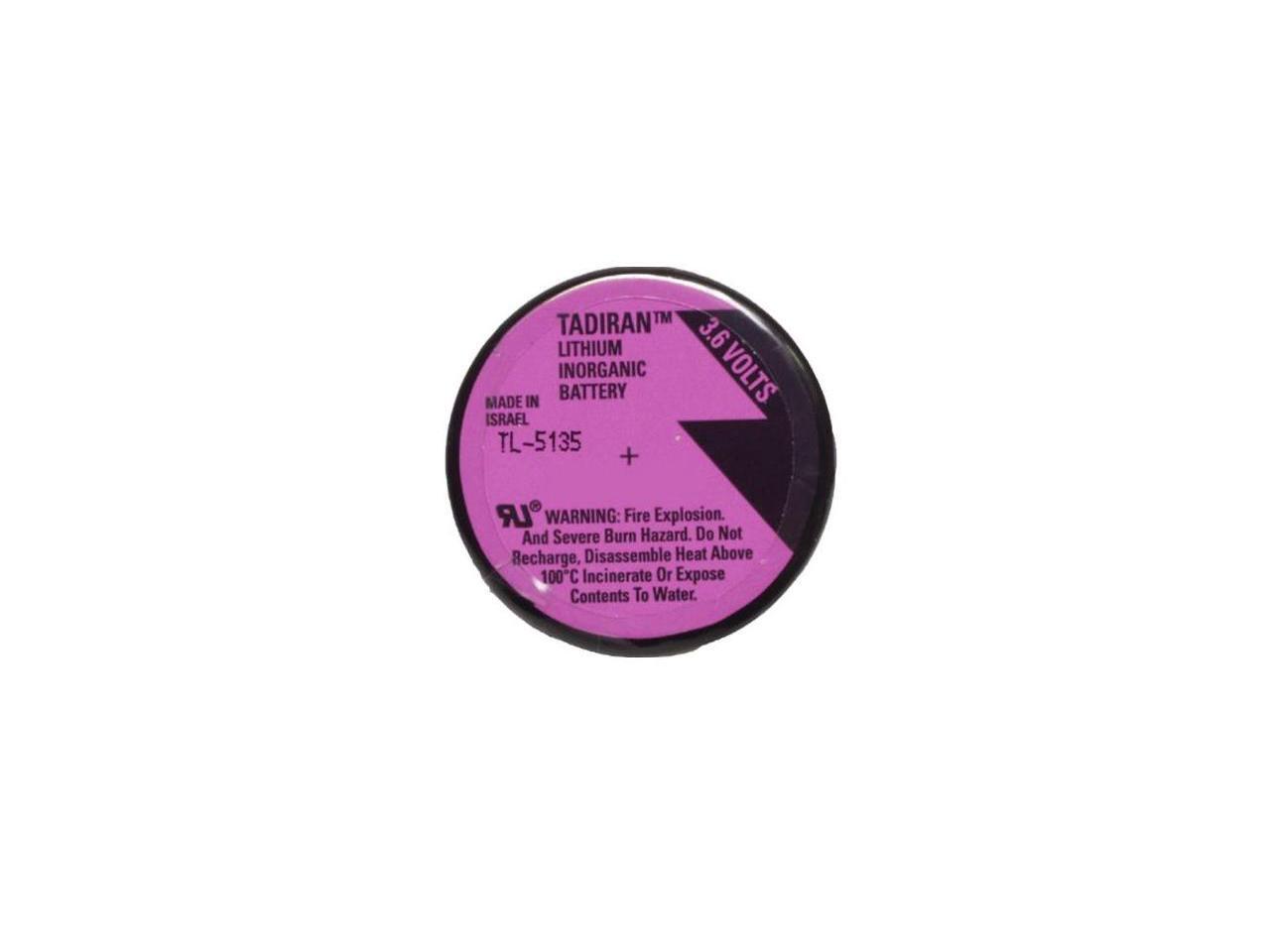

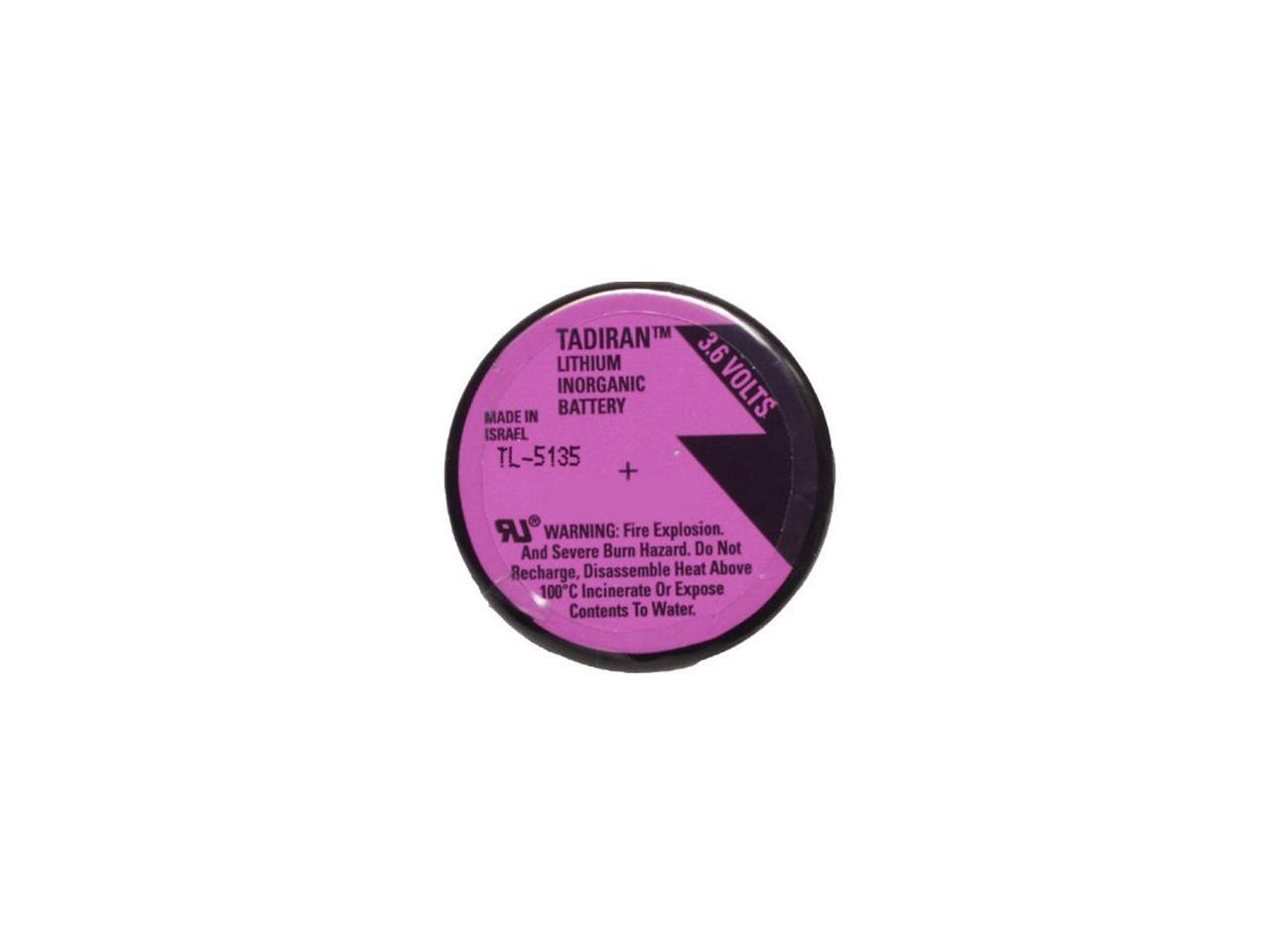

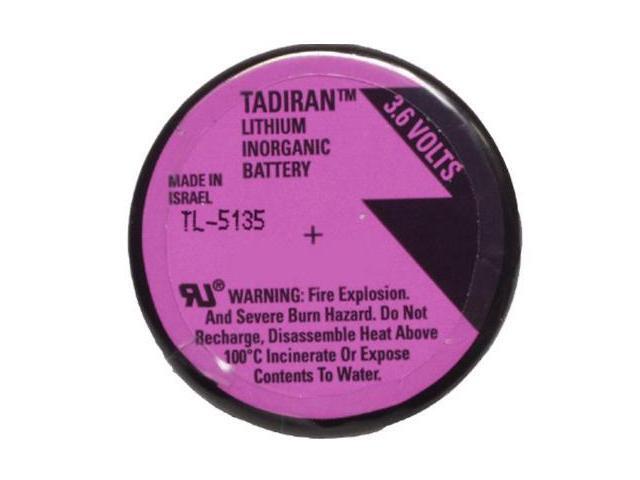

Tadiran TL-5135/P 3.6V 1/6D 1.7 Ah Lithium Battery w/ PC Pins

In stock.
Ships from Canada.
  • 1-pack
  • Lithium
Voltage: 3.6V
Capacity: 1.5
Ah Size: 1/6D -
Wafer Chemistry: Lithium Thionyl Chloride (Li-SOCI2)
Brand: Tadiran
Termination Style: PC Pin (3 pins)
Shelf Life: 10+ Years
Diameter (max): 32.9 mm ( 1.295 in)
Height (max): 13.3 mm ( 0.52 in)
Typical weight: 21.5 g ( 0.76 oz)
Included Qty: 1
Key Features: High operating voltage, stable during most of the application lifetime Some of the highest nominal capacities on the market today Excellent reliability over extended operating life
Operating Temperature Range: -60°C/+85°C (-76°F/+185°F) Low self-discharge rate (less than 1% after 1 year of storage at + 20°C) Excellent resistance to humid environments Low magnetic signature Non-flammable (and non-pressurized at ambient temperature) inorganic (but corrosive) electrolyte Less than 1% capacity loss during storage at ambient temperature before use
Warning: This battery is not rechargeable. Do not try to recharge. The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated Don't use different models of battery in series. Do not use if the battery casing was mangled
