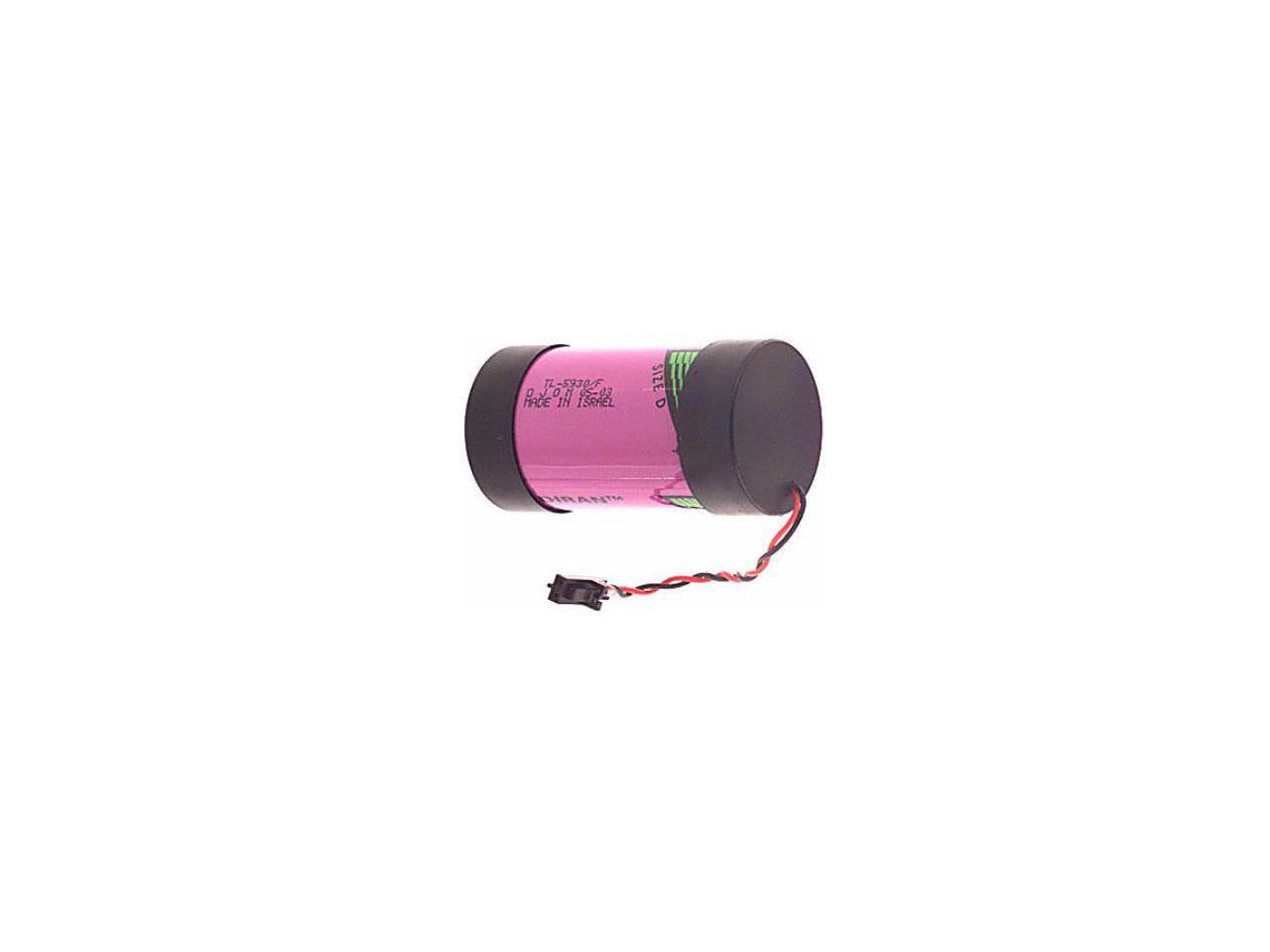

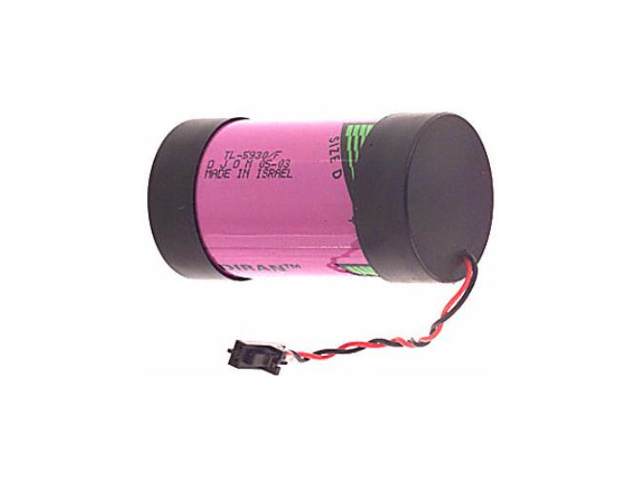

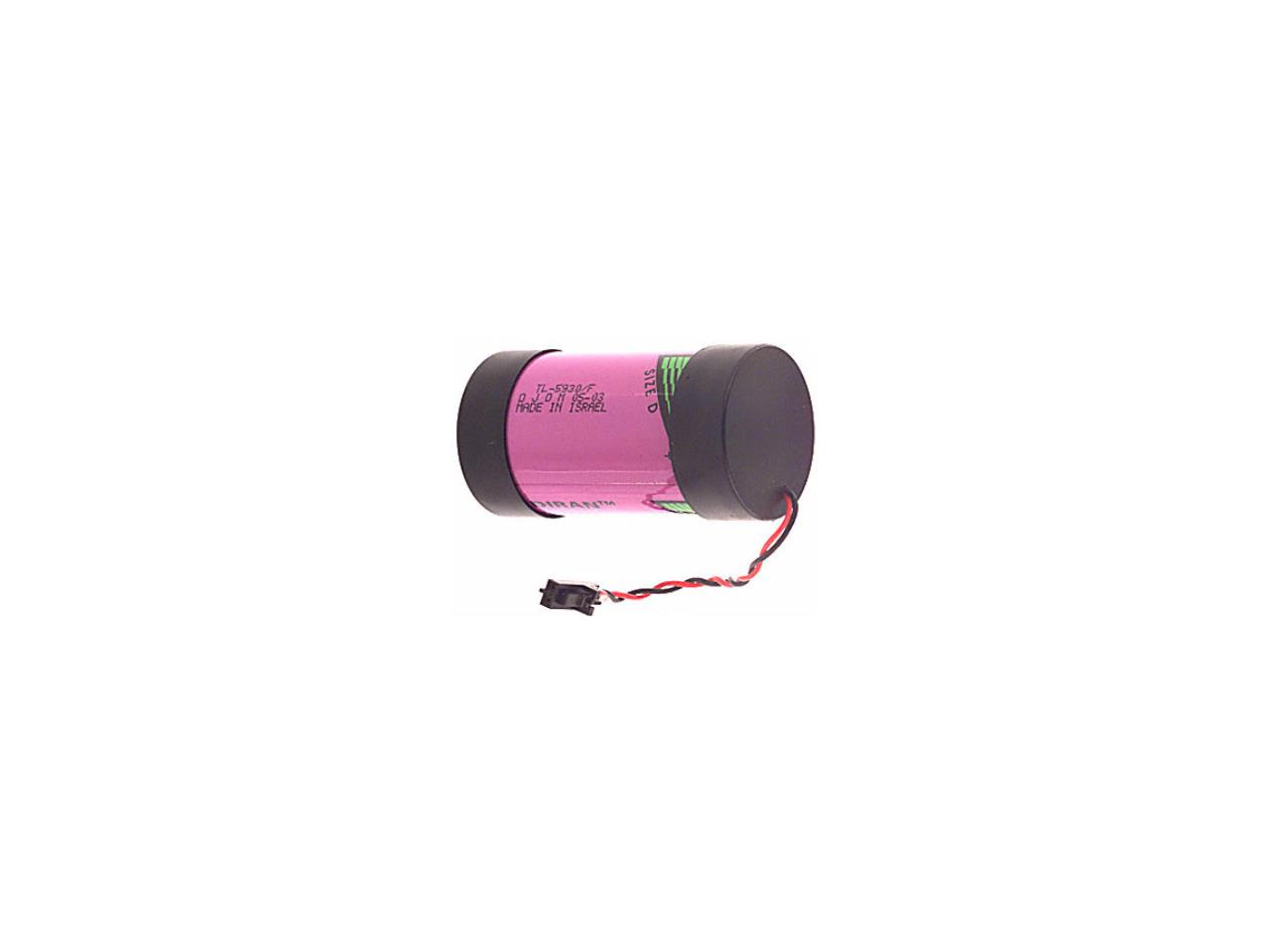

Tadiran TL-5930/F 3.6V D 19 Ah Lithium Battery W/ Connector

In stock.
Ships from Canada.
  • 1-pack
  • Lithium
Voltage: 3.6V
Capacity: 19 Ah
Size: D
Chemistry: Lithium Thionyl Chloride (Li-SOCI2)
Brand: Tadiran
Termination Style: Wire Leads with Connector
Shelf Life: 10+ Years
Maximum Recomended Continuous Current: 230 mA
Maximum Pulse Current Capability: 500 mA
Diameter(max): 33 mm (1.3 in)
Height (max): 61.5 mm (2.4 in)
Typical weight: 105g (3.7oz)
Included Qty: 1

Key Features:
High operating voltage, stable during most of the application lifetime
Some of the highest nominal capacities on the market today
Excellent reliability over extended operating life
Operating Temperature Range: -60°C/+85°C (-76°F/+185°F)
Low self-discharge rate (less than 1% after 1 year of storage at + 20°C)
Excellent resistance to humid environments
Low magnetic signature
Non-flammable (and non-pressurized at ambient temperature) inorganic (but corrosive) electrolyte
Less than 1% capacity loss during storage at ambient temperature before use

This battery is not rechargeable. Do not try to recharge.
The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
Don't use different models of battery in series.
Soldering the tab should be finished in few seconds.
Do not use if the battery casing was mangled
