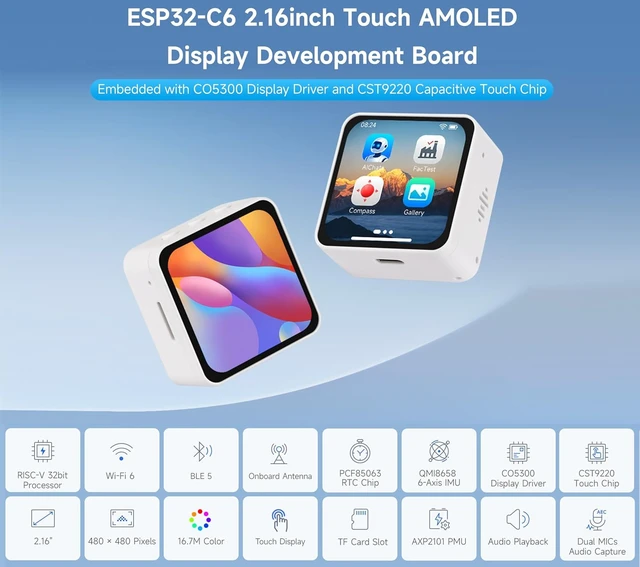

ESP32-C6 2.16inch AMOLED Touch Screen Display Development Board, 480×480

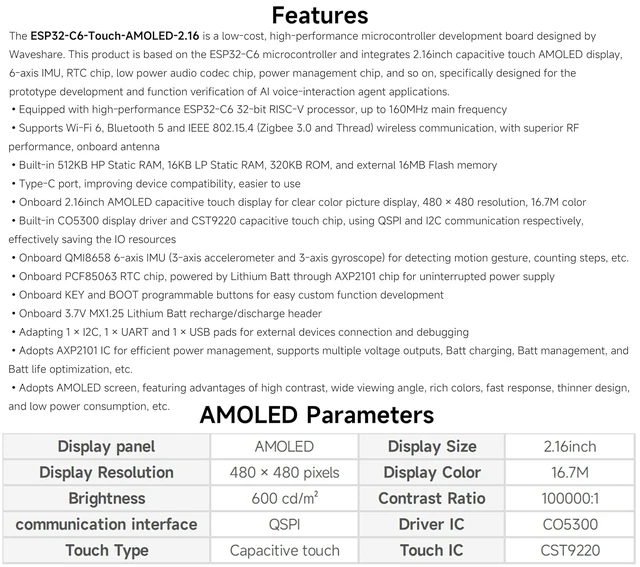

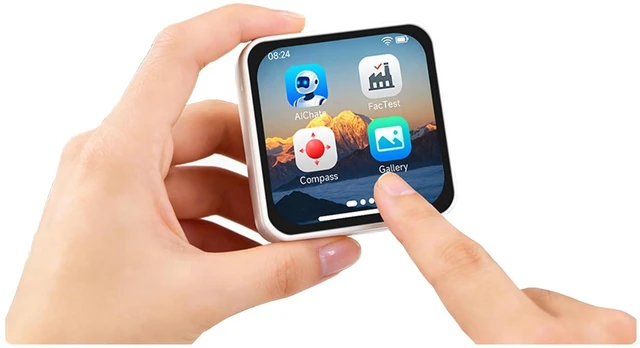

Features 1. High-Performance RISC-V Core and Tri-Mode Wireless Communication---Equipped with an ESP32-C6 32-bit RISC-V processor with a 160MHz clock speed, it features 512KB HP SRAM, 16KB LP SRAM, 320KB ROM, and an external 16MB Flash memory. It supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15. 4 (Zigbee 3.0 and Thread), and includes an onboard antenna for excellent RF performance. 2. 2.16 -inch AMOLED High-Definition Touchscreen---Features a 2.16 -inch capacitive AMOLED touchscreen with a 480×480 resolution and 16.7 million colors. It utilizes a CO5300 driver chip (QSPI interface) and a CST9220 touch chip (I2C interface), minimizing pin usage.

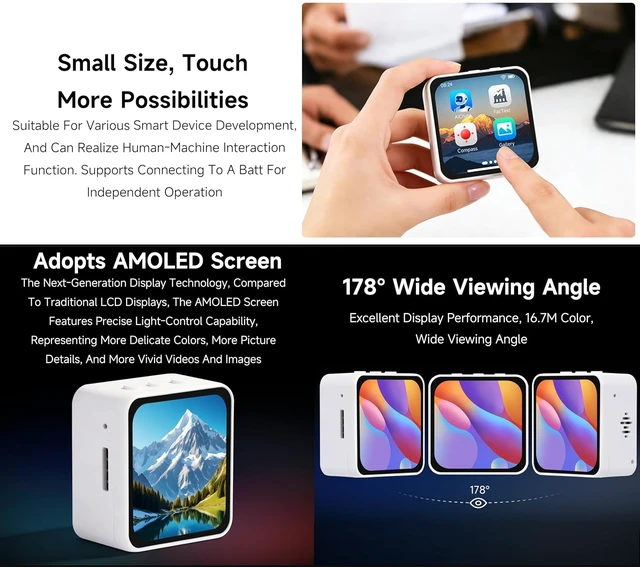

AMOLED offers high contrast, wide viewing angles, rich colors, fast response, and a slim, low-power design. 3. AI Voice Dialogue and Sensing Functionality---Designed specifically for the development and functional verification of AI voice dialogue intelligent agent prototypes, it features onboard dual microphones and an audio codec chip, supporting Xiaozhi AI and DeepSeek. The QMI8658 six-axis IMU (3-axis accelerometer, 3-axis gyroscope) supports motion posture detection and step counting. The PCF85063 RTC connects to the batt via the AXP2101 for uninterrupted power supply. (Batt is not included) 4.

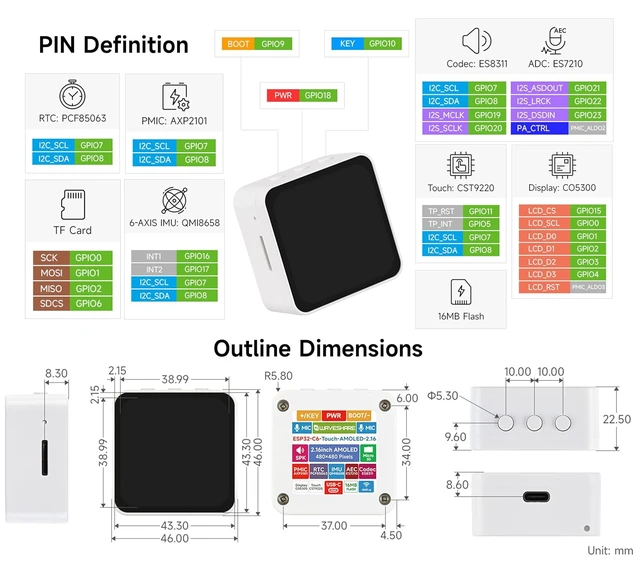

Power Management and Abundant Interfaces---The AXP2101 power management system supports multiple output voltages, charging management, batt management, and lifespan optimization. It features an onboard 3.7V MX 1.25 lithium batt charging/discharging interface. It includes a Type-C interface and programmable side buttons for KEY and BOOT. One I2C, one UART, and one USB pad are provided for easy external connection and debugging. (Batt is not included) 5. CNC Metal Chassis and Development Scenarios---The CNC unibody metal casing is robust and provides excellent heat dissipation. Suitable for AI voice dialogue intelligent agent prototype development and functional verification scenarios.

Package Content ESP32-C6-Touch-AMOLED- 2.16 host x1 PC insulating sheet x1
