ESP32-C6 2.8inch IPS Cap Touch Screen Dev Board, Support AI Chat,with Batt

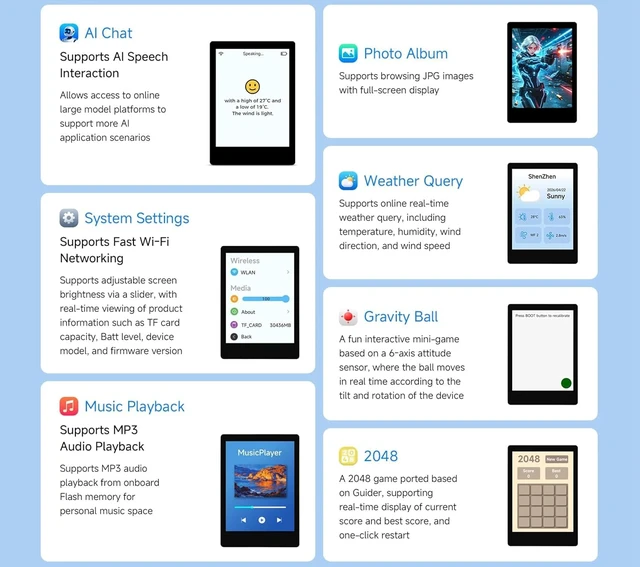

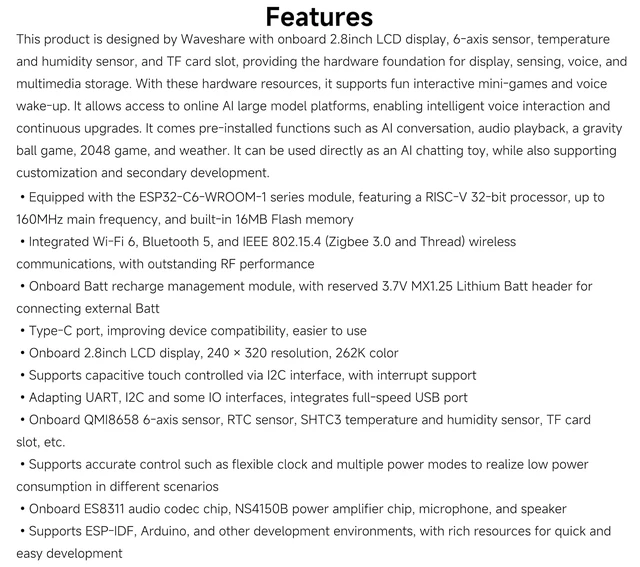

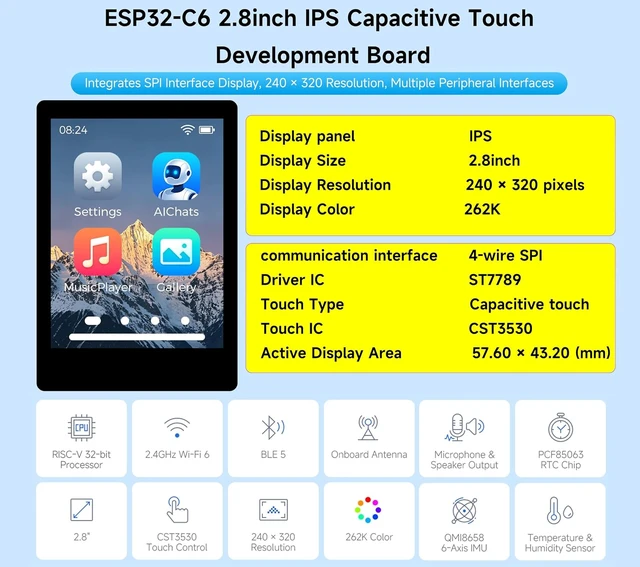

Features ESP32-C6 2.8 inch IPS capacitive touch display development board, onboard 2.8 inch LCD display (240 × 320 resolution, 262K color), 6-axis sensor, temperature and humidity sensor, and TF card slot, providing the hardware foundation for display, sensing, voice, and multimedia storage. With these hardware resources, it supports fun interactive mini-games and voice wake-up. It allows access to online AI large model platforms, enabling intelligent voice interaction and continuous upgrades. It comes pre-installed functions such as AI conversation, audio playback, a gravity ball game, 2048 game, and weather.

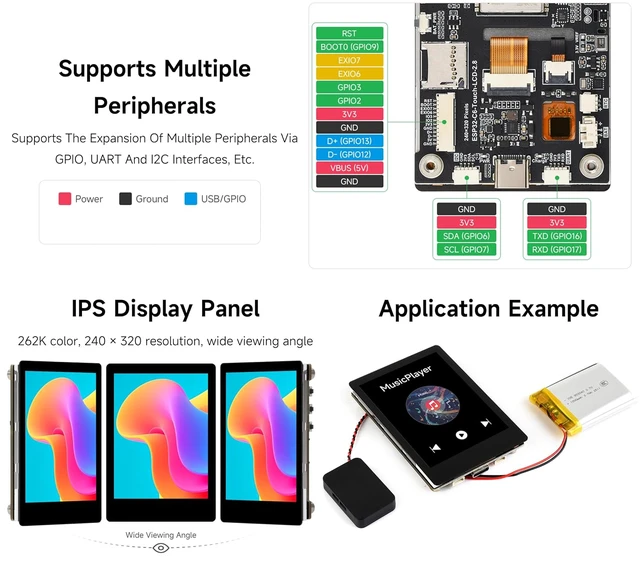

It can be used directly as an AI chatting toy, while also supporting customization and secondary development. Equipped with the ESP32-C6-WROOM-1 series module, featuring a RISC-V 32-bit processor, up to 160MHz main frequency, and built-in 16MB Flash memory. Integrated Wi-Fi 6, Bluetooth 5, and IEEE 802.15. 4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance. Onboard Batt recharge management module, with reserved 3.7V MX 1.25 Lithium Batt header for connecting external Batt. Supports capacitive touch controlled via I2C interface, with interrupt support. Adapting UART, I2C and some IO interfaces, integrates full-speed USB port.

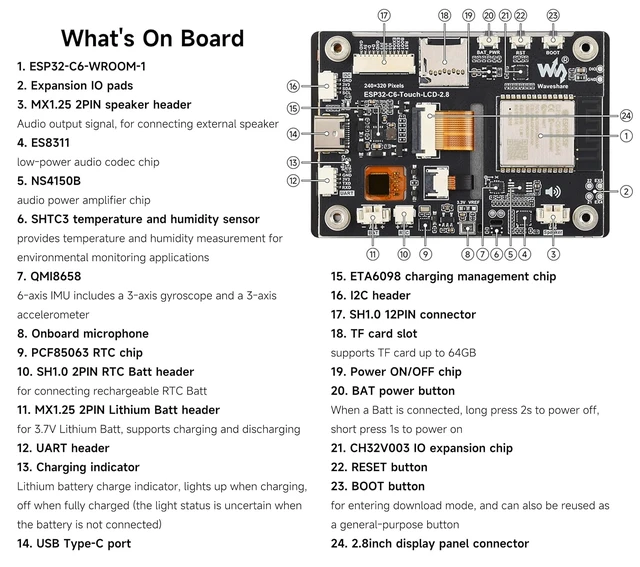

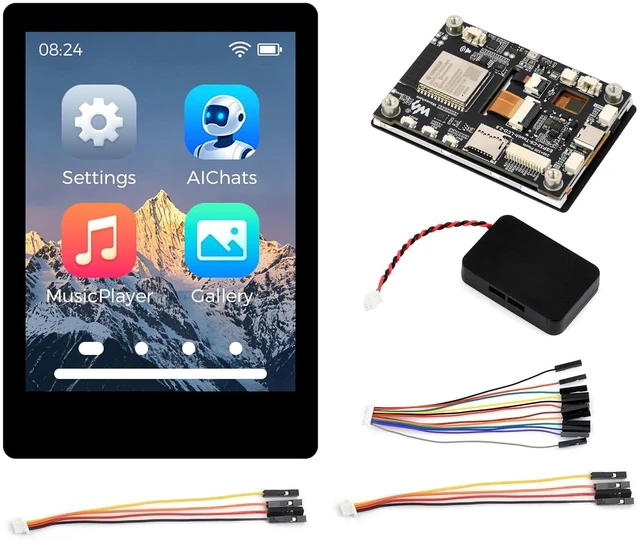

Onboard QMI8658 6-axis sensor, RTC sensor, SHTC3 temperature and humidity sensor, TF card slot, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios. Onboard ES8311 audio codec chip, NS4150B power amplifier chip, microphone, and speaker. Comes with rich resources for quick and easy development: bit. ly/4phvS3k Package Content ESP32-C6-Touch-LCD- 2.8 host x1 SH 1.0 12PIN cable ~100mm x1 SH 1.0 4PIN cable ~100mm x2 8 2W speaker x1 BATT x1
