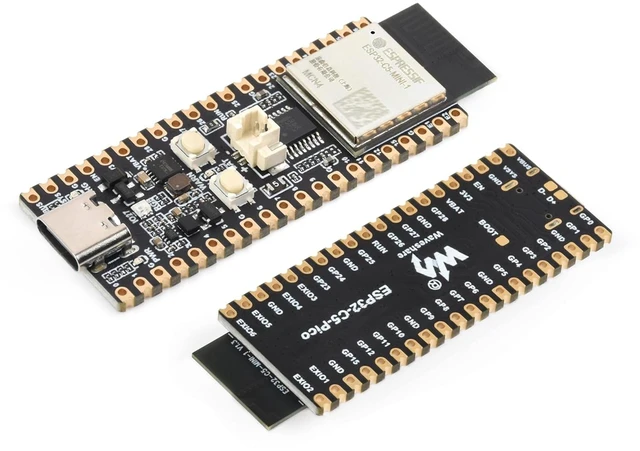

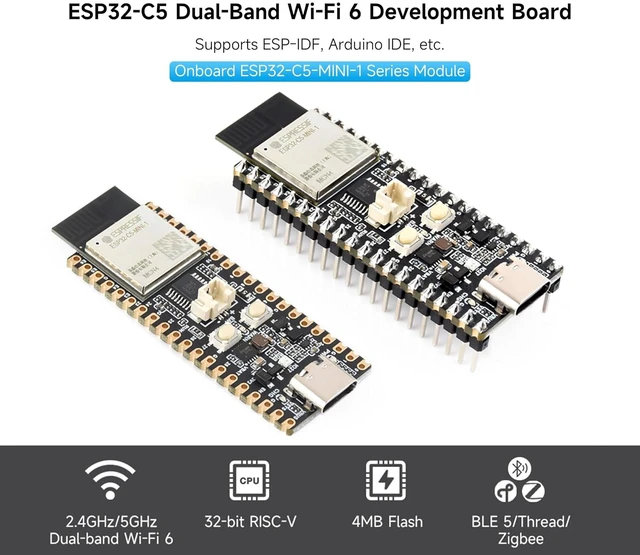

ESP32-C5 Dual-Band Wi-Fi6 Dev Board,Onboard Antenna,No Pre-Soldered Headers

Features 1. Powerful RISC-V Core and Ample Storage --- Utilizes the ESP32-C5-MINI-1 module, featuring a 32-bit RISC-V single-core processor with a 240MHz clock speed; integrates 320KB ROM, 384KB HP S RAM, 16KB LP S RAM, and 4MB Flash. 2. Tri-mode Wireless Communication --- Supports 2.4GH z/5GHz dual-band Wi-Fi 6, Bluetooth 5 (LE), and IEEE 802.15. 4 (compatible with Zigbee 3.0 and Thread), offering excellent RF performance. 3. Efficient Power Management --- Onboard MP1605GTF-Z DC-DC step-down chip, providing a stable 3.3V output with a maximum load current of 2A; integrates ETA6098 power management, supporting lithium batt power supply, charging status indication, and batt voltage detection.

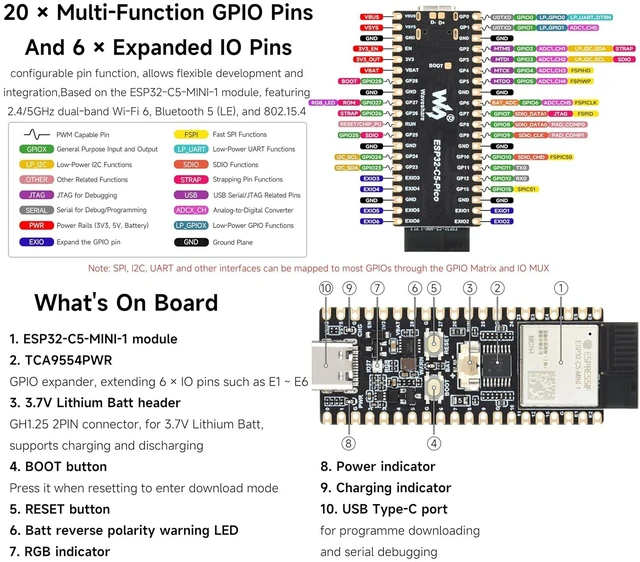

( Batt is not included. ) 4. Abundant Interfaces and GPIO Expansion --- USB Type-C power supply and debugging; multiple GPIO channels, expanded to 6 channels via TCA9554; equipped with peripheral interfaces such as USB, UART, I2C, SPI, ADC, and PWM. 5. Stamp Hole Design and Pico Ecosystem Compatibility --- The stamp hole design allows for direct soldering integration onto the user's baseboard; its size and interface are compatible with most RPi and Pico expansion boards, supporting ESP-IDF and Ardui development environments, suitable for smart home, industrial automation, healthcare, consumer electronics, and AIoT application development.

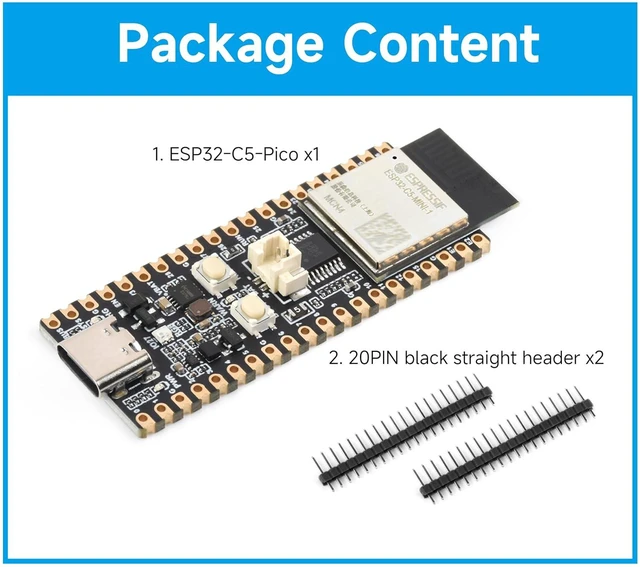

Package Content ESP32-C5-Pico x1 20PIN black straight header x2
