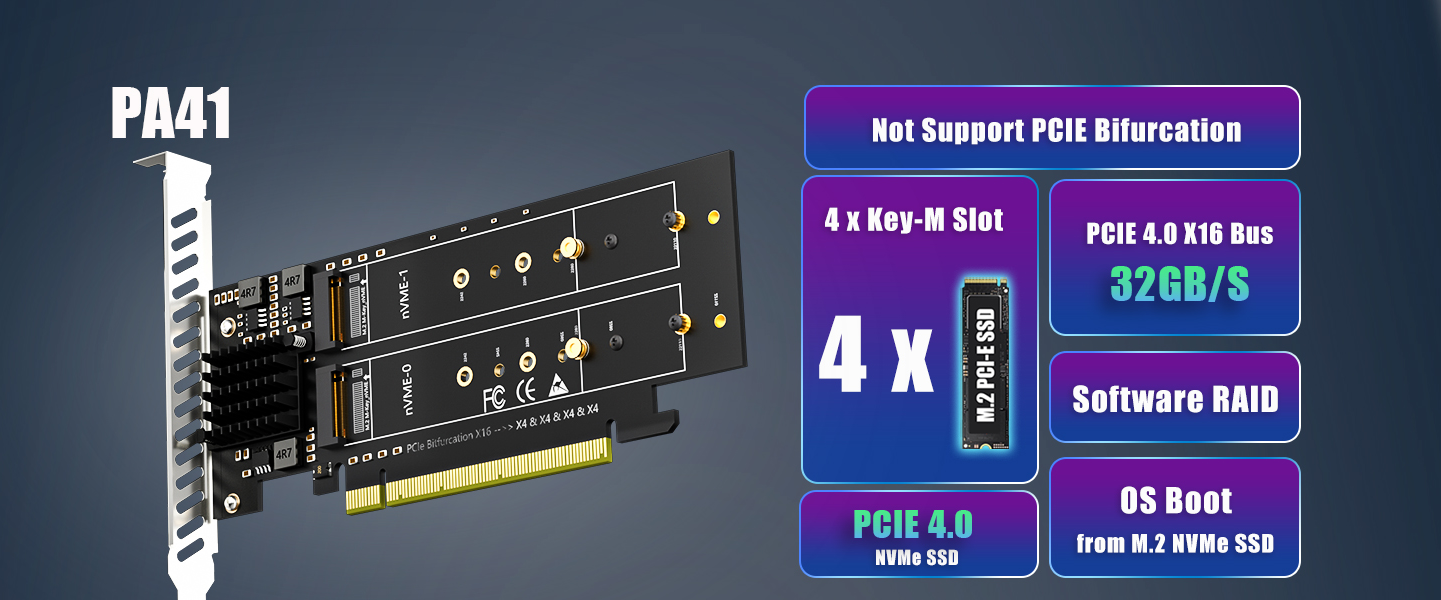

GLOTRENDS PA41 Quad M.2 NVMe to PCIe X16 4.0 Adapter Card without PCIe Bifurcation Function, Support 22110/2280/2260/2242/2230 Size

Be the first to review this product...

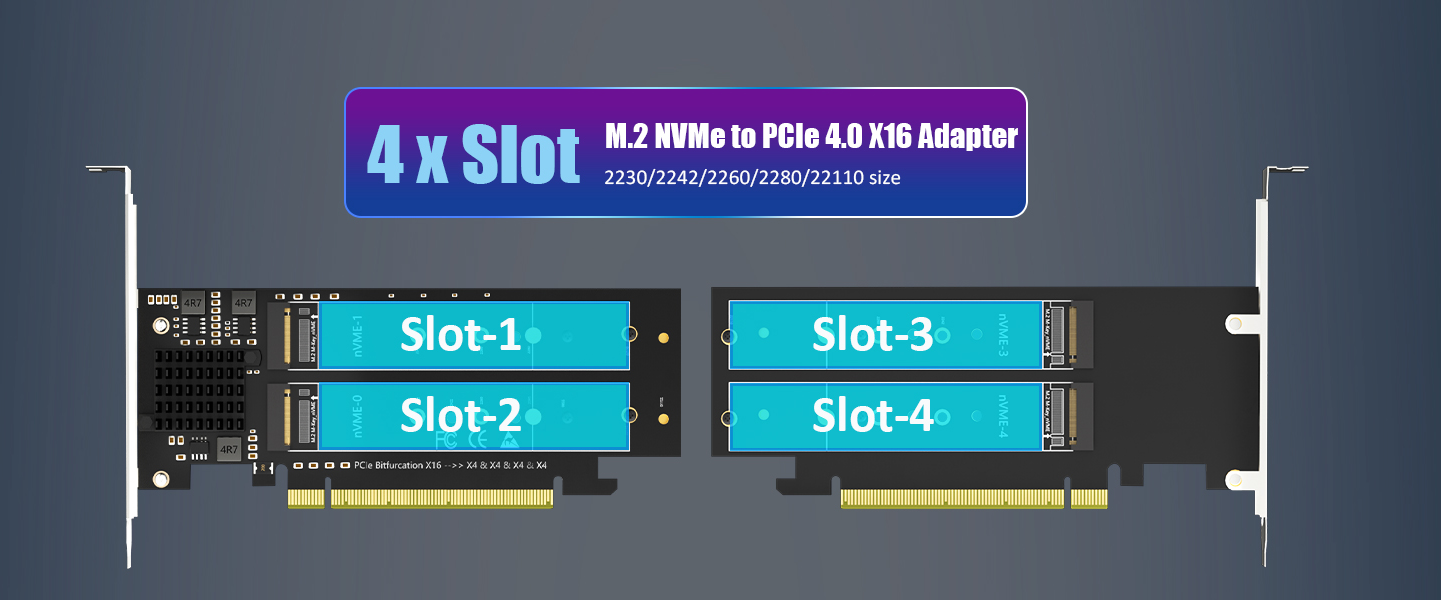

  • Quad M.2 NVMe to PCIe 4.0 X16 Adapter: By installing 4 M.2 NVMe SSDs (Support 22110/2280/2260/2242/2230 M.2 NVMe SSD) on this PCIe 4.0 X16 adapter, your computer will be able to access 4 M.2 NVMe SSDs at the same time
  • Support Soft RAID in Intel/AMD platform, not support Mac Pro 5.1 (Note: To set up Intel's RAID-on-CPU (VROC), you need to purchase your license)

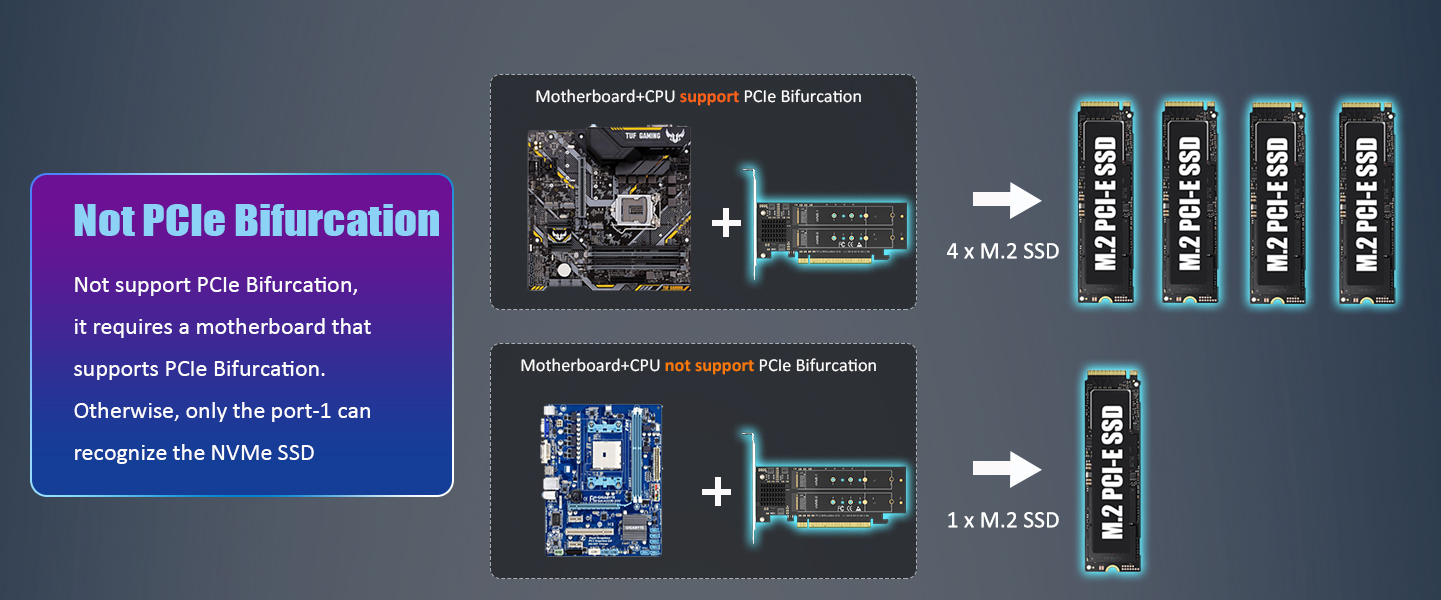

  • Important: Because this adapter does not support PCIe Bifurcation, it requires a motherboard that supports PCIe Bifurcation. Otherwise, only the NVMe-1 port can recognize the NVMe SSD.

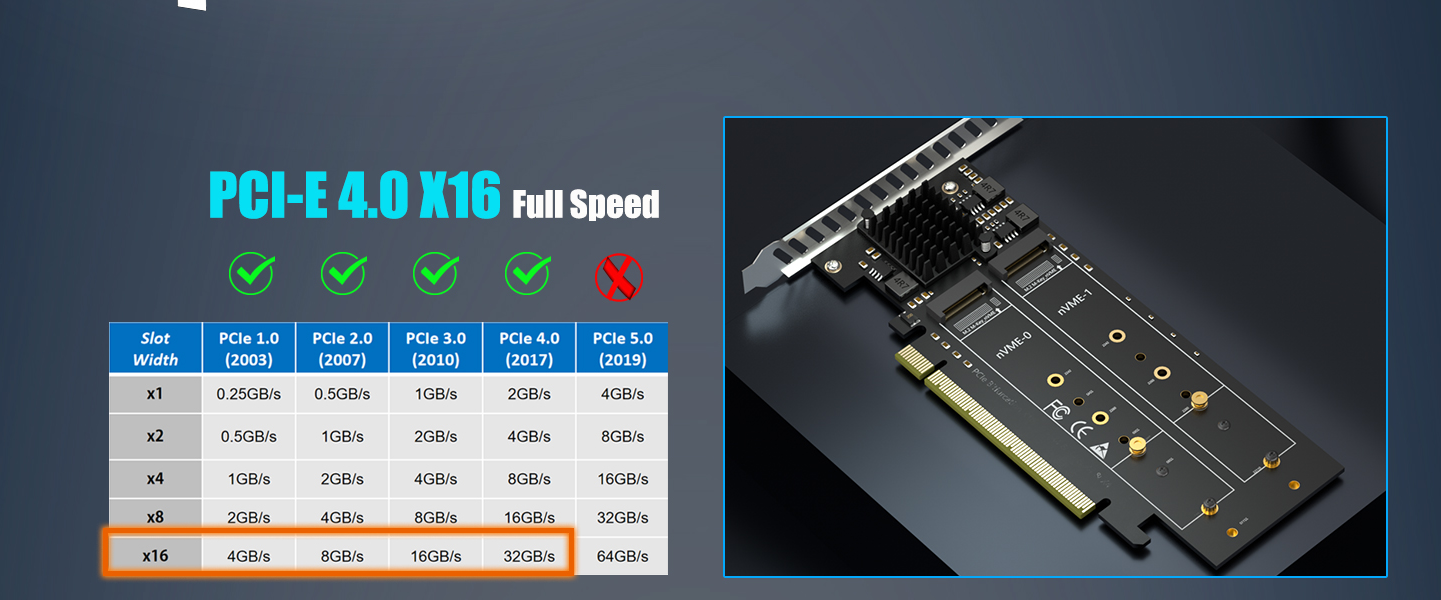

  • To reach PCIe 4.0 X4 (64Gbps) full speed, the CPU and motherboard PCIe slot and PCIe M.2 SSD should all be PCIe 4.0 features (Note: PCIe 4.0 is not supported on Intel CPUs below 11th generation)
  • Plug-and-play in Windows 11/10/8/Linux/Mac OS (Note: Not support Windows 7). The new M.2 NVMe SSD needs to be initialized and formatted before it can be recognized by the computer host.
+
+
Overview
Specs
Reviews
Model: PA41

Interface to PC

PCI-Express 4.0 X16 (256GBbps at max)

Interface to SSD

4 x Key M ( Support 2230/2242/2260/2280/22110 form factor)

OS Compatibility

Windows and Linux (Note: not support windows 7)

PCIe Bifurcation

Not support, so it requires a motherboard that supports PCIe Bifurcation

Hardware Platform

Intel and AMD motherboard with PCIe Bifurcation (Note: not support Mac Pro)

CPU Requirements

Intel 11th Gen or Ryzen 5000 Series and above

RAID Setup

Software RAID setup via Windows Disk Management or Linux mdadm Utility

Installation

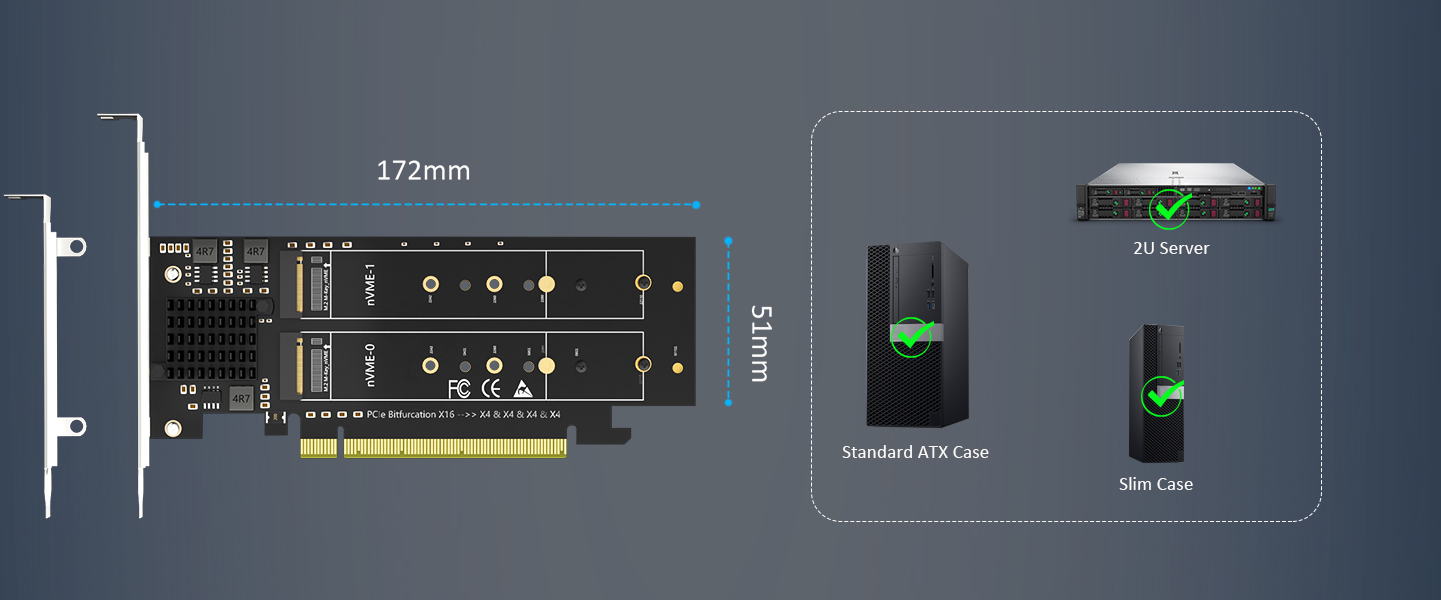

Low-profile and Regular-profile bracket
Quad M.2 NVMe to PCIe 4.0 X16
Quad M.2 NVMe to PCIe 4.0 X16
Quad M.2 NVMe to PCIe 4.0 X16
Quad M.2 NVMe to PCIe 4.0 X16
Quad M.2 NVMe to PCIe 4.0 X16
Quad M.2 NVMe to PCIe 4.0 X16

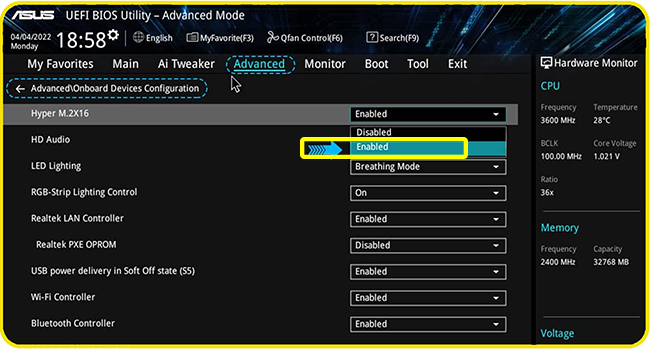

PCIe Bifurcation in ASUS BIOS

Enable Hyper M.2 <---> Advanced\Onboard Devices Configuration

Quad M.2 NVMe to PCIe 4.0 X16

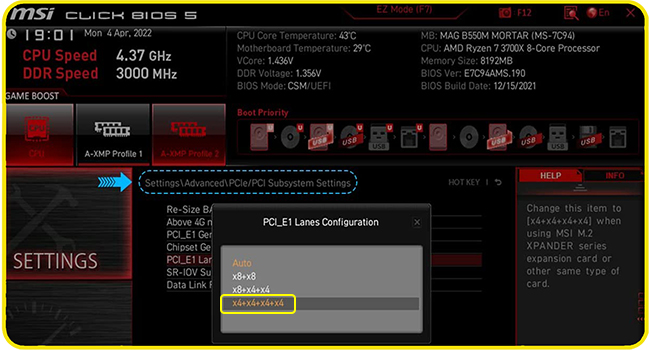

PCIe Bifurcation in MSI or others BIOS

Configure PCIe x4+x4x4+x4

Quad M.2 NVMe to PCIe 4.0 X16

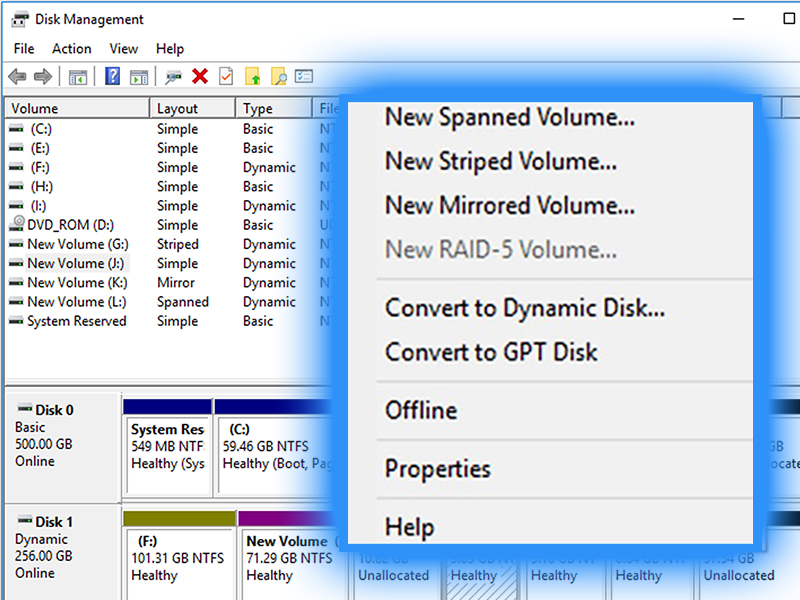

RAID Setup in Window 10/11
Software RAID for M.2 NVMe SSD
  1. When you locate 4 separate M.2 NVMe SSDs in Windows 10/11 Disk Management
  2. Right-click the disk volume you want to set up as a soft RAID
  3. A pop-up window will appear; click the desired option (Spanned/Striped/Mirrored)
Products
M.2 PCIE Adapter PA09-HS
M.2 PCIE Adapter PA09-X1
M.2 PCIE Adapter PA09-SA
M.2 PCIE Adapter PA12-HS
M.2 PCIE Adapter PA20
M.2 PCIE Adapter PA40
Internal Interface PCI-Express 4.0 X4 PCI-Express 4.0 X1 SATA III PCI-Express 4.0 X4 + SATA III PCI-Express 3.0 X4 PCI-Express 3.0 X8
External Interface Key M Key M Key B Key M + Key B 2 x Key M 4 x Key M
Quad M. 2
PCIe SSD Host Adapter: add 4 x M. 2 PCIe (NVMe/AHCI) SSD (M-Key) onto a single PCIe X16 host adapter, so you can access 4 x M. 2 PCIe SSD individually, or setup soft RAID in windows/Linux/3rd party software.
M. 2 PCIe RAID for
Intel/AMD Platform: Support M. 2 NVMe SSD RAID-on-CPU (VROC) in Intel Platform, but you need to purchase Intel VROC license by yourself. Support M. 2 NVMe RAID in AMD Platform. Not compatible with Mac Pro 5.1
Note: Without pcie splitter function in this host adapter (ASM1184E chip), so motherboard must support PCIe Bifurcation. Otherwise, only one M. 2 PCIe SSD will be recognized. If you are not sure PCIe Bifurcation of your motherboard, please consult motherboard munufacture or contact us via amazon message
Please setup pcie splitter in BIOS/UEFI into X4X4X4X4 (Compatible with Hyper M. 2 X16 mode in ASUS). Number of M. 2 PCIe SSD may vary depending on different CPUs and motherboards.
Chipset support PCIe Bifurcation: Intel Platform X299, C422, C621, Z390, Z370, Z490, Z590, Z690, X99; AMD Platform TRX40, X399, X570, X470, B550, B450, Z590, etc.
Please make sure BIOS/UEFI support native NVMe and OS boot from PCIe lane, then this Quad M. 2 PCIe SSD Host Adapter support OS boot from M. 2 PCIe SSD or M. 2 PCIe RAID.
Compatible with PCIe 4.0 / 3.0 / 2.0 motherboards, and install into PCI-Express X16 lane. To reach PCIe 4.0 speed, make sure your CPU and motherboard and PCIe SSDs are all PCIe 4.0 enabled. To reach PCIe X16 full bandwidth, setup 4 x M. 2 PCIe SSD into RAID 0 mode.
