APG Cash Drawer BluePRO Model 510 Bluetooth Interface Adapter for Direct Drive Printer-Kick Cash Drawer

OUT OF STOCK.
Ships from Canada.
Most customers receive within 5-9 days.
Overview
Specs
Reviews
APG Cash Drawer BluePRO Model 510 Bluetooth Cash Drawer Interface Adapter
Part # Ba-0510-101A-02

The APG Cash Drawer Ba-0510-101A-02 is a Bluetooth-enabled cash drawer interface adapter which lets retailers wirelessly connect an APG printer-kick cash drawer to a Bluetooth-enabled host device (such as tablet and handheld). Whether operating in a Thin or Mobile (Thinbility) environment, it allows retailers to wirelessly synchronize and create a one-to-one relationship between the cash drawer and tablet.

The adapter implements advanced Bluetooth 2.1 technology for excellent wireless performance. The wireless operating frequency ranges from 2402-2480MHz. Transactional pairing is achieved when the host device is placed within the limited range of the adapter. Once paired, an application running on that host may transit commands to control the cash drawer.

Additionally, the cash drawer interface adapter requires the use of a 24VDC power adapter which is included. A Multi-Pro cable (part# CD-101A) is also offered.

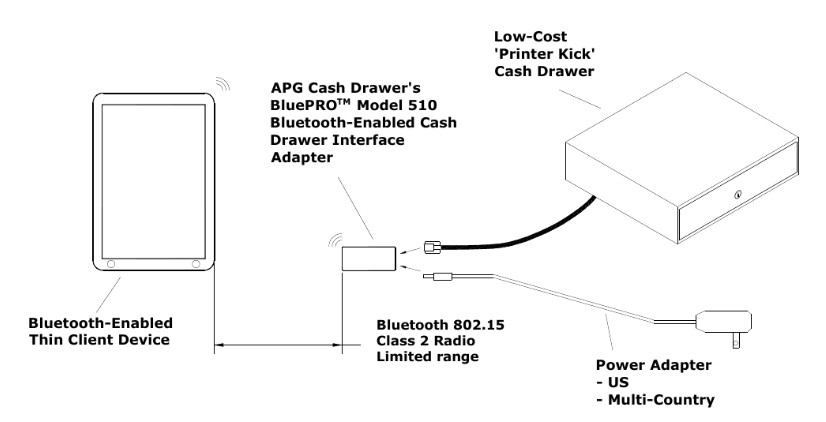

Connection Diagram

Note: * The cash drawer interface adapter does not provide a cash drawer open/closed status reporting. Drawer status reporting feature must be activated by the user.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
