MSI MAG Z590 TOMAHAWK WIFI LGA 1200 Intel Z590 SATA 6Gb/s ATX Intel Motherboard
- Intel Z590
- Supports 11th / 10th Gen Intel Core processors
- Supports Intel Pentium Gold / Celeron processors
- DDR4 1R 3200 / 2933 / 2666 / 2133 for 11th Gen Intel CPU (by JEDEC & POR)
- DDR4 1R 2933 / 2666 / 2133 for 10th Gen Intel CPU (by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5333
- 1DPC 2R Max speed up to 4700+
- 2DPC 1R Max speed up to 4400+
- 2DPC 2R Max speed up to 4000+
MAG Z590 TOMAHAWK WIFI
Core Boost Technology
An optimized power circuit layout is ready to unleash maximum performance.
6 layer PCB with 2oz Thickened Copper
An enhanced PCB material design improves signal transmission for high performance capabilities across the motherboard.
Robust digital power regulator keeps the system running smoothly under extreme conditions.
PCIe Steel Armor
Reinforced and shielded PCIe slots for strength and stability.
MAG Z590 TOMAHAWK WIFI

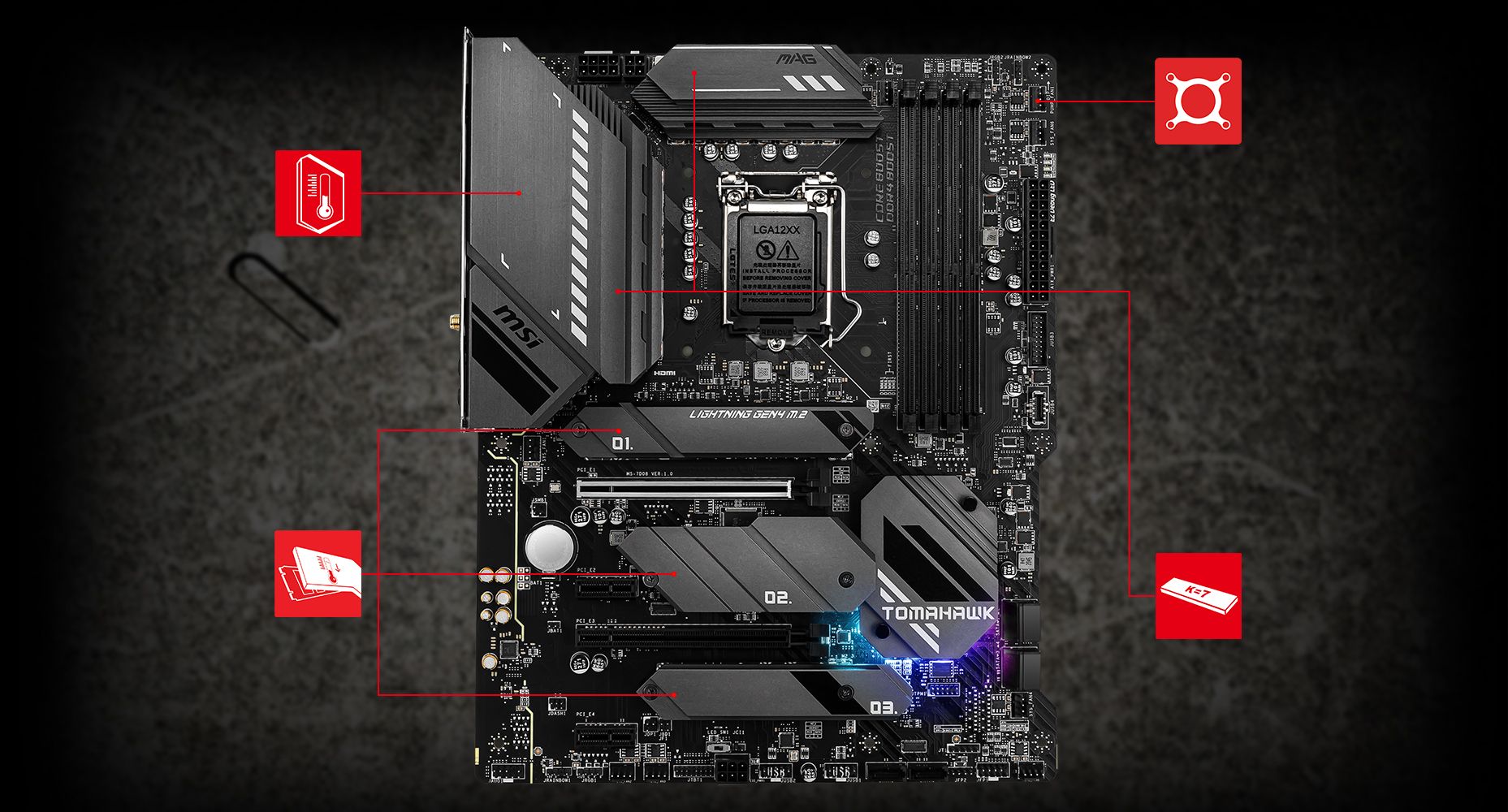

PREMIUM THERMAL SOLUTION
Larger heatsink design for cooling and performance.
M.2 Shield Frozr
Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR and prevent SSD thermal throttling.
Pump Fan Support
Control watercooling pump speeds for flowrate and noise control.
Heatsinks with 7W/mK Thermal Pad
7W/mK thermal pad provides better heat transfer to the heatsink
MAG Z590 TOMAHAWK WIFI
2.5G Network Solution
Onboard 2.5 Gigabit Ethernet LAN with gaming LAN manager.
Intel Wi-Fi 6E
Featuring the latest wireless solution, delivering speeds up to 2400Mbps and supports MU-MIMO and BSS color technology.
Audio Boost 5
ALC4080 Codec with high quality caps for immersive gaming audio.
The memory circuit design has been optimized on a reserved section of the motherboard fully isolated from other circuits.
Lightning Gen 4 Solution
Transfer data lightning fast across Gen 4 PCI-E and M.2 with up to 64GB/s bandwidth.
Larger heatsink for maximum cooling.

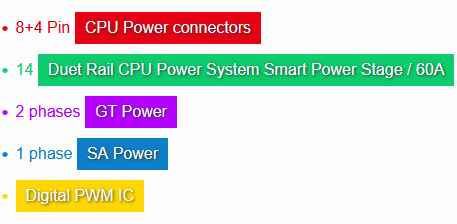

DUET RAIL POWER SYSTEM
Unleash the full potential of the processor with the mighty VRM design. Featuring 17x 60A DrMOS and Duet Rail Power System.
Core Boost combines a reserved zone of optimized circuits and premium power delivery components to create a highly efficient power system capable of precise current output to the CPU.
LIGHTNING GEN 4 SOLUTION
Strike fast with MSI Lightning Gen 4 PCI-E. Attach ultra fast PCI-E 4.0 devices and enjoy up to 64GB/s unidirectional transfer bandwidth. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.

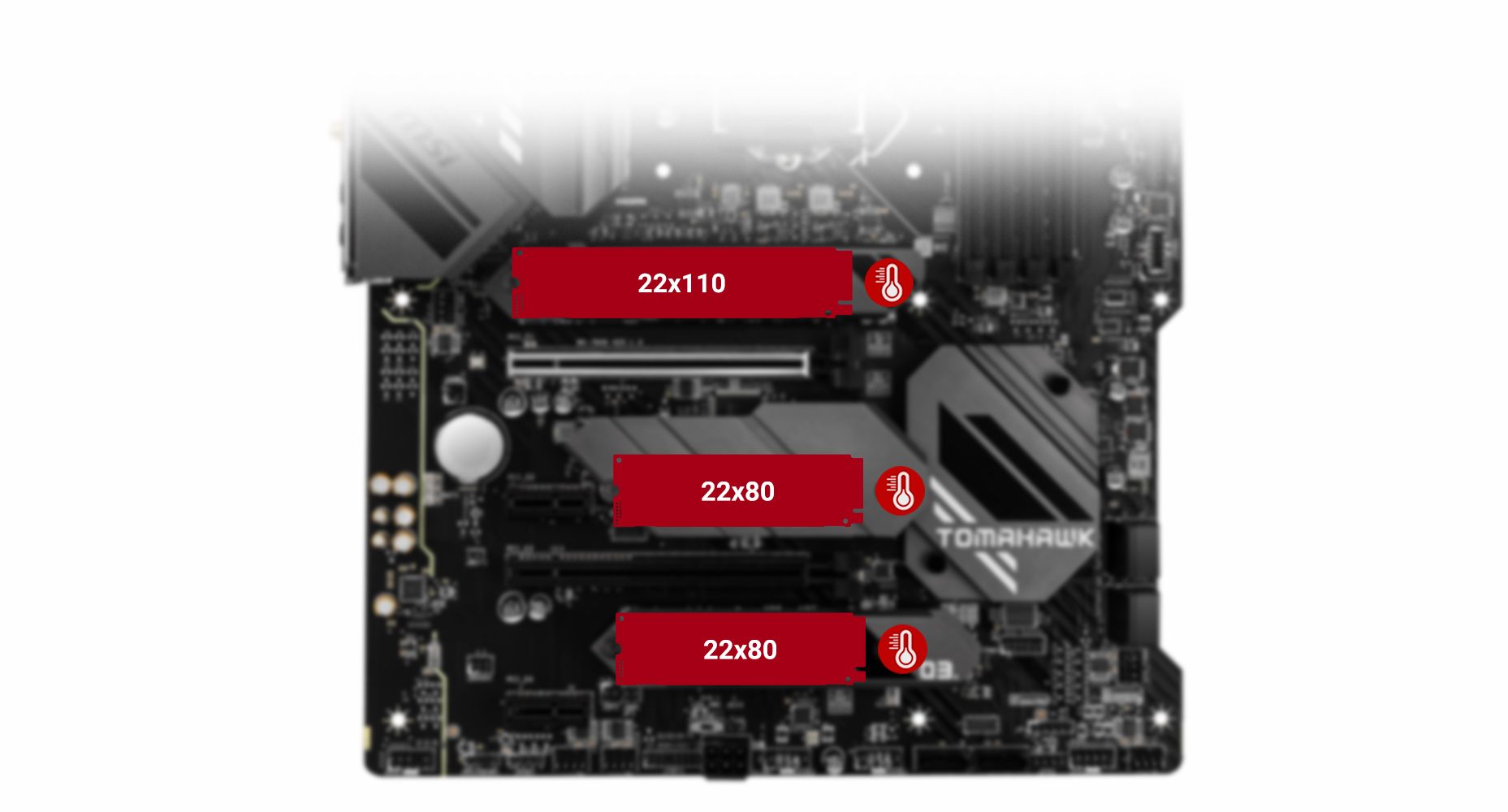

M.2 SHIELD FROZR
The world's fastest SSDs can slow down when they get too hot. M.2 SHIELD FROZR extends the motherboard's heatsink over attached M.2 SSDs to prevent thermal throttling and sustain maximum performance.
WI-FI 6E & BLUETOOTH
Connect to a high-speed Wi-Fi network with onboard Wi-Fi 6E. OFDMA and two-way MU-MIMO technology optimize data transmission and deliver speeds up to 2.4Gbps.

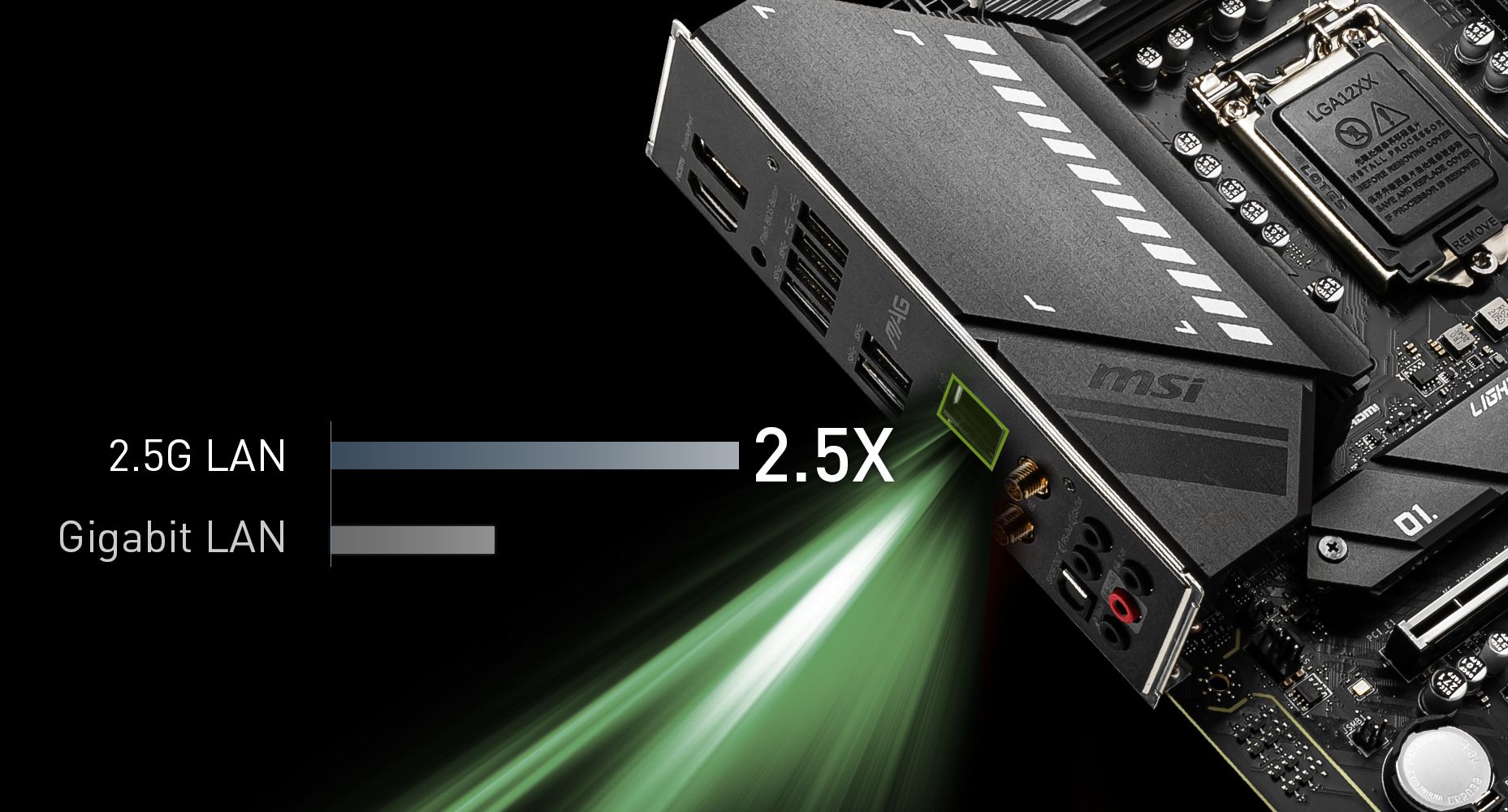

MAXIMIUM DATA TRANSFER WITH 2.5G LAN
MAG Z590 TOMAHAWK WIFI features onboard 2.5Gbps Ethernet LAN, for gamers who demand high-bandwidth and low-latency network connectivity. Prioritize latency-sensitive applications with MSI LAN Manager for a superior online experience.

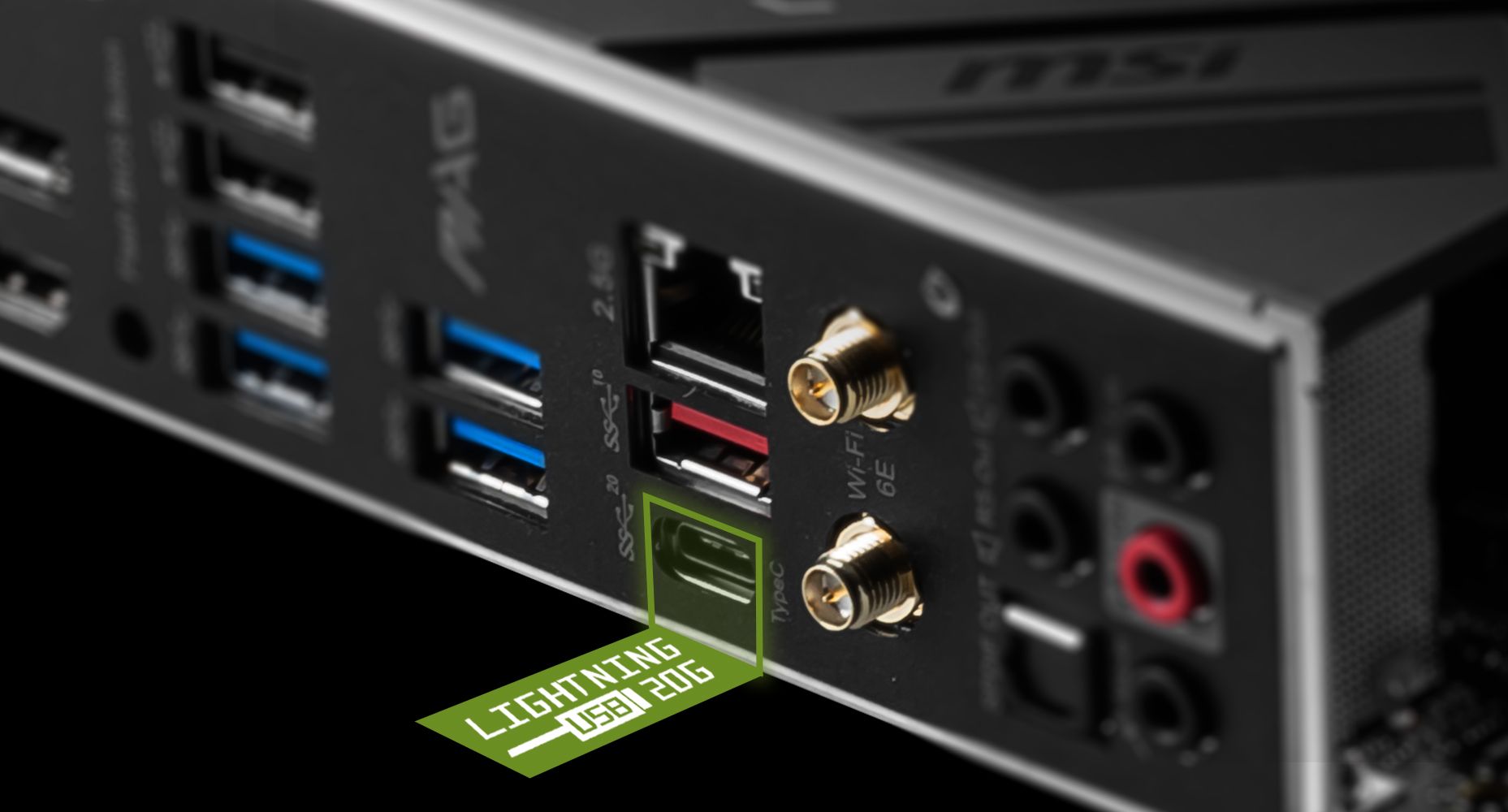

Ultra-Fast Lightning USB 20G
Connect the rear USB Type-C port and quickly move large files including uncompressed video, raw images, and bulky simulation data across USB 3.2 Gen 2x2 with transfer speeds up to 20Gbps.

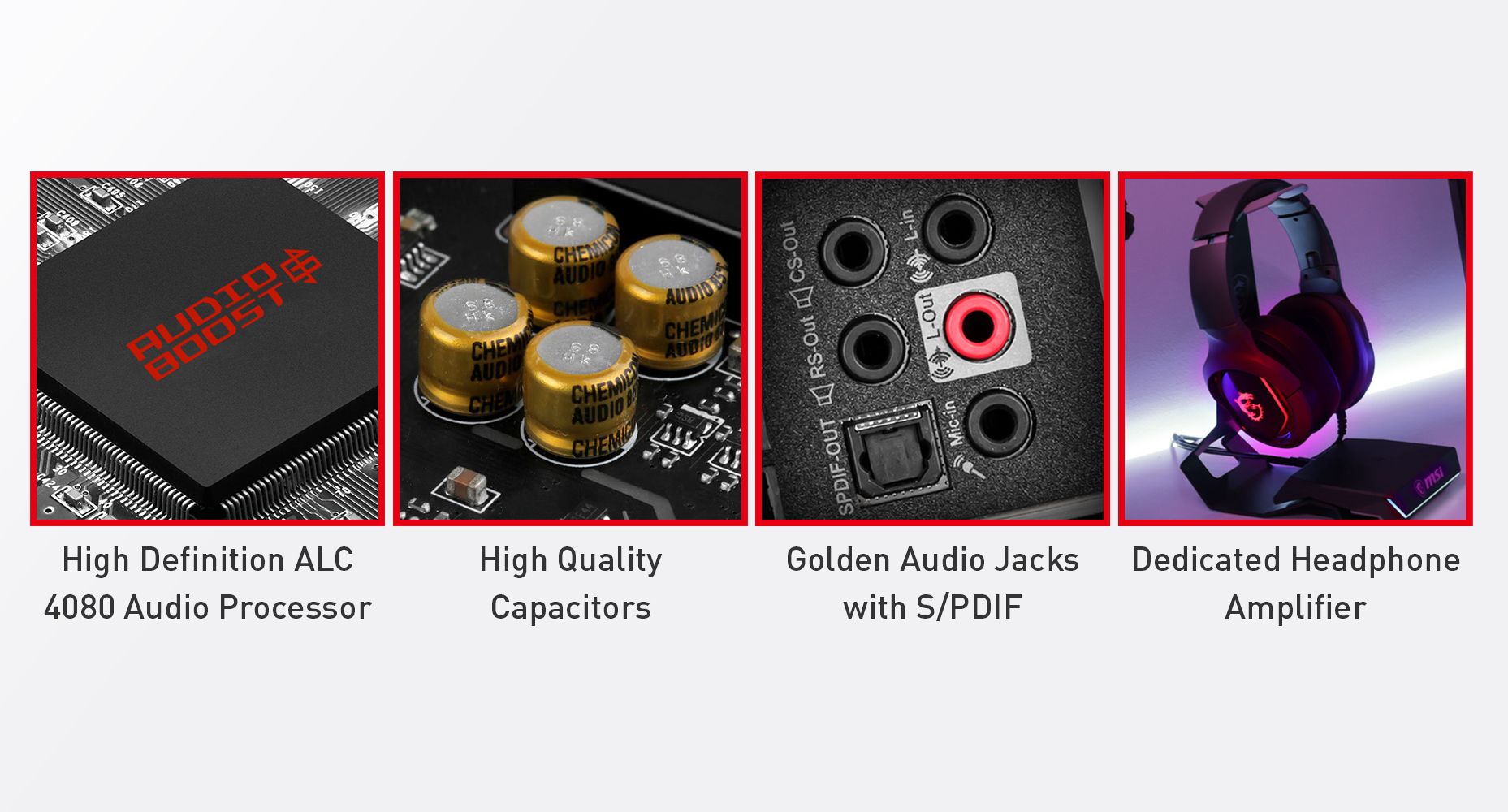

AMPLIFY YOUR EXPERIENCE WITH AUDIO BOOST 5
Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by an ALC 4080 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.

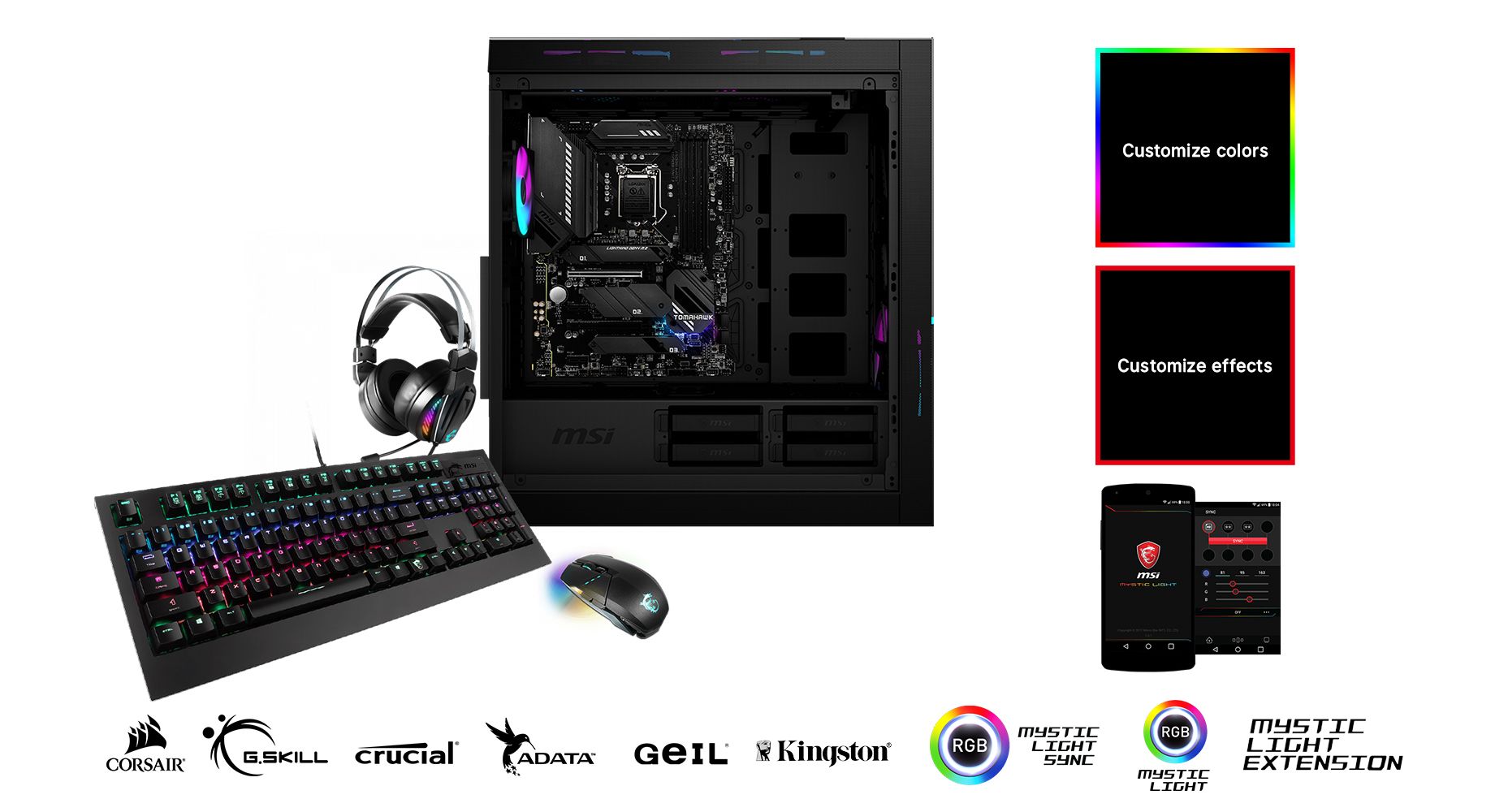

CUSTOMIZE YOUR GAMING RIG
Personalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.

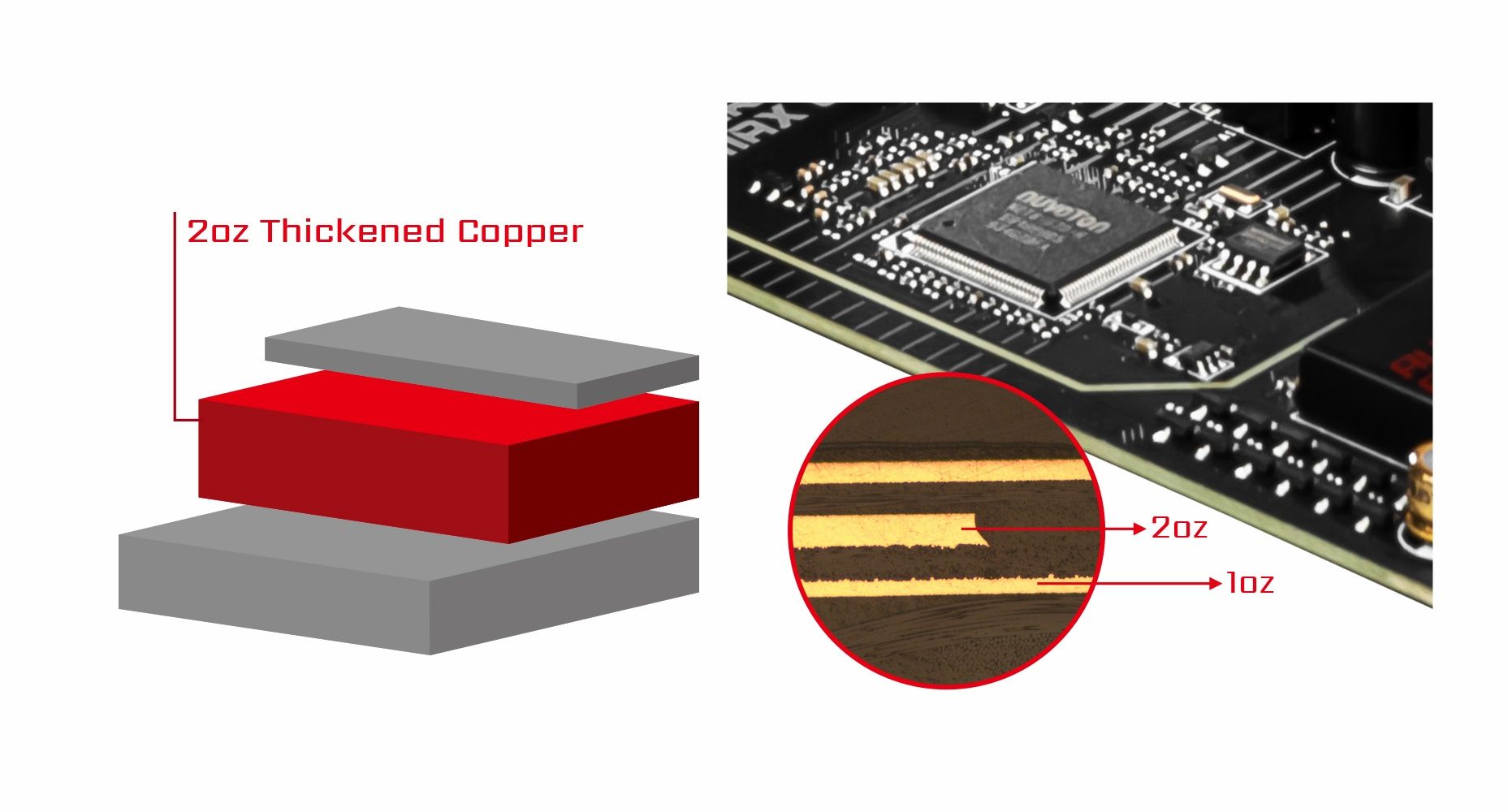

PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.

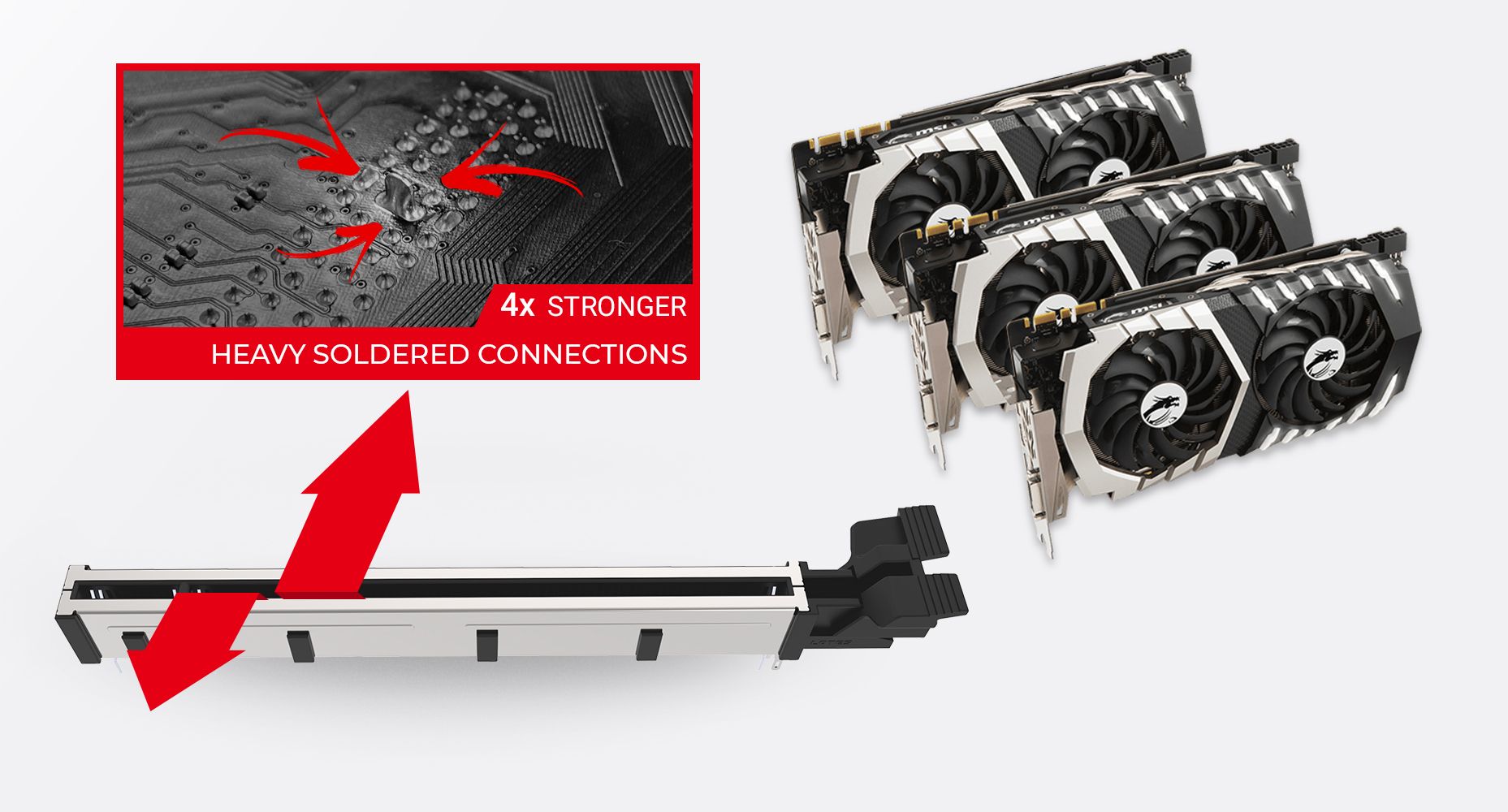

MULTIPLE GPU SUPPORT AND STEEL ARMOR
MAG Z590 TOMAHAWK WIFI supports AMD CrossFire multi GPU technology. PCI-E slot placements provide optimal airflow for graphics card cooling. MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage counts, Steel Armor shields the point of contact from electromagnetic interference.
